OTD04-50PS-T3

Ambient Temperature During Operation	-25.0 ... 65.0°C
Color	Red

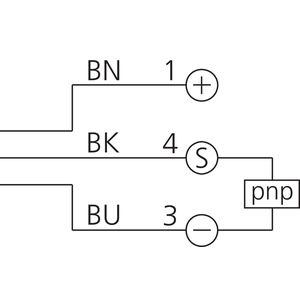

Connection	Connector M8 3-pin
Design	Cylinder
Diameter	4 mm
Evaluation	digital

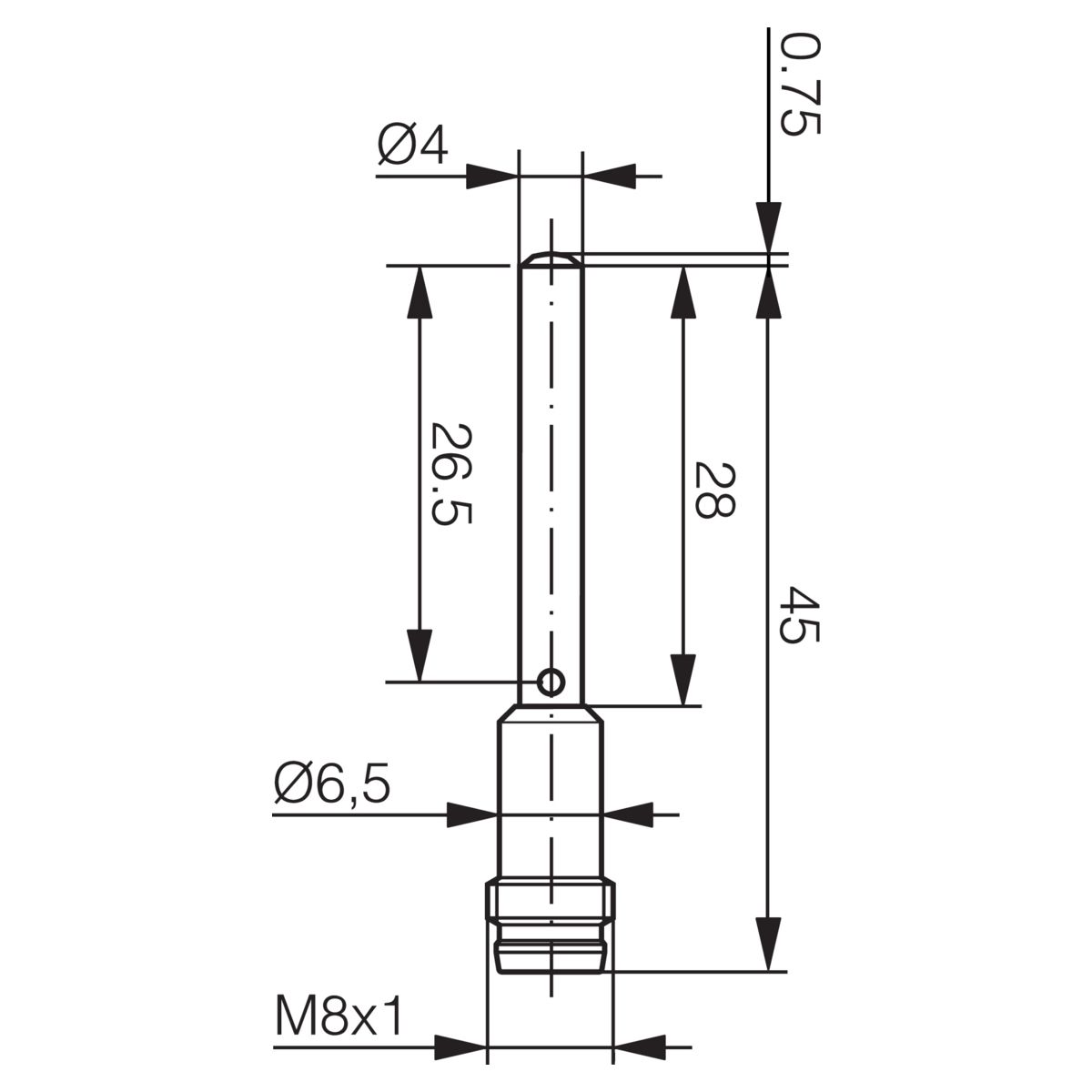

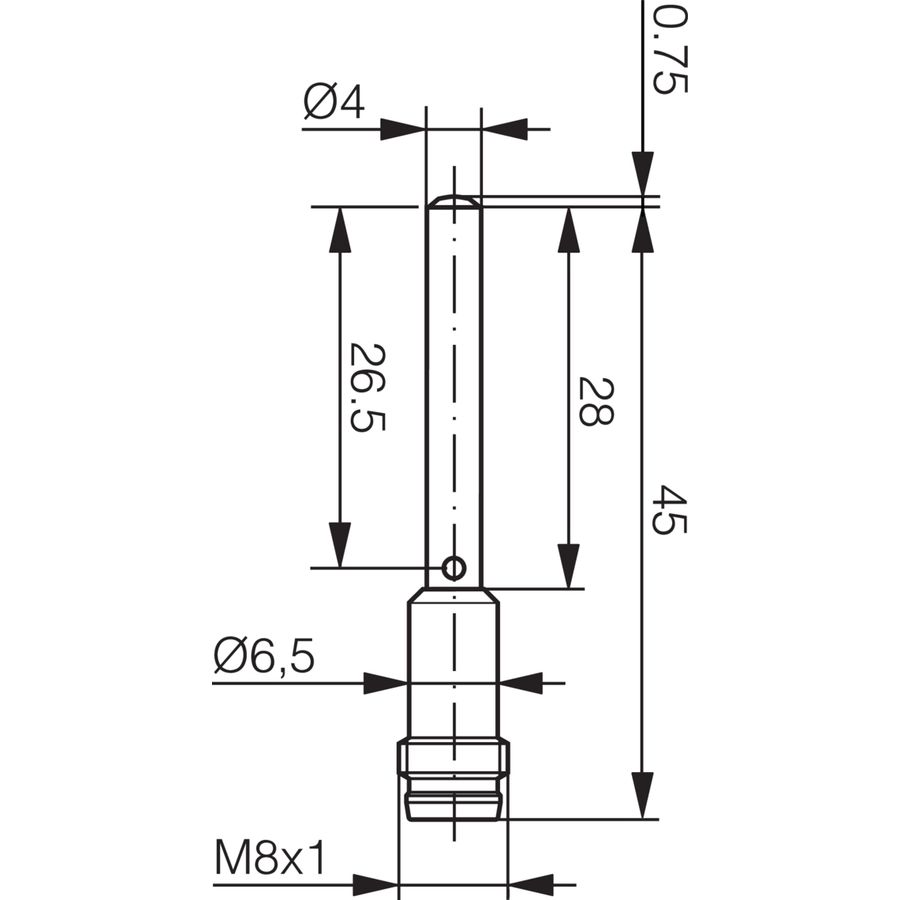

Housing length	45.8 mm
Housing Material	Stainless steel V2A
Illumination Time Pulse	1.0
Inverse Polarity Protection	Yes
Light Source	LED
Light Spot Size	18 x 20 mm (at 50 mm distance)
Material	Plastic Window / optics
No Load Current (max.)	15.0 mA
Operating Principle	Retroreflective diffuse sensor
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Scanning Range	50.0 mm
Sensitivity Adjustment	no setting elements
Service Voltage	10.0 ... 30.0V DC
Standardized Measuring Plate	200 x 200 mm white
Switching Frequency	1000 Hz
Switching Output	pnp 100.0 mA NO
Voltage Drop (max.)	2.0 V
Wavelength	630 nm
Weight	4.0 g
