OTM05-10PS-T3
Part Number: OTM05-10PS-T3
Article Number: 213026
Technical Details
| Ambient Temperature During Operation | -25.0 ... 65.0°C |
|---|---|
| Color | Red |
| Connection | Connector M8 3-pin |
| Design | Thread |
| Evaluation | digital |
| Housing length | 45.8 mm |
| Housing Material | Stainless steel V2A |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Source | LED |
| Light Spot Size | 5 x 6 mm (at distance of 10 mm) |
| Material | Plastic Window / optics |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Scanning Range | 10.0 mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 1000 Hz |
| Switching Output | pnp 100.0 mA NO |

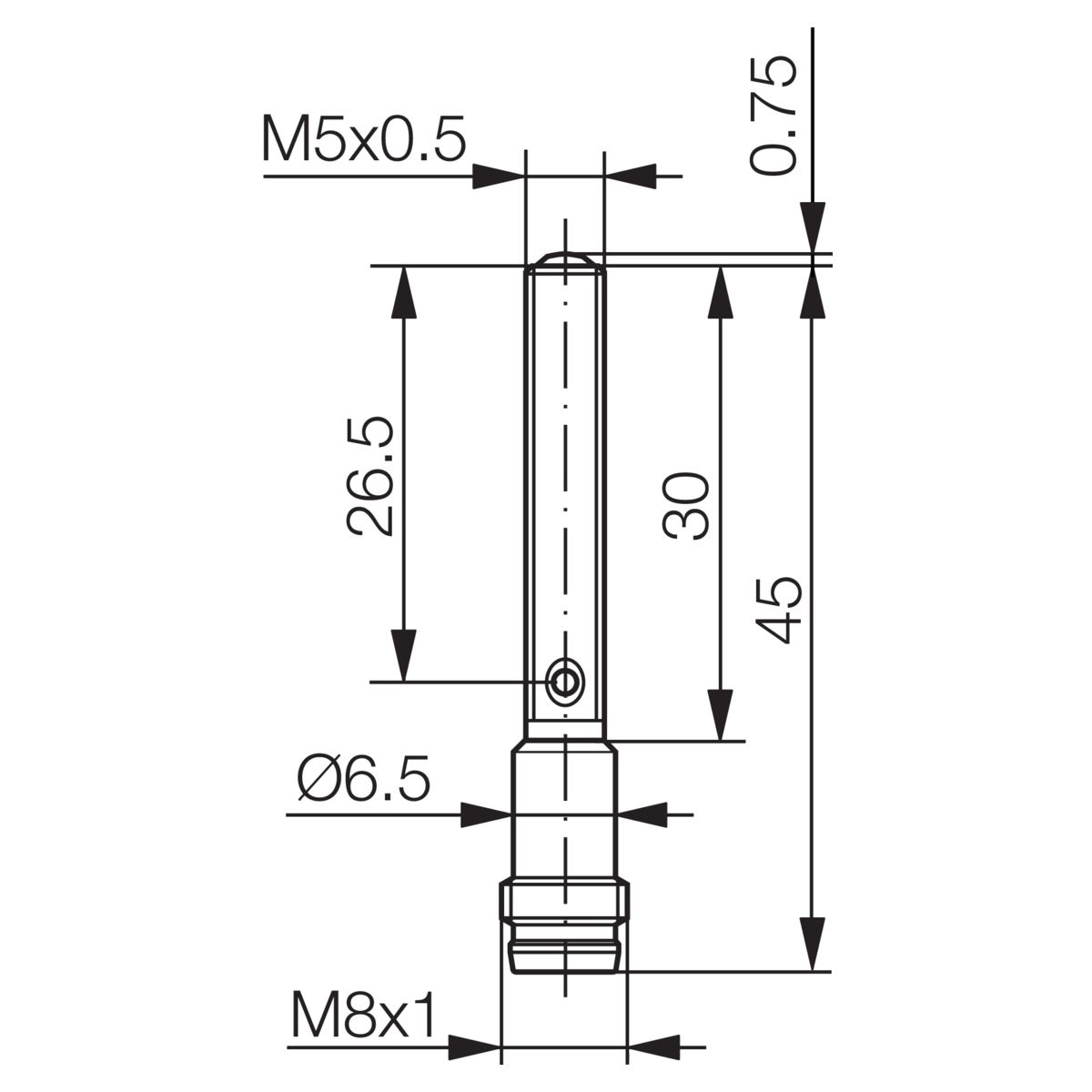

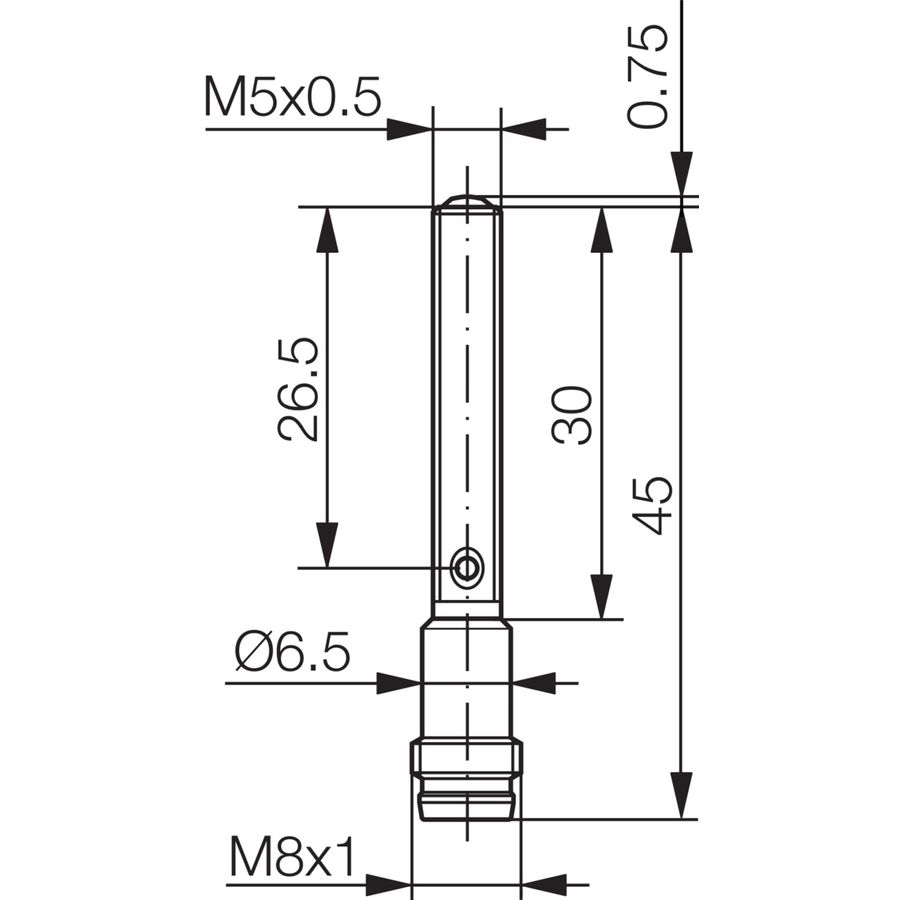

| Thread | M5 x 0.5 |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 630 nm |
| Weight | 4.0 g |
| Yellow | Switching output |
