OTM05-20PS-2R

Ambient Temperature During Operation	-25.0 ... 65.0°C
Color	Red
Connection	Cable 2.0 m
Design	Thread
Evaluation	digital

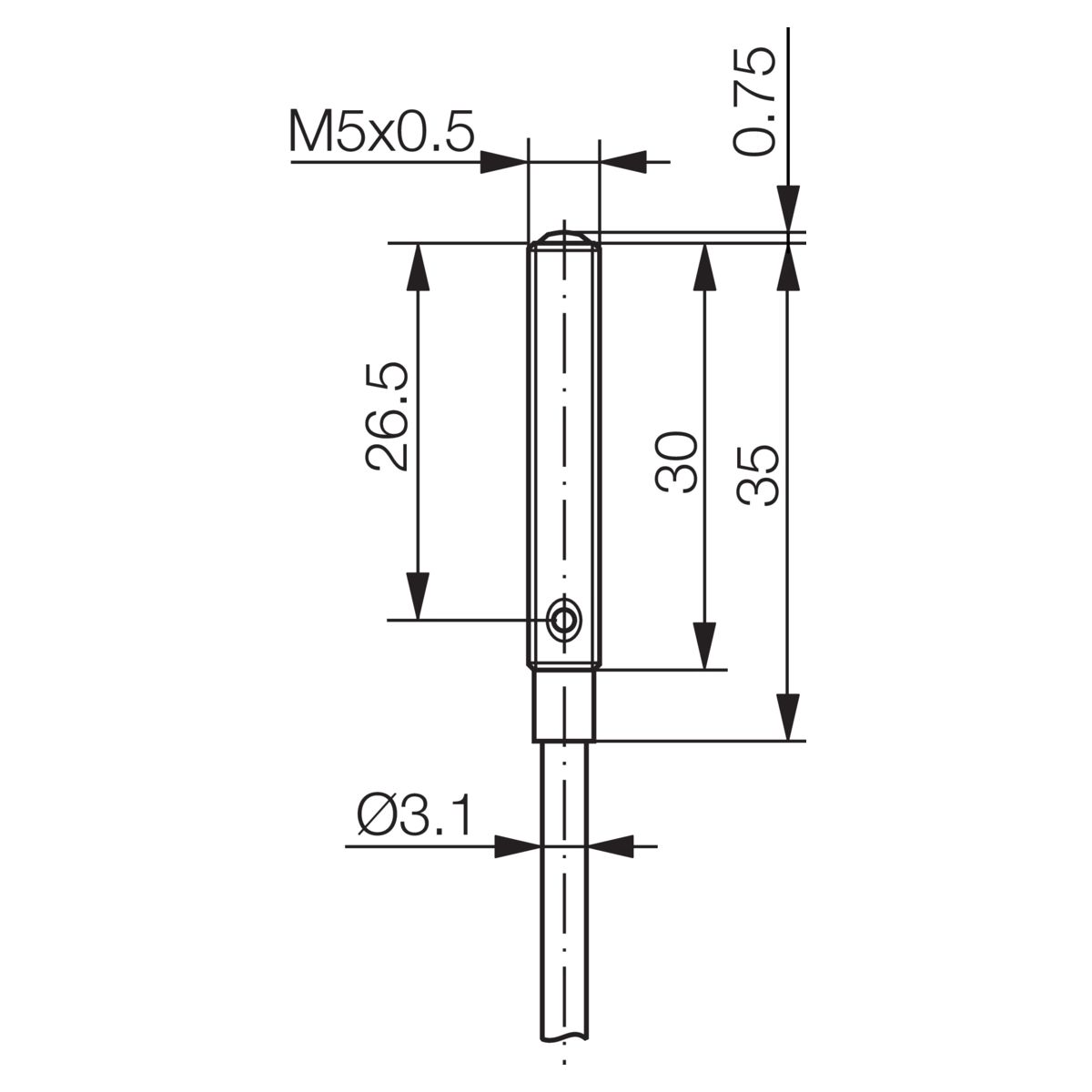

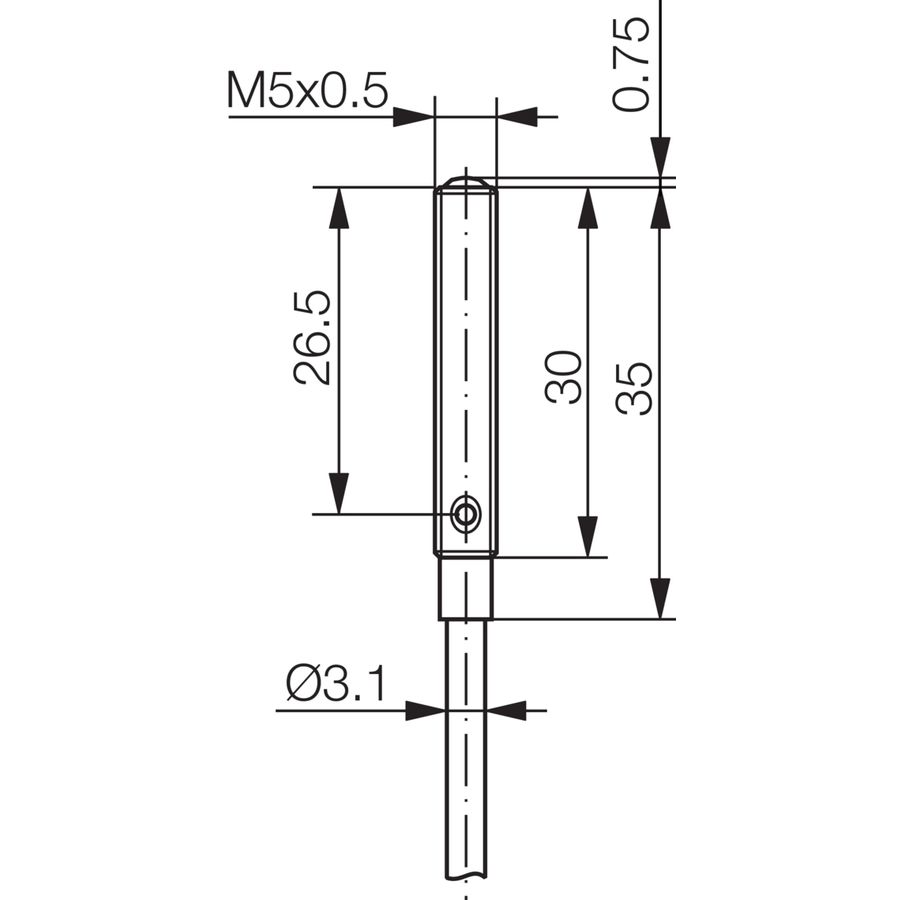

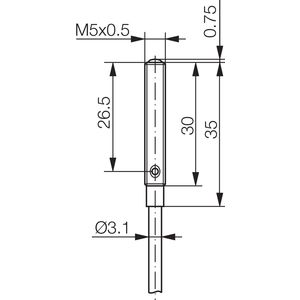

Housing length	35.8 mm
Housing Material	Stainless steel V2A
Illumination Time Pulse	1.0
Inverse Polarity Protection	Yes
Light Source	LED
Light Spot Size	8 x 10 mm (at distance of 20 mm)
Material	Plastic Window / optics
Material Of Cable	Polyurethane
No Load Current (max.)	15.0 mA
Operating Principle	Retroreflective diffuse sensor
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Scanning Range	20.0 mm
Sensitivity Adjustment	no setting elements
Service Voltage	10.0 ... 30.0V DC
Standardized Measuring Plate	200 x 200 mm white
Switching Frequency	1000 Hz

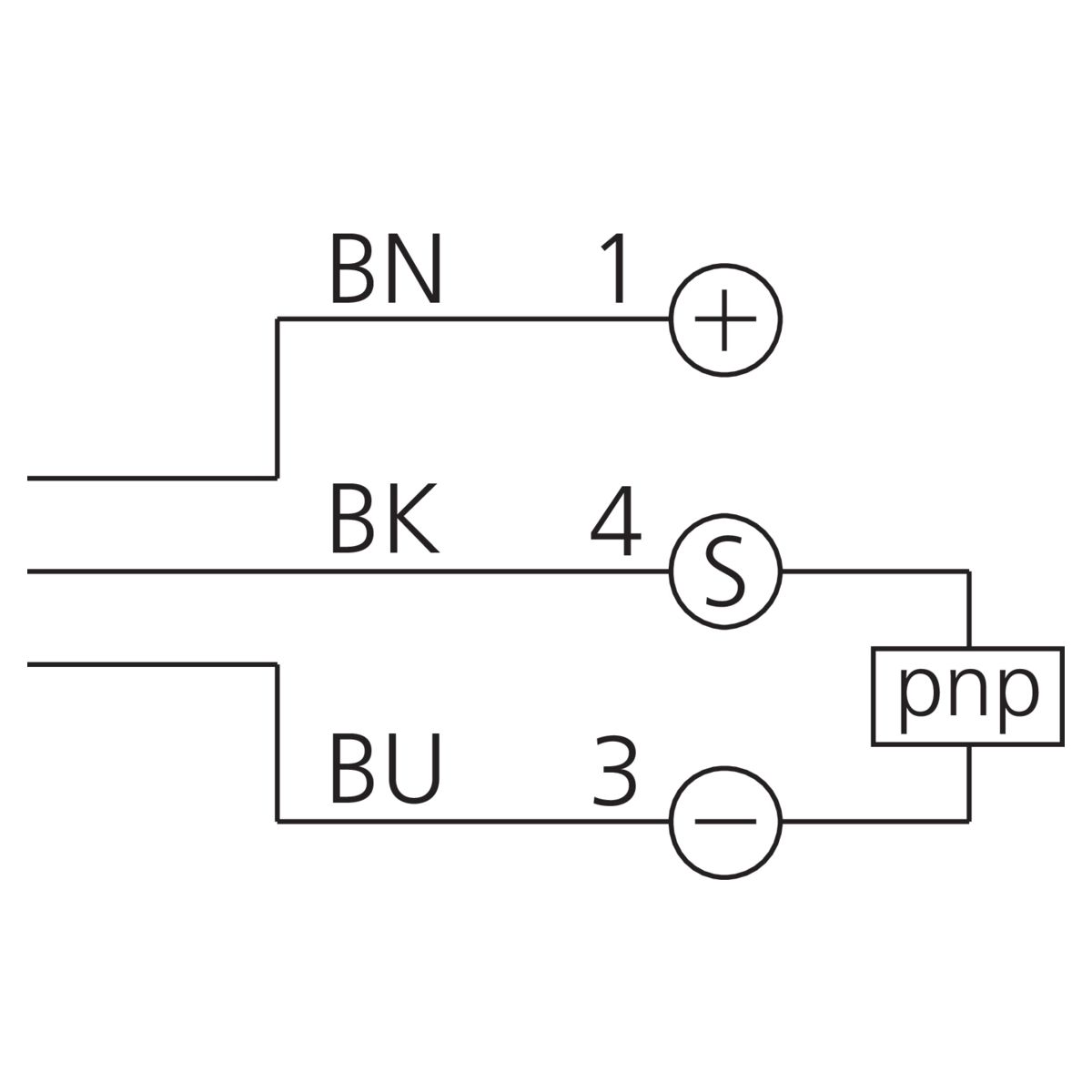

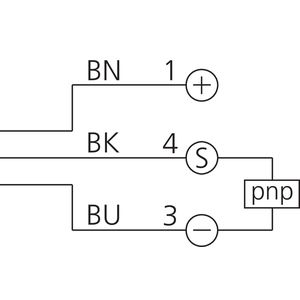

Switching Output	pnp 100.0 mA NO
Thread	M5 x 0.5
Voltage Drop (max.)	2.0 V
Wavelength	630 nm
Weight	30.0 g
Yellow	Switching output
