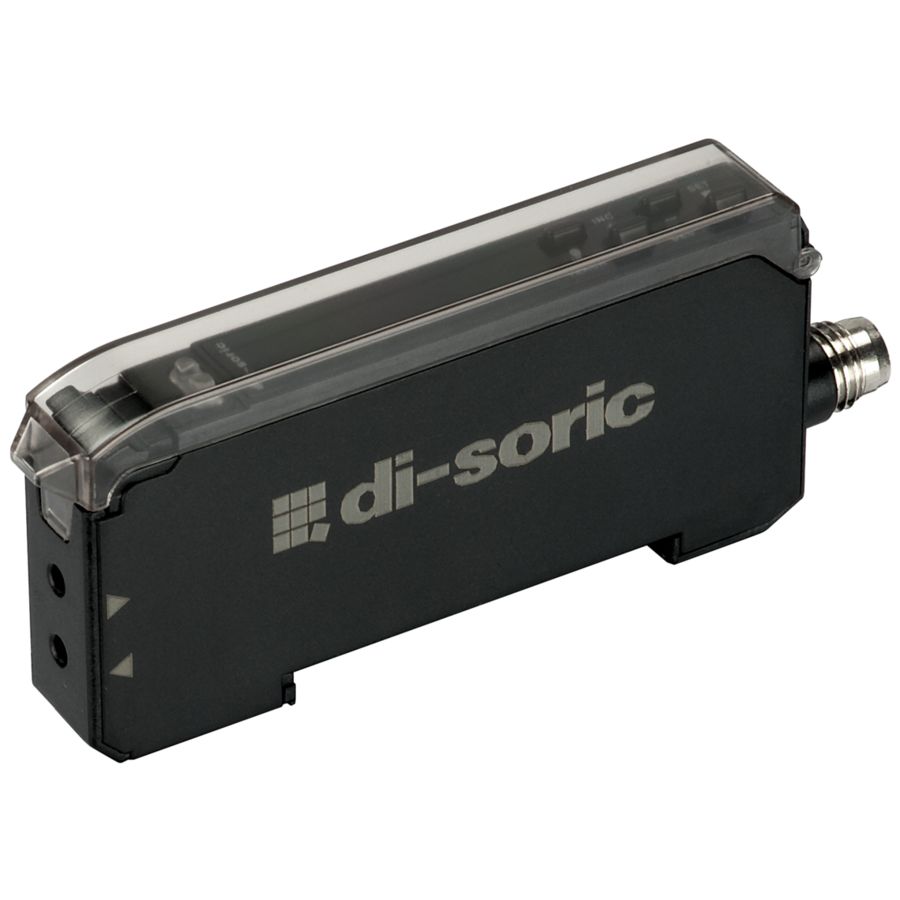

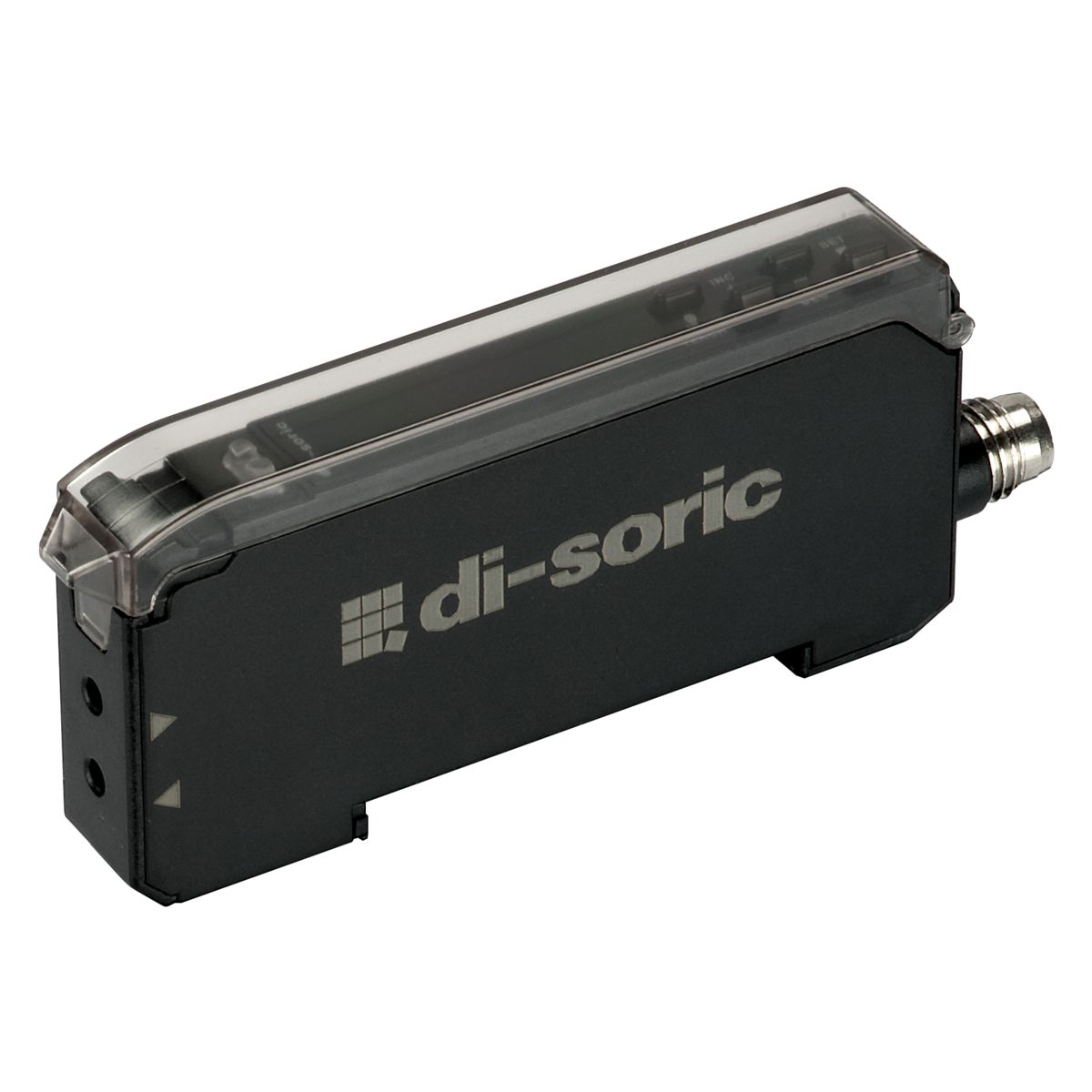

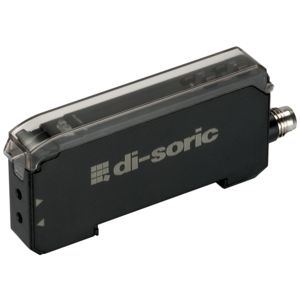

Plastic Fiber-optic Amplifier - OLK 71 N3-T4
Part Number: OLK 71 N3-T4
Article Number: 209975
Technical Details
| Activation Time | 0.25 / 0.31 / 0.42 / 0.63 / 1.25 ms |
|---|---|
| Ambient Light Immunity | 10 kLx |
| Ambient Temperature During Operation | -10.0 ... 55.0°C |
| Amplifier For | 2X2.2 mm plastic fiber optics |
| Color | Red |
| Connection | Connector M8 4-pin |
| Design | Cuboid design |
| Display | Digital display |
| Evaluation | digital |

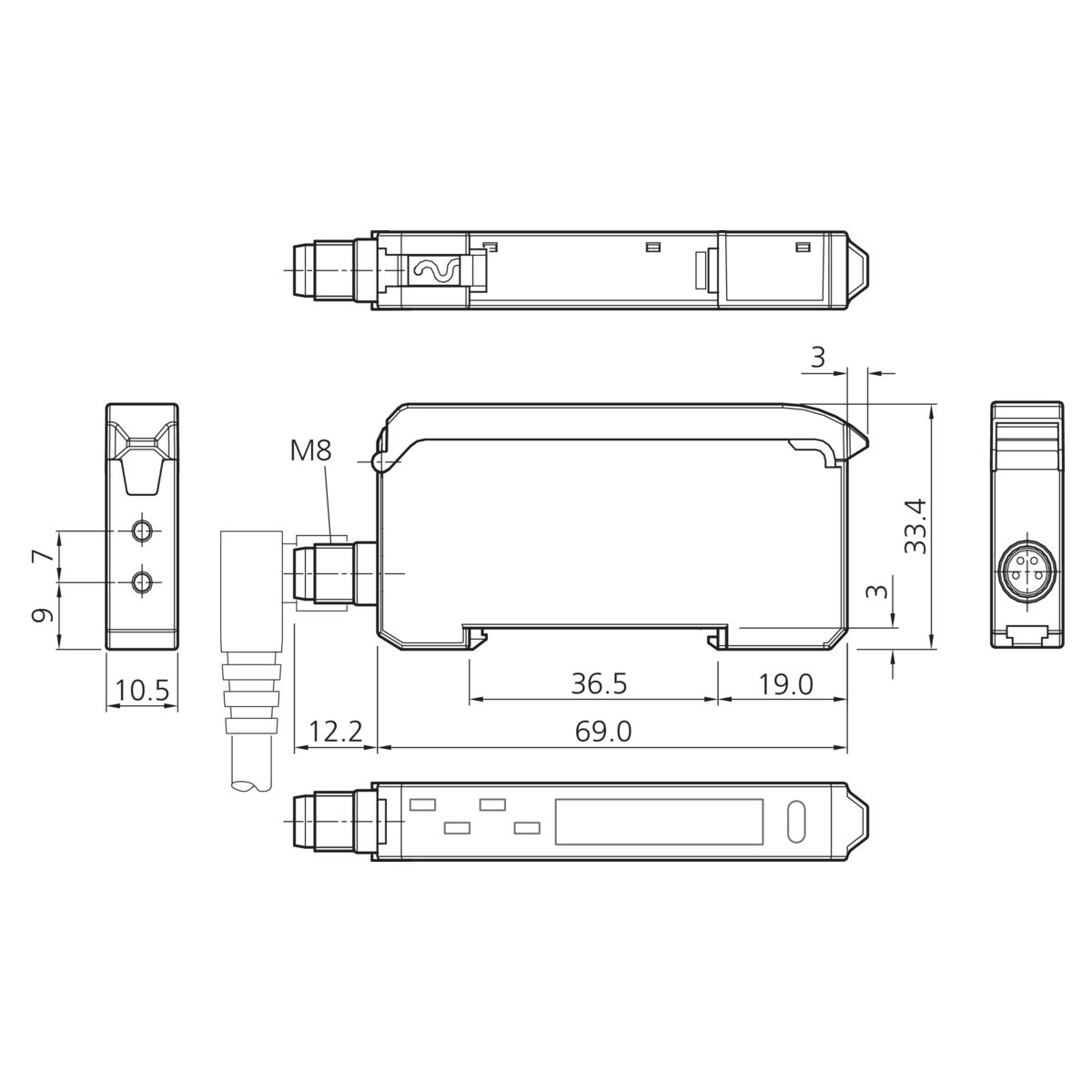

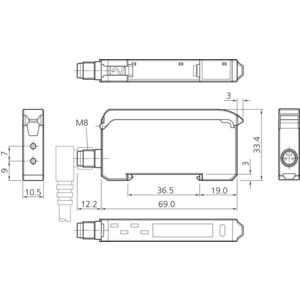

| Housing length | 69.0 mm |
| Housing Material | Plastic;Plastic ABS;PC |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Light Source | LED |
| No Load Current (max.) | 40.0 mA |
| Operating Elements | 4.0 |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 54 |
| Sensitivity Adjustment | Teach button |
| Service Voltage | 12.0 ... 24.0V DC |
| Switching Frequency | 1000;800;600;400;200 Hz;Hz;Hz;Hz;Hz |
| Switching Output | npn 100.0 mA NO/NC programmable |
| Wavelength | 625 nm |
