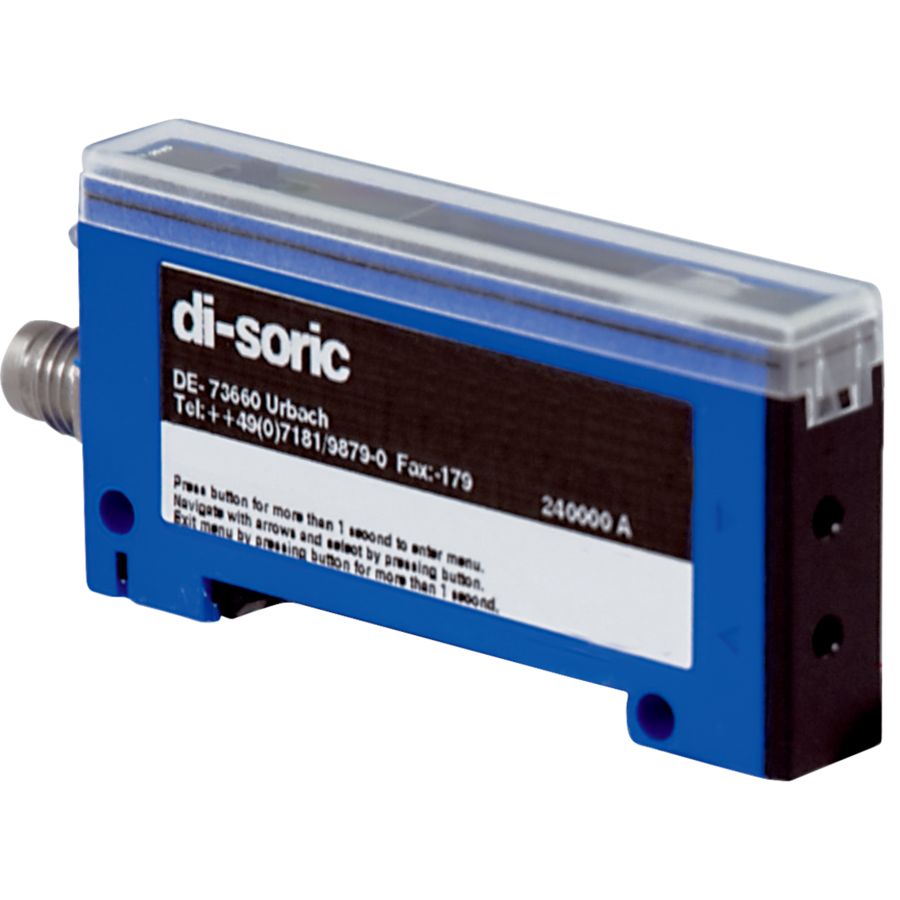

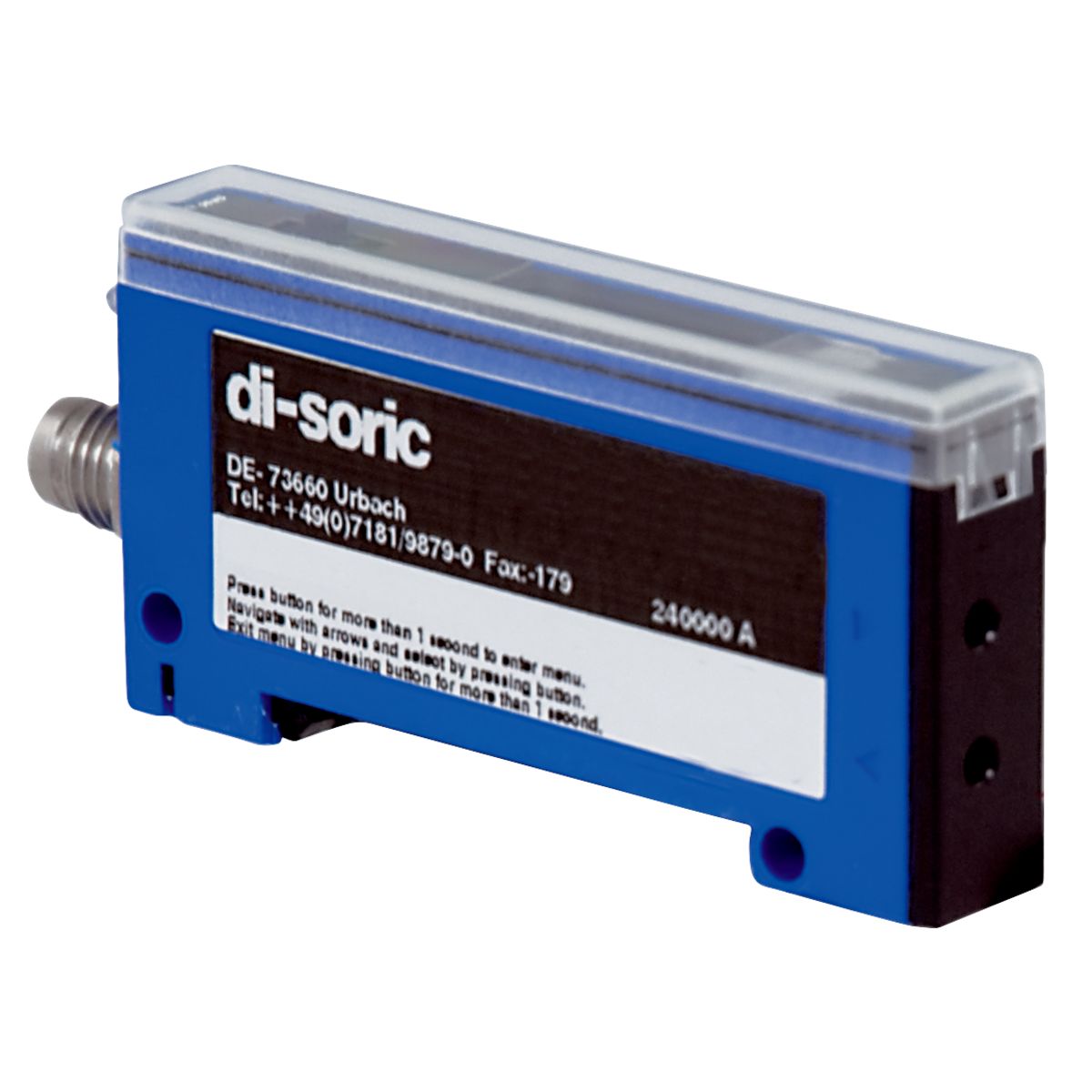

Plastic Fiber-optic Amplifier - OLVK 61 P3FK-TSSL
Part Number: OLVK 61 P3FK-TSSL
Article Number: 204470
Technical Details
| Activation Time | 0.33 ms |
|---|---|
| Ambient Light Immunity | 10 kLx |
| Ambient Temperature During Operation | -25.0 ... 55.0°C |
| Amplifier For | 2X2.2 mm plastic fiber optics |
| Color | Red |

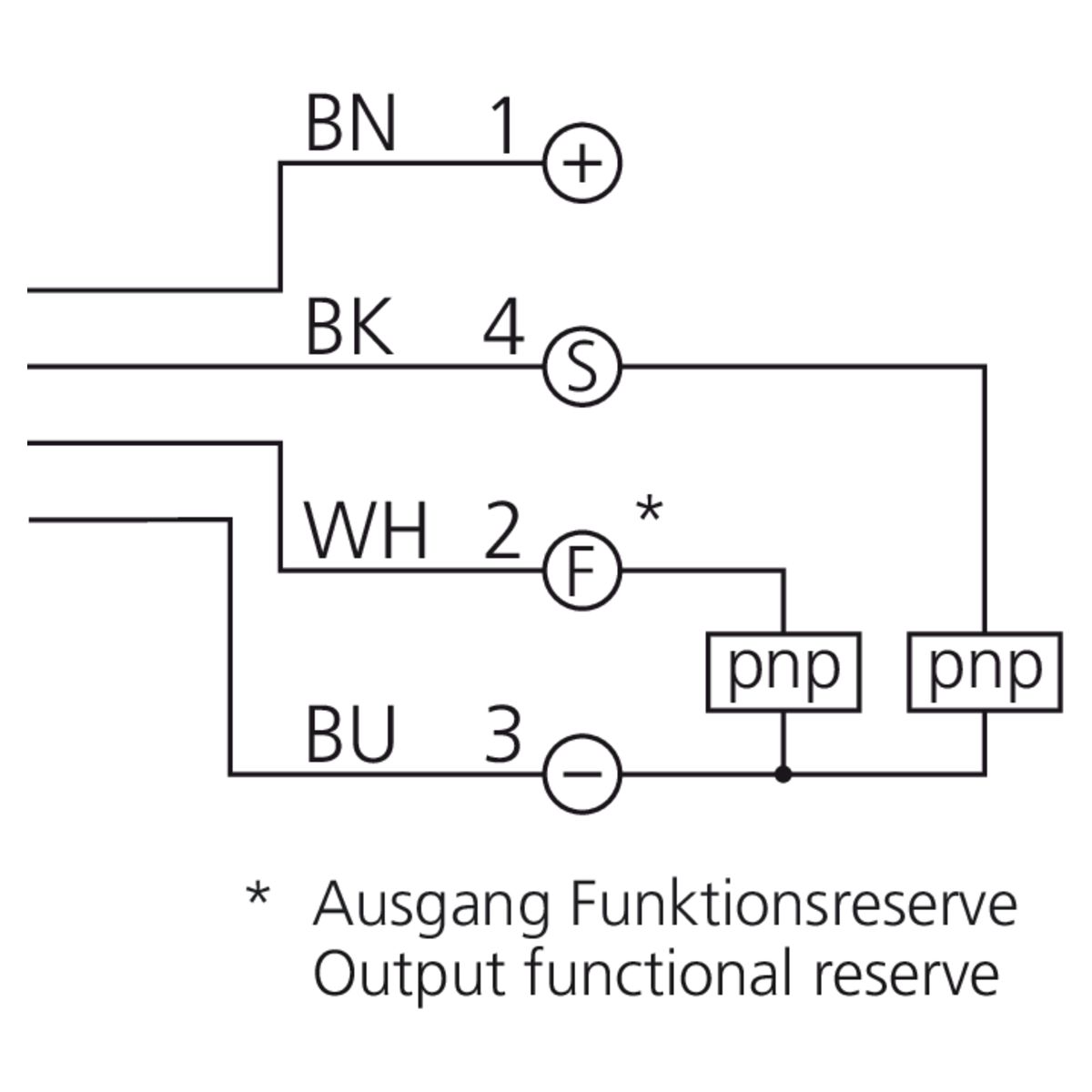

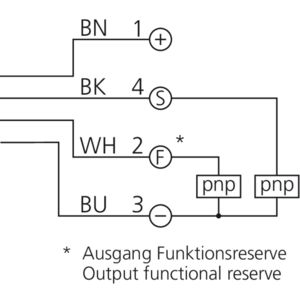

| Connection | Connector M8 4-pin |
| Design | Cuboid design |
| Display | No display |
| Evaluation | digital |

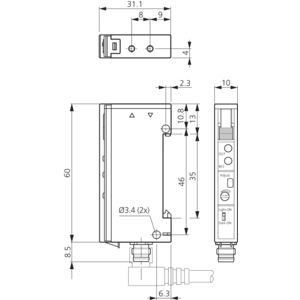

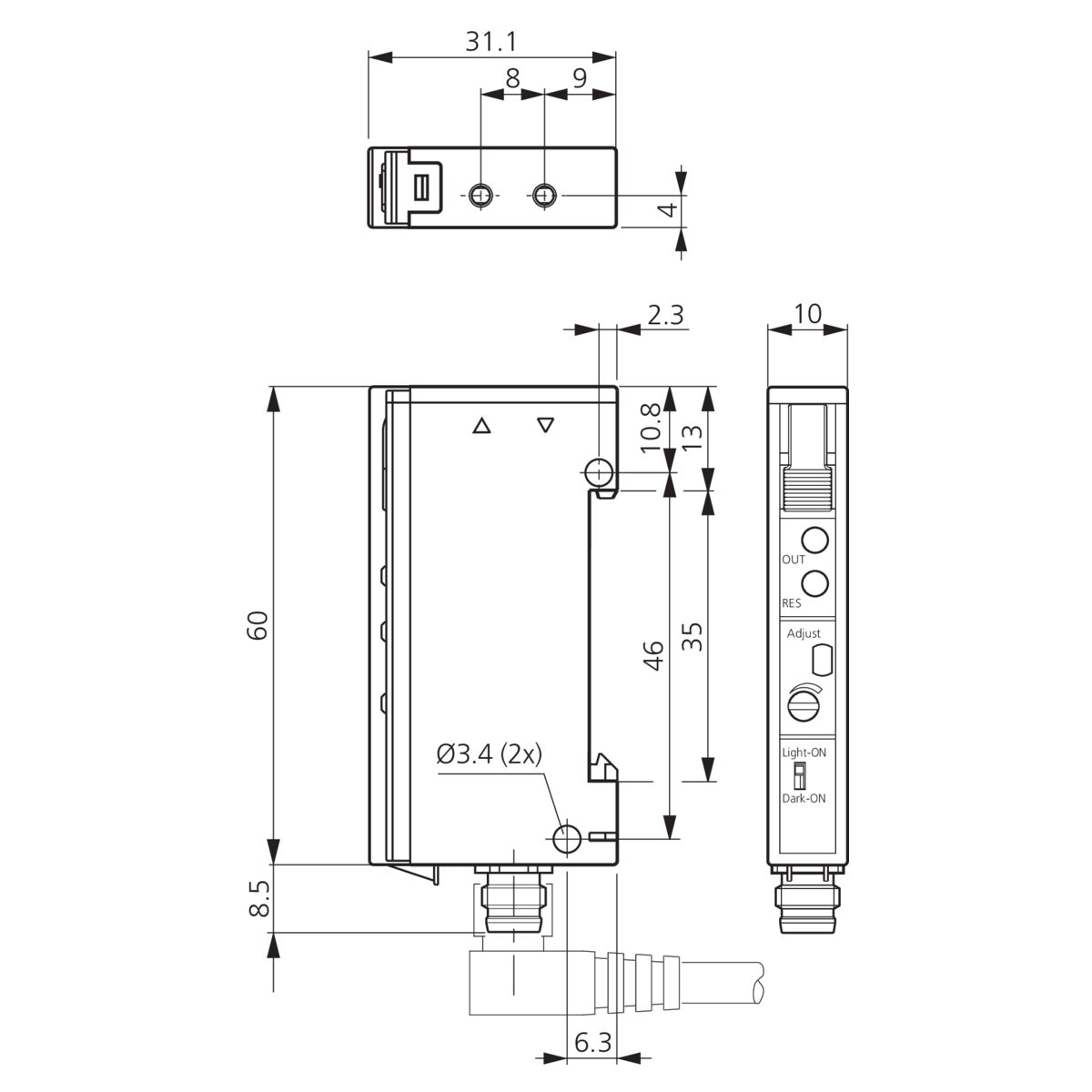

| Housing length | 60.0 mm |
| Housing Material | Plastic PBT |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 5000.0 V |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 15.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 64 |
| Release Time | 0.33 ms |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10 ... 30.0V DC |
| Switching Frequency | 1500.0 Hz |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | pnp 200.0 mA NO/NC switchable |
| Temperature Drift | 0.2 %/K |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 680.0 nm |
