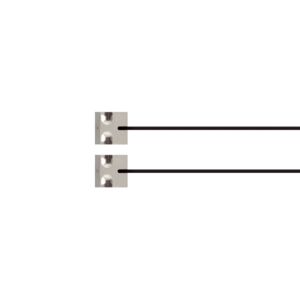

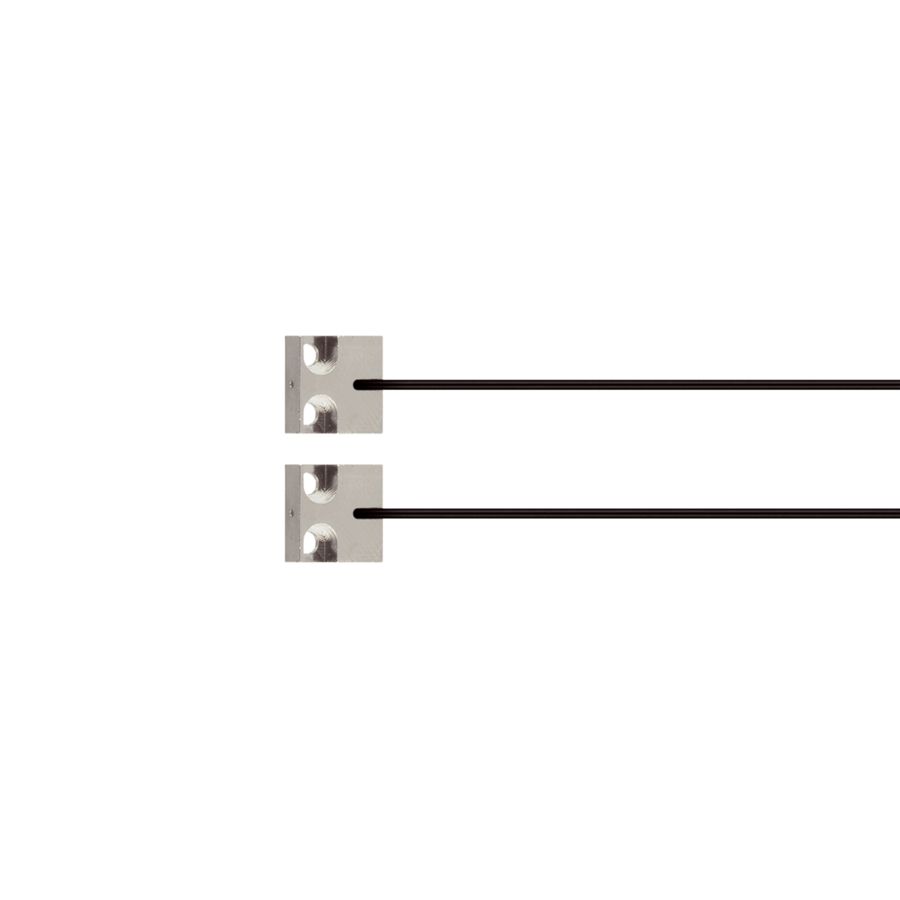

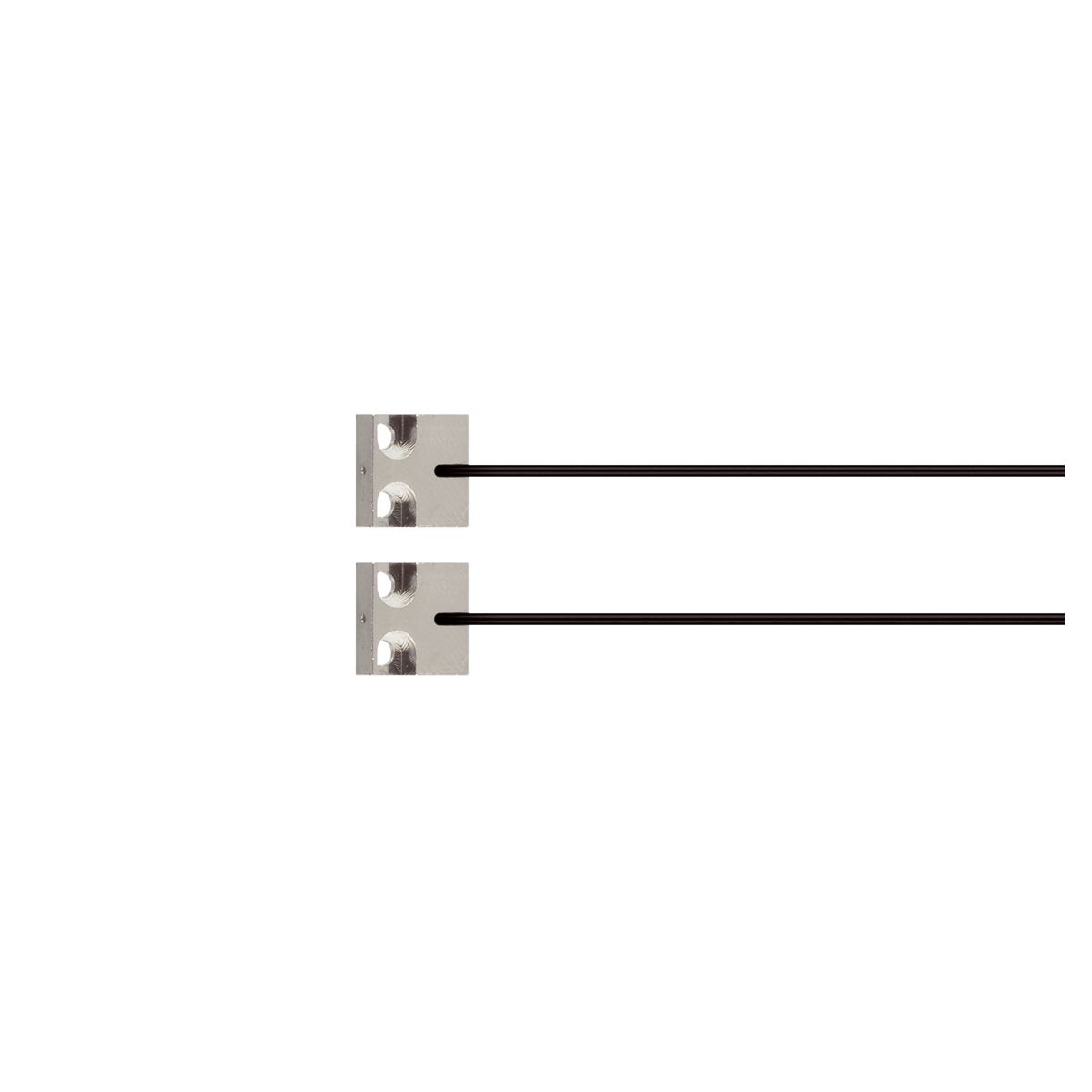

Plastic Fiber Optic - KLE-Q10M-1-0.5
Part Number: KLE-Q10M-1-0.5
Article Number: 209970
Technical Details
| Bending Radius | 1.0 > mm |
|---|---|
| Design | Cuboid design |
| Fiber | 0.5 mm |

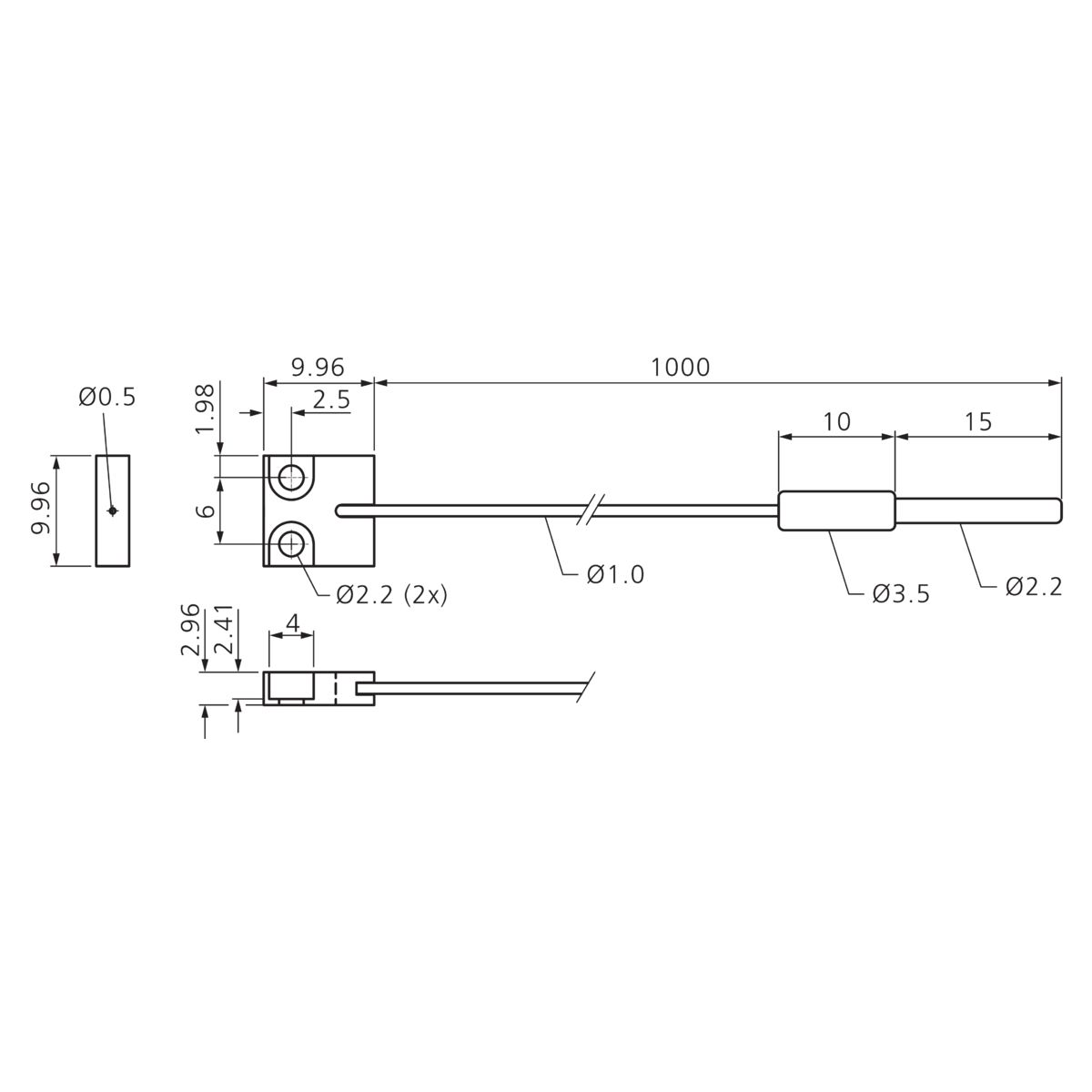

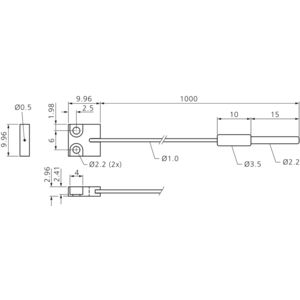

| Housing Dimensions | 10 x 10 x 3 mm |
| Length | 1000.0 mm cannot be shortened |
| Light Aperture | axial |
| Material | Metal;PE Sensor probe;Coating |
| Operating Principle | Through-beam sensor |
| Range | 200.0mm |
| Resolution | 0.05 mm |
| Temperature Resistance | -40.0 °C 70.0 °C |
| To Be Used For | Device series OLV-K Amplifier |
