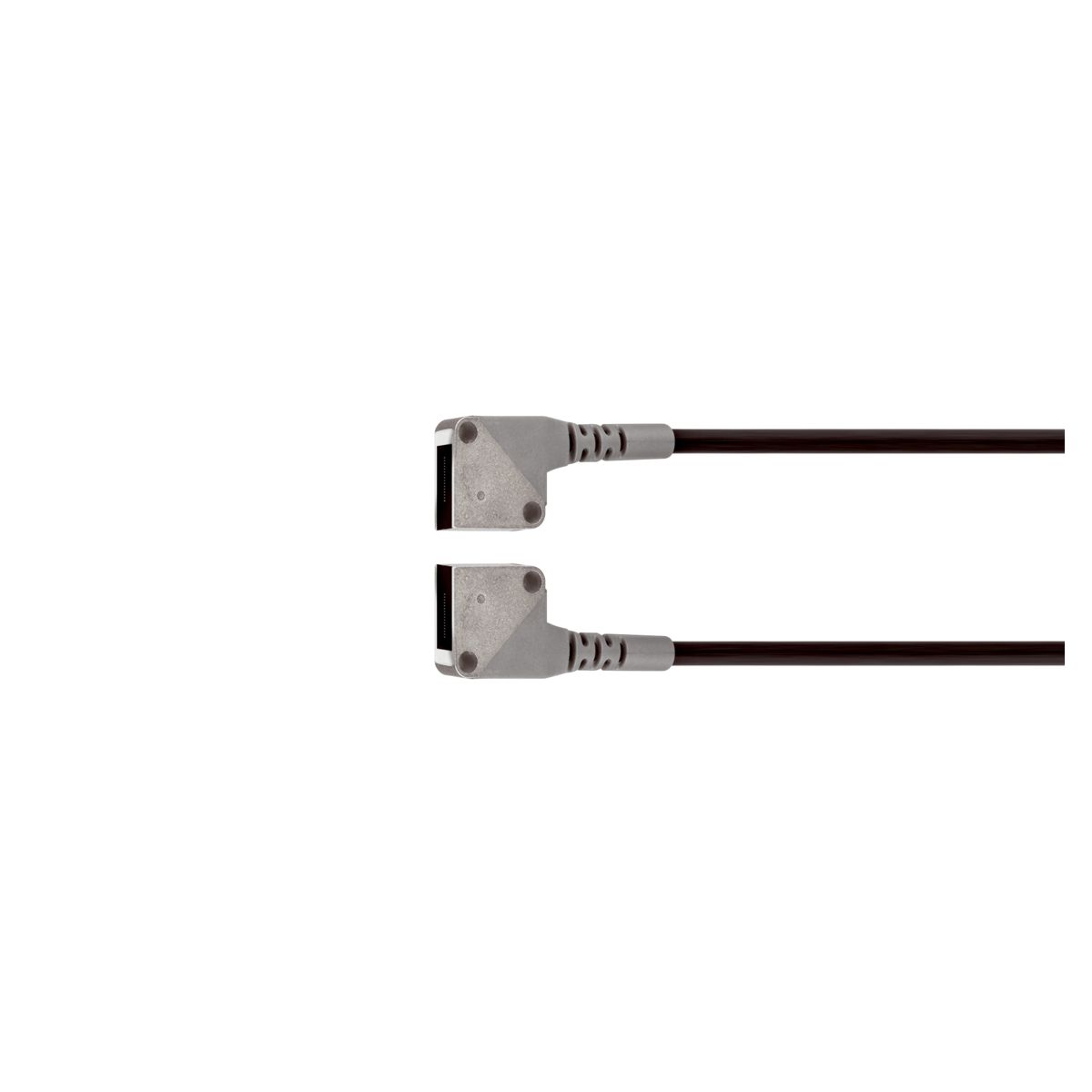

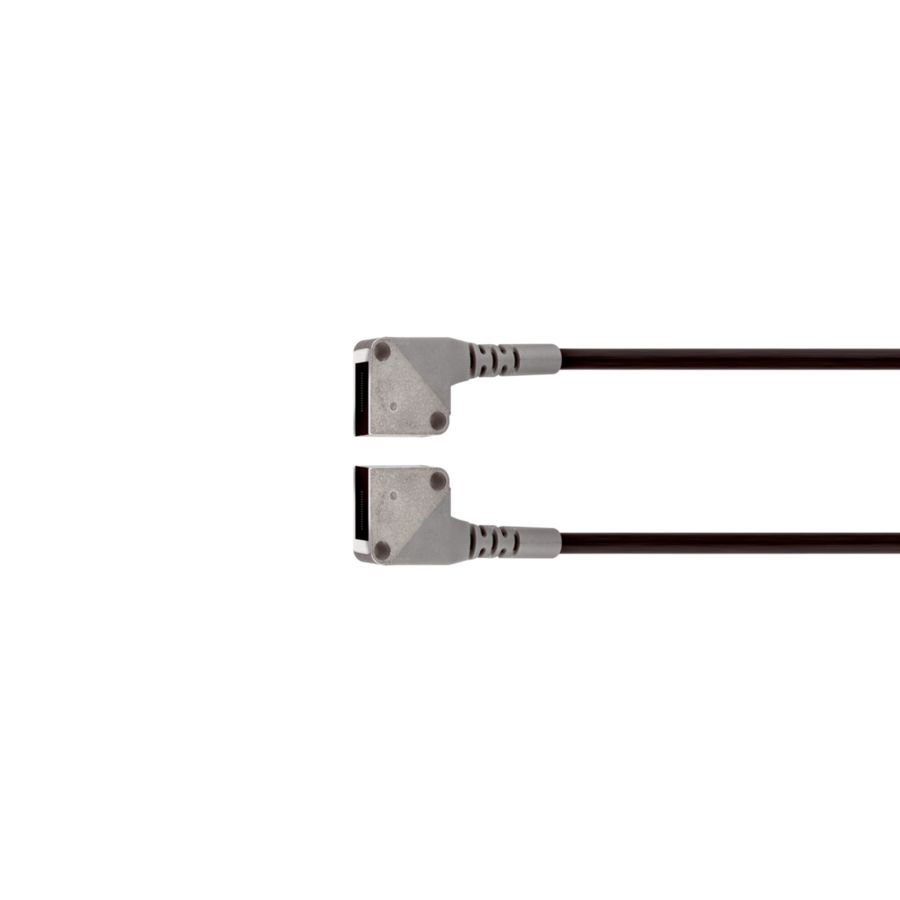

Plastic Fiber Optic - KLEM-Q10-T1-4

Bending Radius	25.0 > mm
Characteristics	With cable protection bushing
Cross Section Converter	4.24 mm
Design	Cuboid design
Fiber	0.265 mm 16

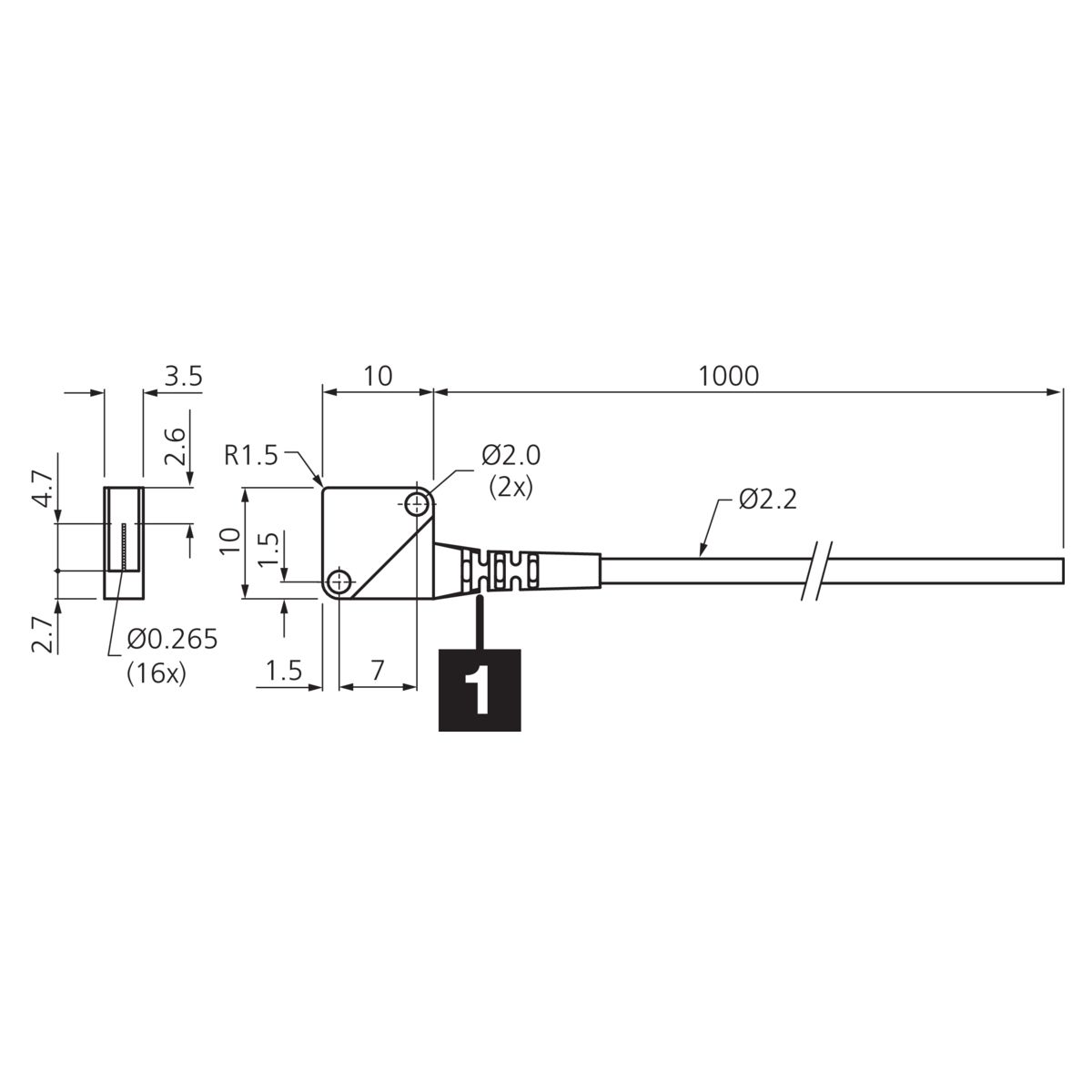

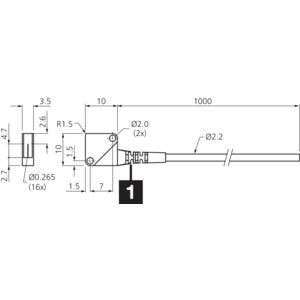

Housing Dimensions	10 x 10 x 3.5 mm
Length	1000.0 mm cannot be shortened
Light Aperture	axial
Material	Stainless steel;PE Sensor probe;Coating
Operating Principle	Through-beam sensor
Range	200.0mm
Resolution	0.1 mm
Temperature Resistance	-55.0 °C 70.0 °C
To Be Used For	Device series OLV-K Amplifier
