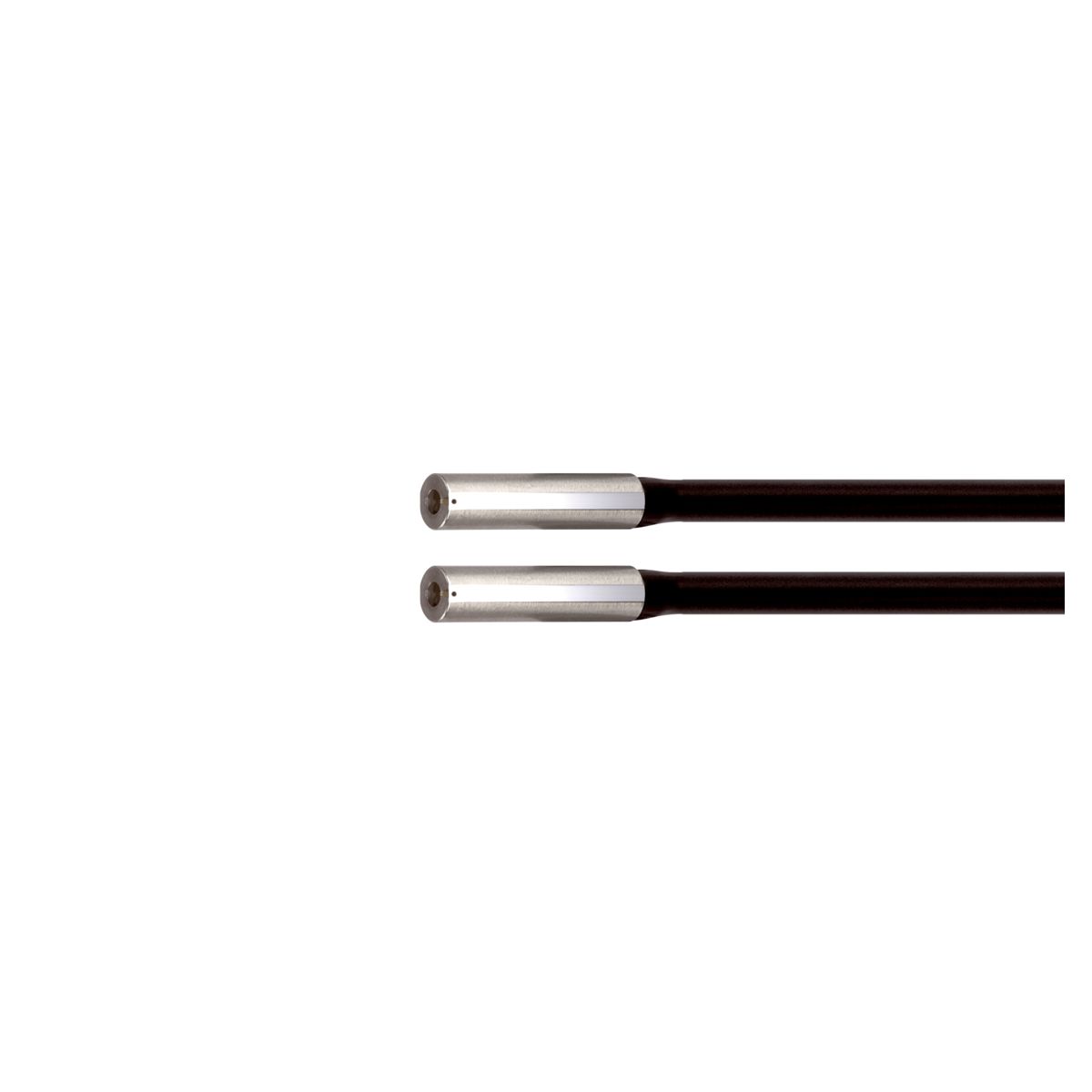

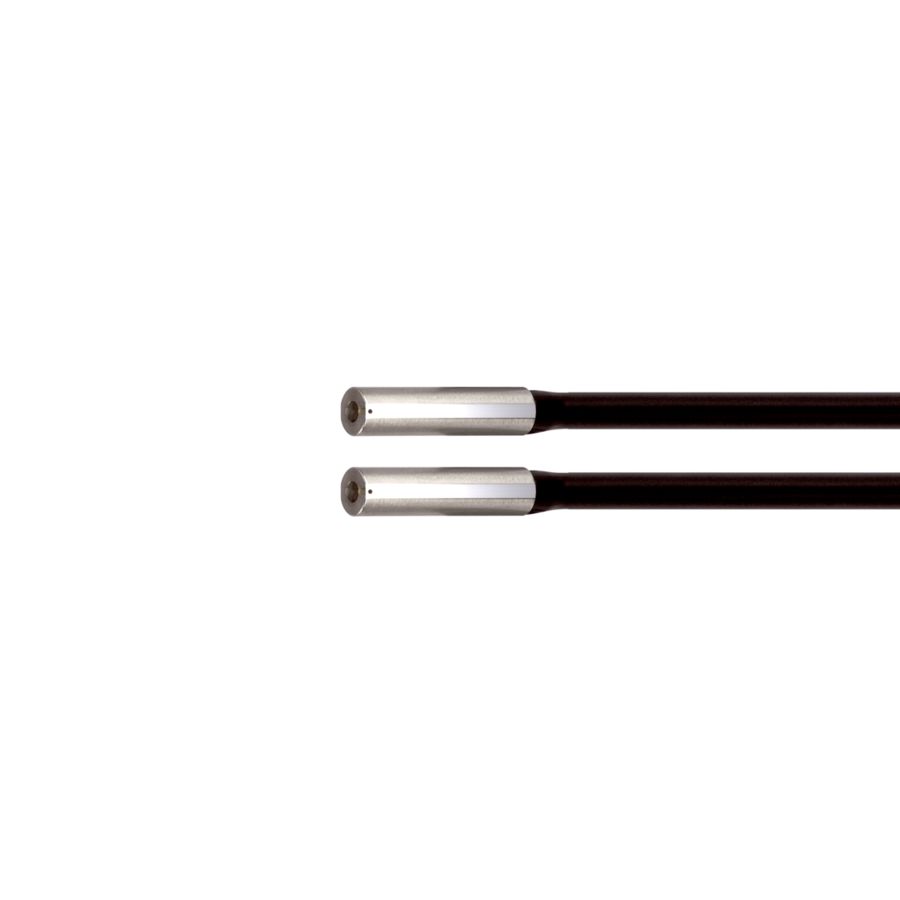

Plastic Fiber Optic - KLER-D4.75-19-S2-0.5
Part Number: KLER-D4.75-19-S2-0.5
Article Number: 209969
Technical Details
| Bending Radius | 1.0 > mm |
|---|---|
| Characteristics | With S-bushing |
| Design | Cylinder |
| Diameter | 4.7 mm |
| Length | 2000.0 mm Can be shortened |
| Light Aperture | radial |
| Material | Stainless steel;PE Sensor probe;Coating |
| Operating Principle | Through-beam sensor |
| Range | 200.0mm |
| Resolution | 0.05 mm |
| Single Fiber | 0.5 mm |
| Temperature Resistance | -25.0 °C 70.0 °C |
| To Be Used For | Device series OLV-K Amplifier |
