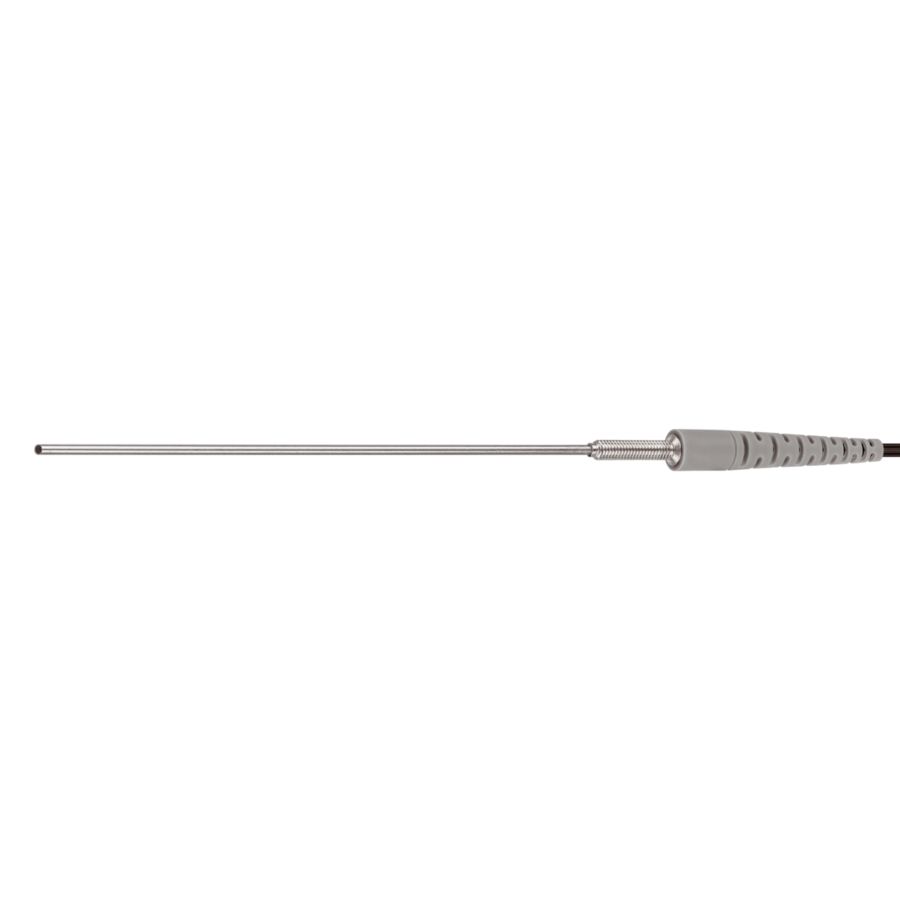

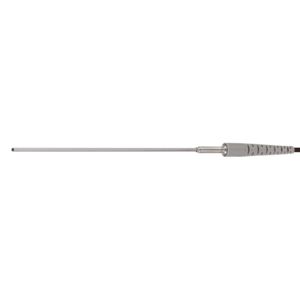

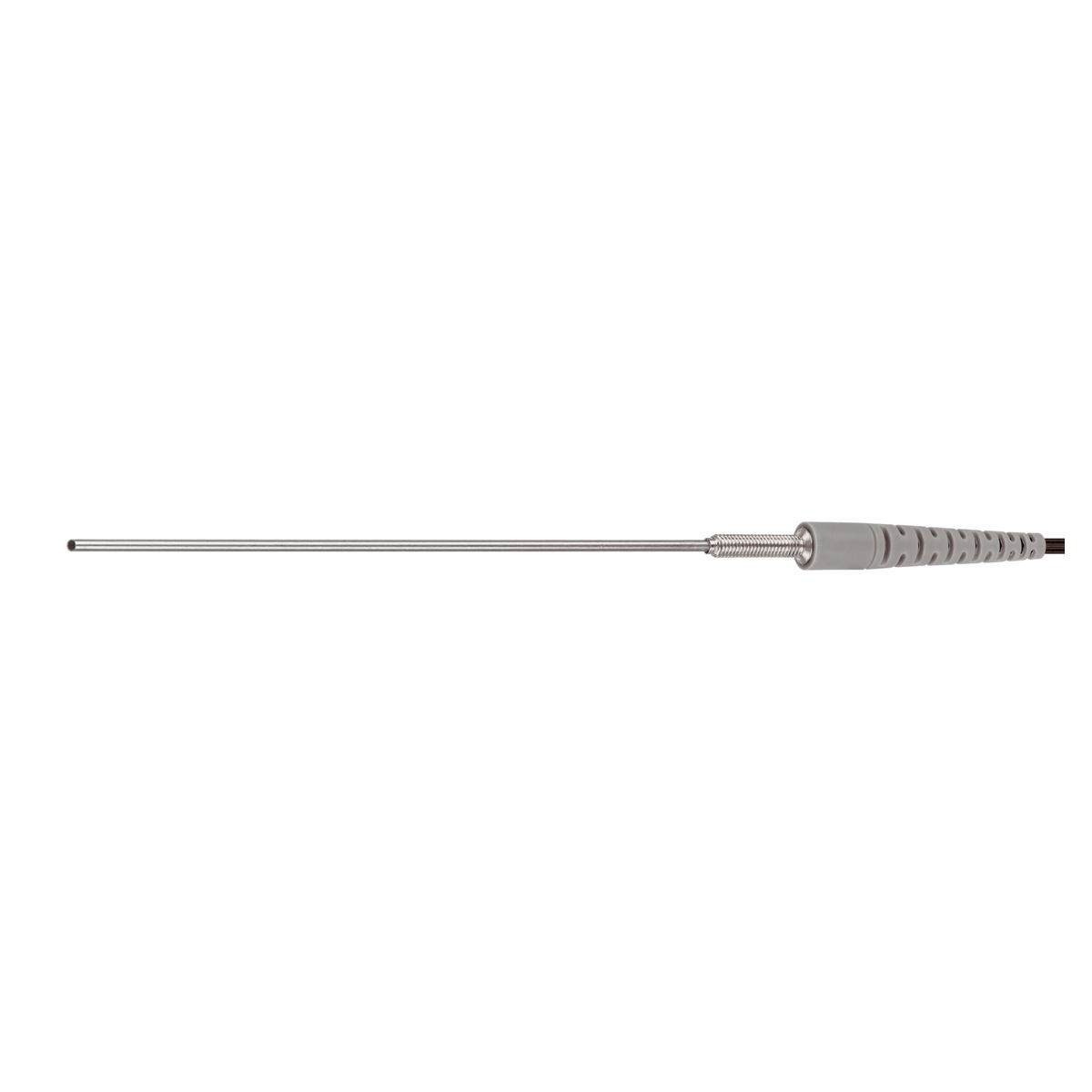

Plastic Fiber Optic - KLT-M3-B90-T2-0.5
Part Number: KLT-M3-B90-T2-0.5
Article Number: 209944
Technical Details
| Bending Radius | 15.0 > mm |
|---|---|
| Bending Radius Of Probe | 10.0 > mm |
| Characteristics | With cable protection bushing |
| Design | Thread |
| Fiber | Parallel 0.5 mm 1 |
| Length | 2000.0 mm Can be shortened |
| Light Aperture | axial;Flexible sensor probe |
| Material | Stainless steel;PE Sensor probe;Coating |
| Operating Principle | Diffuse sensor |
| Range | 75.0mm |
| Resolution | 0.1 mm |
| Temperature Resistance | -55.0 °C 70.0 °C |
| Thread | M3 |
| To Be Used For | Device series OLV-K Amplifier |
