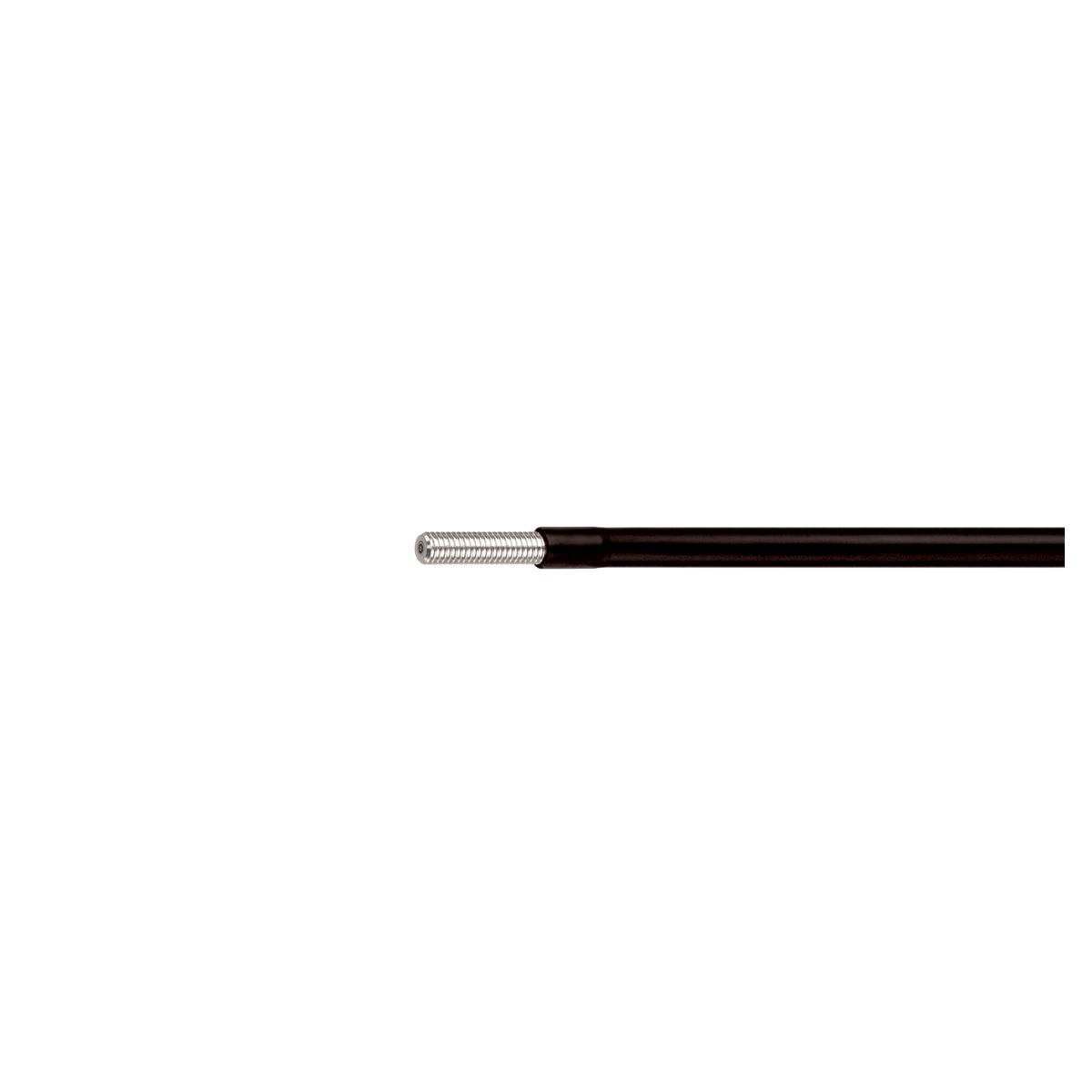

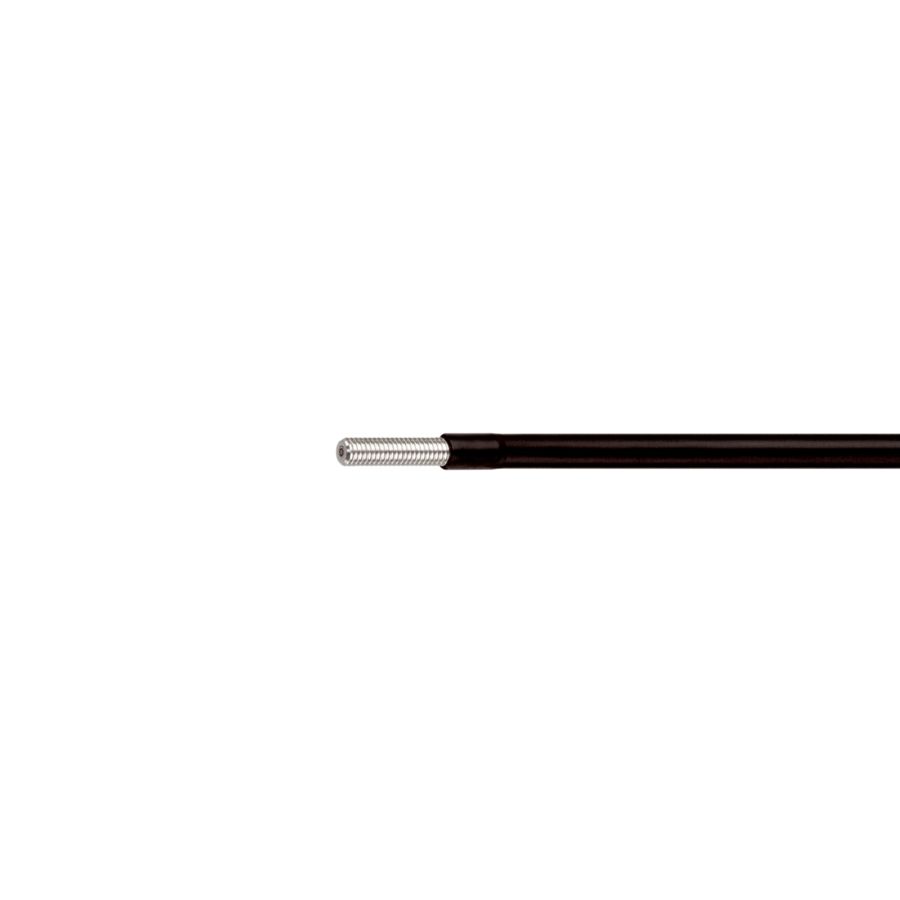

Plastic Fiber Optic - KLT-M3-S0.5-0.25K
Part Number: KLT-M3-S0.5-0.25K
Article Number: 209946
Technical Details
| Bending Radius | 5.0 > mm |
|---|---|
| Design | Thread |
| Fiber | Coaxial 0.125;0.25 mm;mm 10;1 |
| Length | 500.0 mm cannot be shortened |
| Light Aperture | axial |
| Material | Stainless steel;PVC Sensor probe;Coating |
| Operating Principle | Diffuse sensor |
| Range | 40.0mm |
| Resolution | 0.02 mm |
| Temperature Resistance | -55.0 °C 70.0 °C |
| Thread | M3 |
| To Be Used For | Device series OLV-K Amplifier |
