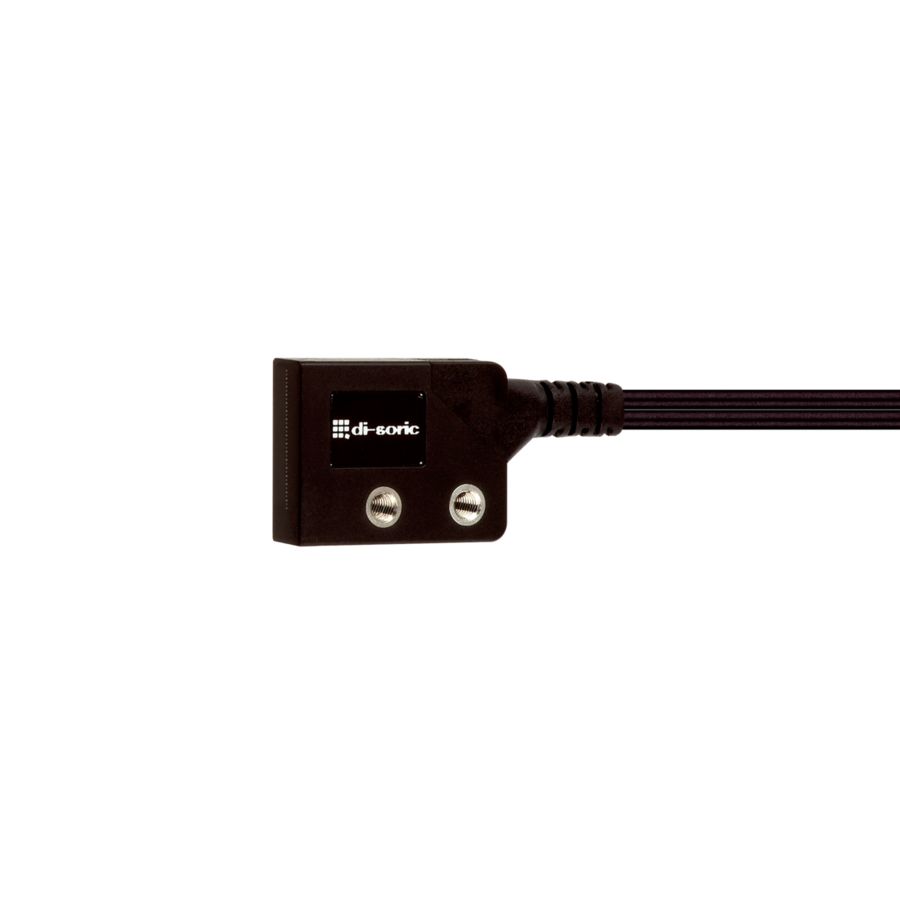

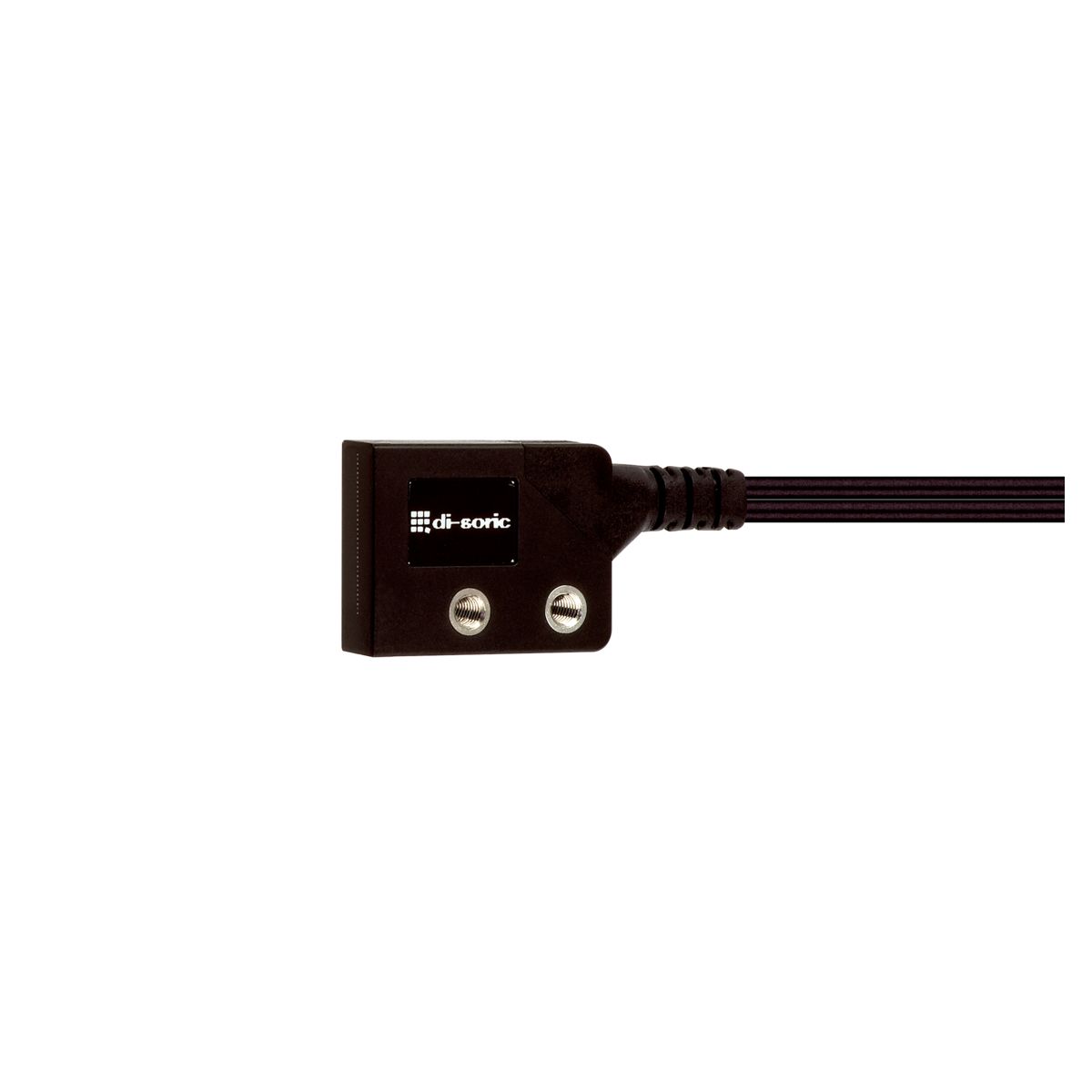

Plastic Fiber Optic - KLTM-Q25K-T1-14

Bending Radius	5.0 > mm
Characteristics	With cable protection bushing
Cross Section Converter	14.5 mm
Design	Cuboid design
Fiber	Parallel 0.265 mm 16
Housing Dimensions	19 x 25 x 6 mm
Length	1000.0 mm cannot be shortened
Light Aperture	axial
Material	Plastic;PE Sensor probe;Coating
Operating Principle	Diffuse sensor
Range	2400.0mm
Resolution	0.5 mm
Temperature Resistance	-55.0 °C 70.0 °C
To Be Used For	Device series OLV-K Amplifier
