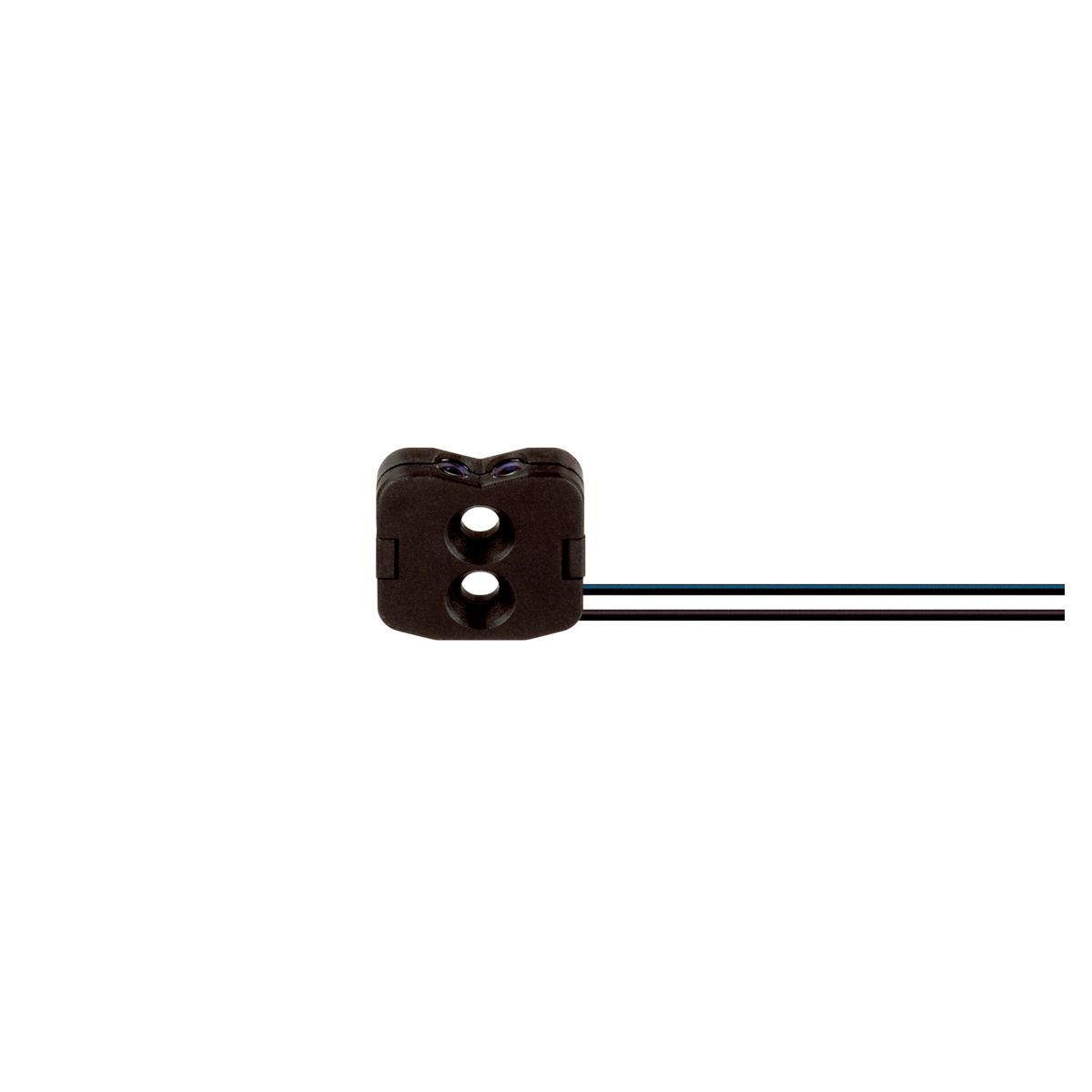

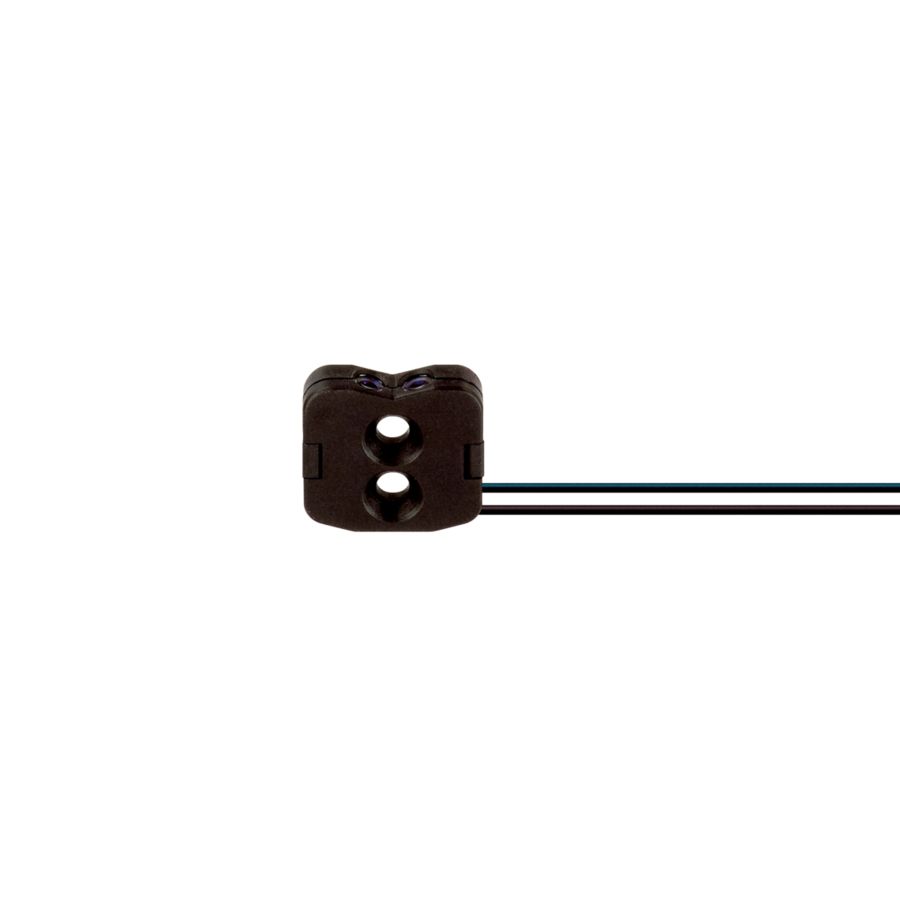

Plastic Fiber Optic - KLTVR-Q18-2-10
Part Number: KLTVR-Q18-2-10
Article Number: 209966
Technical Details
| Bending Radius | 1.0 > mm |
|---|---|
| Design | Cuboid design |
| Fiber | Parallel 0.5 mm 2 |

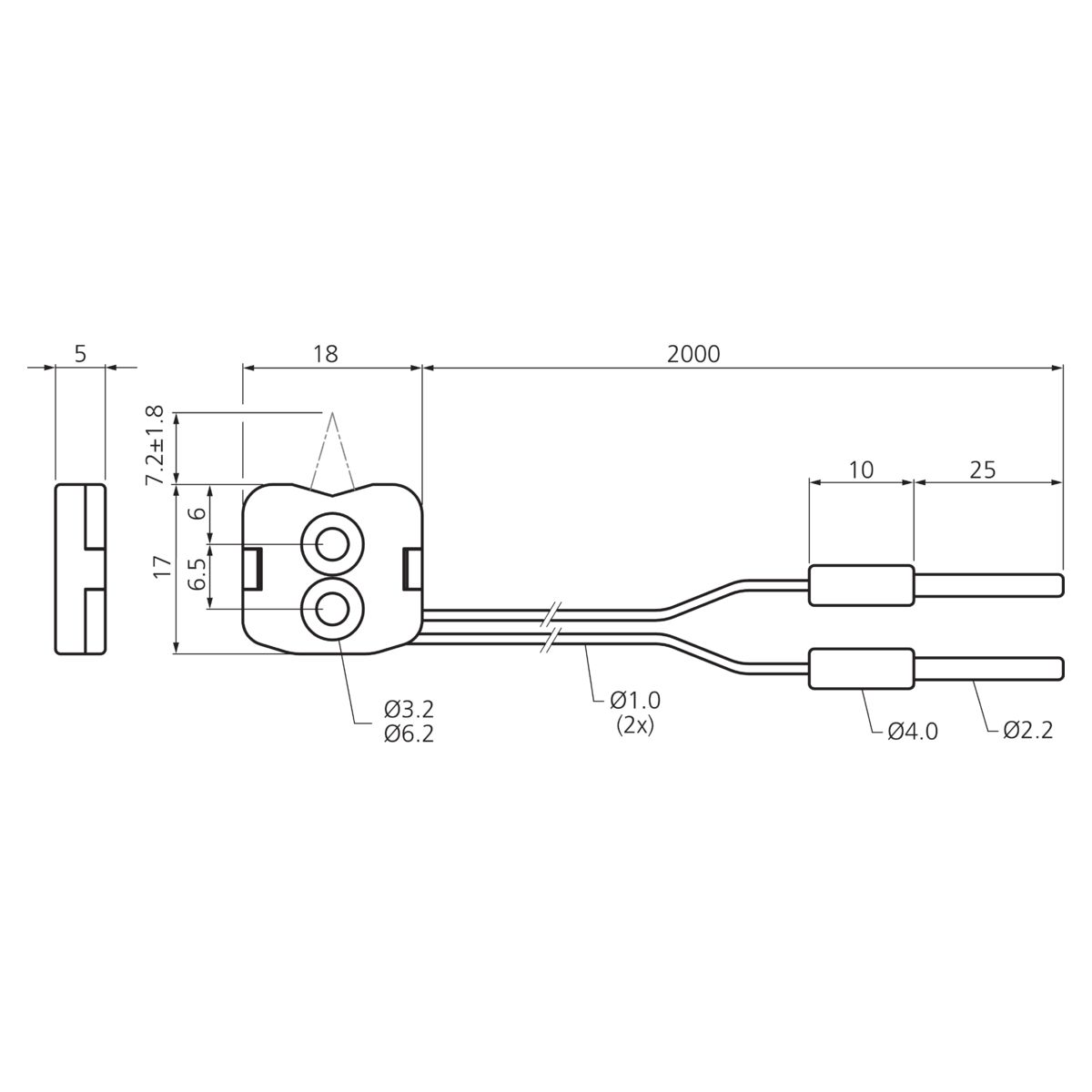

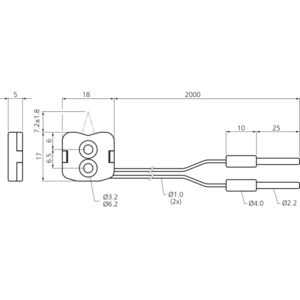

| Housing Dimensions | 18 x 17 x 5 mm |
| Length | 2000.0 mm Can be shortened |
| Light Aperture | radial |
| Material | Plastic;PE Sensor probe;Coating |
| Operating Principle | Diffuse sensor |
| Range | 5.0 ... 10.0mm |
| Resolution | 0.1 mm |
| Temperature Resistance | -40.0 °C 70.0 °C |
| To Be Used For | Device series OLV-K Amplifier |
