PS30-05LL-500-500-IBS
Part Number: PS30-05LL-500-500-IBS
Article Number: 213740
Technical Details
| Ambient Light Immunity | 20.0 kLx |
|---|---|
| Ambient Temperature During Operation | -10.0 ... 55.0°C |
| Color | Red |

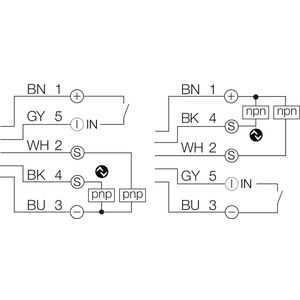

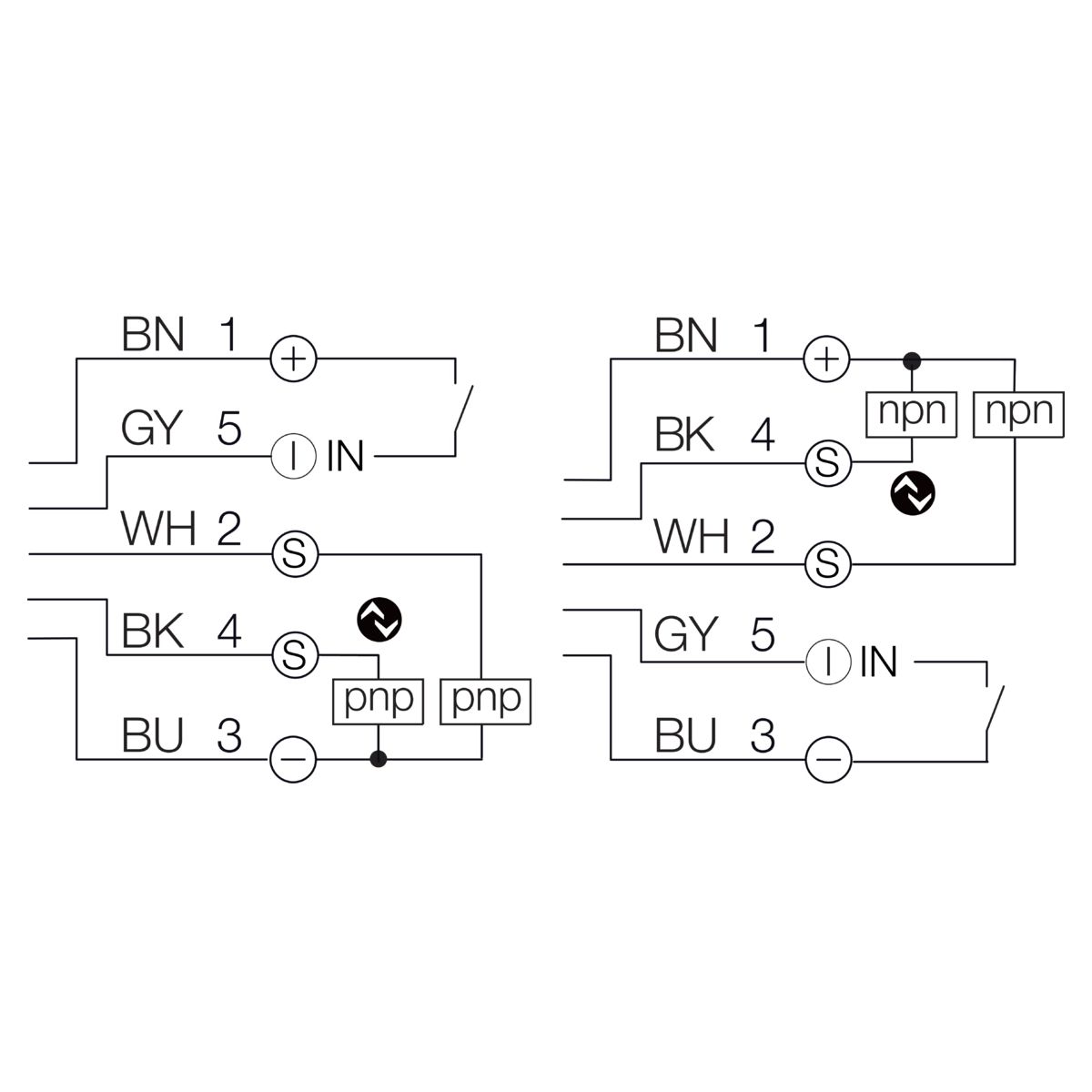

| Connection | Connector M12 5-pin |
| Display | Color display |
| EMC Directives | EN 60947-5-2 |
| Green | Operation |

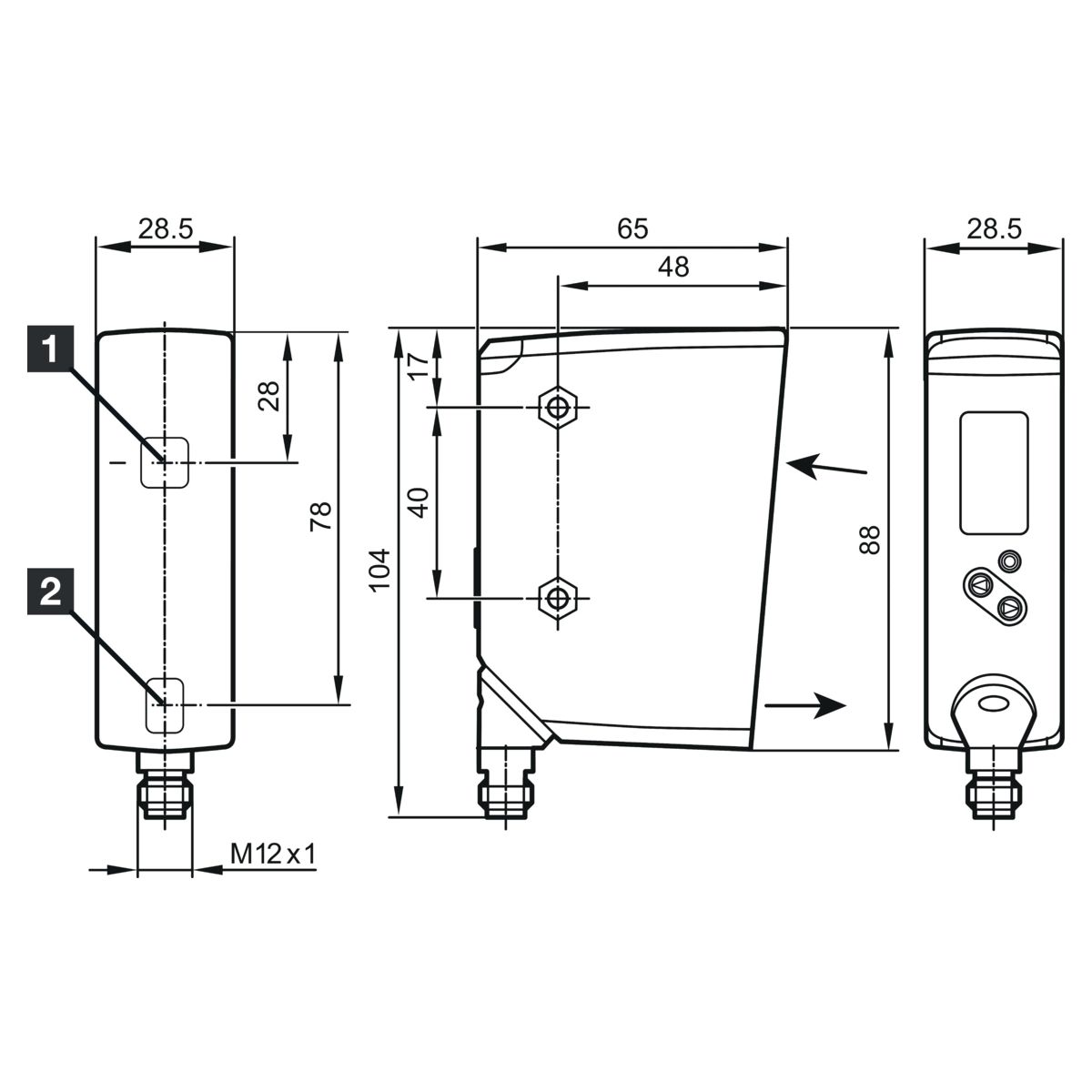

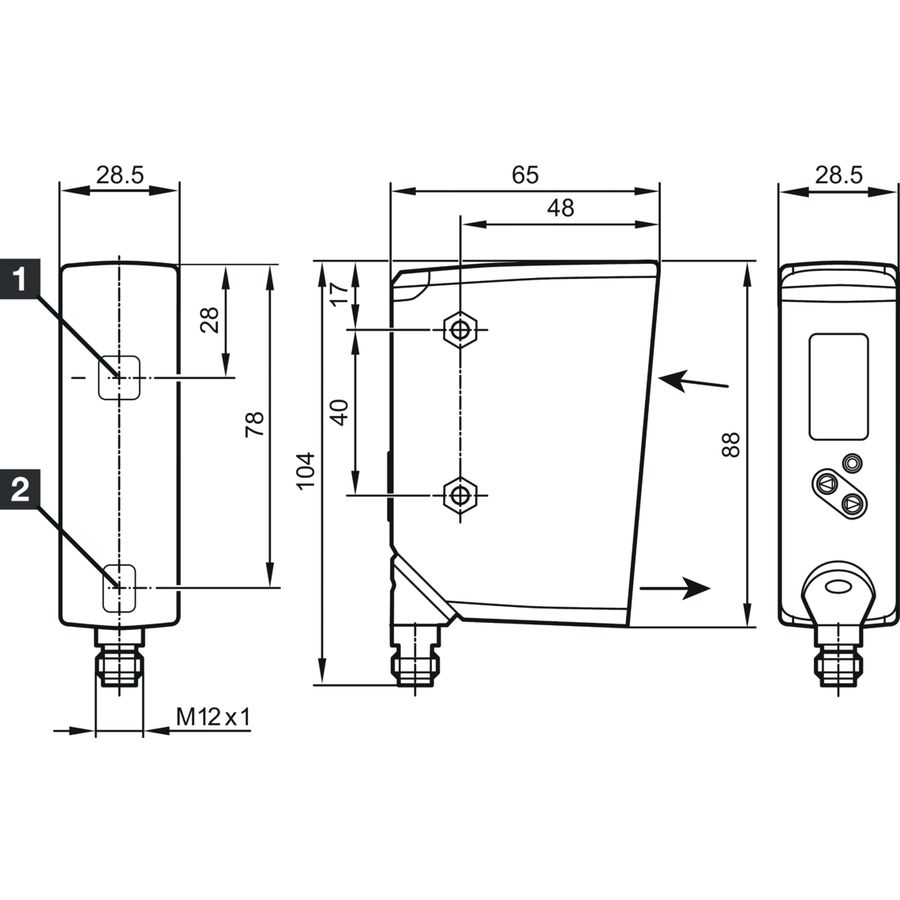

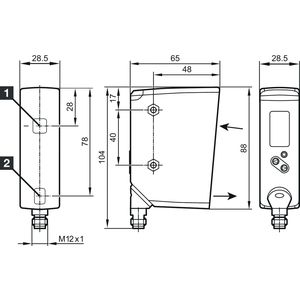

| Housing Dimensions | 88 x 65 x 28.5 mm |
| Housing Material | Die-cast zinc Black PPSU; ABS; PMMA; PBT / PC; EPDM |
| Illumination Time Pulse | 1.0 |
| Interface | IO-Link V1.1, COM3 230,4 kBd |
| Inverse Polarity Protection | Yes |
| Laser Class | 1 (IEC 60825-1:2014 / EN 60825-1:2014) |
| Light Source | Laser |
| Material | PMMA Window / optics |
| Measuring Frequency | 5.0 Hz |
| Model | PS 30 |
| Number Of Inputs Outputs | 1 (digital) / 2 (digital) |
| Power Consumption | 200.0 mA 10 V |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65 |
| Readiness Delay (max.) | 2000.0 ms |
| Reproducibility | ± 0.5 mm X/Z axis, background white (90 % Remission) |
| Sensitivity Adjustment | Programming buttons |
| Service Voltage | 10 ... 30.0V DC |
| Short Circuit Protection | Yes, clocked |
| Switching Output | pnp/npn 100.0 mA NO/NC configurable |
| Wavelength | 650.0 nm |
| Weight | 535.0 g |
| Yellow | Switching status |
