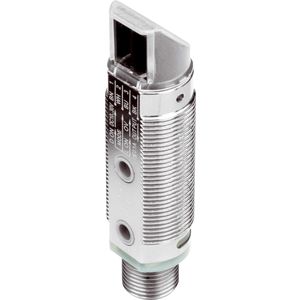

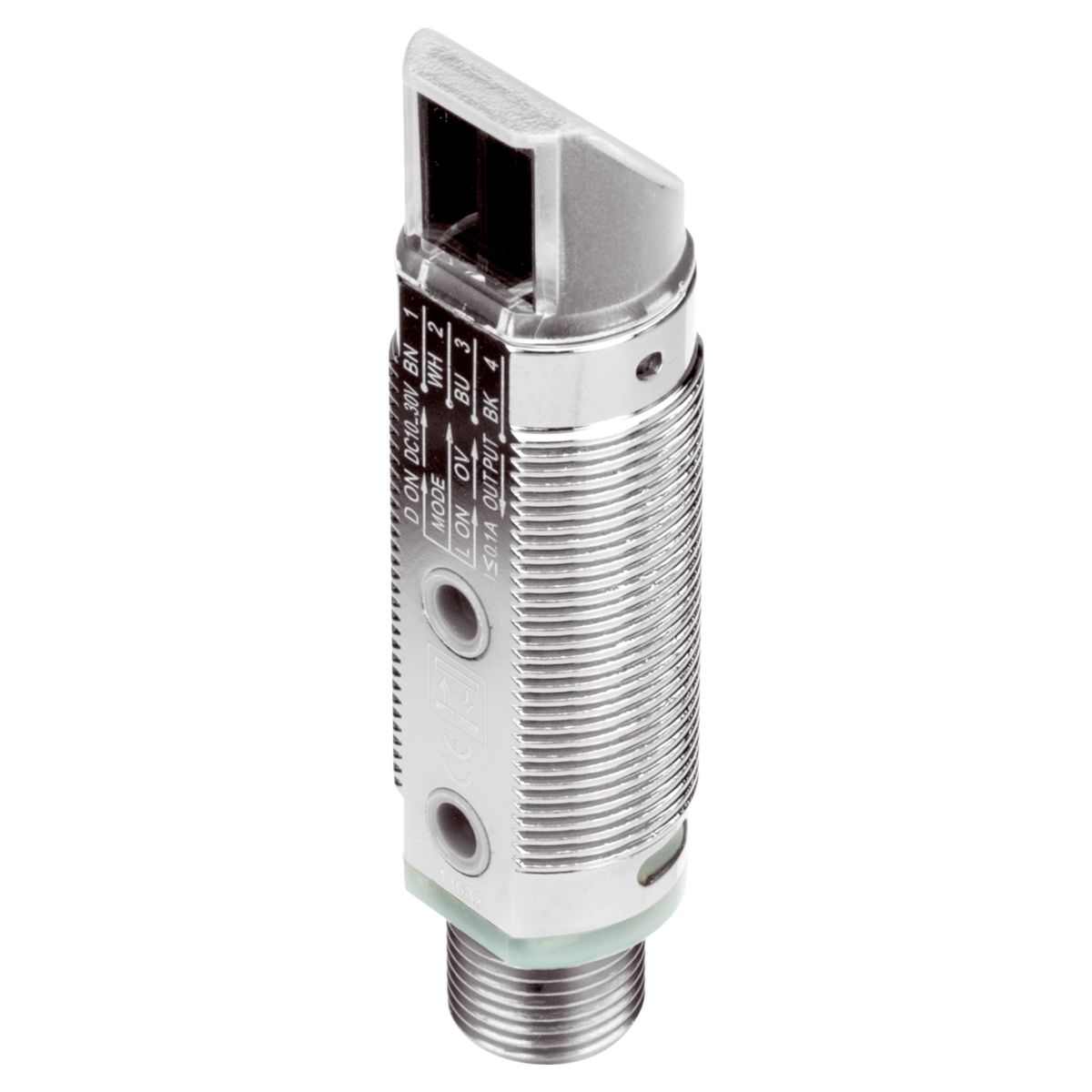

Retroreflective Sensor - OR 18-1 FMR 3600 P3-B4
Part Number: OR 18-1 FMR 3600 P3-B4
Article Number: 207970
Technical Details
| Activation Time | 0.5 ms |
|---|---|
| Ambient Light Immunity | 3;10 kLx;kLx Clocked light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 55.0°C |
| Color | Red |

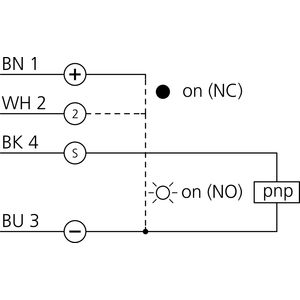

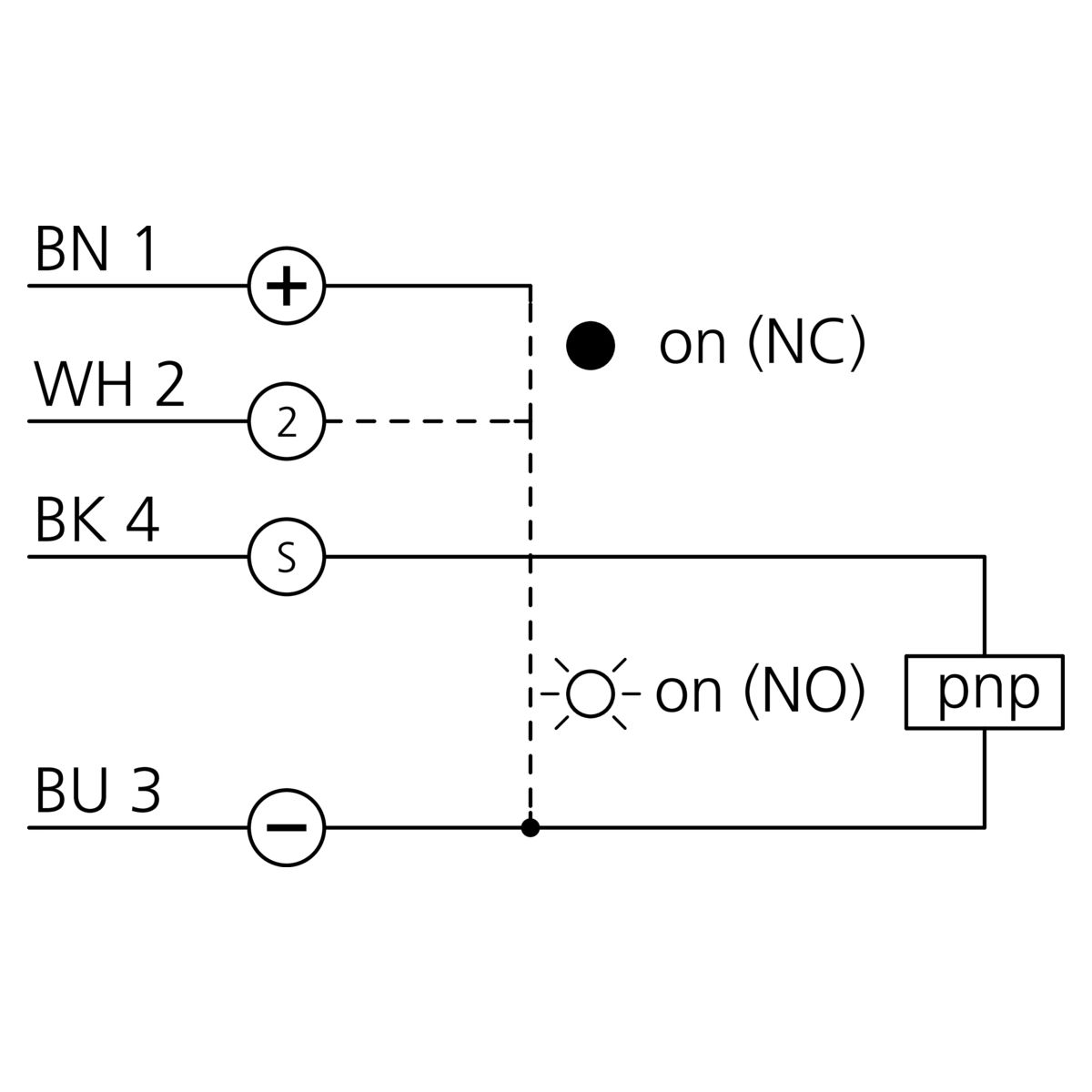

| Connection | Connector M12 4-pin |
| Design | Thread |
| Evaluation | digital |

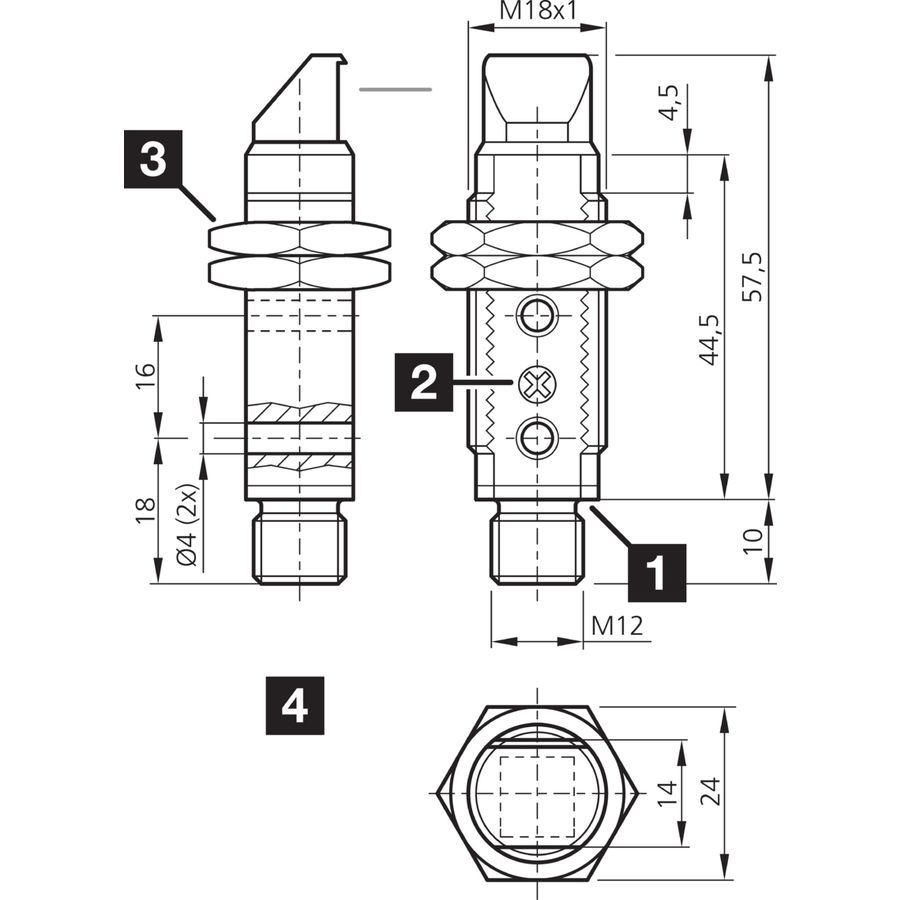

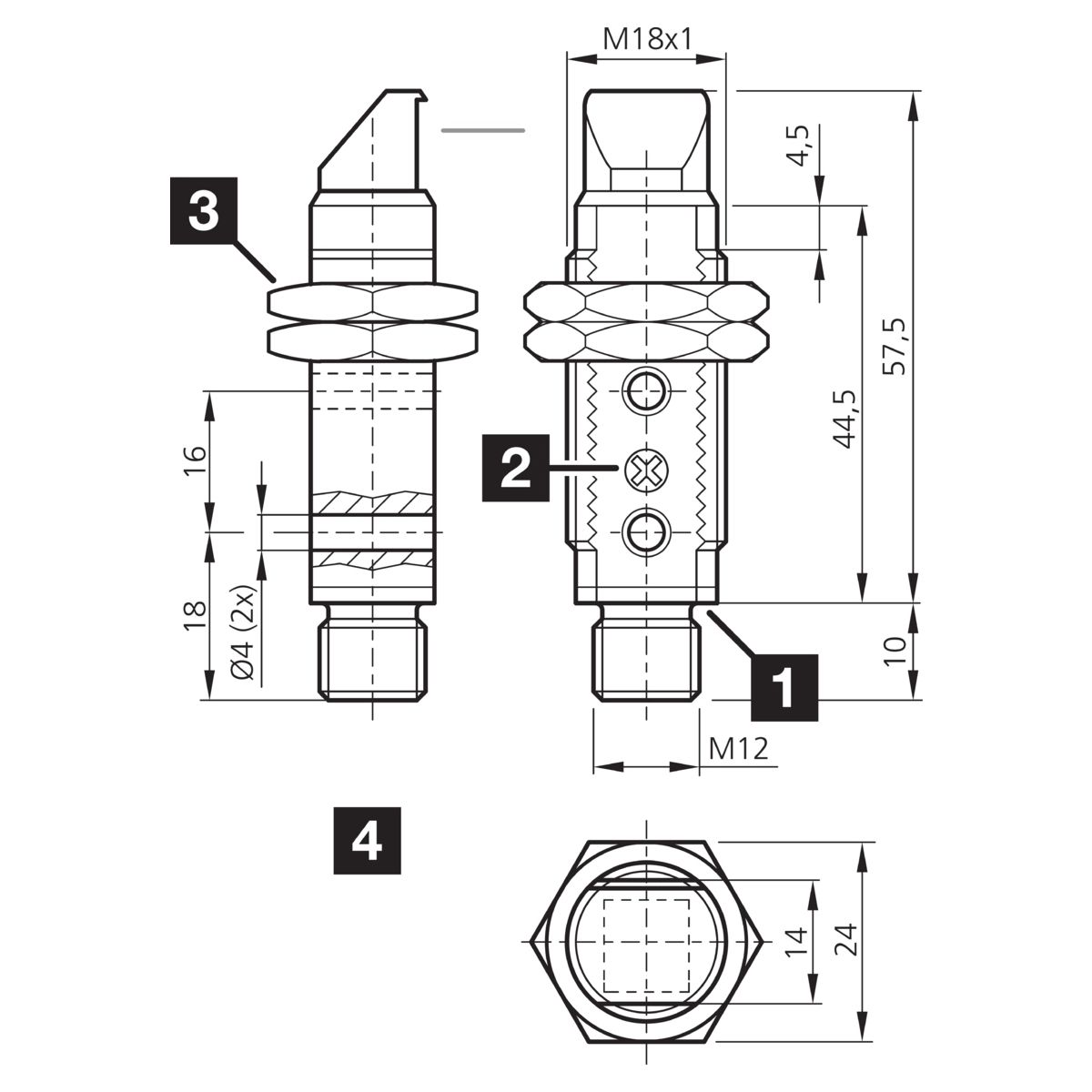

| Housing length | 67.5 mm |
| Housing Material | Metal |
| Illumination Time Pulse | 1.0 |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 4000.0mm |
| Range During Operation With | 1800;3600;4000 mm;mm;mm R55;R 84;R 100x100 |
| Referring Reflector | R55 included |
| Release Time | 0.5 ms |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency | 1000 Hz |
| Switching Output | pnp 100.0 mA NO/NC |
| Thread | M18 x 1 |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 660 nm |
