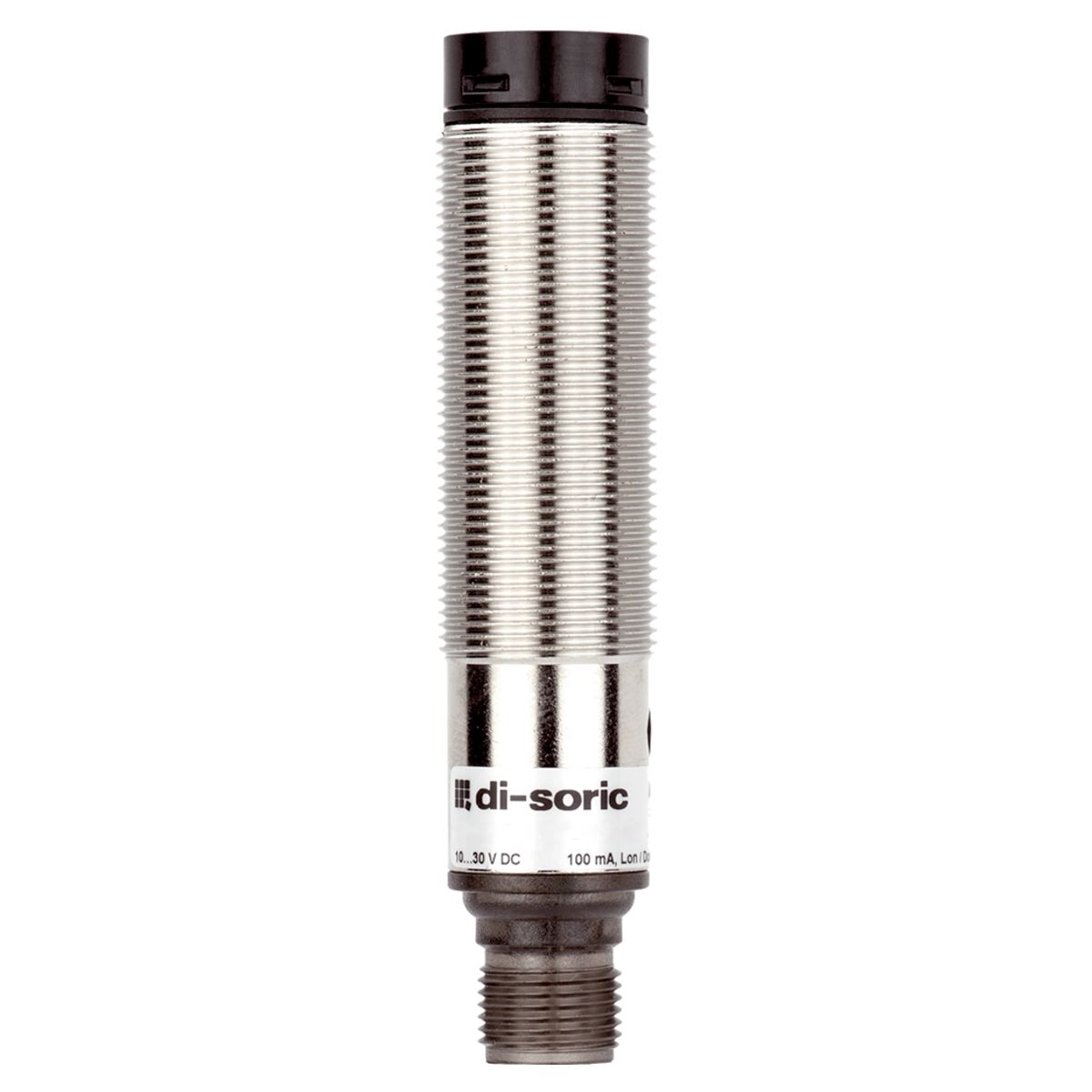

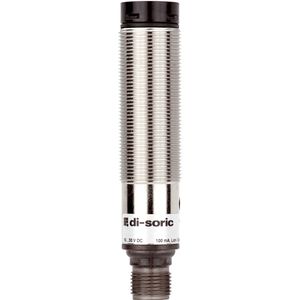

Retroreflective Sensor - OR 18-1 M 3000 P4-B4
Part Number: OR 18-1 M 3000 P4-B4
Article Number: 208302
Technical Details
| Activation Time | 2.0 ms |
|---|---|
| Ambient Light Immunity | 5;10 kLx;kLx Halogen light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Color | Red |
| Connection | Connector M12 4-pin |
| Design | Thread |
| Evaluation | digital |

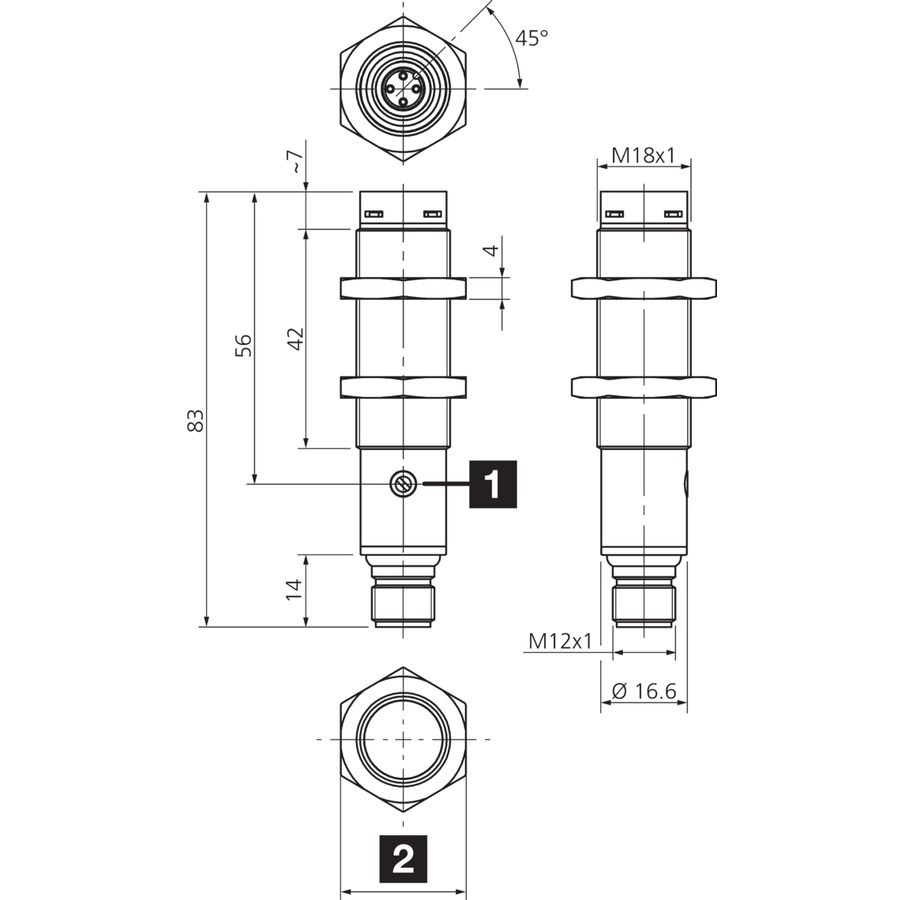

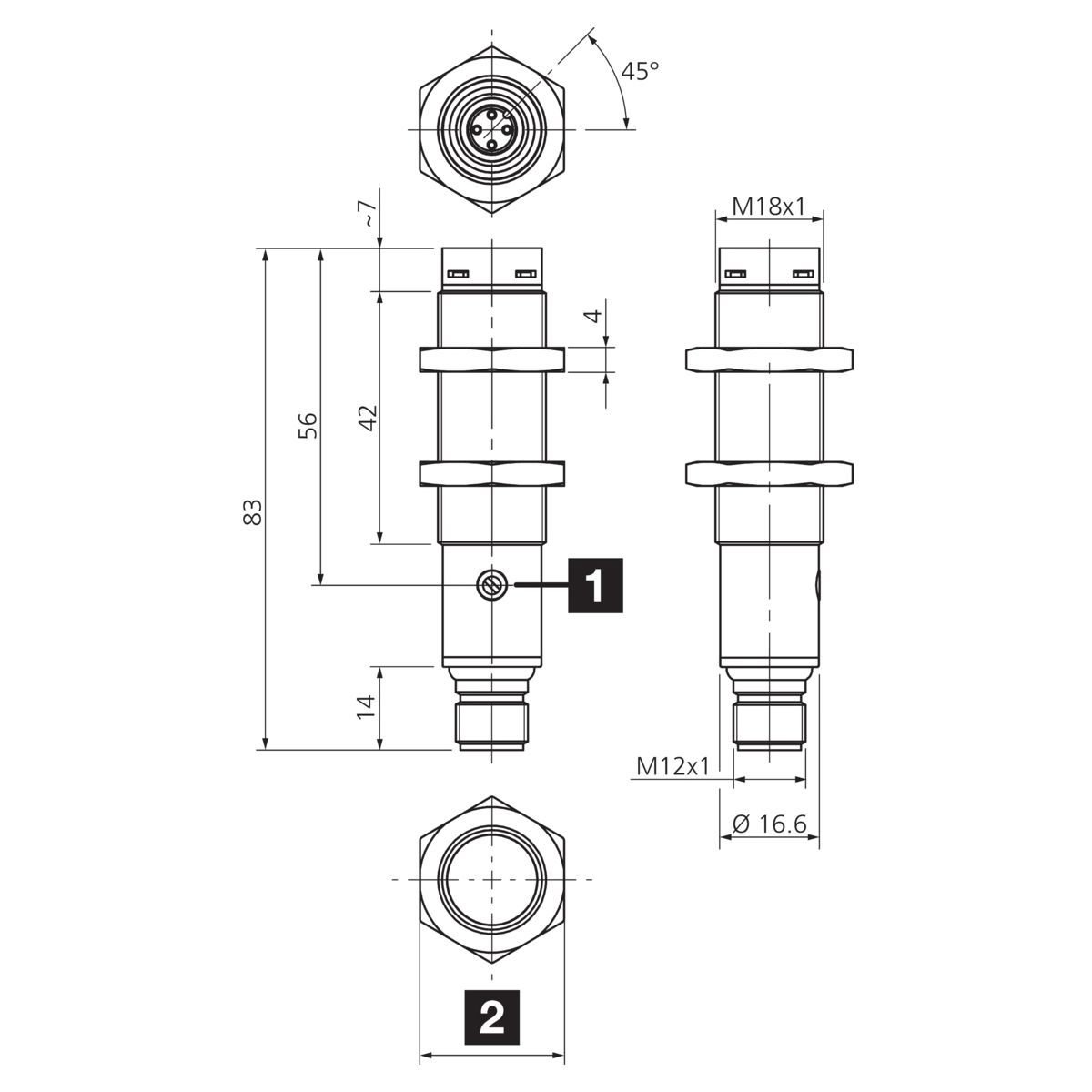

| Housing length | 83.0 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked;polarized |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 3000.0mm |
| Referring Reflector | Ø 84 mm;R 84 |
| Release Time | 2.0 ms |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency | 250 Hz |
| Switching Hysteresis (max.) | 10.0 % |

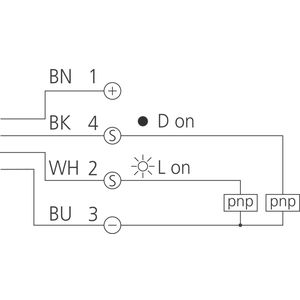

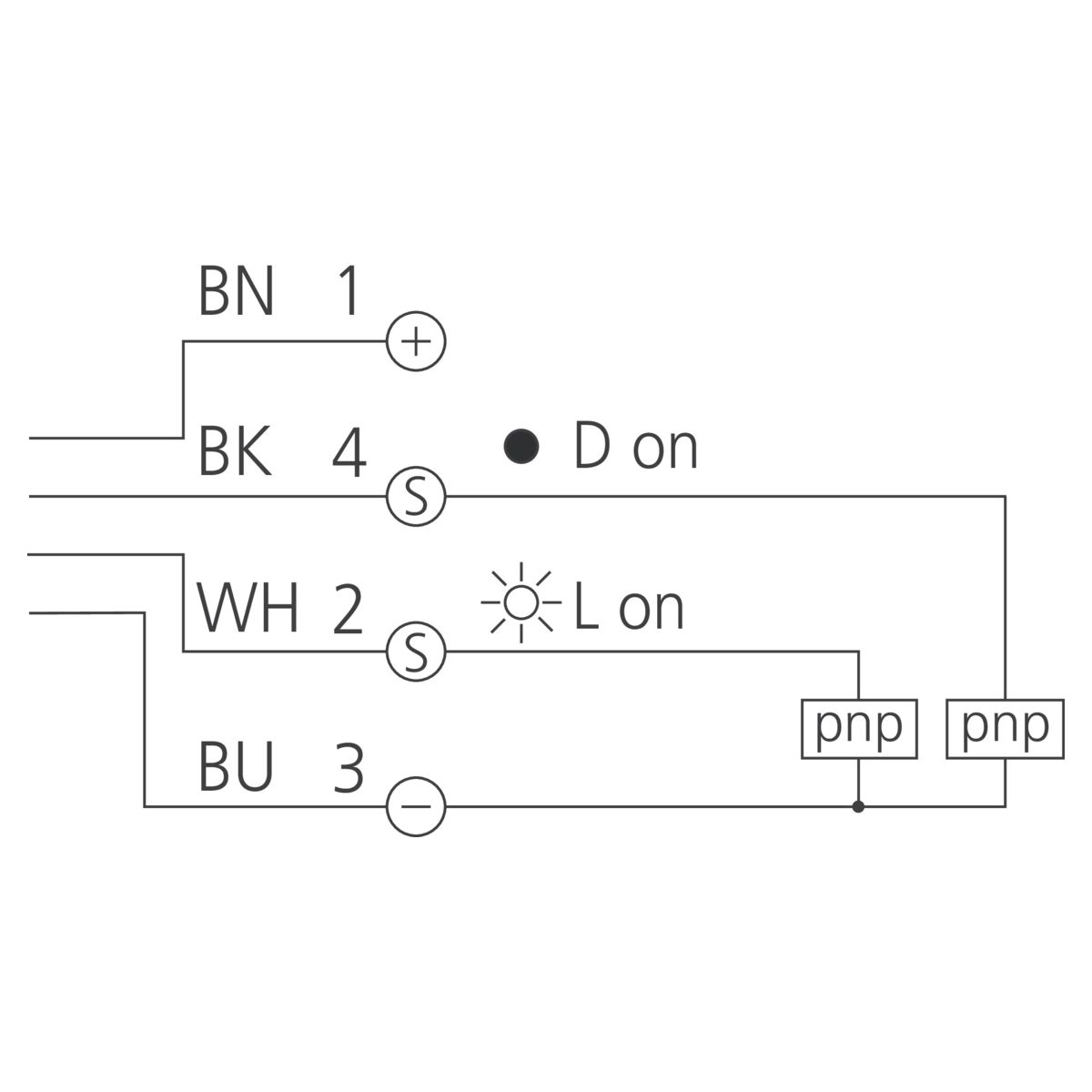

| Switching Output | pnp 100.0 mA antivalent |
| Temperature Drift | 3.0 mm/K |
| Thread | M18 x 1 |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 660 nm |
