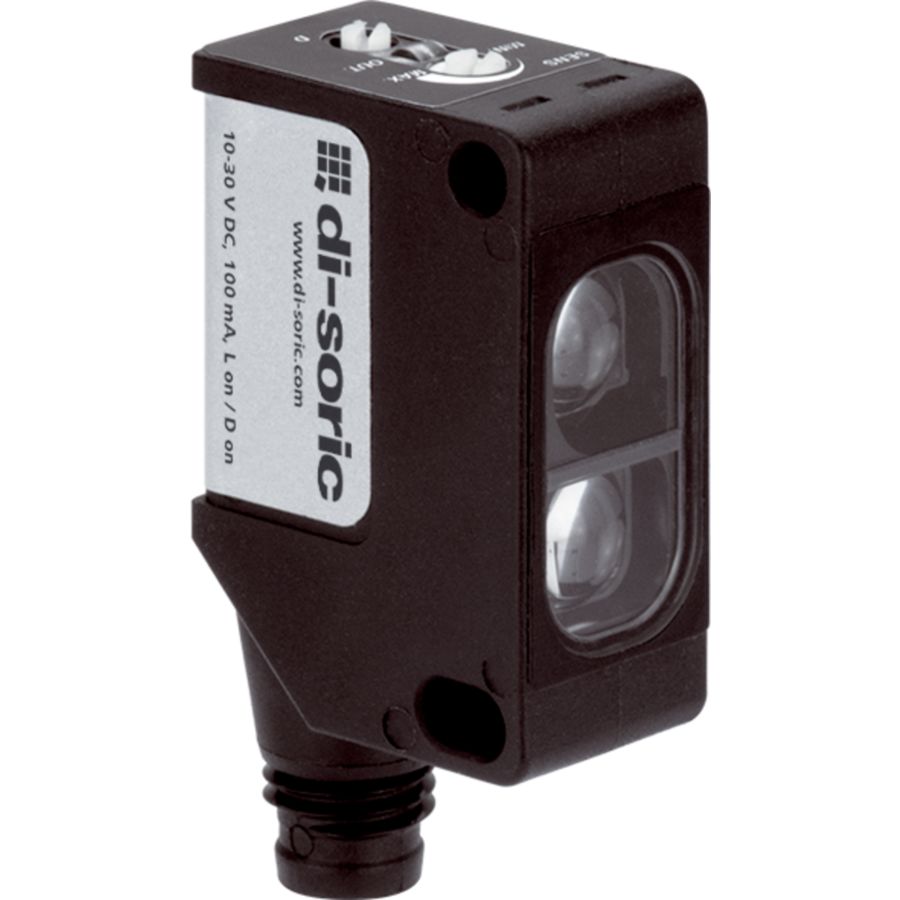

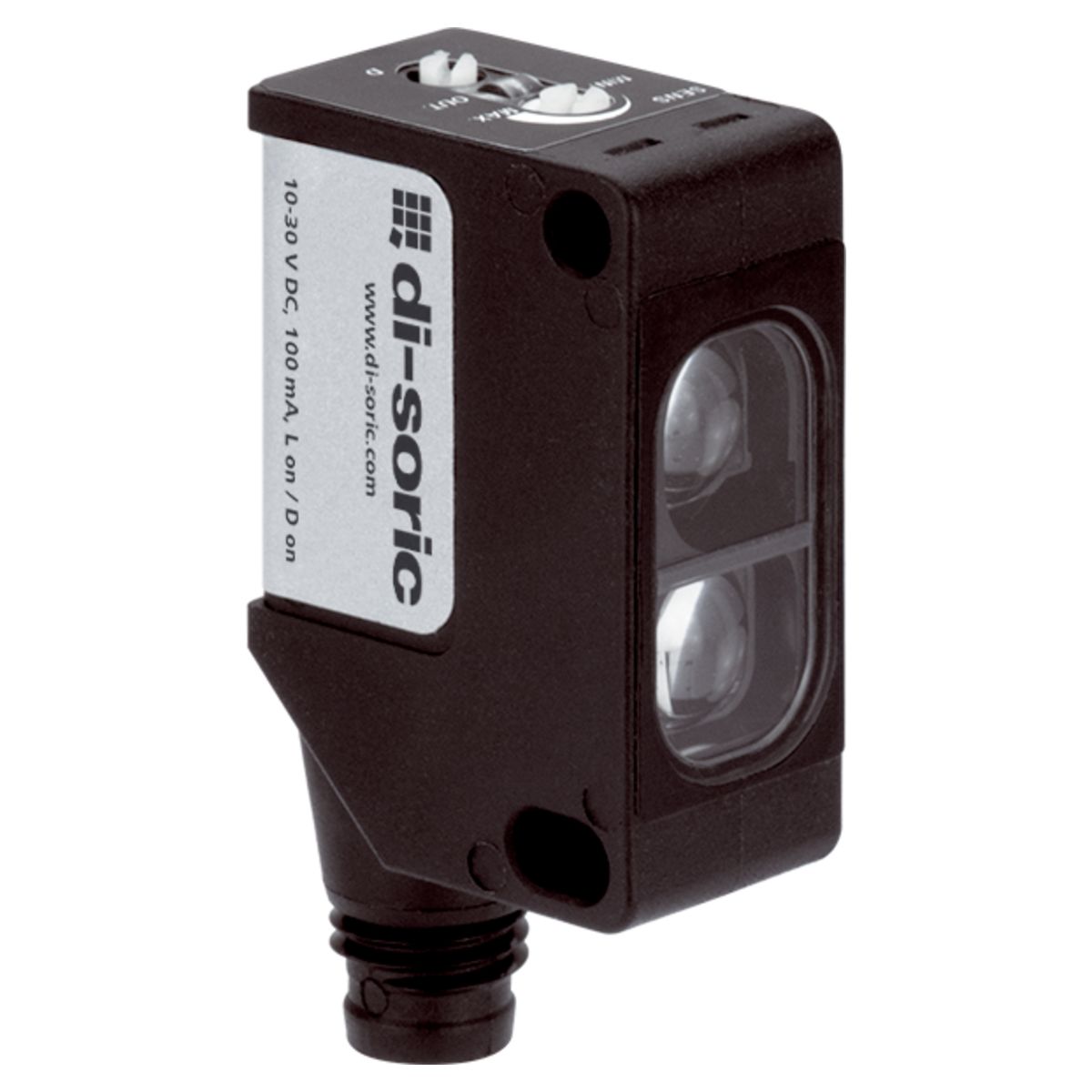

Retroreflective Sensor - OR 31 K 5000 P3-T4
Part Number: OR 31 K 5000 P3-T4
Article Number: 209257
Technical Details
| Activation Time | 0.25 ms |
|---|---|
| Ambient Light Immunity | 3;10 kLx;kLx Halogen light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Color | Red |

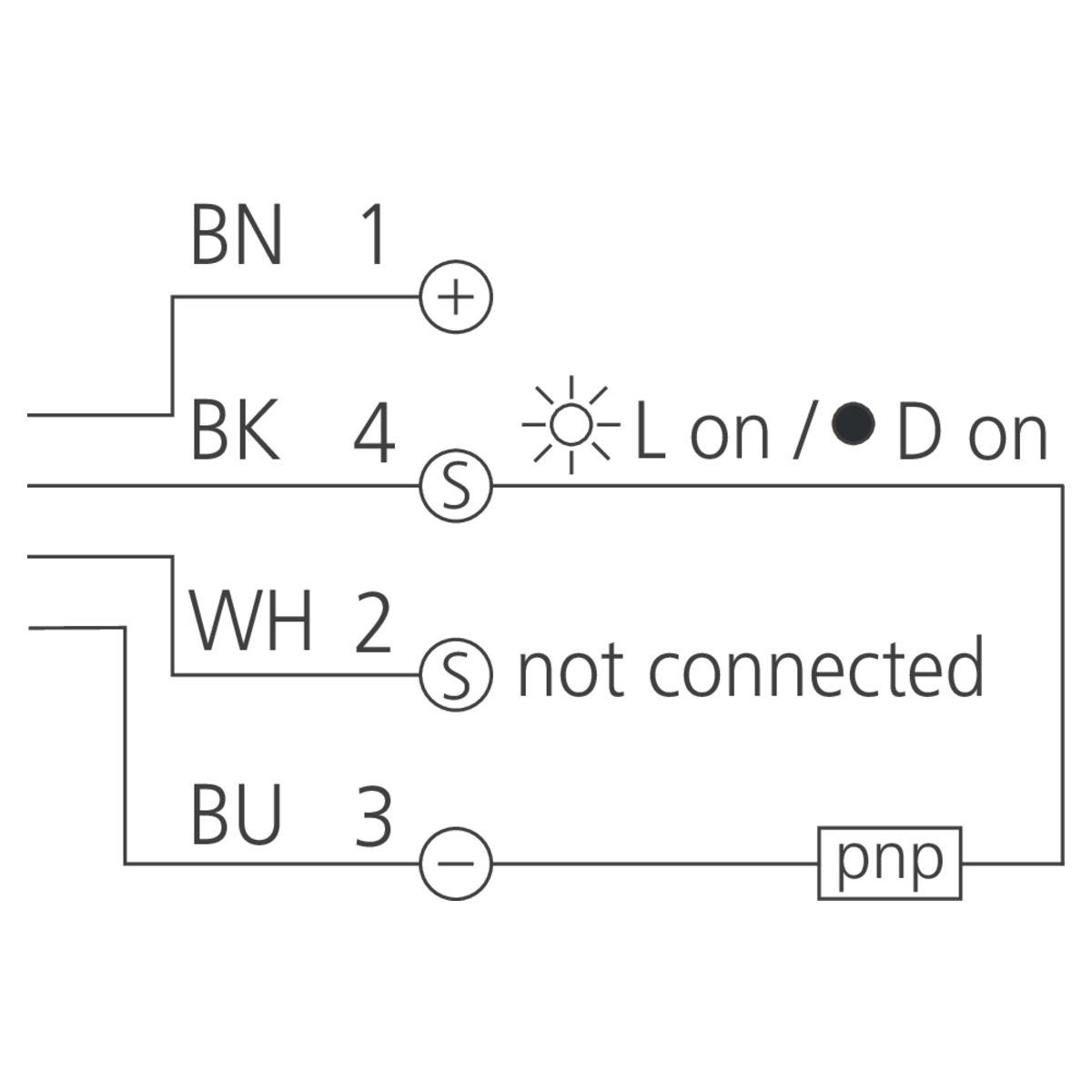

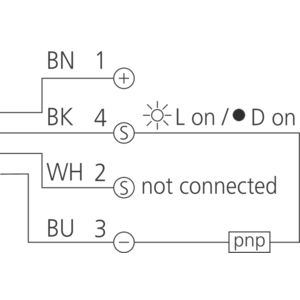

| Connection | Connector M8 4-pin |
| Connection Cable | TK ... /4 |
| Design | Cuboid design |
| Evaluation | digital |

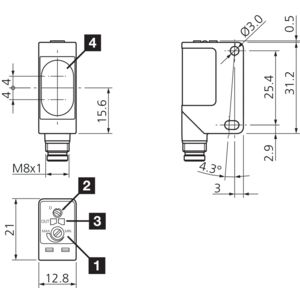

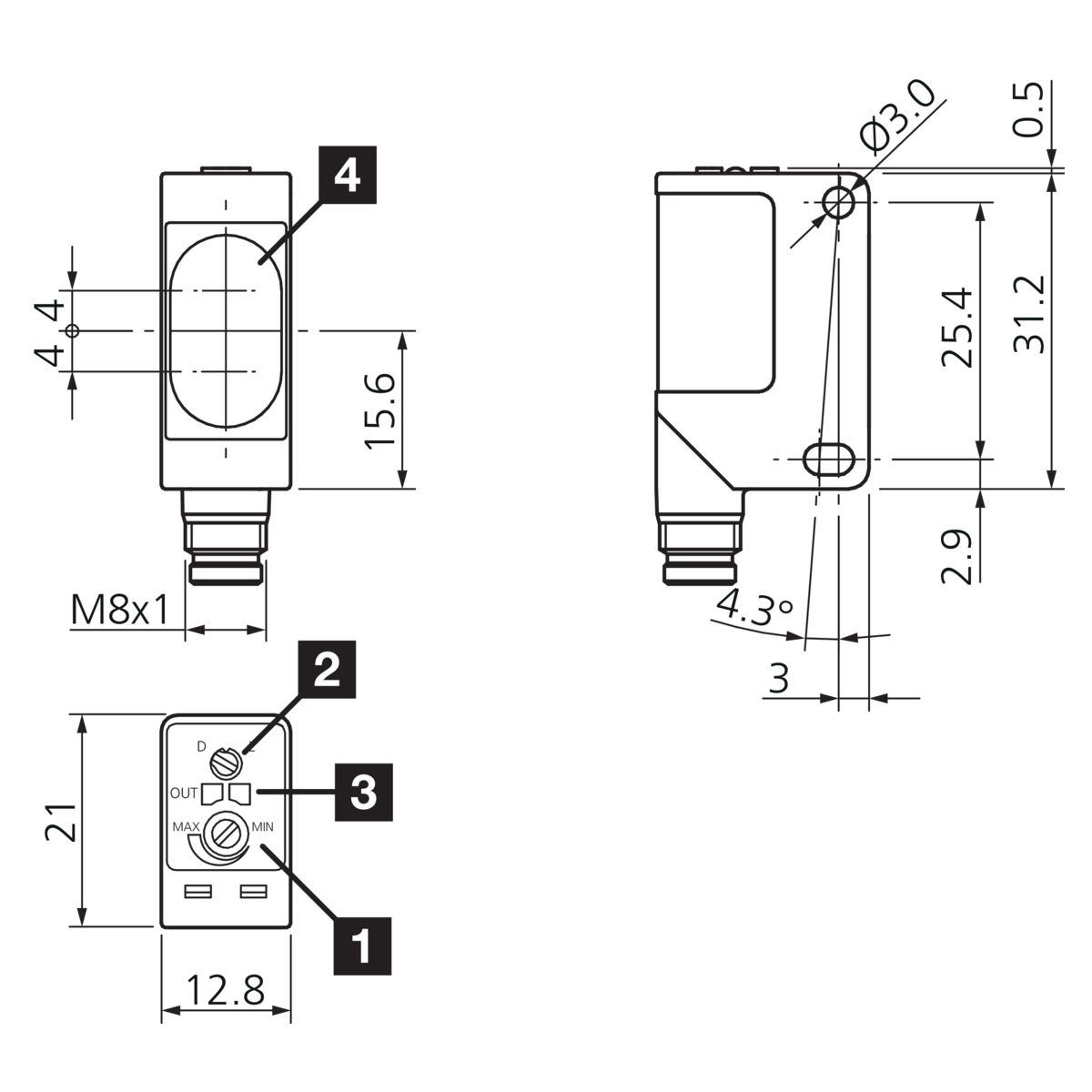

| Housing Dimensions | 31.2 x 21 x 12.8 mm |
| Housing length | 21.0 mm |
| Housing Material | Plastic PA 6.6 |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 20.0 ... 5000.0mm |
| Referring Reflector | Ø 84 mm;R 84 |
| Release Time | 0.25 ms |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency | 2000 Hz |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | pnp 100.0 mA NO/NC switchable |
| Temperature Drift | 1.5 mm/K |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 630 nm |
