Retroreflective Sensor - OR 6-41 K 4 P1-T3
Part Number: OR 6-41 K 4 P1-T3
Article Number: 206206
Technical Details
| Ambient Light Immunity | 5 kLx |
|---|---|
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
| Color | Red |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

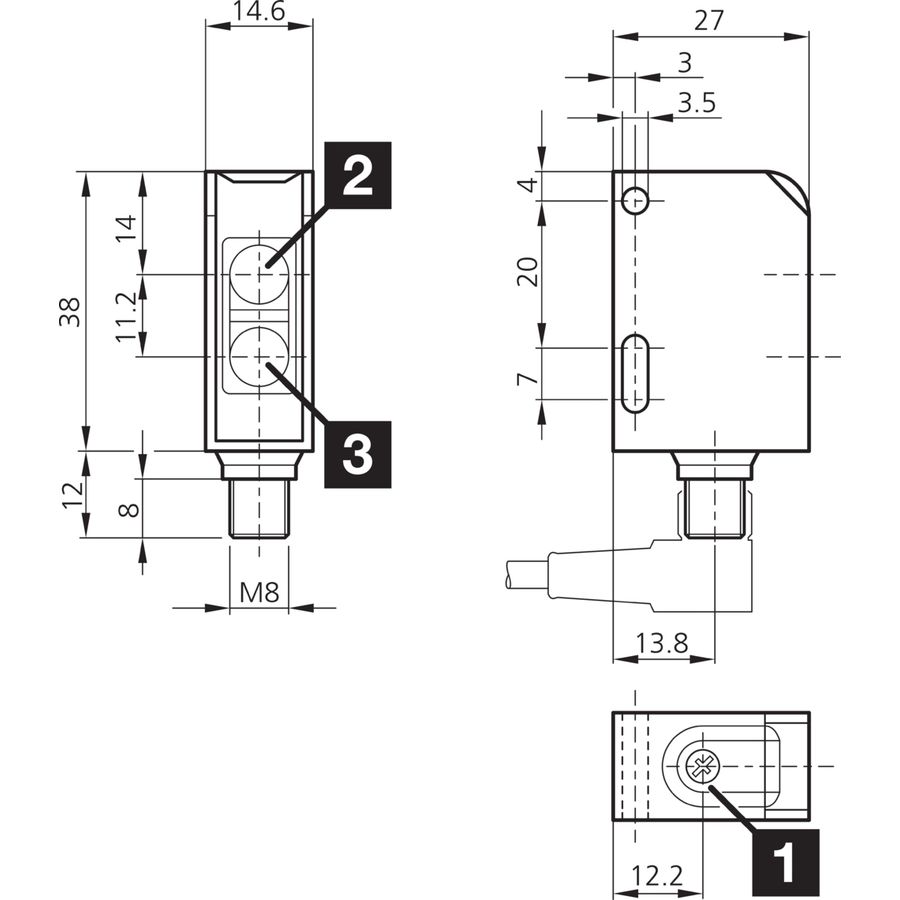

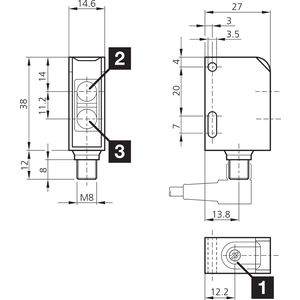

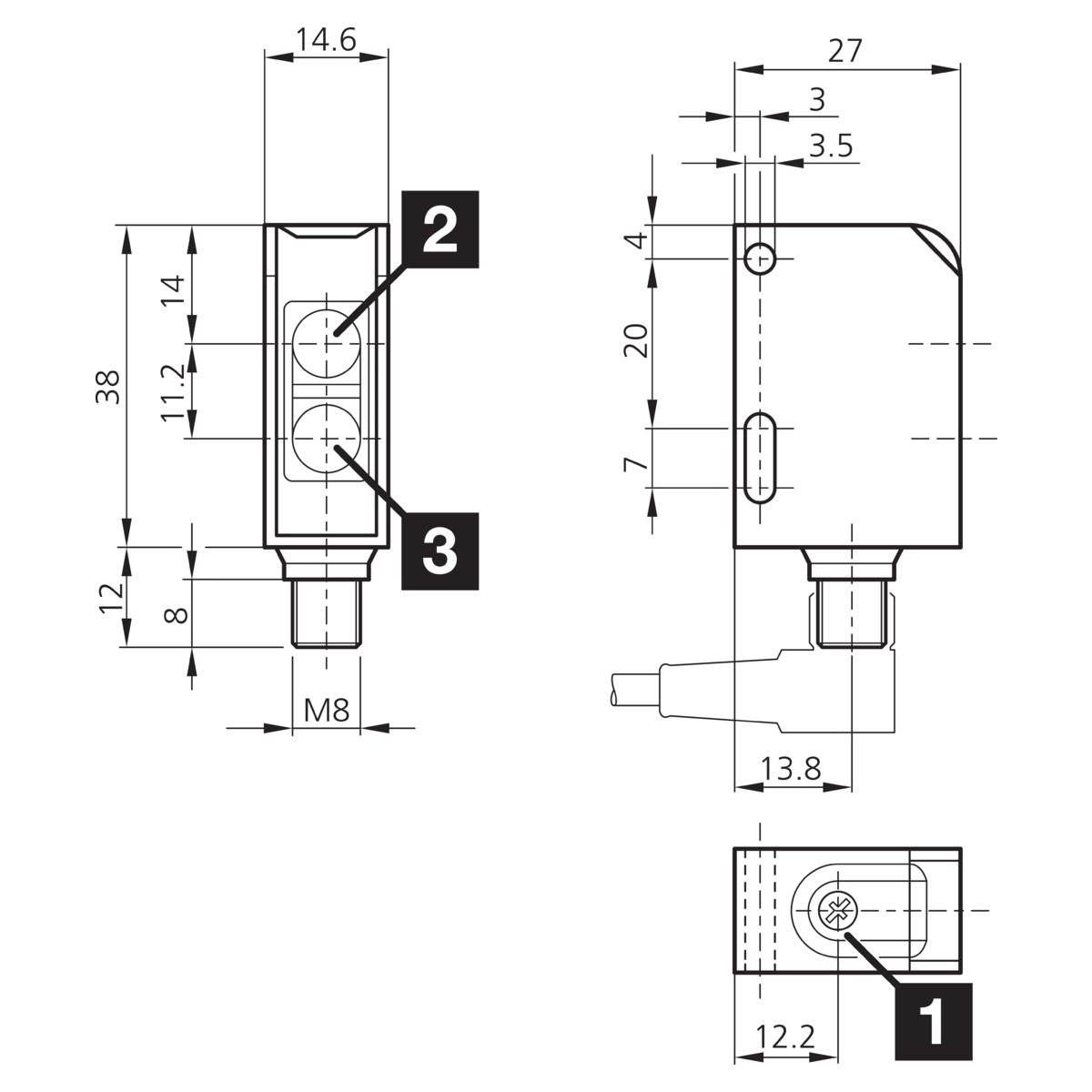

| Housing Dimensions | 38 x 27 x 15 mm |
| Housing length | 27.0 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Light Source | LED |
| Material | Plastic Window |
| Modulation | Clocked |
| No Load Current (max.) | 25.0 mA |
| Operating Principle | Retroreflective sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 400.0 ... 10000.0mm |
| Referring Reflector | Reflector R55 included |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10 ... 30.0V DC |
| Switching Distance | 400;900;1000 mm;mm;mm 4000;9000;10000 mm;mm;mm R55;R 84;R 100x100 |
| Switching Frequency | 500.0 Hz |
| Switching Output | pnp 100.0 mA NC |
| Wavelength | 630.0 nm 670.0 nm |
