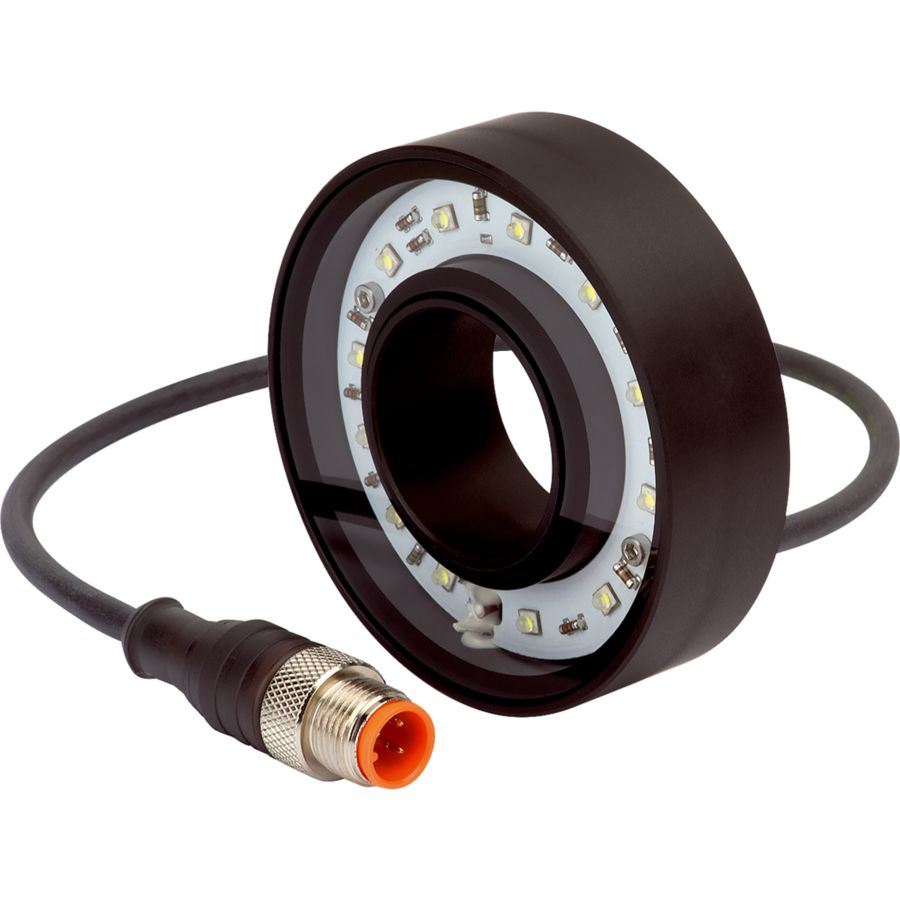

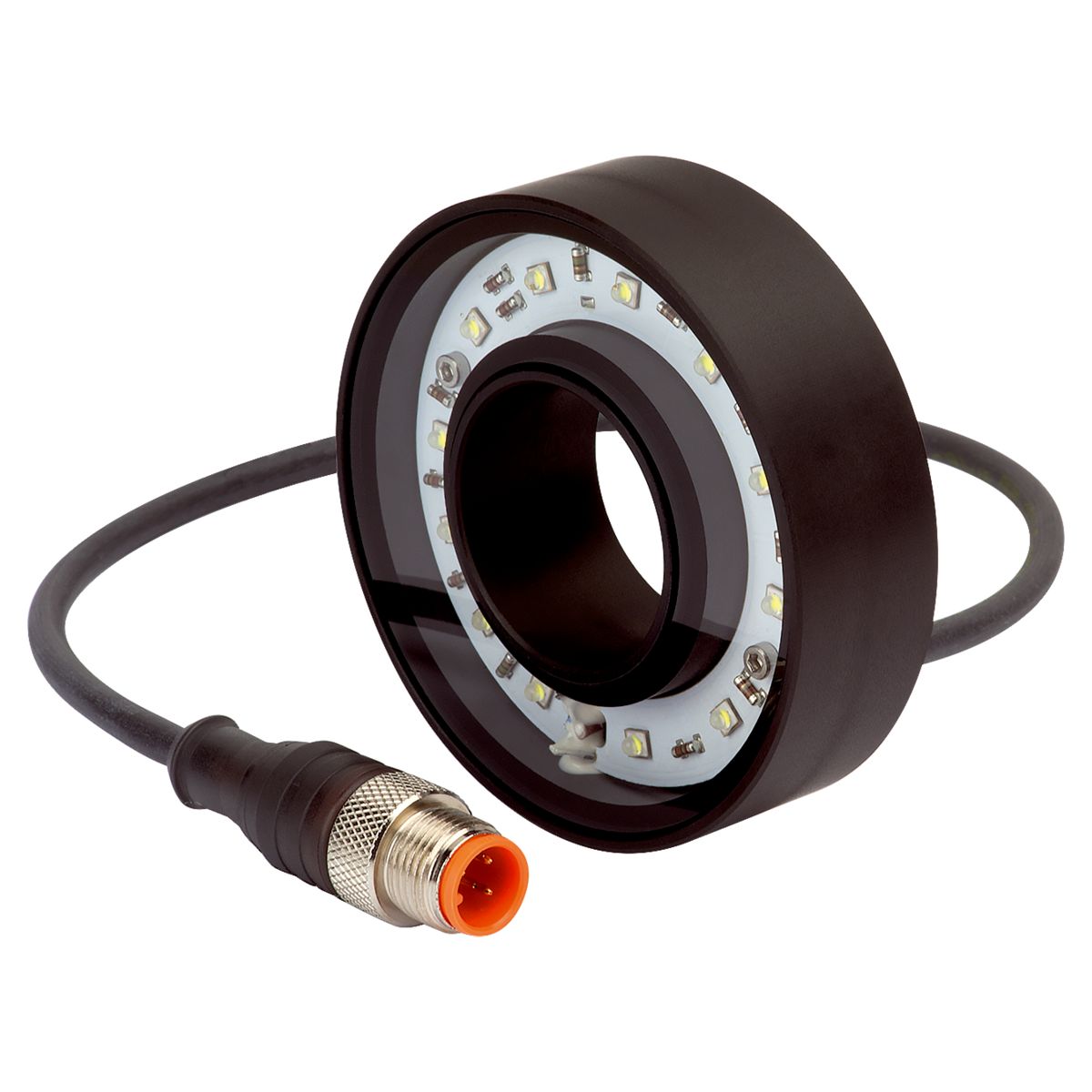

Ringlight - BE-R30-G1-K-BS-CLR
Part Number: BE-R30-G1-K-BS-CLR
Article Number: 209551
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Characteristics | State-of-the-art high power LEDs |
| Color | Red clear |

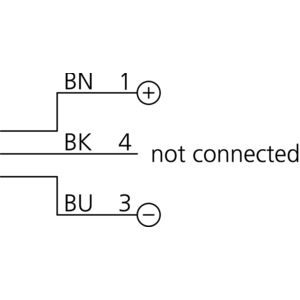

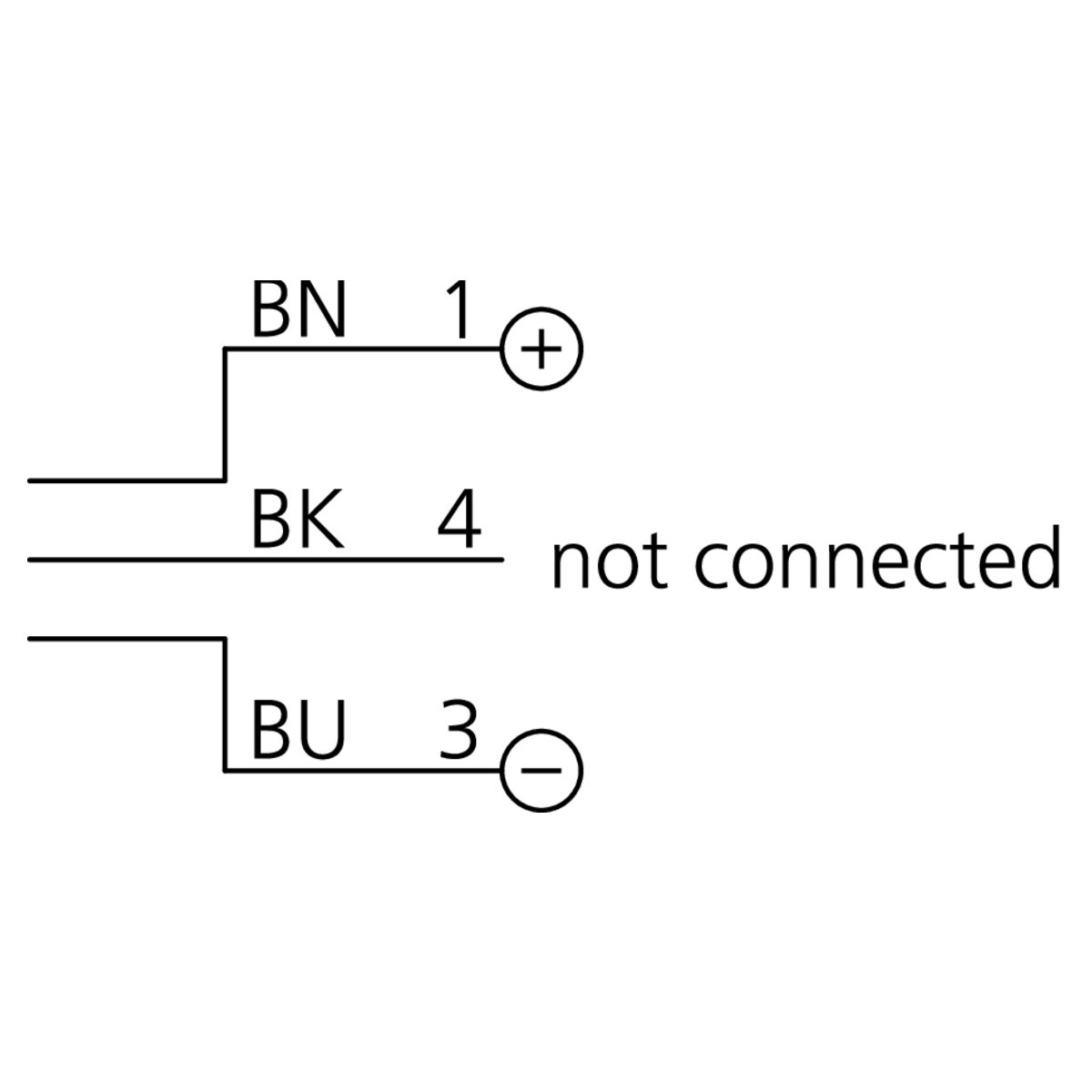

| Connection | Pigtail 0.3 m M12 3-pin |
| Connection Cable | VK ... |
| Deflection Angle FWHM | 80.0 ° |
| Design | Ringlight |

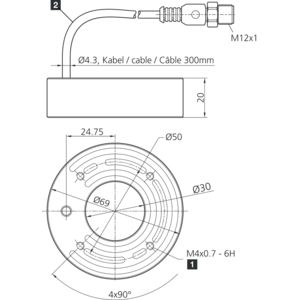

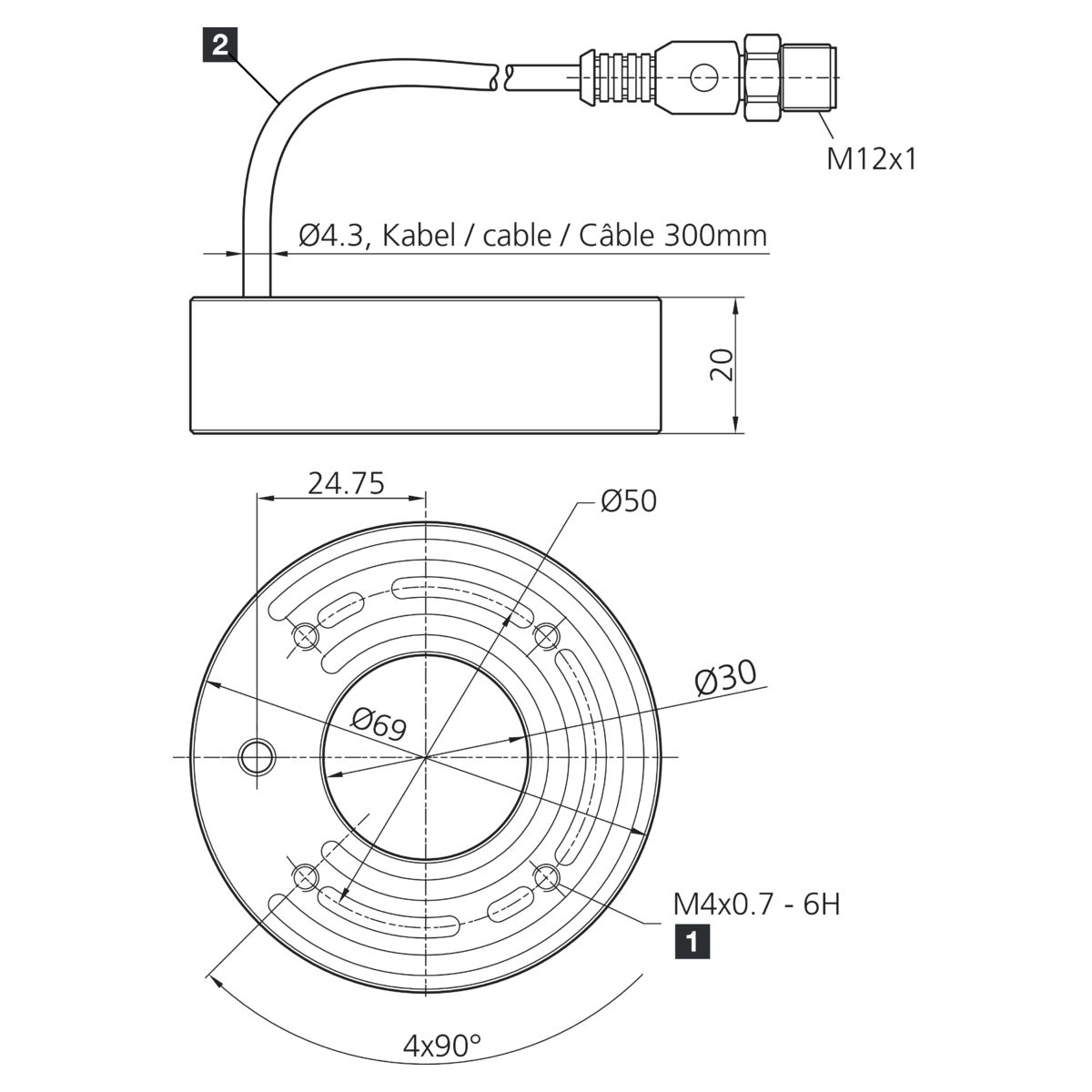

| Diameter | 30;69 mm;mm |
| Height | 20.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Intensity | 9;2.9;1.35 kLx;kLx;kLx 100;200;300 mm;mm;mm |
| Light Source | LED |
| Material | Polyurethane;PMMA, clear Cable;Protection optics |
| Power | 5.1 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 24.0 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Wavelength | 625 nm |
