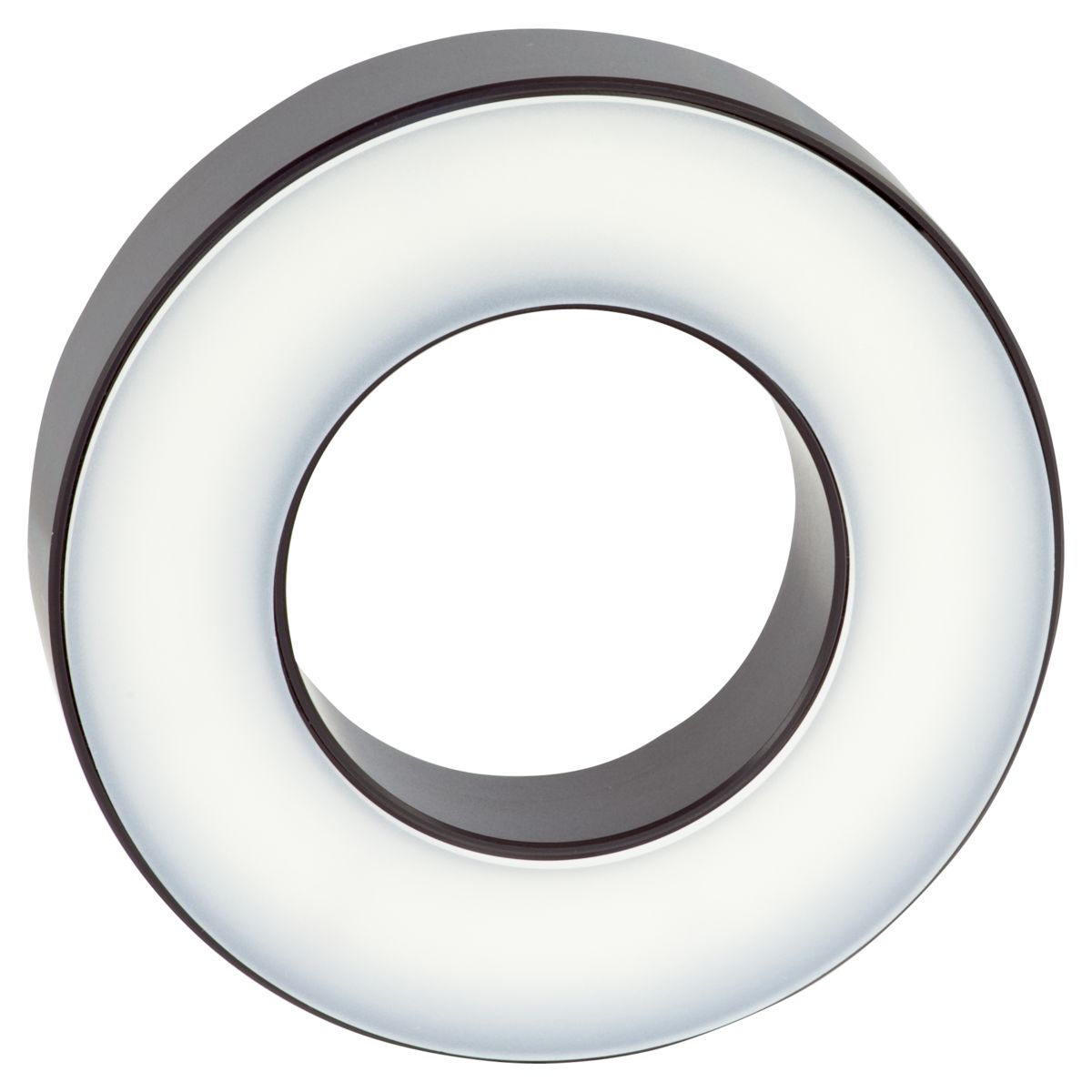

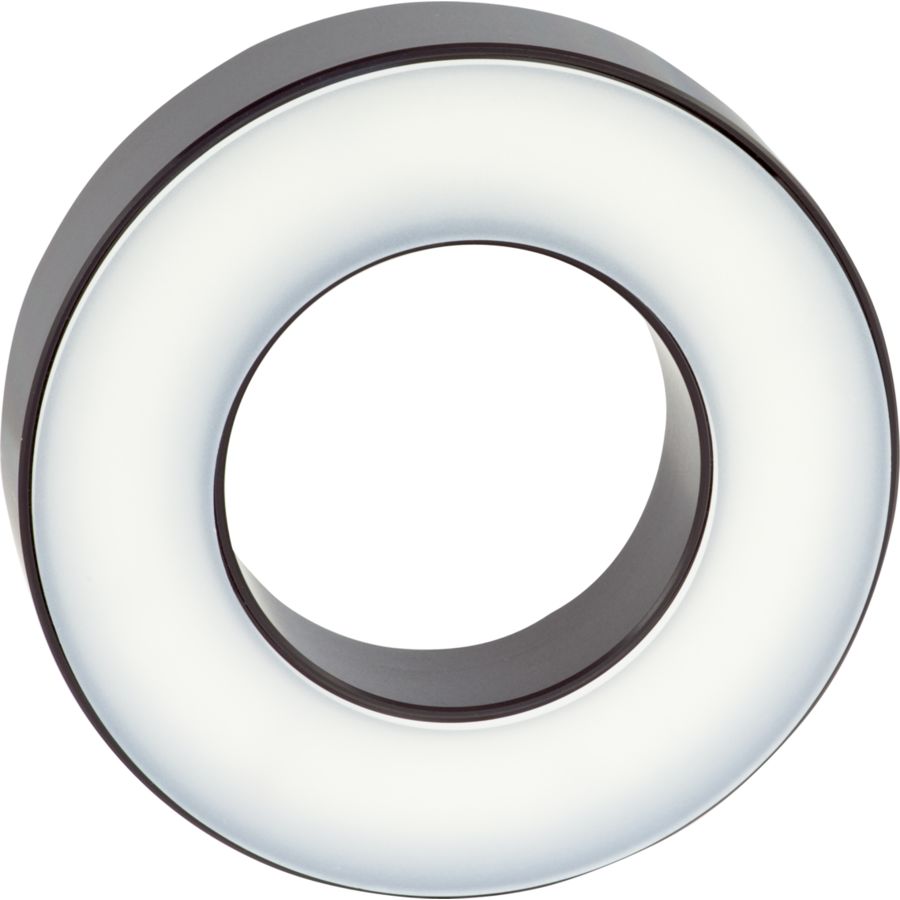

Ringlight - BEK-R70/30-G0TI-IBS-CLR
Part Number: BEK-R70/30-G0TI-IBS-CLR
Article Number: 206389
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | Infrared clear |

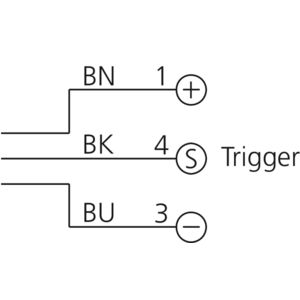

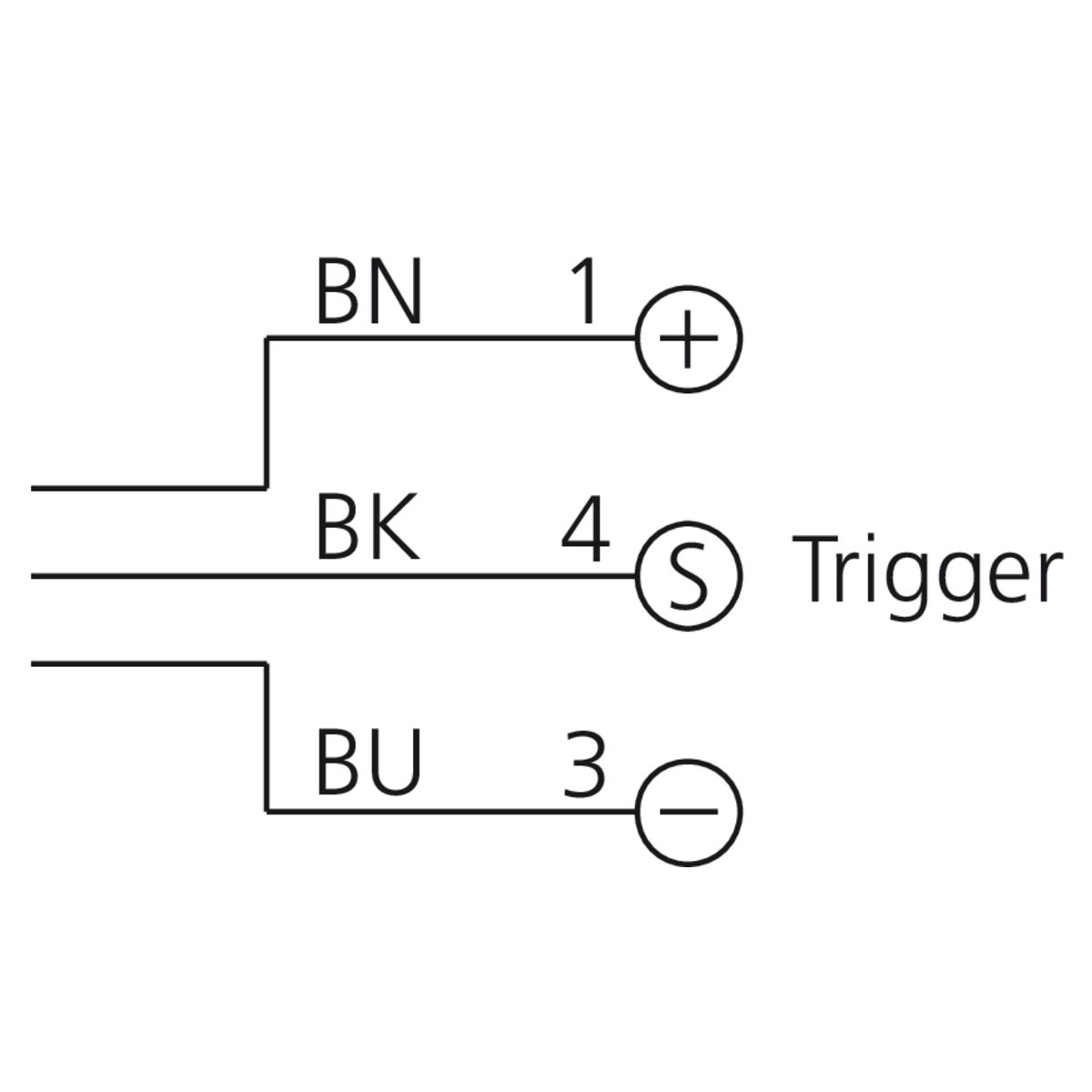

| Connection | Connector M12 3-pin |
| Connection Cable | VK ... |
| Control | Integrated power control |
| Deflection Angle FWHM | 30.0 ° |
| Design | Ringlight |

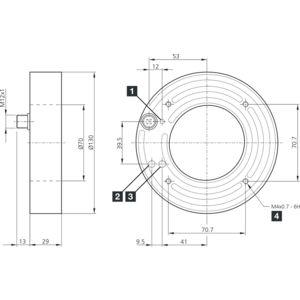

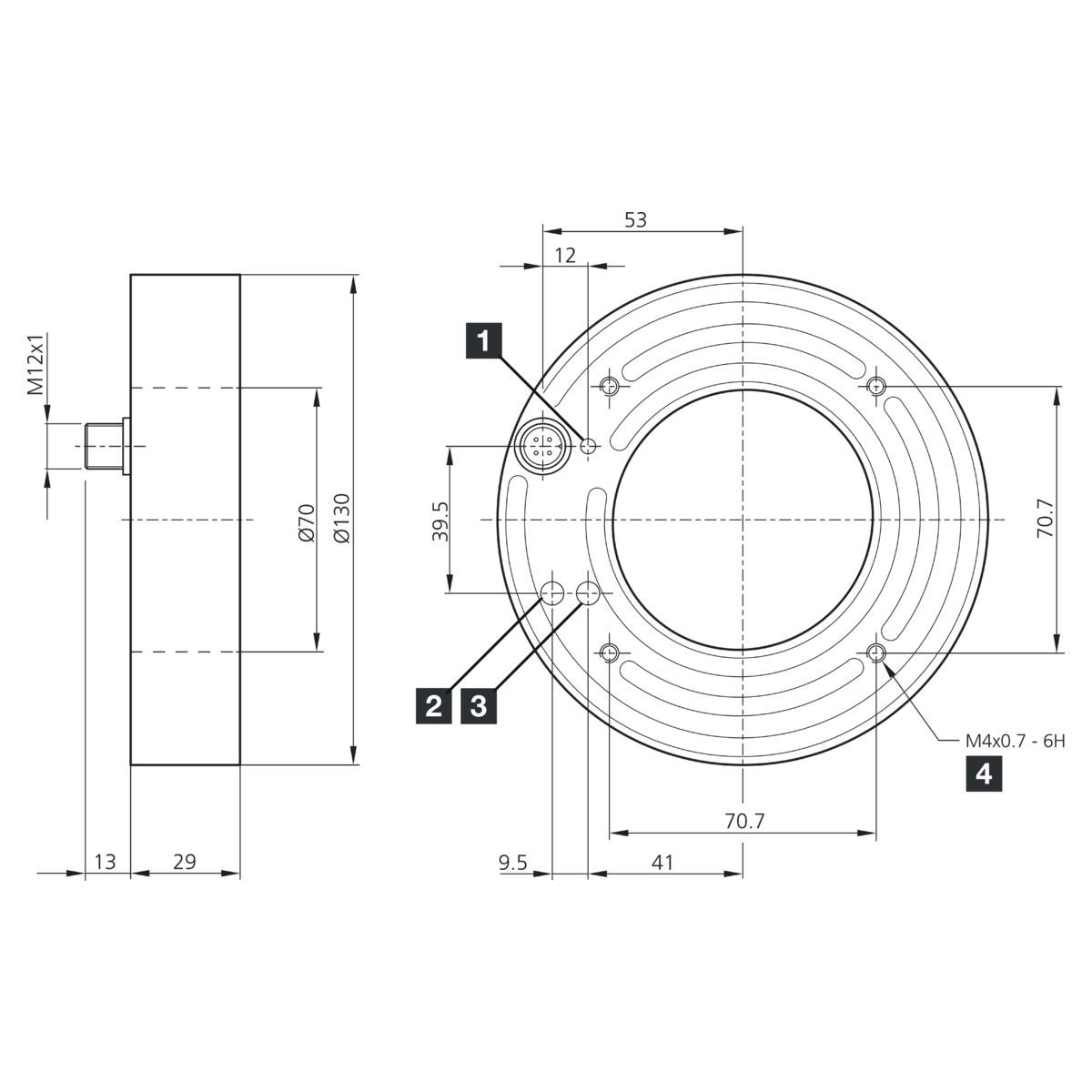

| Diameter | 70;130 mm;mm |
| Green | Operating display |
| Housing Material | Aluminum Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Inverse Polarity Protection | Yes |
| Light Intensity | 5200;4900;1700 µW/cm²;µW/cm²;µW/cm² 100;200;500 mm;mm;mm |
| Light Source | LED |
| Material | PMMA, clear Protection optics |
| No Load Current (max.) | 370.0 mA 24.0 V DC |
| Power | 8.9 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 18 ... 35.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Trigger Input High Level | 3.3 V 35.0 V |
| Trigger Input Low Level | 2.8 < V |
| Wavelength | 850.0 nm |
