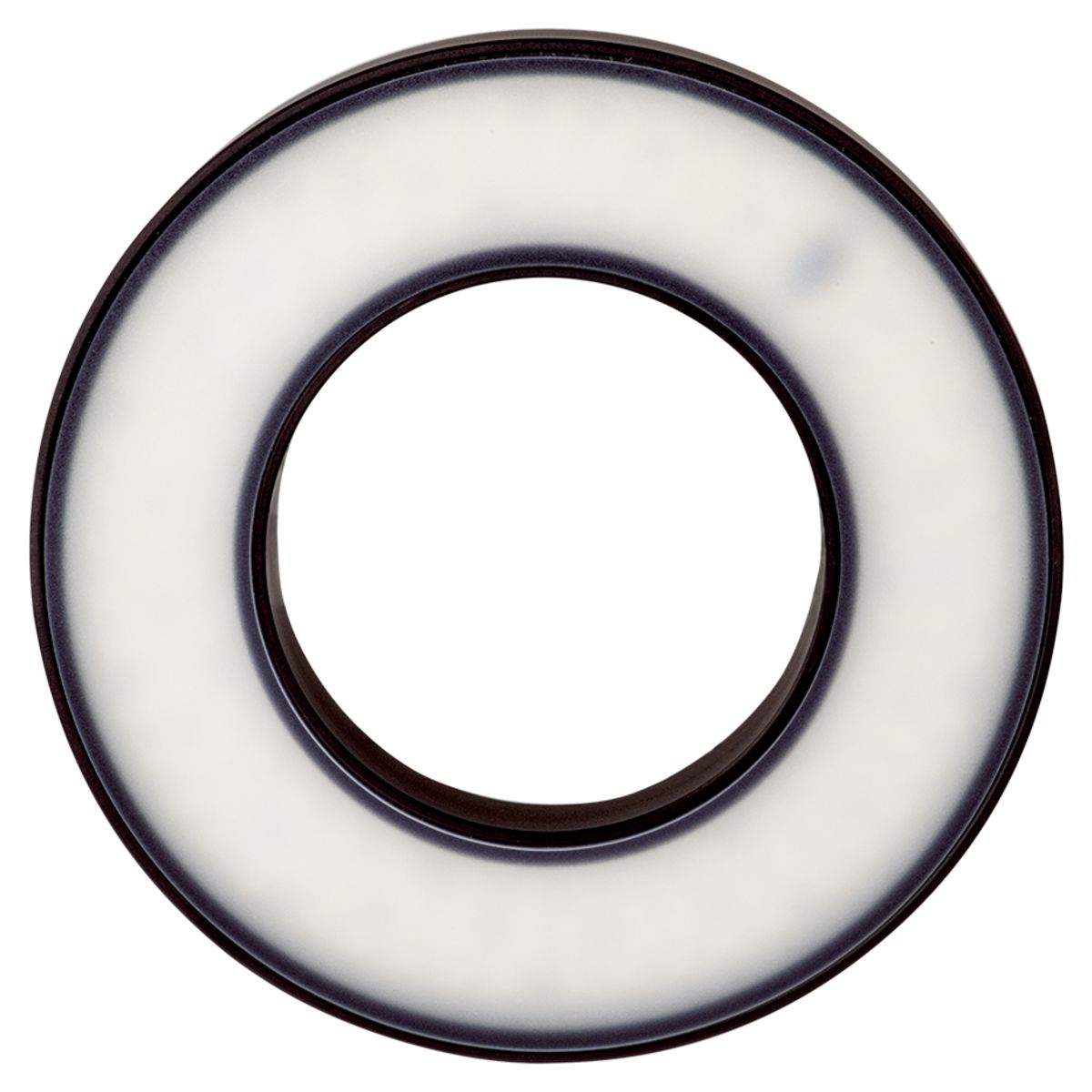

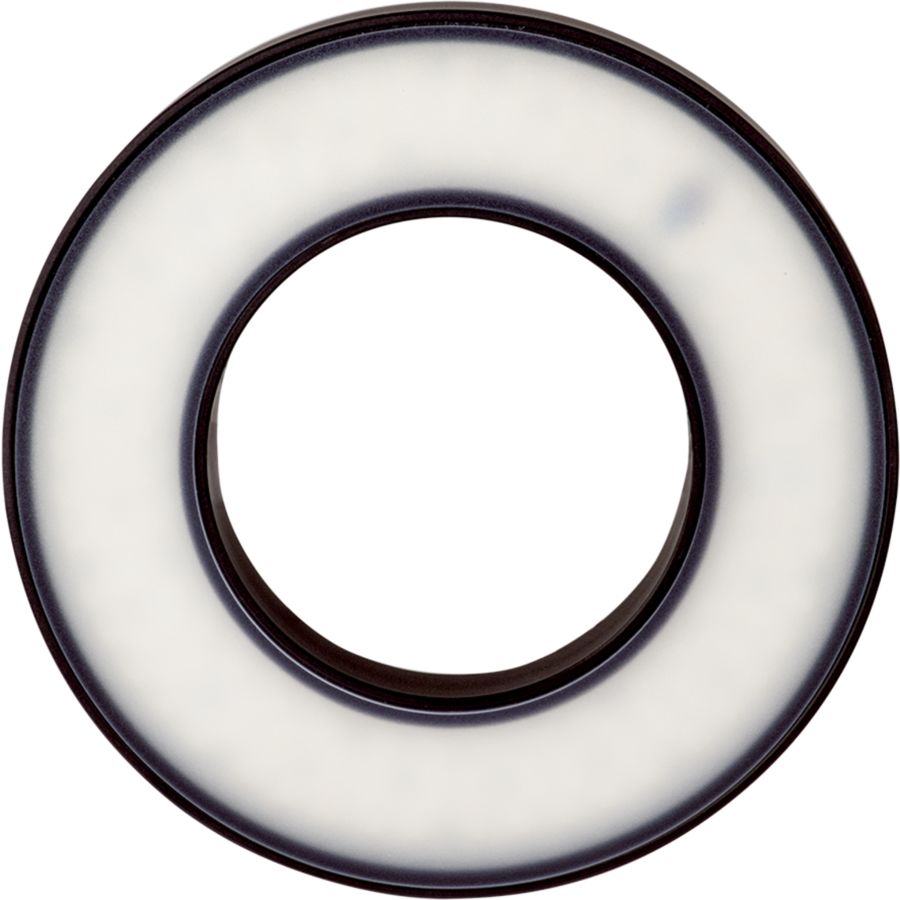

Ringlight For Flash Controller - BE-R70-F1-K-DIF
Part Number: BE-R70-F1-K-DIF
Article Number: 207146
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | Red diffuse |

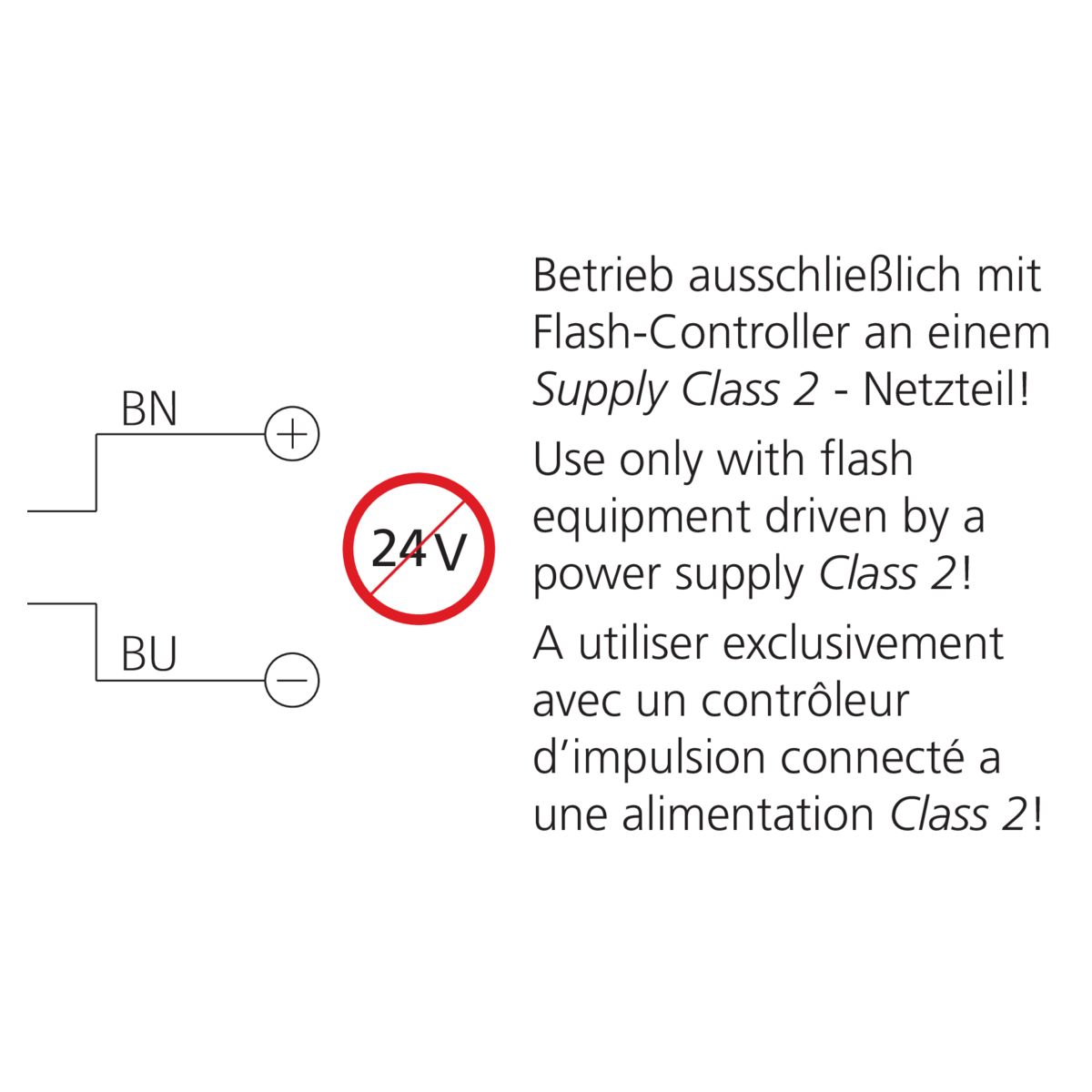

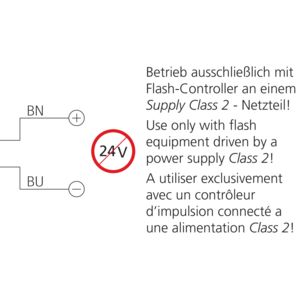

| Connection | Cable 2.5 m flying leads;Use only with flash controller! |
| Control | Flashable by means of flash controller |
| Deflection Angle FWHM | 30.0 ° |
| Design | Ringlight |

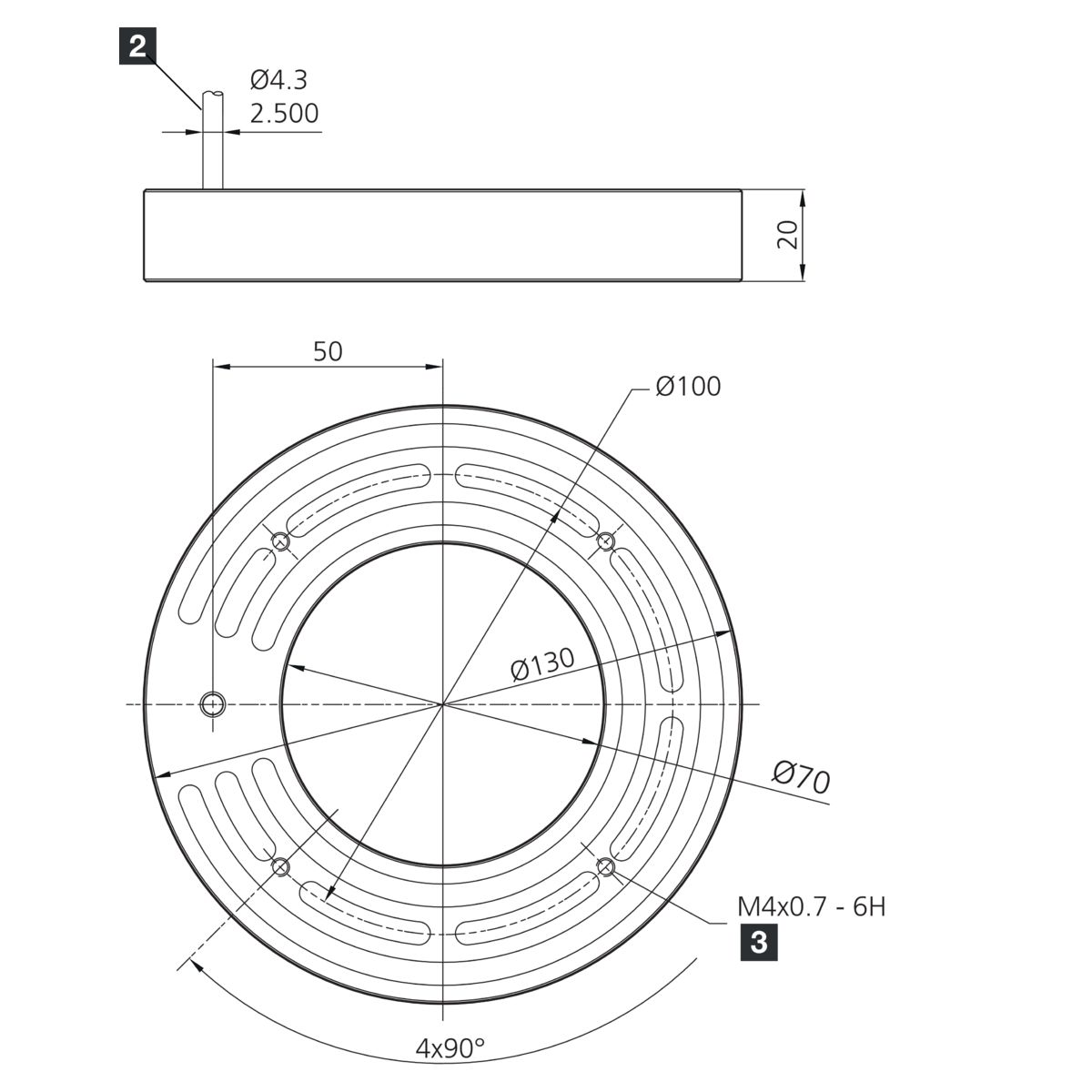

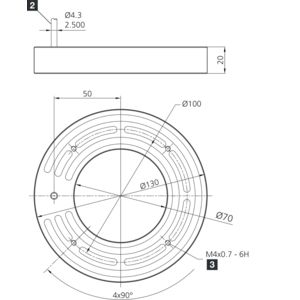

| Diameter | 70;130 mm;mm |
| Energization (In Pulse / max.) | 6000.0 mA |
| Energization Factor (In Pulse / max.) | 8.0 |
| Height | 20.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Inverse Polarity Protection | Yes |
| Light Intensity | 3;10.5;22;620;2.4;4.7 kLx;kLx;kLx;Lux;kLx;kLx 200;200;200;500;500;500 mm;mm;mm;mm;mm;mm 100;400;800;100;400;800 %;%;%;%;%;% |
| Light Source | LED |
| Material | Polyurethane;PMMA, diffuse Cable;Protection optics |
| Power Consumption (In Pulse / max.) | 96.0 W |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Wavelength | 633 nm |
