SBT-F-WBGYR-R50-5S-B8
Part Number: SBT-F-WBGYR-R50-5S-B8
Article Number: 213813
Technical Details
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
|---|---|
| Color | Red, green, yellow, blue, white |
| Color Selection | Red, green, yellow, blue, white |

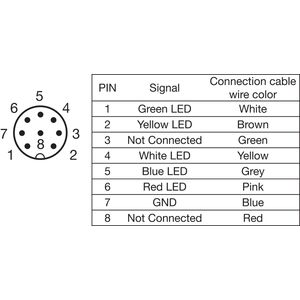

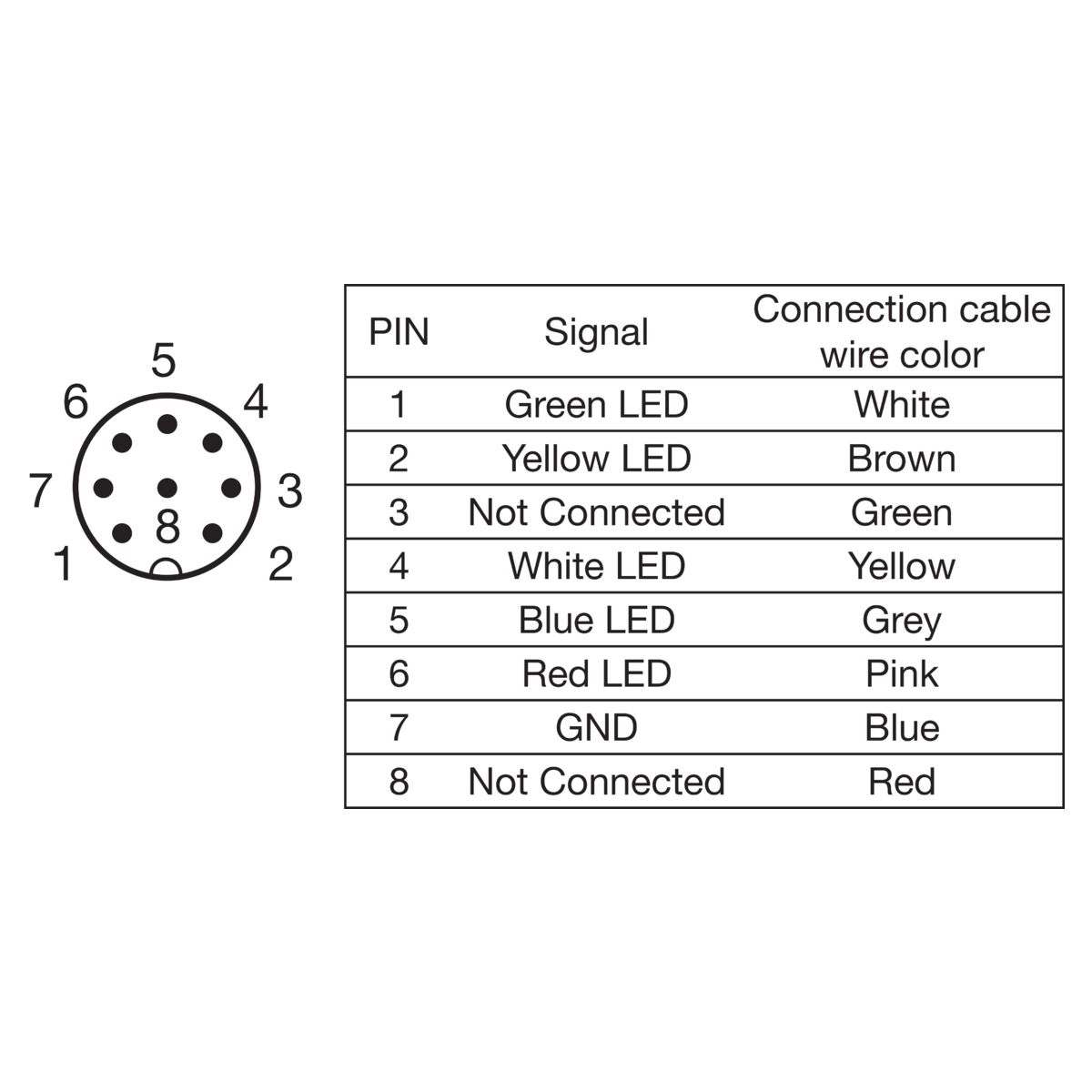

| Connection | Connector M12 8-pin |
| Connection Cable | VK ... /8-SB |
| Housing Material | Aluminum natural Anodized |
| Illuminated Area | 50.0 mm 37.0 mm Ø x H / segment |
| Illumination Time Pulse | 1.0 |
| Internal Power Consumption | 185.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Material | Polycarbonate Diffusor |

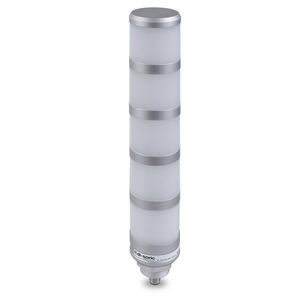

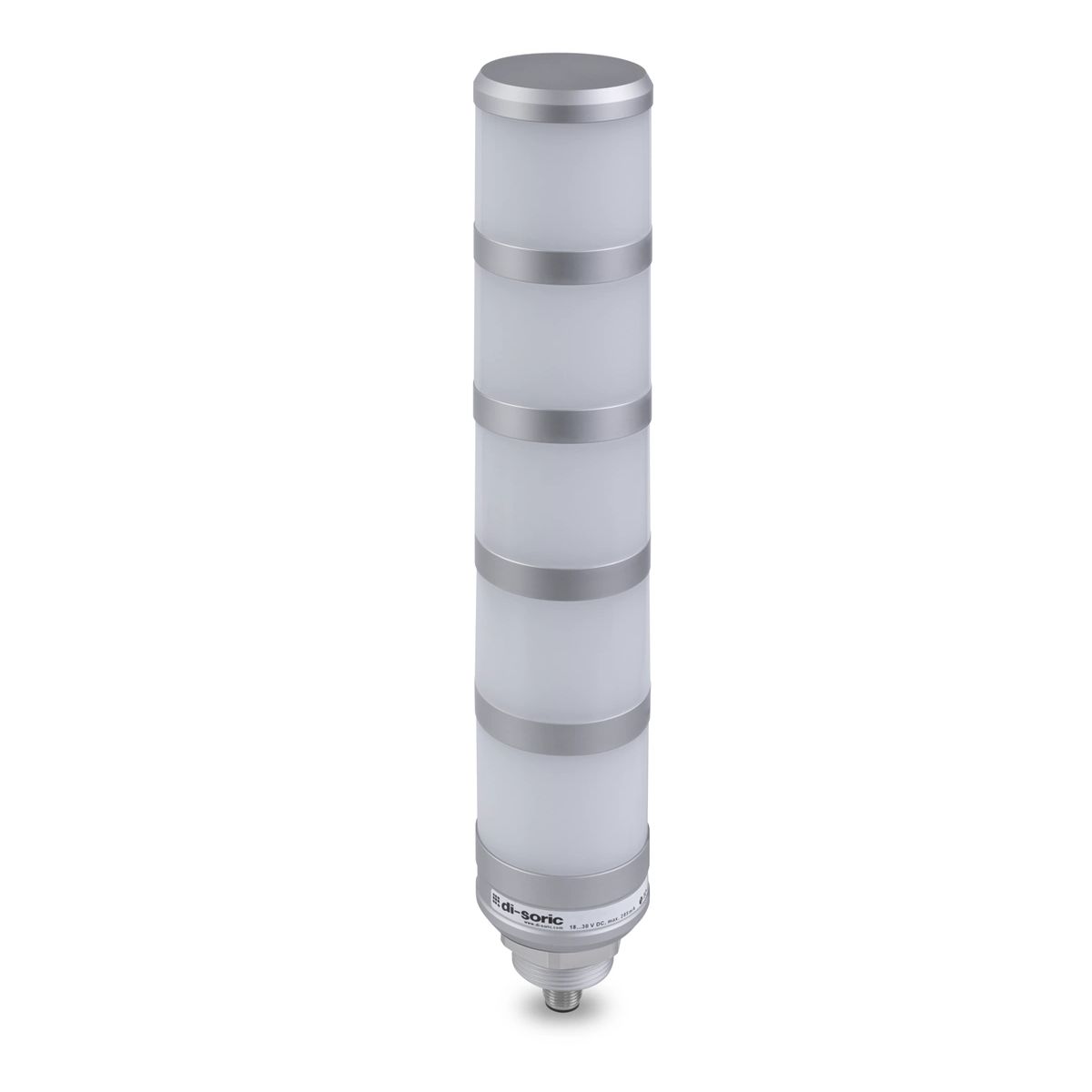

| Model | Signal column |
| Number Of Inputs Outputs | 5/0 |
| Power | 4.4 W 24.0 V |
| Protection Class | III |
| Protection Type | IP 65 |
| Service Voltage | 24 |
| Weight | 350.0 g |
