SBT-RGB-R50-4B-B5
Part Number: SBT-RGB-R50-4B-B5
Article Number: 213755
Technical Details
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
|---|---|
| Color | RGB |
| Color Selection | Red, green, yellow, blue, white, orange, pink, user-defined |
| Connection | Connector M12 5-pin |
| Connection Cable | VK ... /5-SB |
| Housing Material | Aluminum natural Anodized |

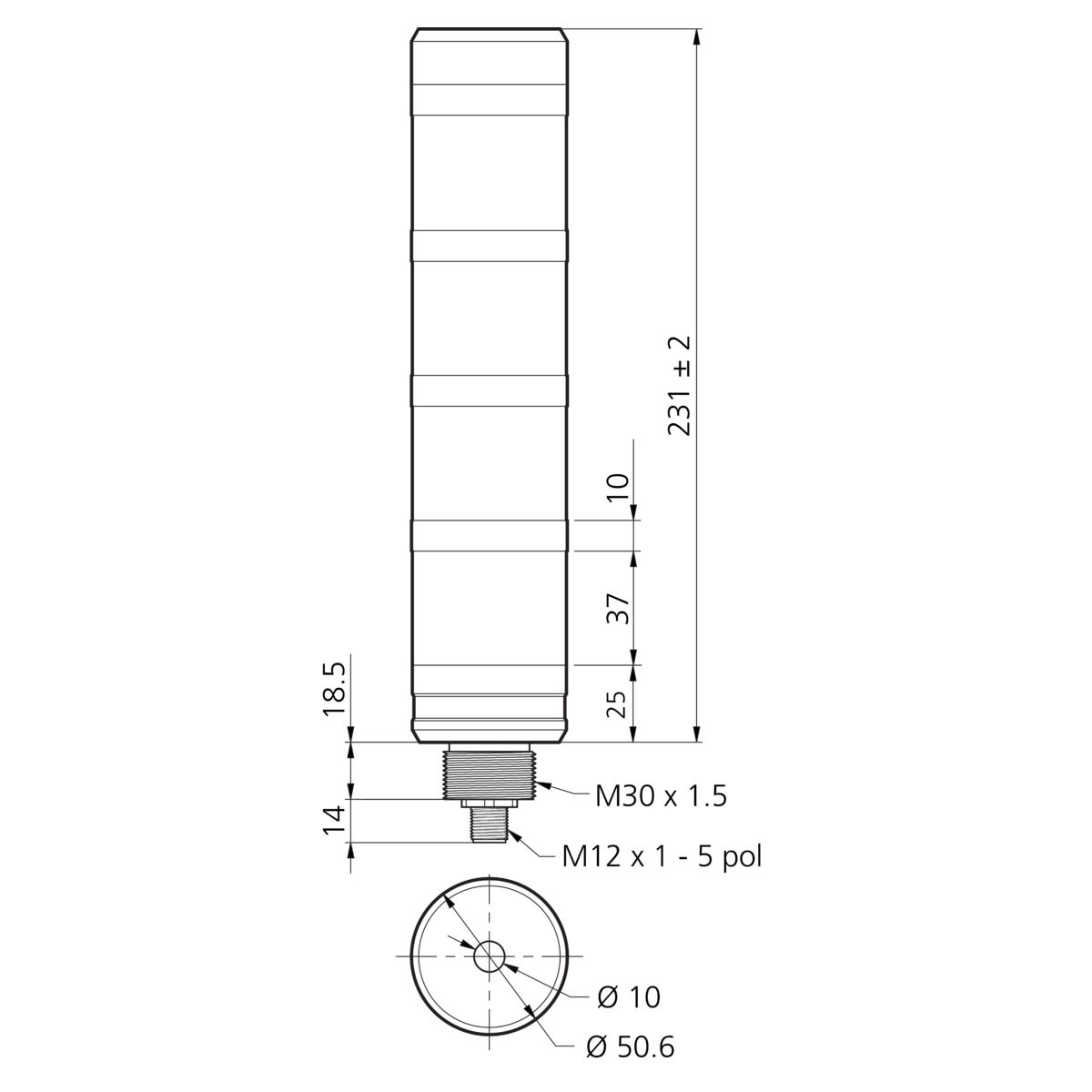

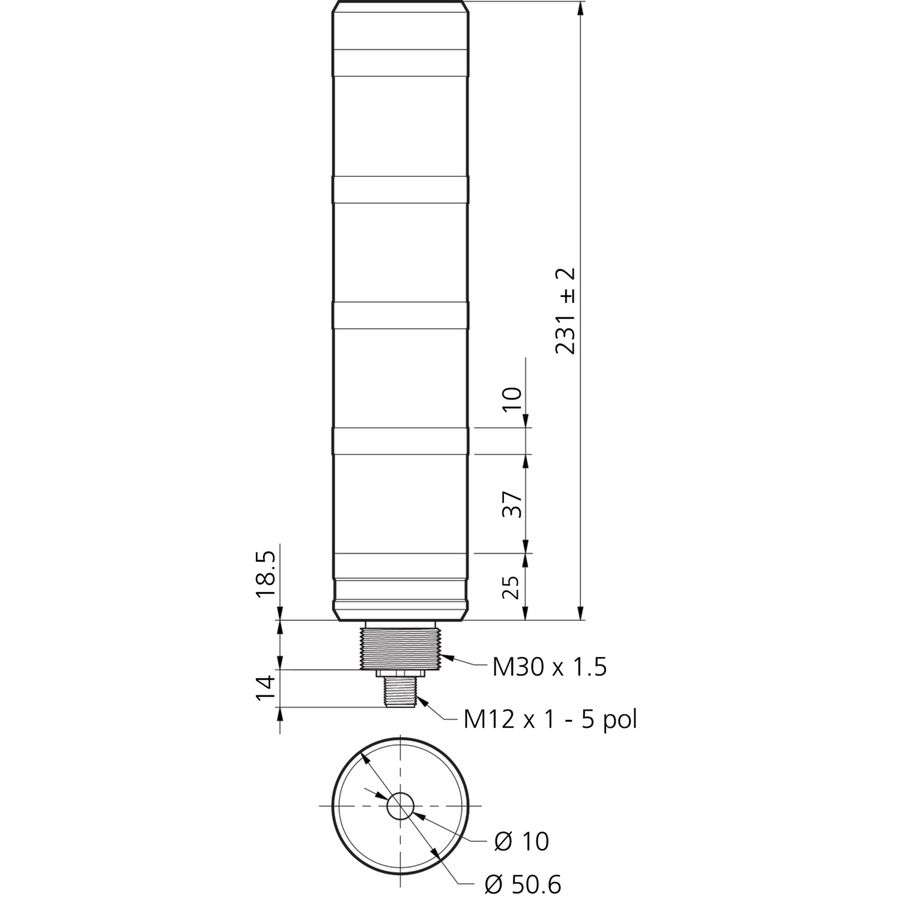

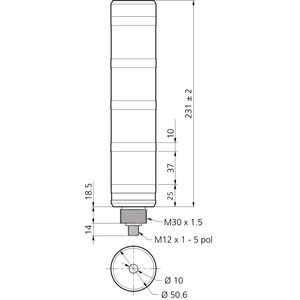

| Illuminated Area | 50.0 mm 37.0 mm Ø x H / segment |
| Illumination Time Pulse | 1.0 |
| Interface | IO-Link V1.1, COM2 38,4 kBd, 5000 µs;for parameterization (process data) |
| Internal Power Consumption | 250.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Light Intensity Can Be Adjusted | 10 to 100 %;via IO-Link |
| Material | Polycarbonate Diffusor |

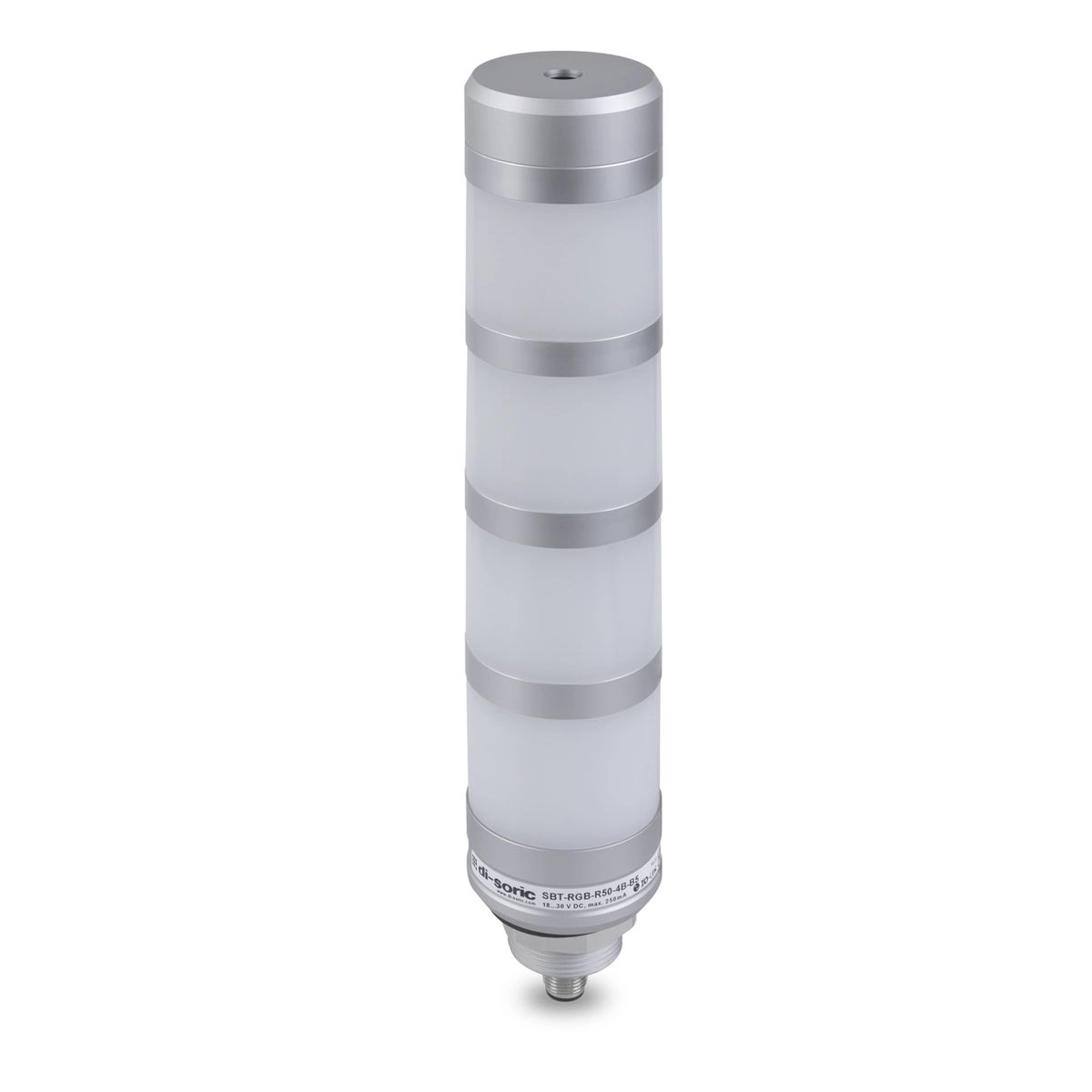

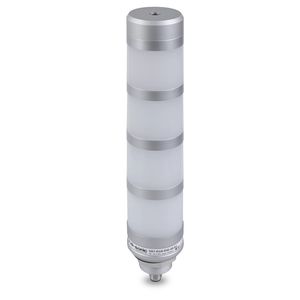

| Model | Signal column |
| Operating Modes | External trigger / segment mode / level mode / demo mode;LED operating modes: Static / Blinking / Flashing |
| Power | 6.0 W 24.0 V |
| Protection Class | III |
| Protection Type | IP 20 |
| Service Voltage | 18 ... 30.0V DC |

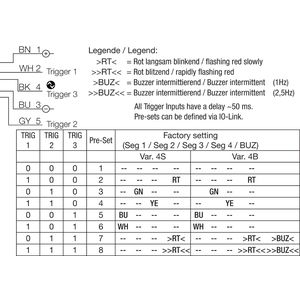

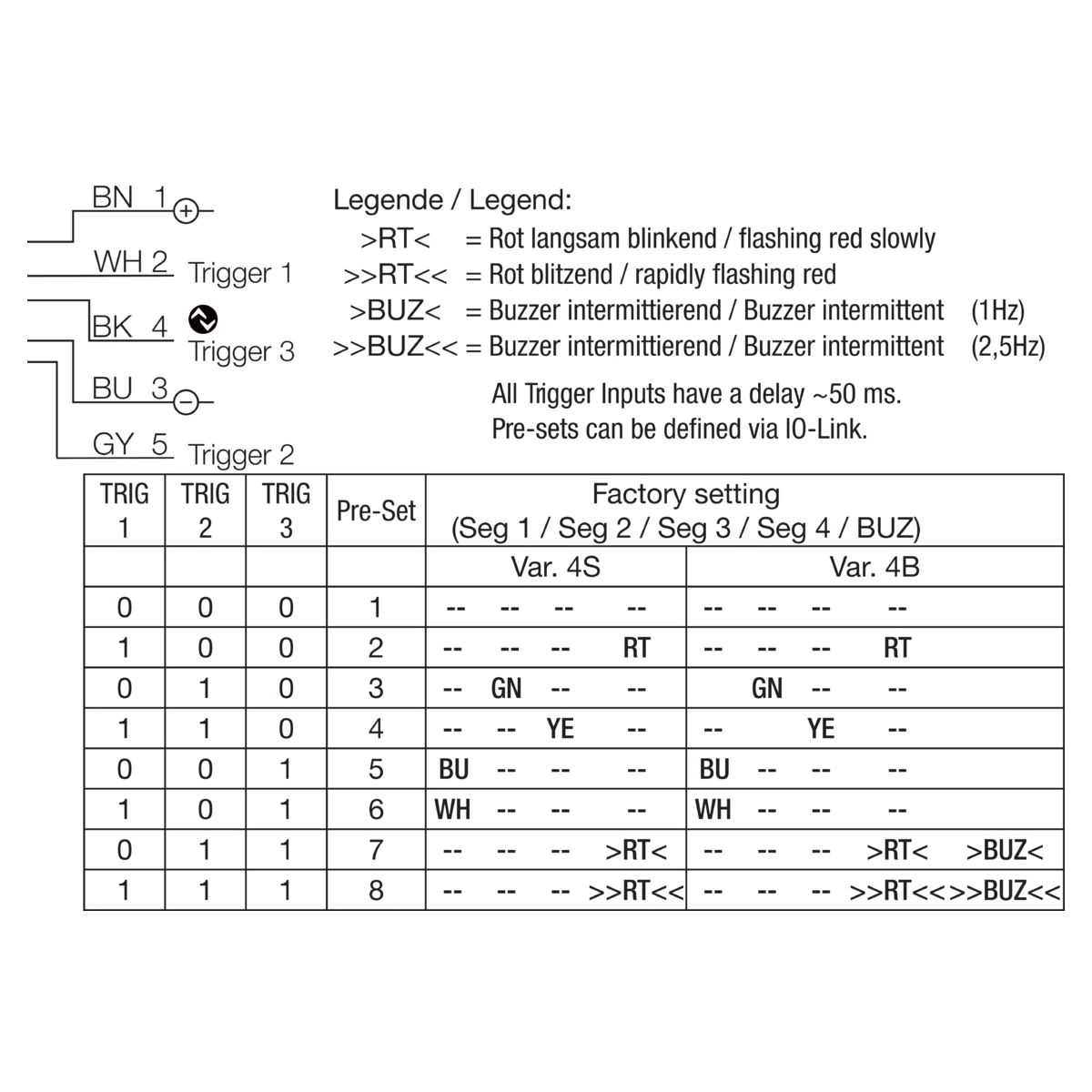

| Trigger Input | 8 color presets: selectable via trigger 1 + 2 +3 |
| Trigger Input High Level | 8.0 > V |
| Trigger Input Low Level | 5.0 < V |
| Weight | 350.0 g |
