SBT-RGB-R50-4S-B5

Ambient Temperature During Operation	0.0 ... 50.0°C
Color	RGB
Color Selection	Red, green, yellow, blue, white, orange, pink, user-defined
Connection	Connector M12 5-pin
Housing Material	Aluminum natural Anodized
Illuminated Area	50.0 mm 37.0 mm Ø x H / segment
Illumination Time Pulse	1.0
Interface	IO-Link V1.1, COM2 38,4 kBd, 5000 µs;for parameterization (process data)
Internal Power Consumption	230.0 mA 24.0 V DC
Inverse Polarity Protection	Yes
Light Intensity Can Be Adjusted	10 to 100 %;via IO-Link
Material	Polycarbonate Diffusor
Model	Signal column
Operating Modes	External trigger / segment mode / level mode / demo mode;LED operating modes: Static / Blinking / Flashing
Power	5.5 W 24.0 V
Protection Class	III
Protection Type	IP 65
Service Voltage	18 ... 30.0V DC

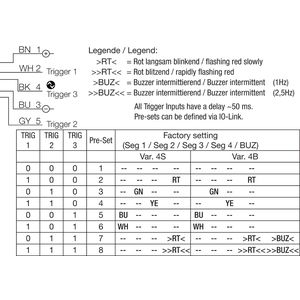

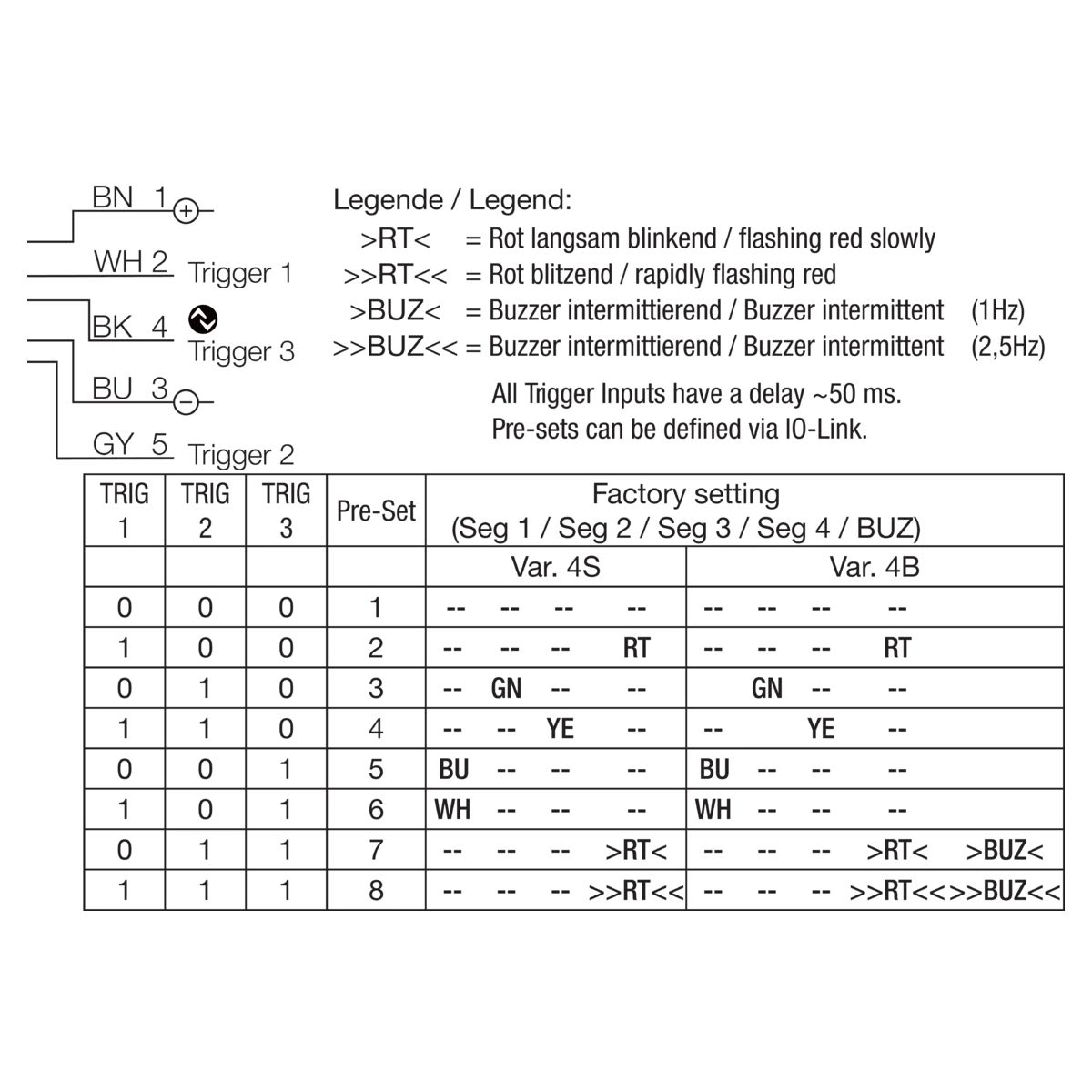

Trigger Input	8 color presets: selectable via trigger 1 + 2 +3
Trigger Input High Level	8.0 > V
Trigger Input Low Level	5.0 < V
Weight	310.0 g
