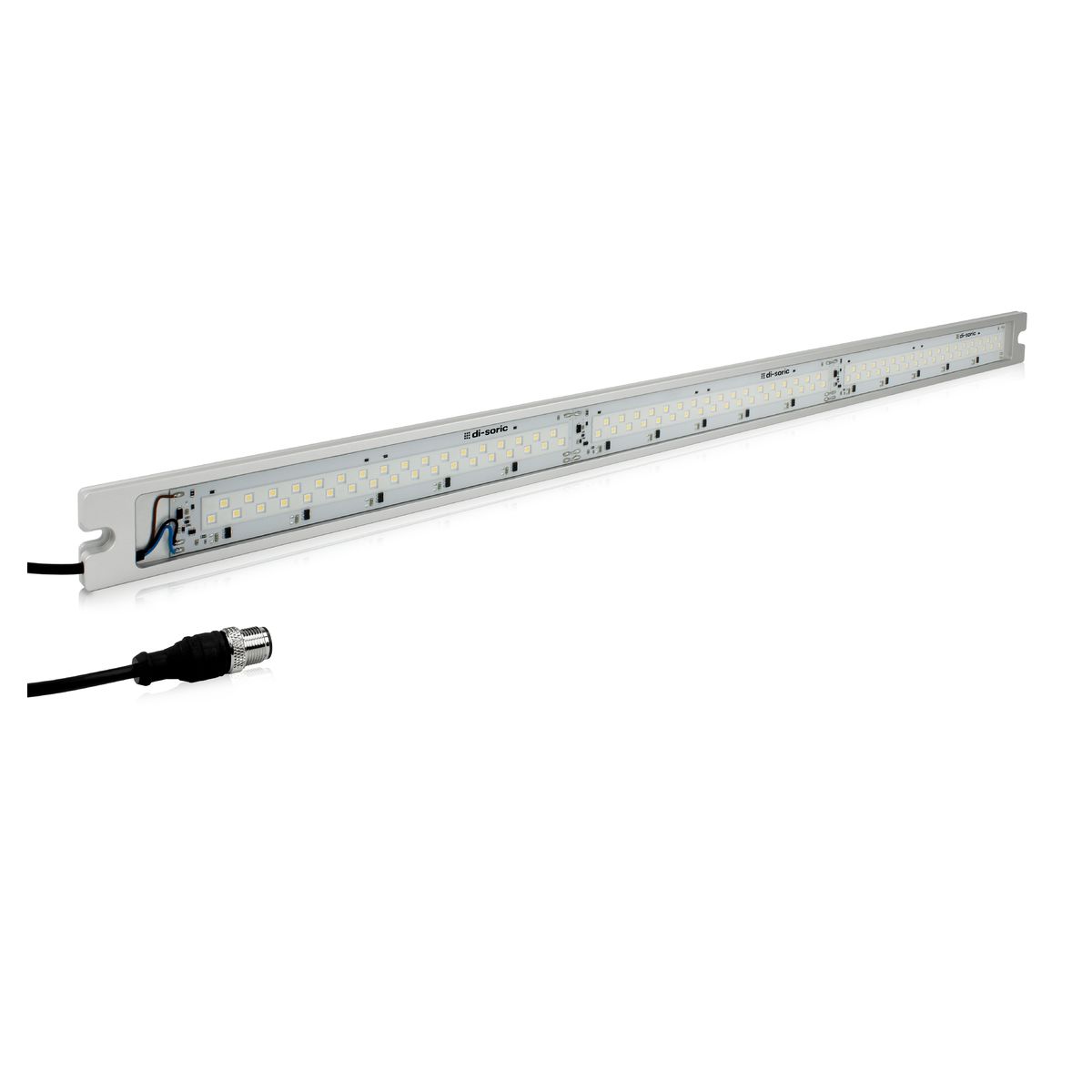

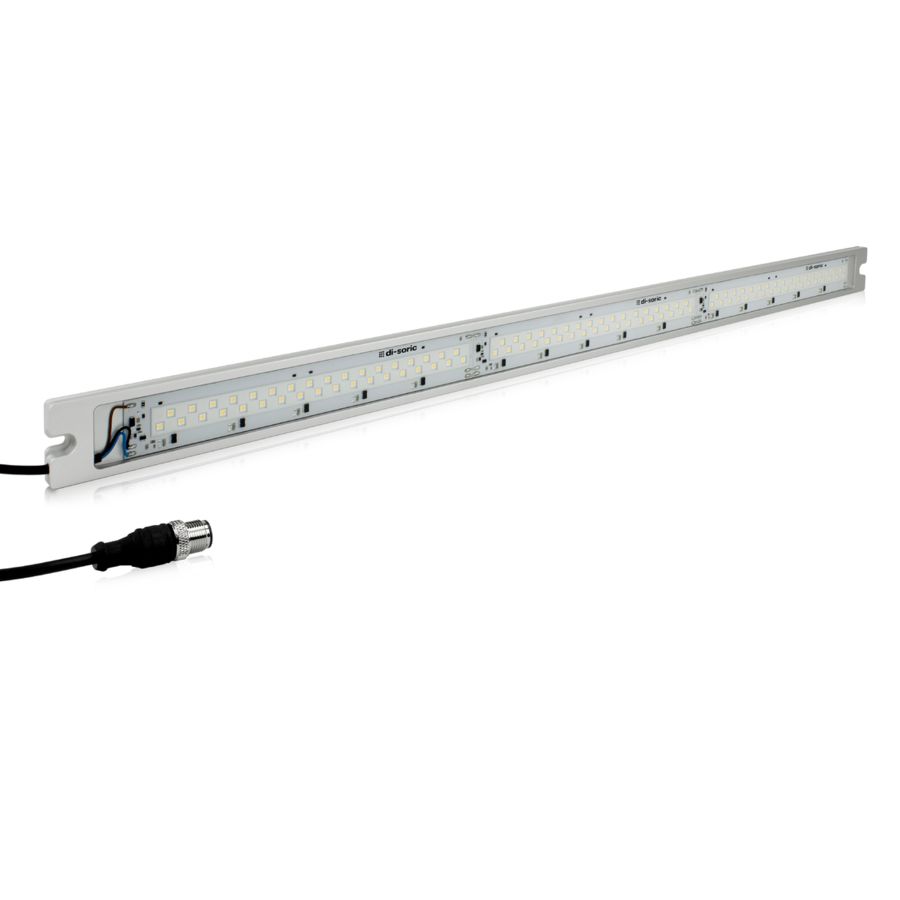

Signal Lighting - SB-RGB-701-K-B5
Part Number: SB-RGB-701-K-B5
Article Number: 213116
Technical Details
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
|---|---|
| Color | Red, green, yellow, blue, white, orange, pink, user-defined IO-Link |
| Connection | Pigtail 0.3 m M12 5-pin |
| Connection Cable | VK ... /5 |
| Deflection Angle FWHM | 120.0 ° |

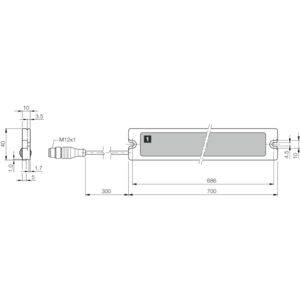

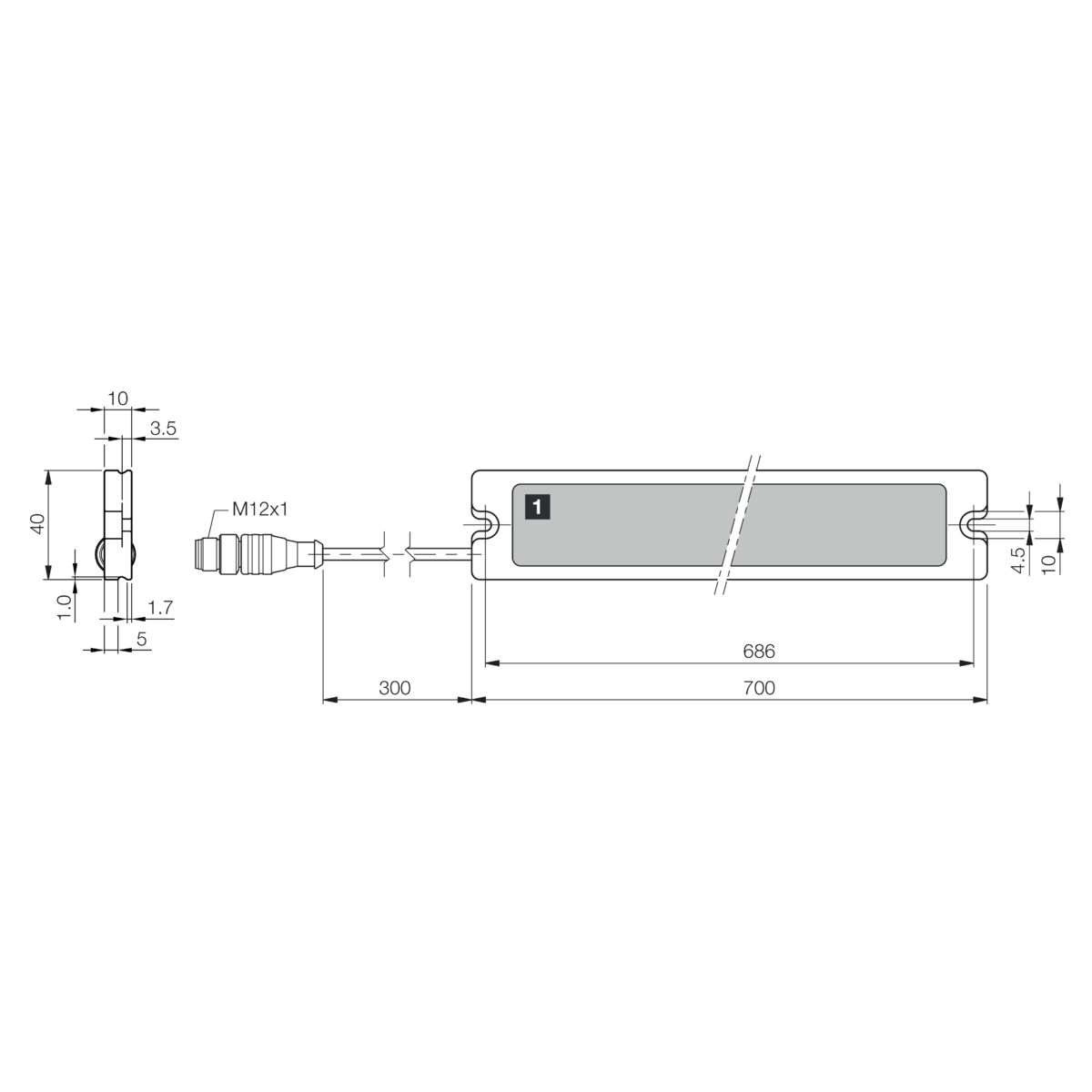

| Housing length | 700.0 mm |
| Housing Material | Aluminum natural Anodized |
| Illuminated Area | 660.0 mm 30.0 mm |
| Illumination Time Pulse | 1.0 |
| Interface | IO-Link V1.1, COM2 38,4 kBd, 5000 µs;Process data |
| Internal Power Consumption | 560.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Light Intensity Can Be Adjusted | 10 to 100 %;via IO-Link |
| Light Source | LED |
| Material | PU, crystal clear Window |
| Model | Signal lighting |
| Number Of Segments (Max) | 9.0 |
| Operation Modes | External trigger / segment mode / level mode / demo mode;LED operating modes: Static / Blinking / Flashing |
| Power | 13.4 W 24.0 V DC |
| Product Series | SB-RGB |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |

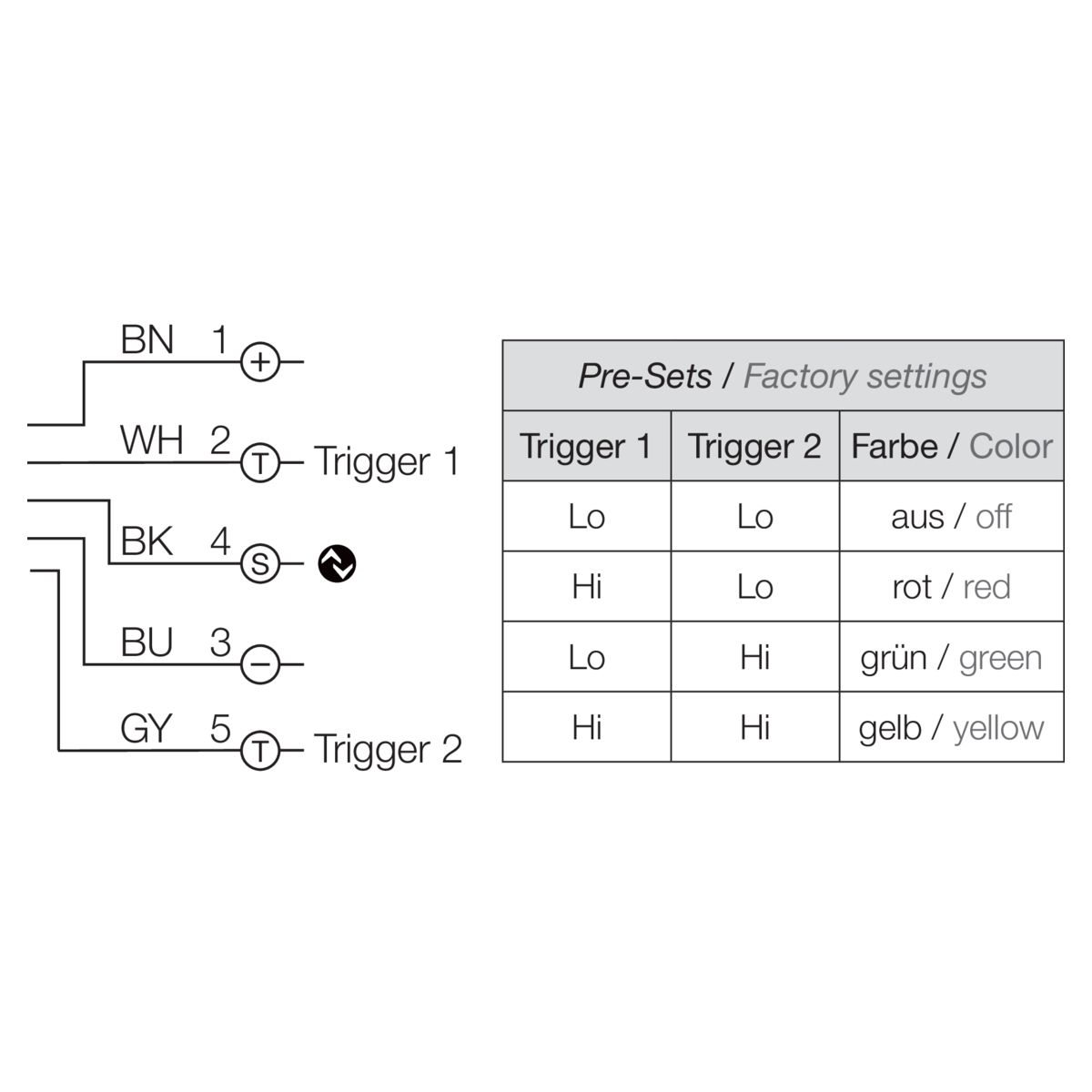

| Trigger Input | 8 color presets: selectable via trigger 1 + 2 +3 |
| Trigger Input High Level | 8.0 > V |
| Trigger Input Low Level | 5.0 < V |
| Weight | 550.0 g |
