Spot Light - BEK-PM12-G1T-BS
Part Number: BEK-PM12-G1T-BS
Article Number: 210053
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Characteristics | Trigger input |
| Color | Red |

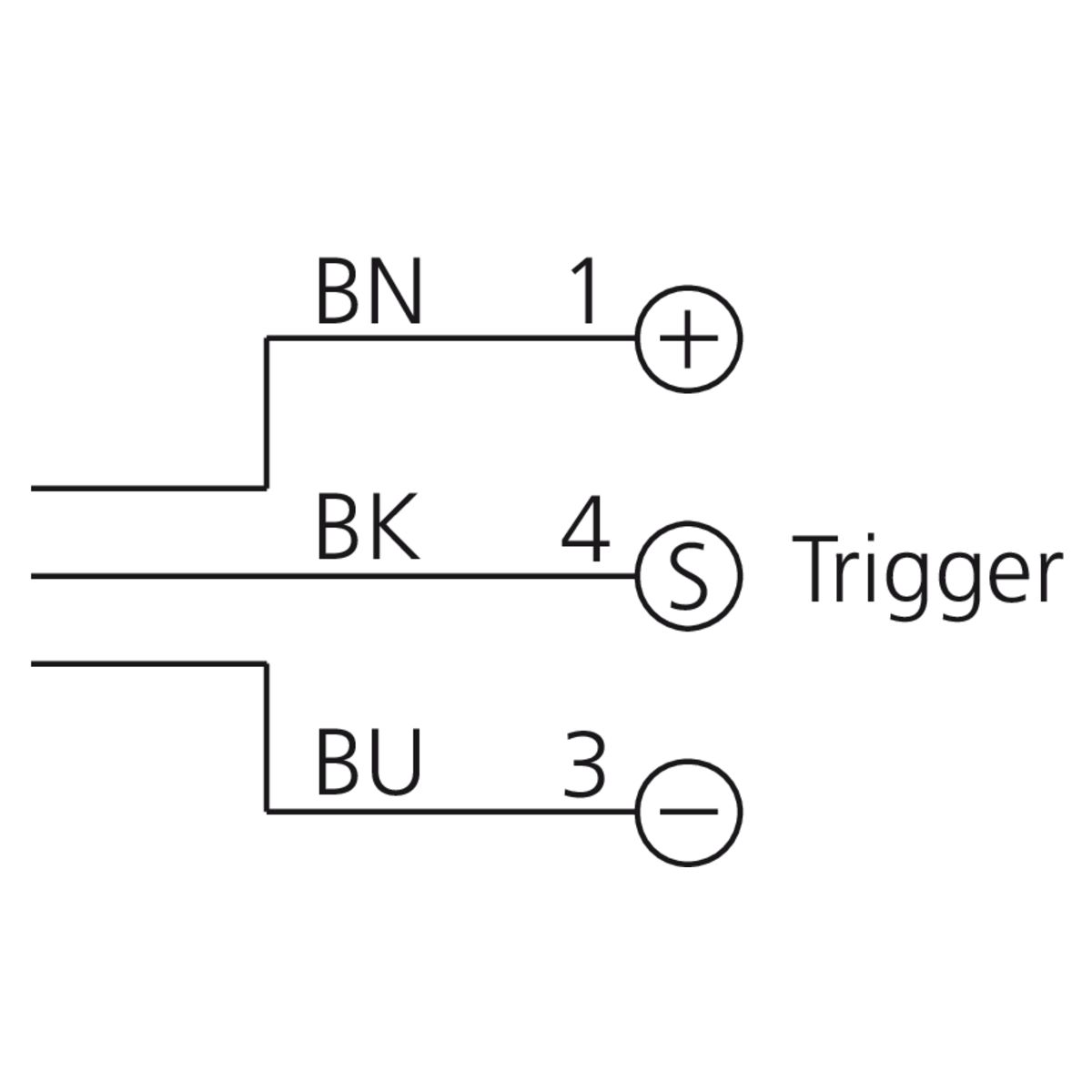

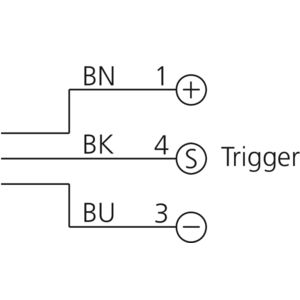

| Connection | Connector M12 x 1 4-pin |
| Connection Cable | VK ... |
| Control | Integrated power control |
| Deflection Angle FWHM | 25.0 ° |
| Design | Thread |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Aperture | axial |
| Light Intensity | 1.7;450;75 kLx;Lux;Lux 100;200;500 mm;mm;mm |
| Light Source | LED |
| Material | PMMA Protection optics |
| No Load Current (max.) | 80.0 mA 10.0 V DC |
| On Delay Time (Trig.) | 0.012 ms |
| Power | 0.75 W 24.0 V DC |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 10.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Switch Off Delay (Trig.) | 0.012 ms |

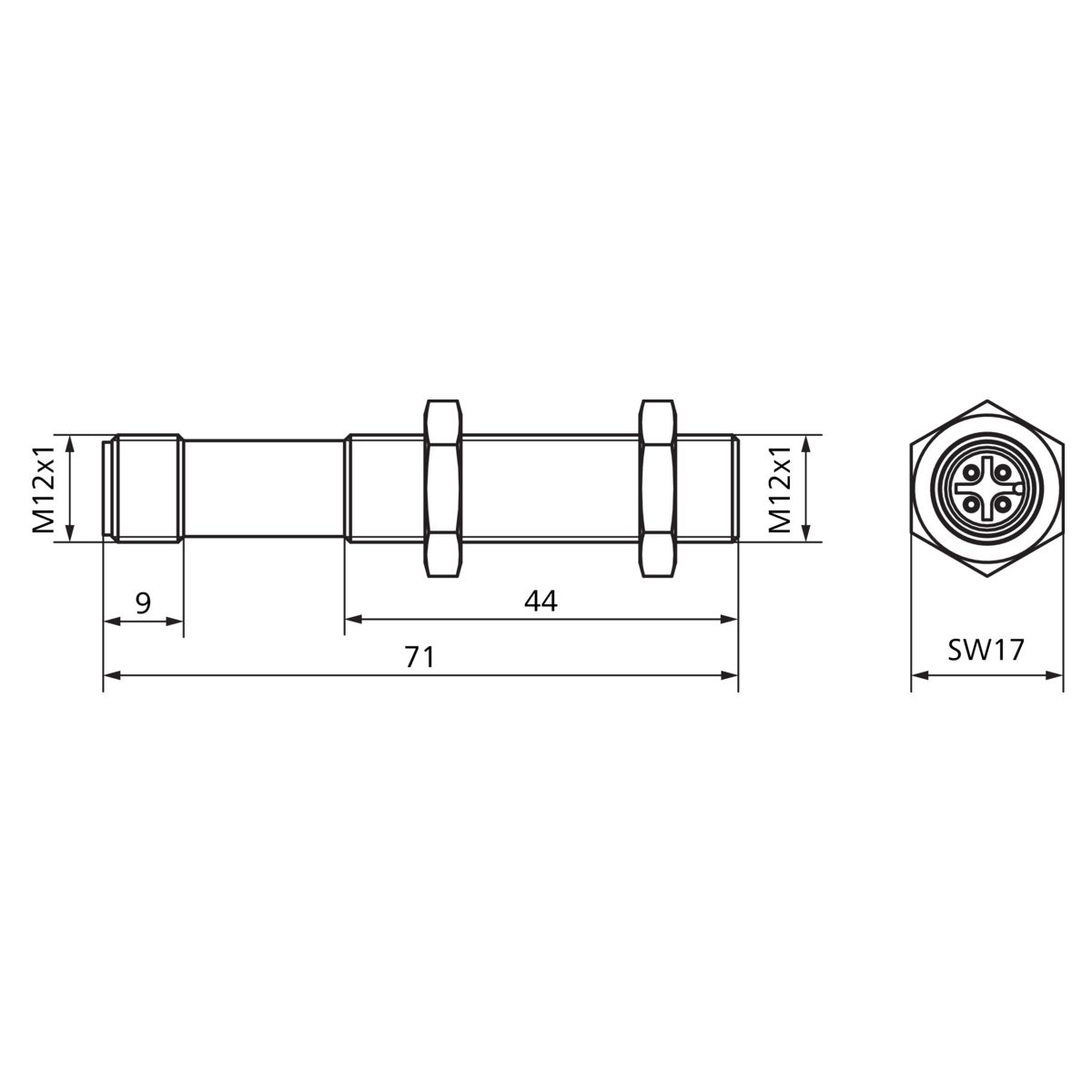

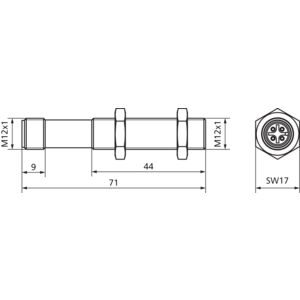

| Thread | M12 |
| Trigger Input High Level | 4.0 > V Lighting OFF |
| Trigger Input Low Level | 3.0 < V Lighting ON |
| Wavelength | 625 nm |
