Spotlight - BEK-P14-G0T-IBS

Ambient Temperature During Operation	0.0 ... 40.0°C
Characteristics	Trigger input
Color	Infrared

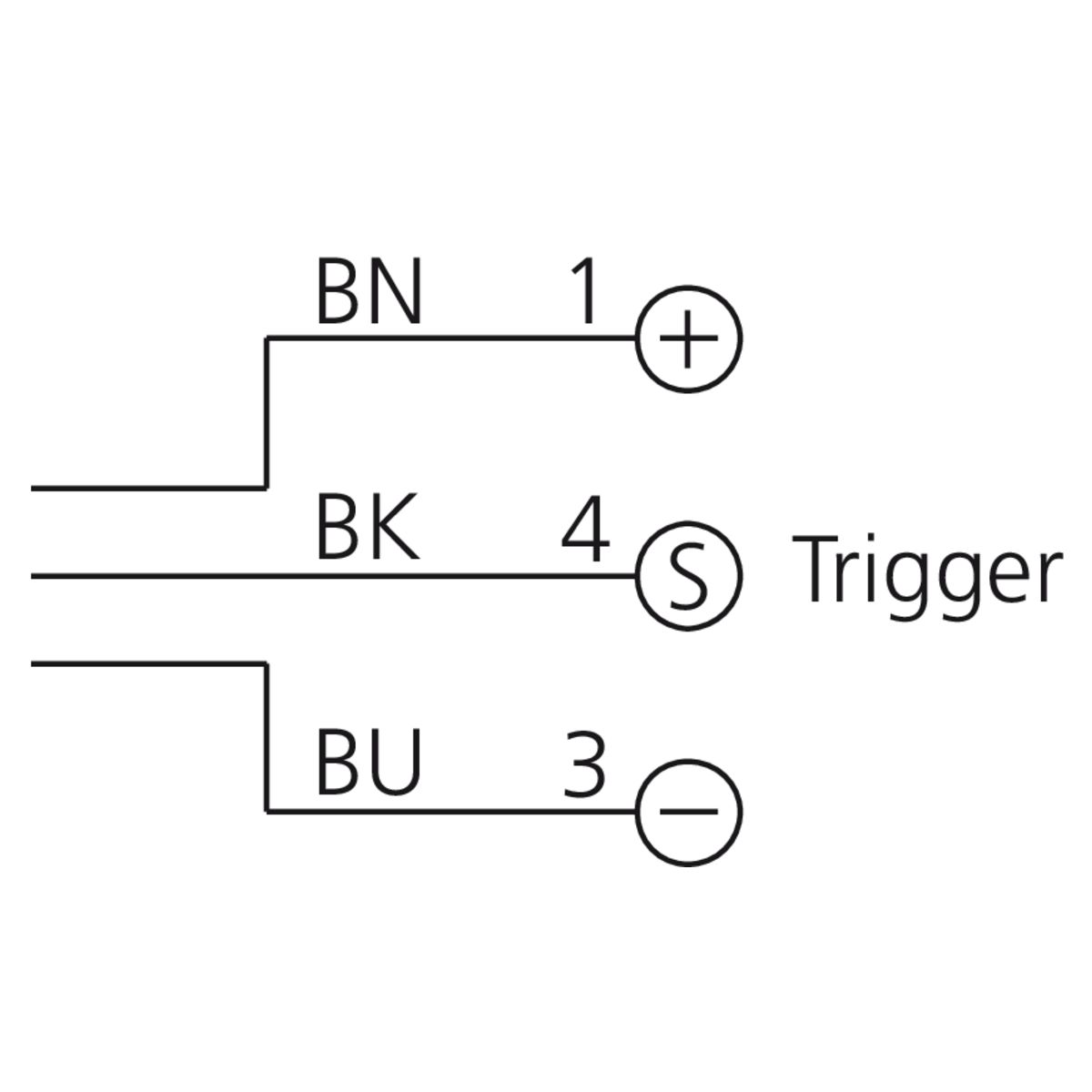

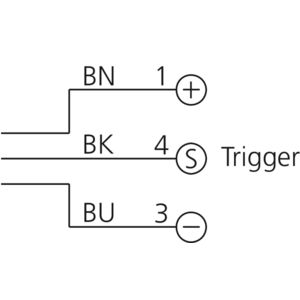

Connection	Connector M12 3-pin
Connection Cable	VK ...
Control	Integrated power control
Deflection Angle FWHM	14.0 °
Design	Spot light
Green	Operating display
Housing Material	Aluminum Black Anodized
Illumination Time Pulse	1.0
Inverse Polarity Protection	Yes
Light Aperture	axial
Light Intensity	6500;2000 µW/cm²;µW/cm² 200;500 mm;mm
Light Source	LED
Material	PMMA, clear Protection optics
No Load Current (max.)	115.0 mA 24.0 V DC
Power	2.8 W 24.0 V
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Risk Group (DIN EN 62471)	Free group
Service Voltage	18.0 ... 30.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 1.0 mm
Trigger Input High Level	3.4 > V 30.0 V
Trigger Input Low Level	2.8 < V
Wavelength	860 nm
Weight	110.0 g
