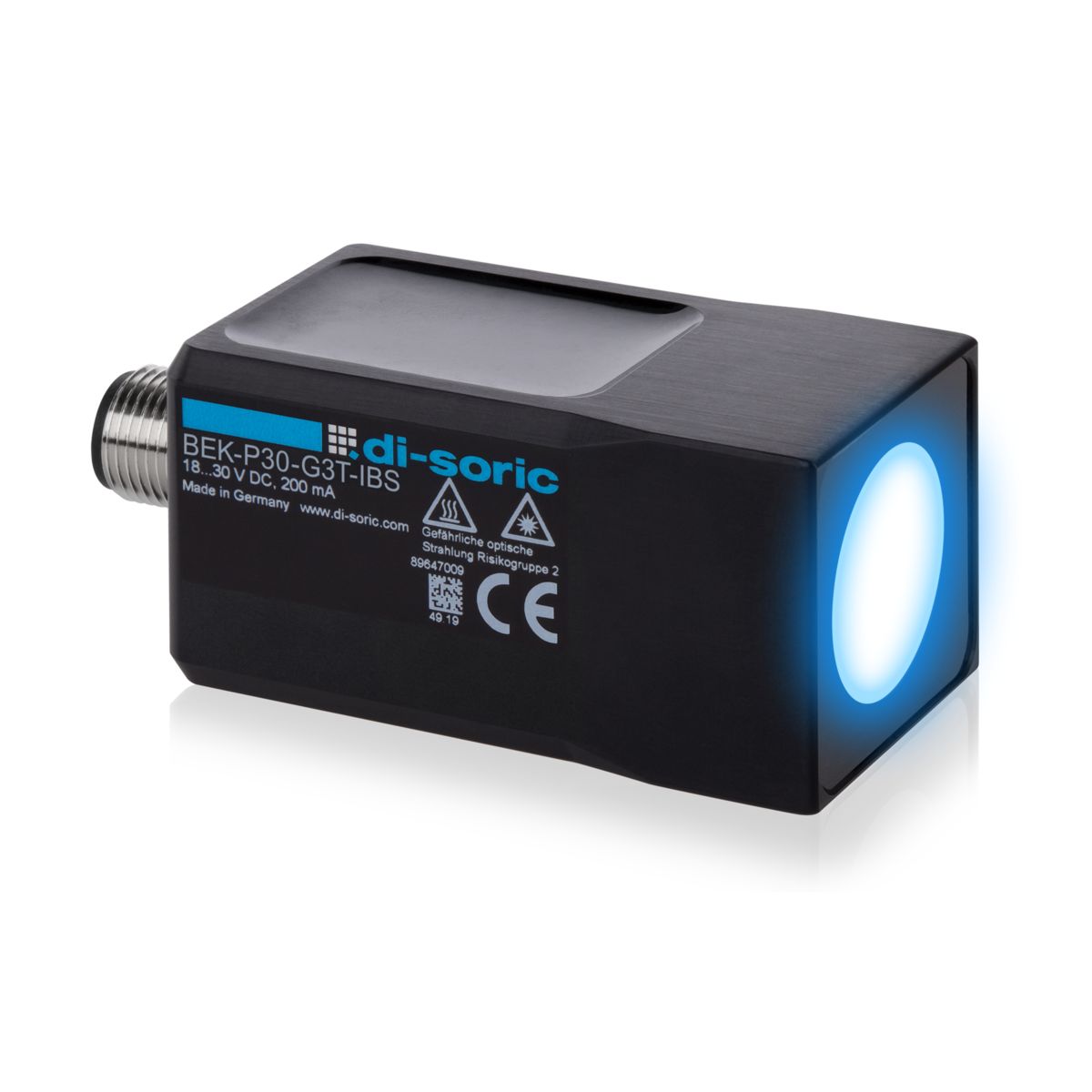

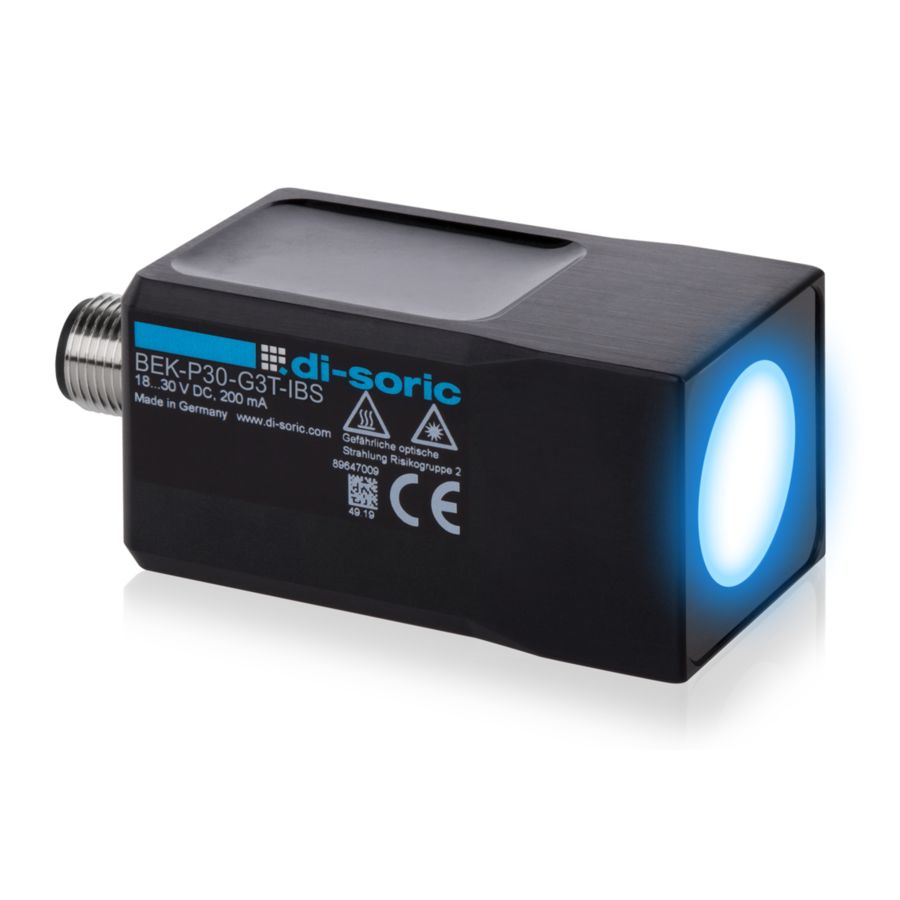

Spotlight - BEK-P30-G3T-IBS
Part Number: BEK-P30-G3T-IBS
Article Number: 212918
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Characteristics | Trigger input |
| Color | Blue |

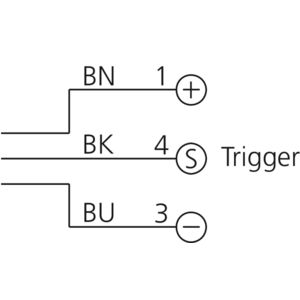

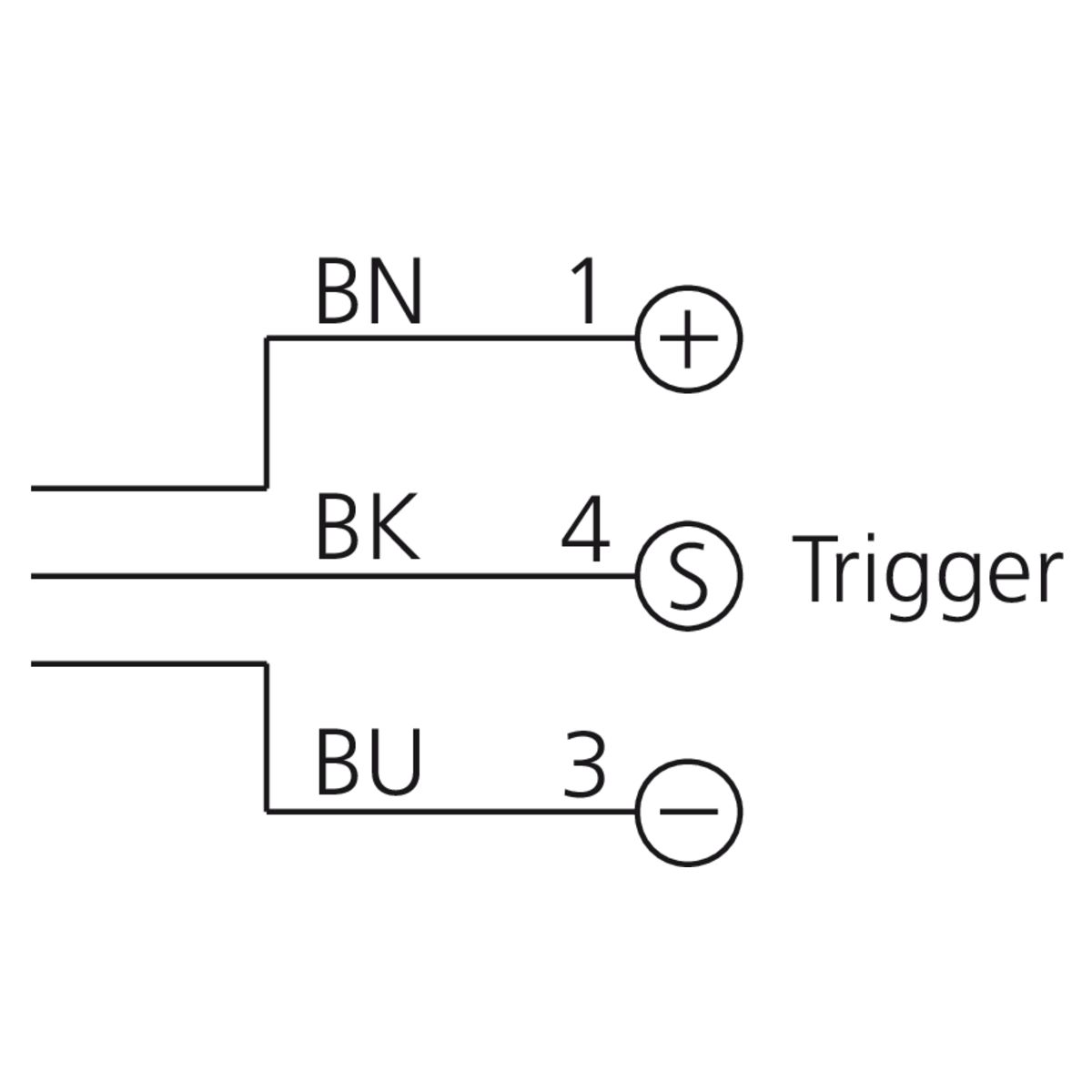

| Connection | Connector M12 3-pin |
| Connection Cable | VK ... |
| Control | Integrated power control |
| Deflection Angle FWHM | 30.0 ° |
| Design | Spot light |
| Green | Operating display |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Aperture | axial |
| Light Intensity | 11.75;3.7;675 kLx;kLx;Lux 100;200;500 mm;mm;mm |
| Light Source | LED |
| Material | PMMA, clear Protection optics |
| No Load Current (max.) | 140.0 mA 24.0 V DC |
| Power | 3.4 W 24.0 V |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Risk group 2 |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Trigger Input High Level | 3.4 > V 30.0 V |
| Trigger Input Low Level | 2.8 < V |
| Wavelength | 465 nm |
| Weight | 110.0 g |
