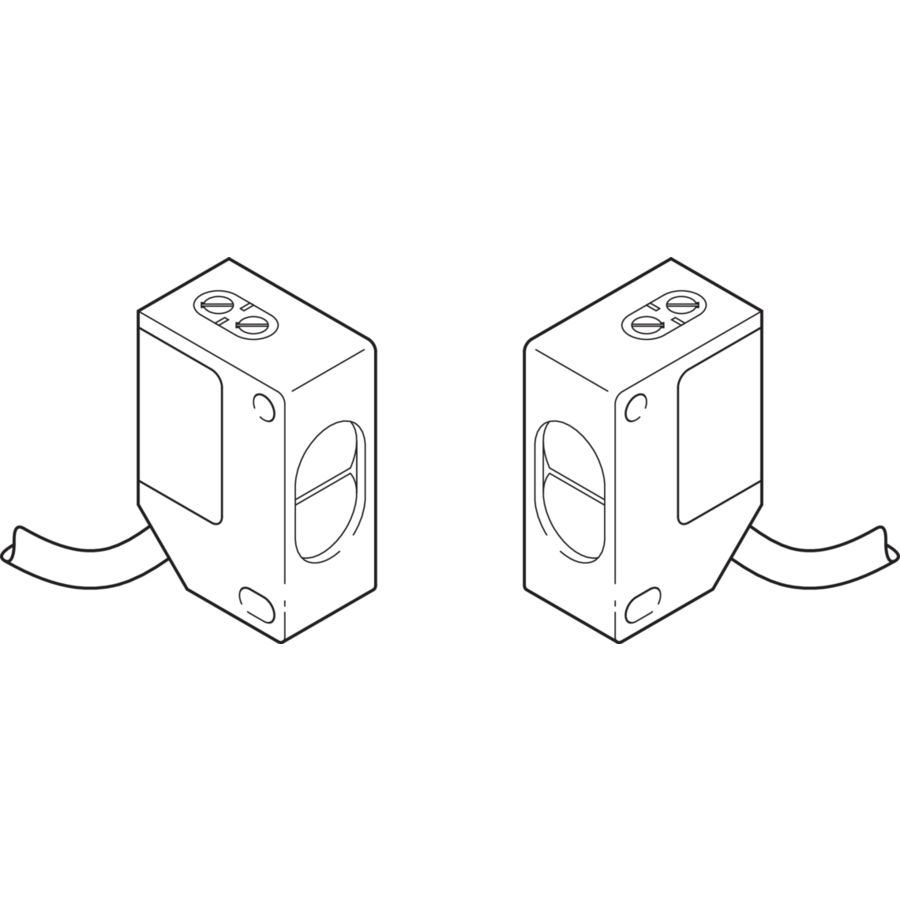

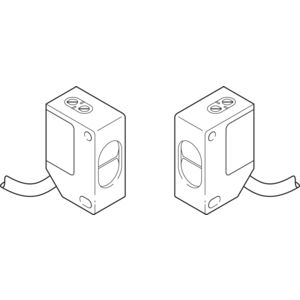

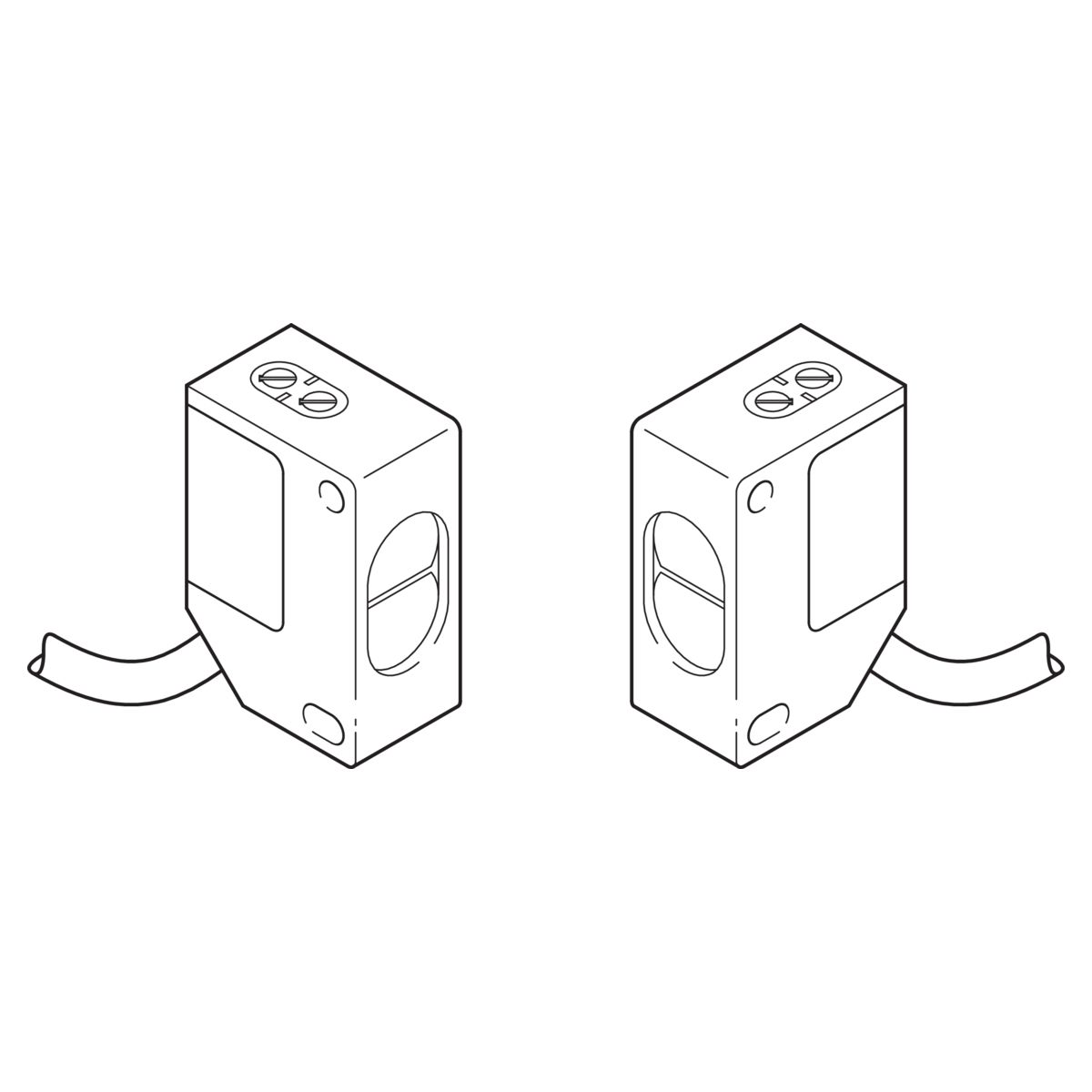

Through-beam Sensor, Transmitter / Receiver - OES 31 K 20000 N3-K-T3
Part Number: OES 31 K 20000 N3-K-T3
Article Number: 209221
Technical Details
| Activation Time | 0.25 ms |
|---|---|
| Ambient Light Immunity | 3;10 kLx;kLx Halogen light;Sunlight |
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Color | Red |

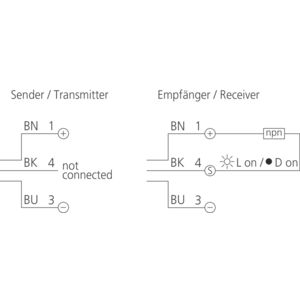

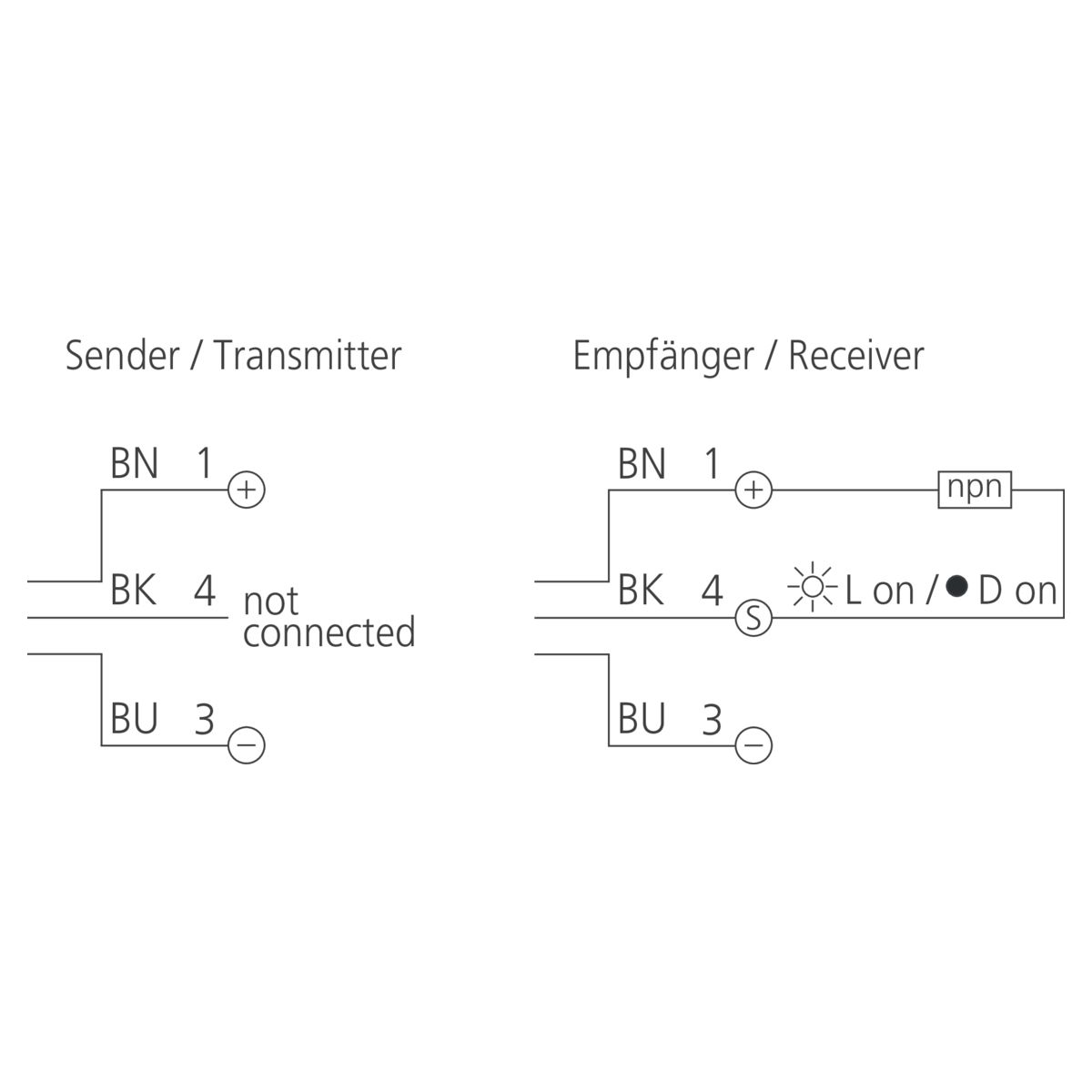

| Connection | Pigtail 0.2 m M8 3-pin |
| Connection Cable | TK ... |
| Consisting Of | Transmitter and Receiver |
| Design | Cuboid design |
| Evaluation | digital |

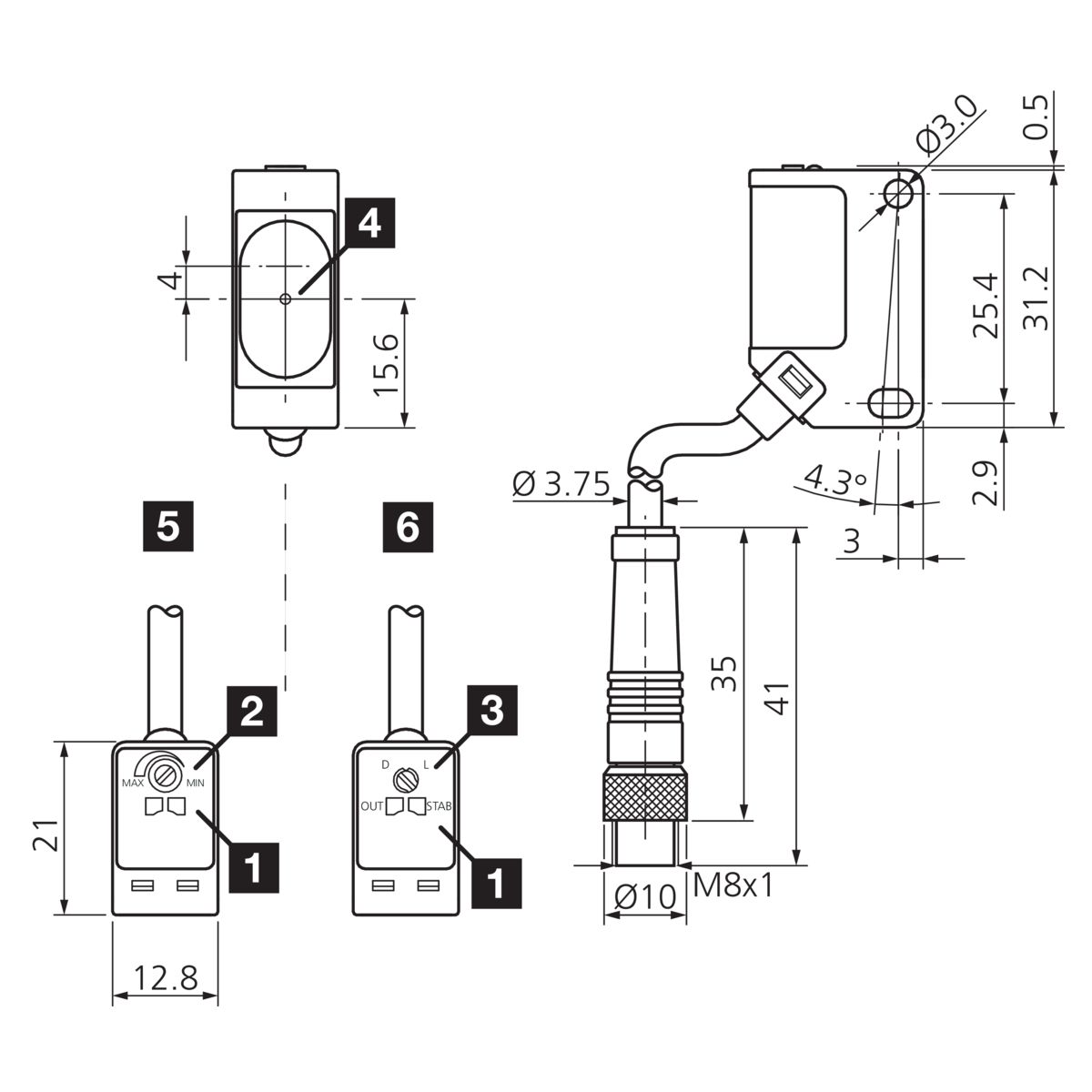

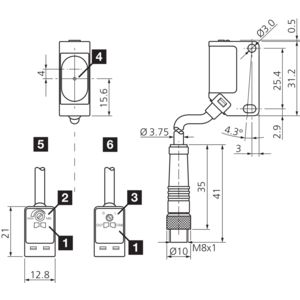

| Housing Dimensions | 31.2 x 21 x 12.8 mm |
| Housing length | 21.0 mm |
| Housing Material | Plastic PA 6.6 |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Light Source | LED |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 35.0 mA |
| Operating Principle | Through-beam sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 0.0 ... 20000.0mm |
| Release Time | 0.25 ms |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency | 2000 Hz |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | npn 100.0 mA NO/NC switchable (receiver) |
| Temperature Drift | 20.0 mm/K |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 630 nm |
