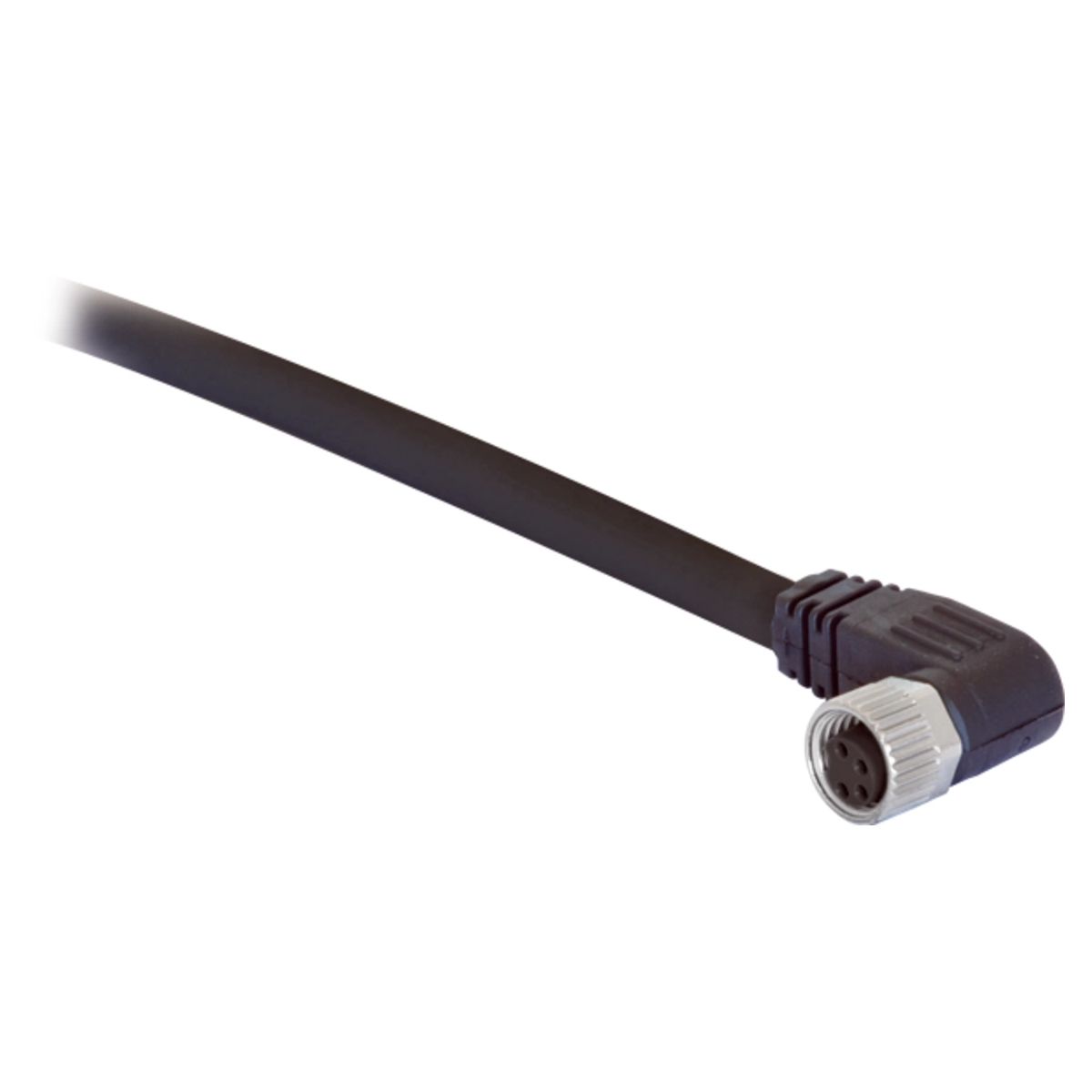

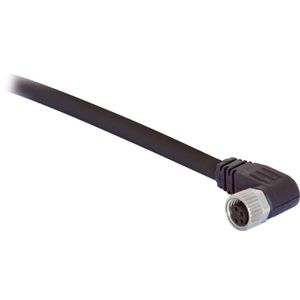

TKHM-W-15/4
Part Number: TKHM-W-15/4
Article Number: 209548
Technical Details
| Ambient Temperature During Operation | -5.0 ... 80.0°C |
|---|---|
| Characteristics | Metal nut |

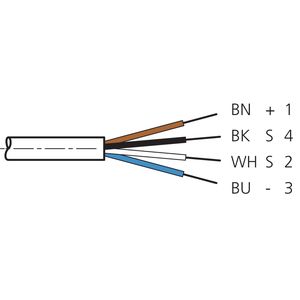

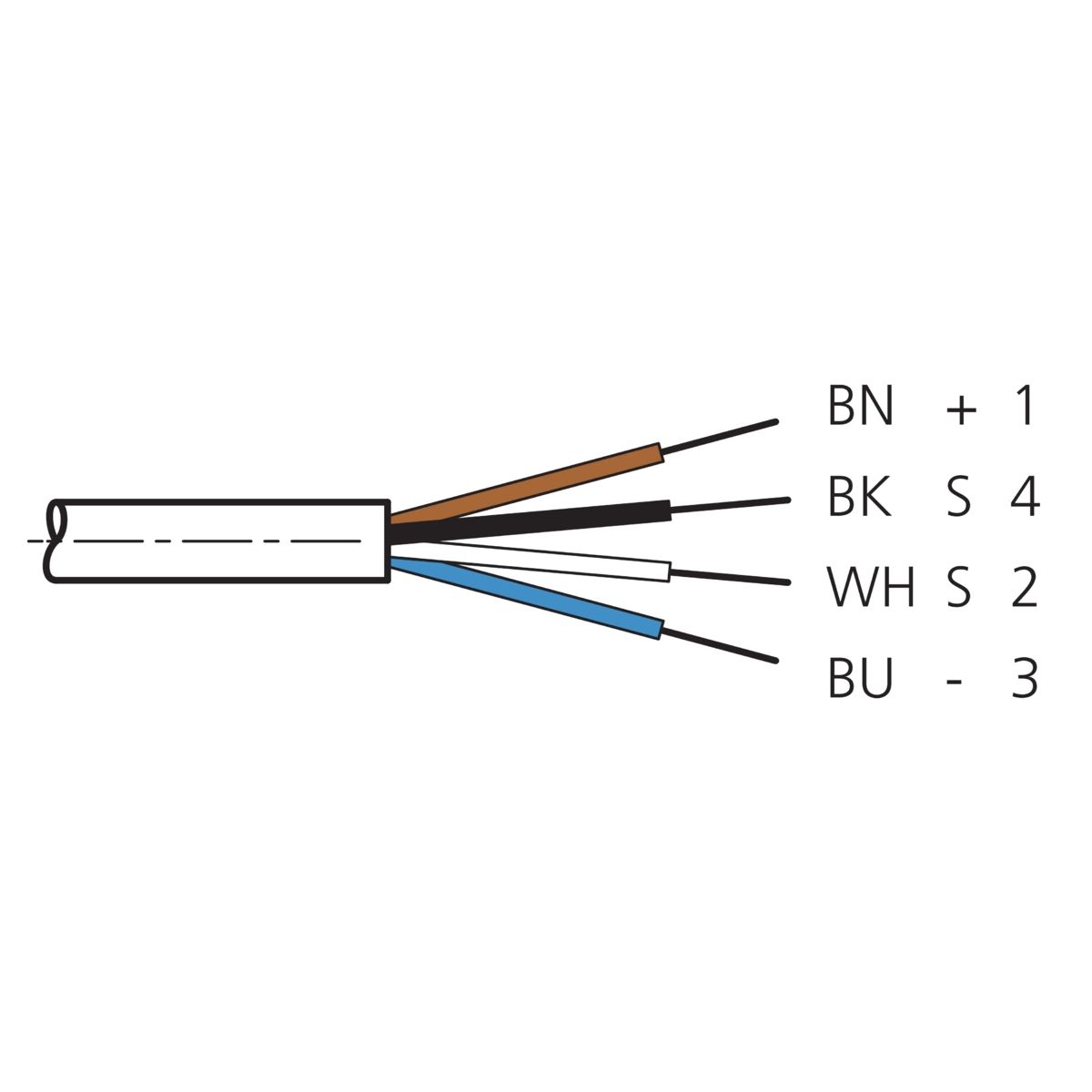

| Connection | Socket M8 4-pin |
| Cross Section | 4.0 |
| Design | Angled / open cable end |
| Diameter | 4.8 mm |
| Drag Chain Compatible | 1.0 |
| Length | 15000.0 mm |
| Min Bending Radius | 70 mm |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | No |
| Service Voltage | 60.0 |
| Thread | M8 x 1 |
