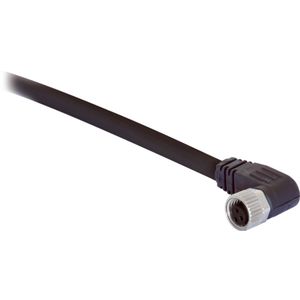

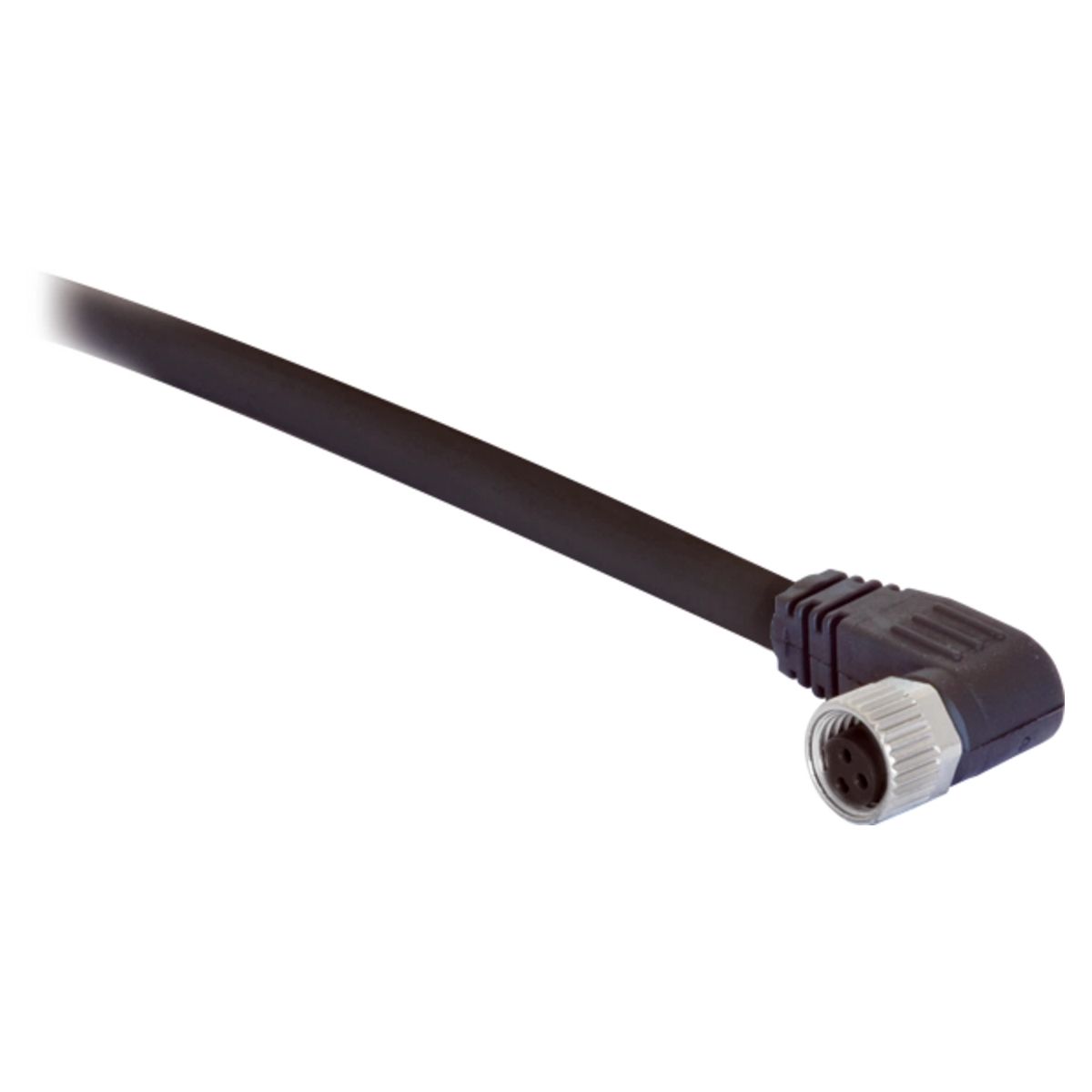

TKHM-W-2.5
Part Number: TKHM-W-2.5
Article Number: 201711
Technical Details
| Ambient Temperature During Operation | -25.0 ... 80.0°C |
|---|---|
| Characteristics | Metal nut |
| Connection | Socket M8 3-pin |
| Cross Section | 3.0 |
| Design | Angled / open cable end |
| Diameter | 4.1 mm |
| Drag Chain Compatible | 1.0 |
| Length | 2500.0 mm |
| Min Bending Radius | 41 mm |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 66K;IP 67 |
| Sensitivity Adjustment | No |
| Service Voltage | 50;60 |
| Thread | M8 x 1 |
