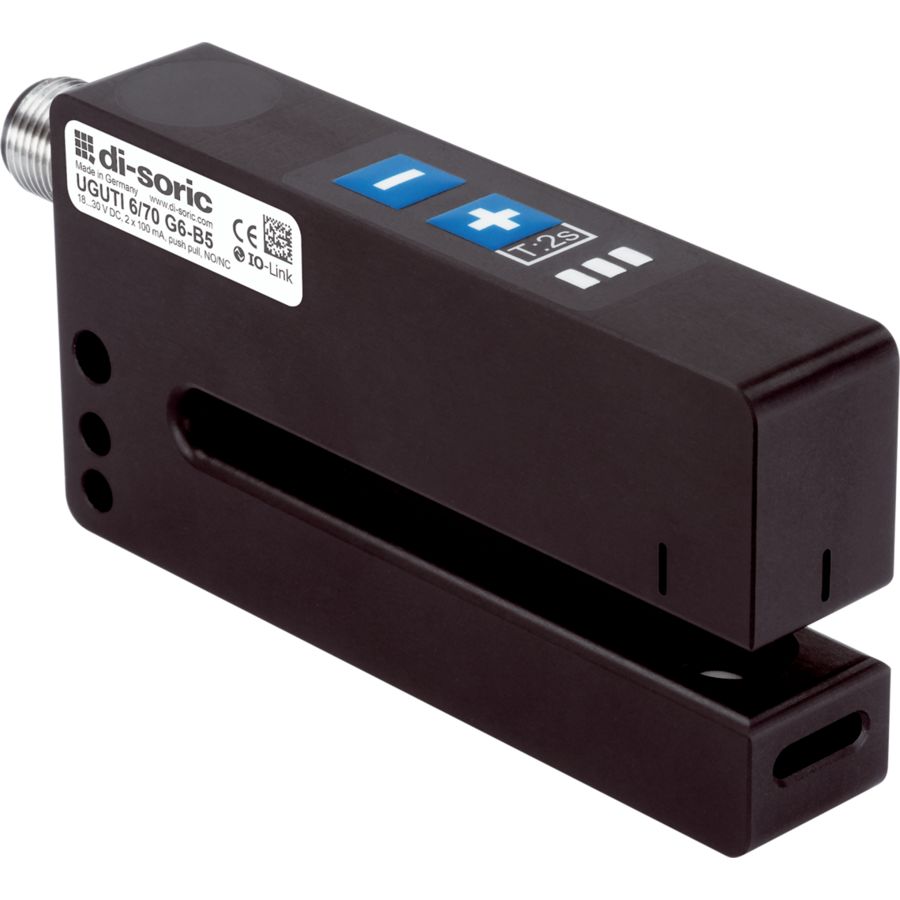

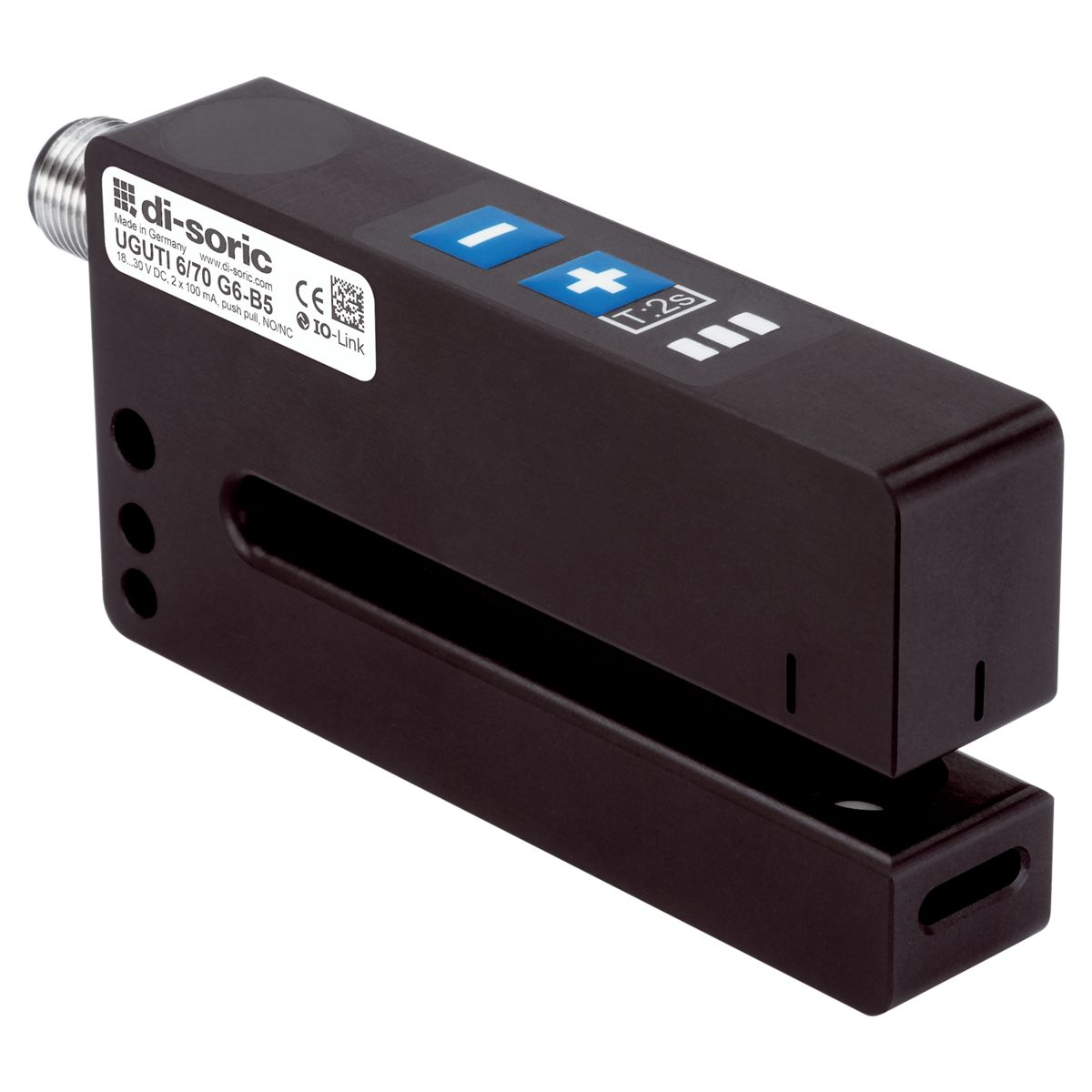

Ultrasonic Label Sensor - UGUTI 6/70 G6-B5
Part Number: UGUTI 6/70 G6-B5
Article Number: 210258
Technical Details
| Activation Time | 0.25 ms |
|---|---|
| Ambient Temperature During Operation | 0.0 ... 60.0°C |
| Characteristics | Connector outlet at the back |

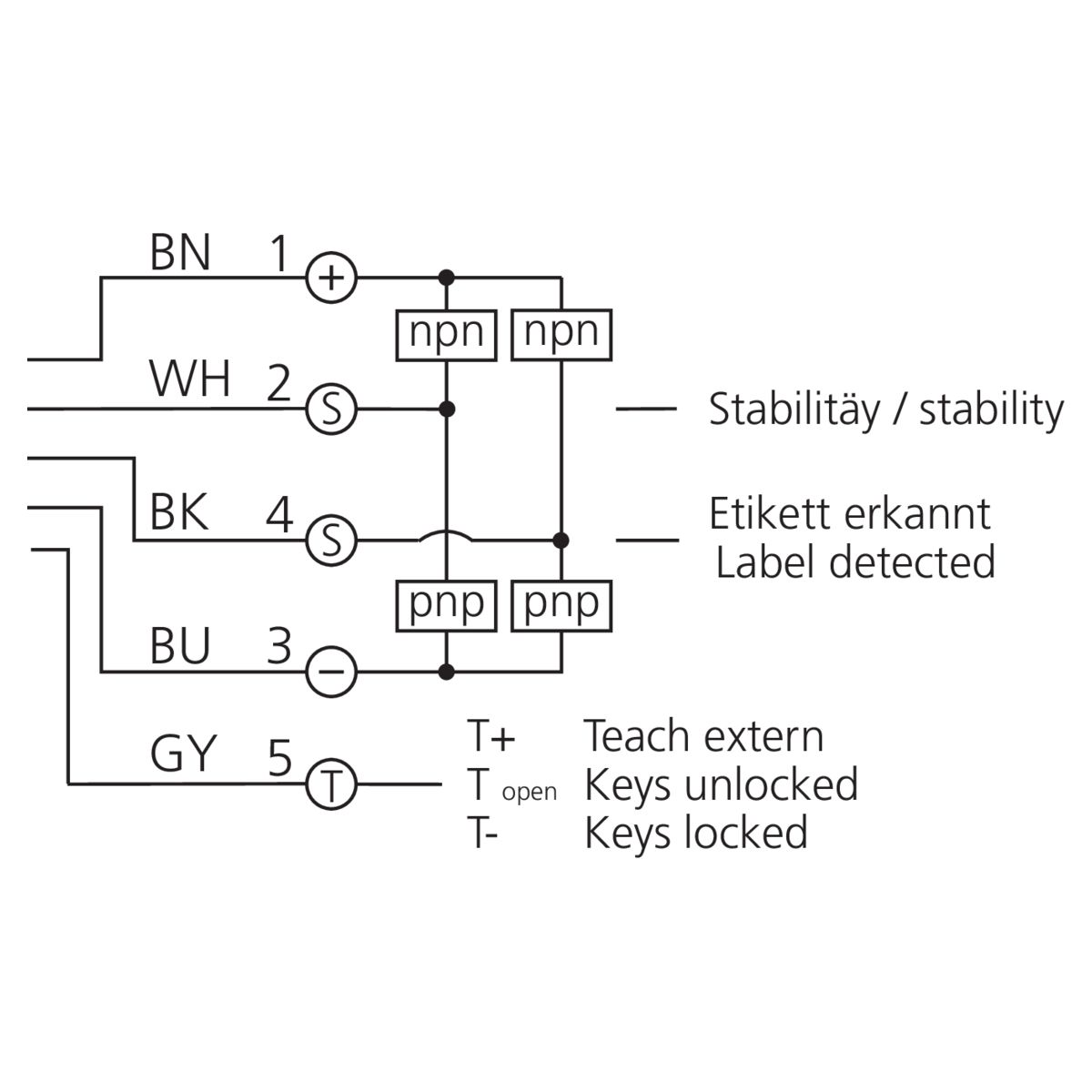

| Connection | Connector M12 5-pin |
| Design | Fork |
| Evaluation | digital |
| Fork Opening | 6.0 mm |
| Green | Status |

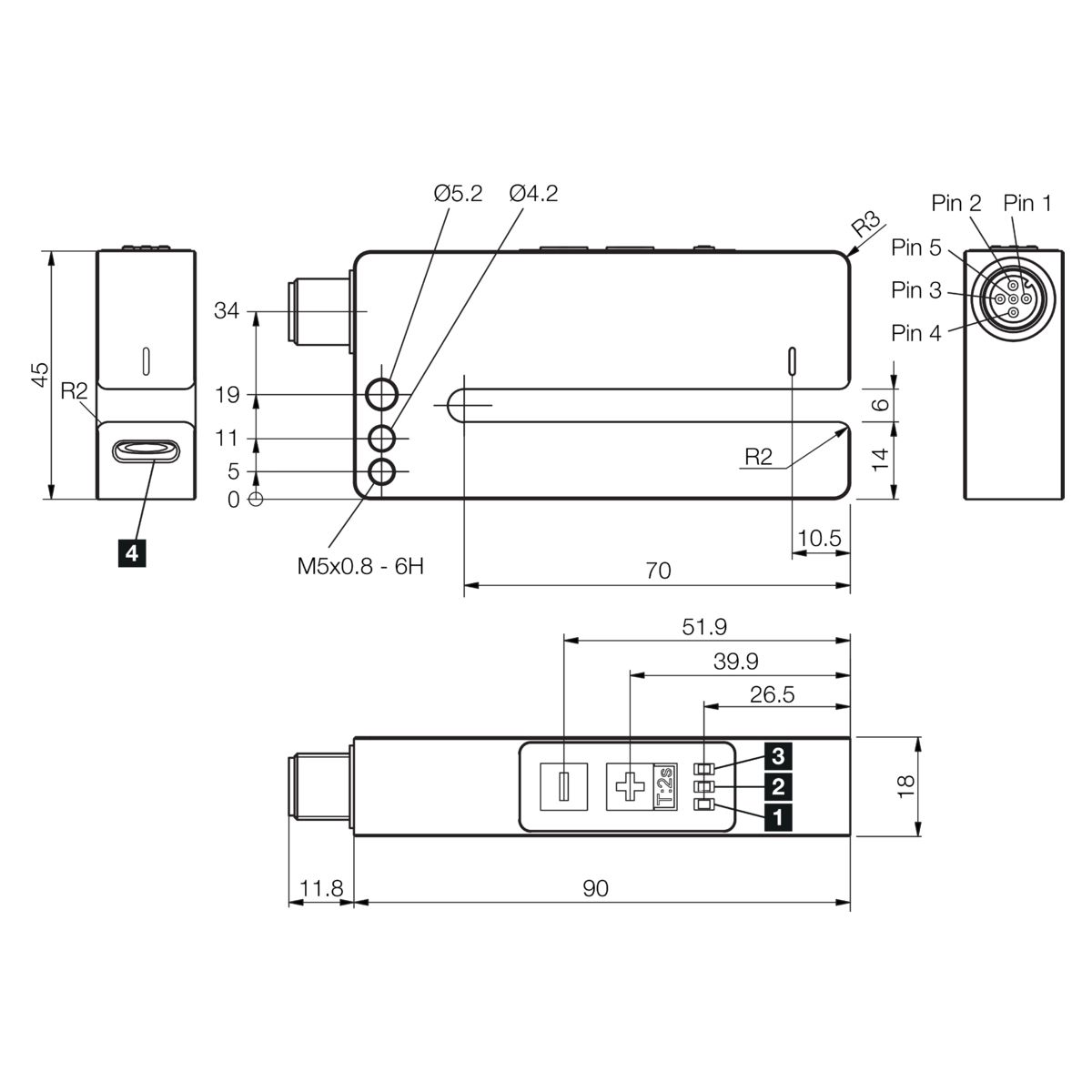

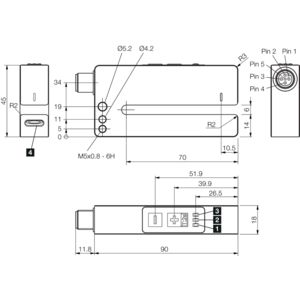

| Housing Dimensions | 45 x 18 x 90 mm |
| Housing length | 90.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Label Interspace | 2.0 > mm |
| Label Thickness | 5.9 < mm |
| Leg Length Internal | 70 mm |
| Max Switch Current | 100.0 mA each output |
| No Load Current (max.) | 40.0 mA |
| Operating Principle | Ultrasonic through-beam sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Readiness Delay (max.) | 180.0 ms |
| Red | Stability insufficient |
| Reproducibility | ± 0.2 mm |
| Sensitivity Adjustment | Remote teach;Keypad |
| Service Voltage | 18.0 ... 30.0V DC |
| Switching Output | Push-pull 2.0 NO/NC switchable |
| Yellow | Switching output |
