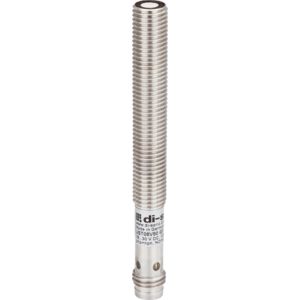

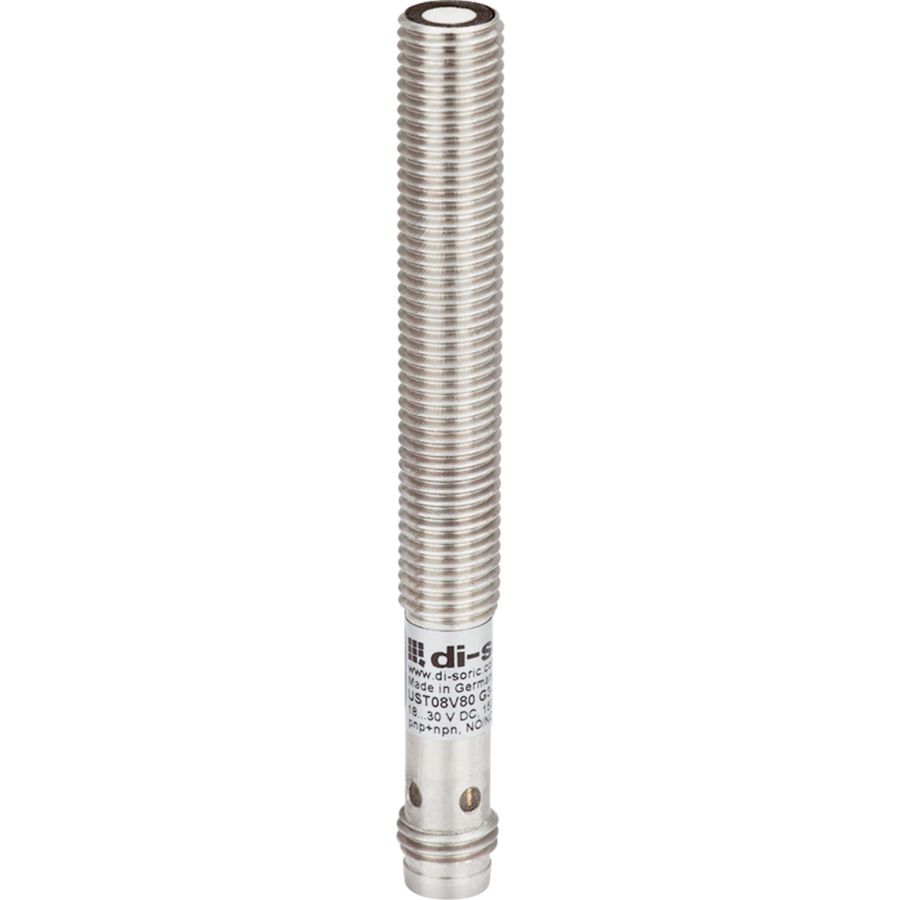

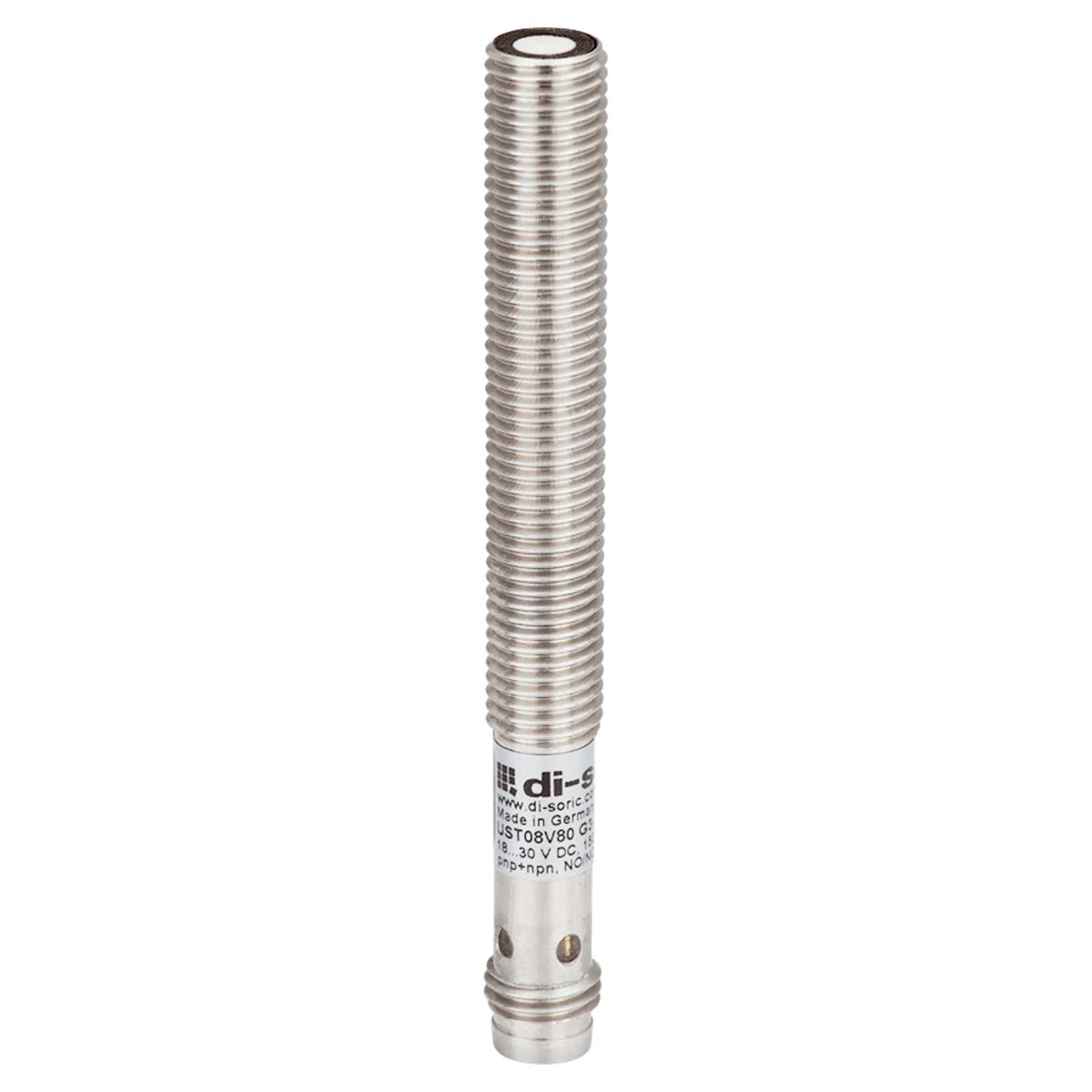

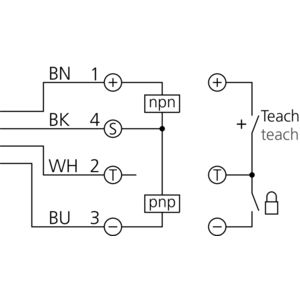

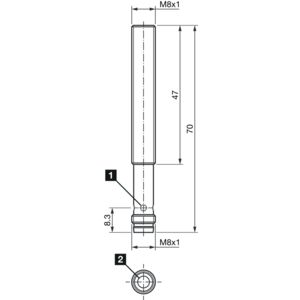

Ultrasonic Sensor - US 08 M 100 G3-T4
Part Number: US 08 M 100 G3-T4
Article Number: 210539
Technical Details

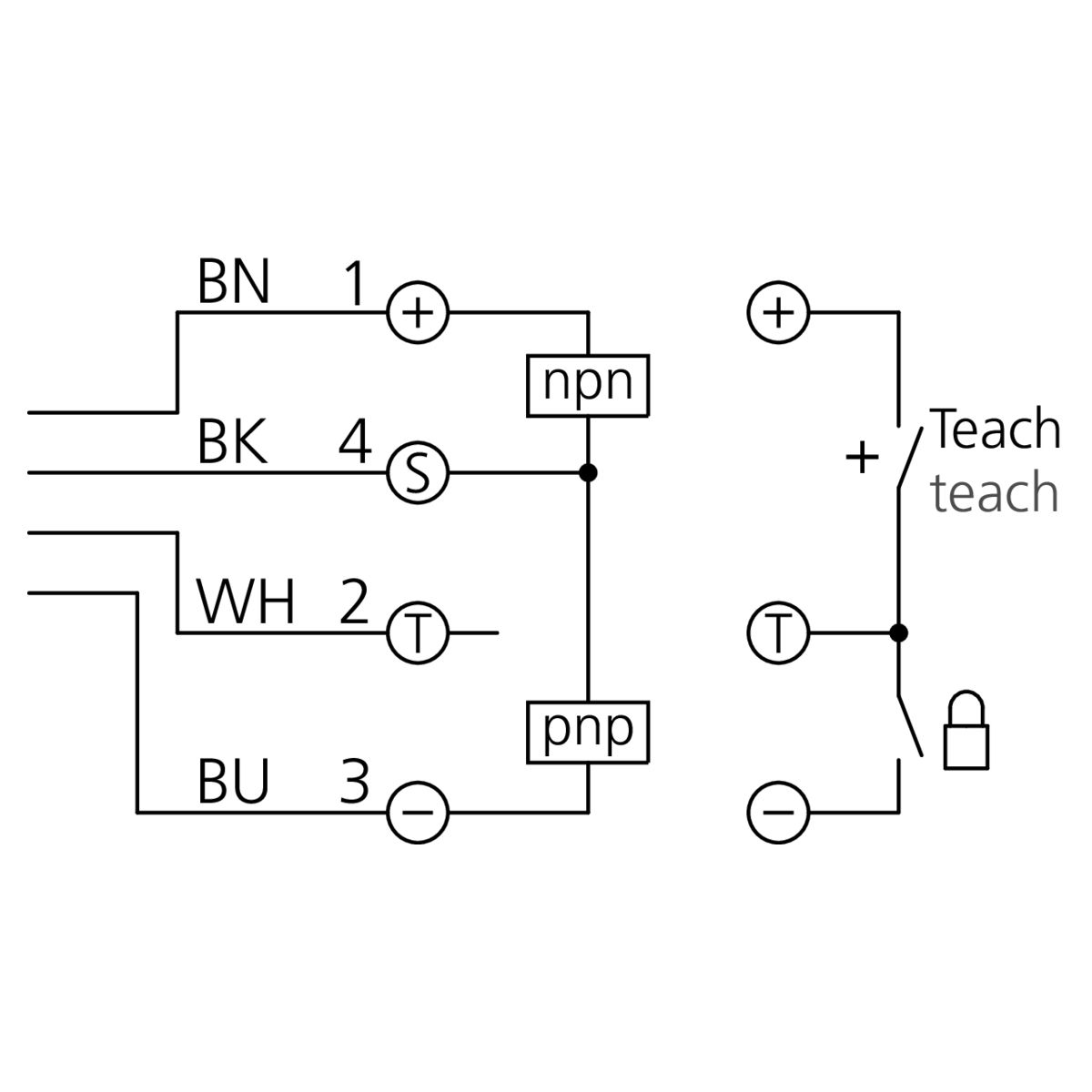

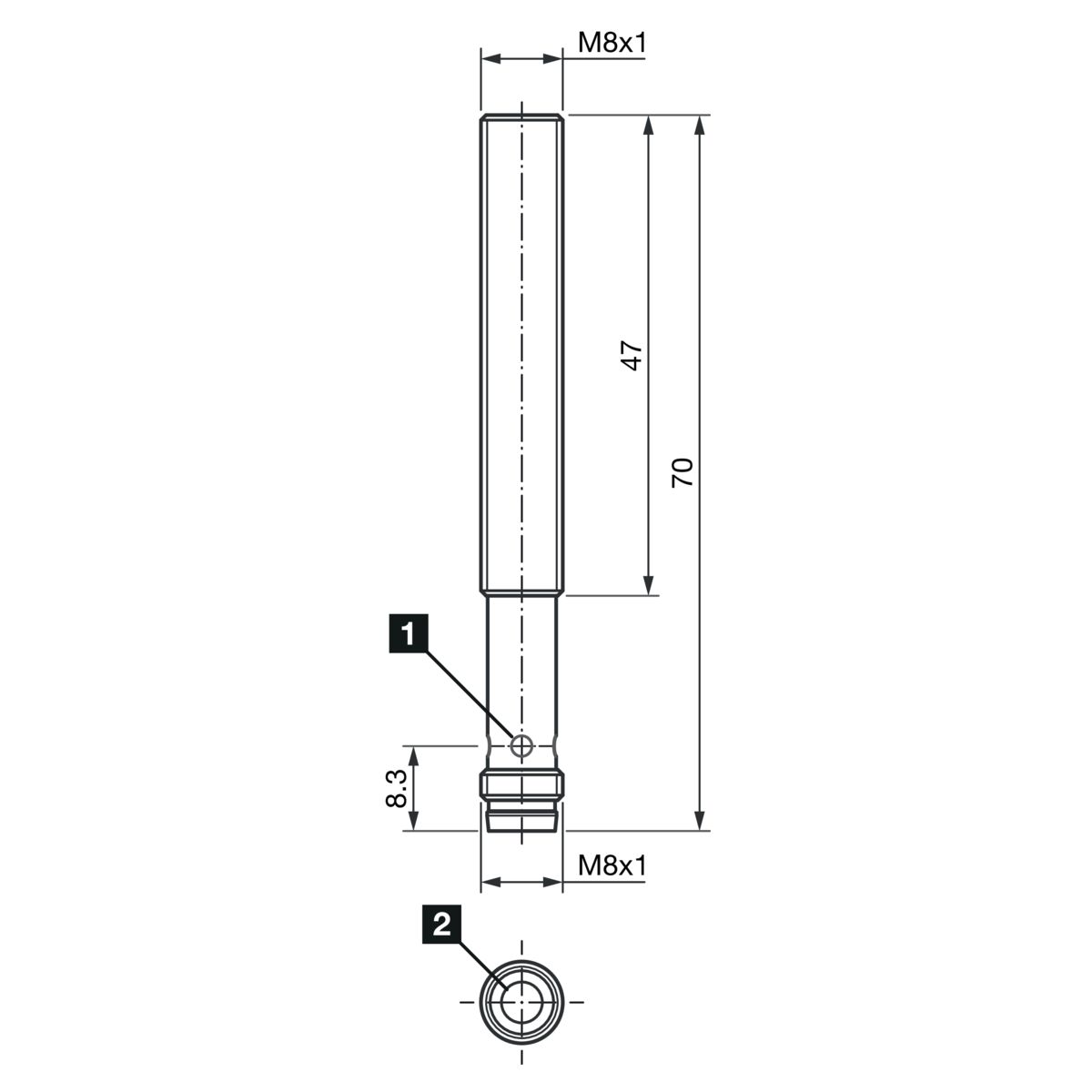

| Adjustment Range | 20.0 mm 100.0 mm Teach in |
|---|---|
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
| Assembly Distance (Sensor To Sensor) | 60.0 mm |
| Characteristics | IO-Link |
| Connection | Connector M8 4-pin |
| Connection Cable | TK ... /4 |
| Design | Thread |
| Evaluation | digital |
| Functions | Teach (Pin 2);Out 1, IO-Link (Pin 4) |
| Green | Status 1.0 |
| Housing Dimensions | M8 x 70 mm |
| Housing length | 70.0 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Inverse Polarity Protection | Yes |
| Material | Epoxy resin, PUR Transducer surface |
| Max Switch Current | 150.0 mA |
| No Load Current (max.) | 30.0 mA 24.0 V DC |
| Nominal Switching Distance (Sn) | 100.0 mm |
| Operating Principle | Ultrasonic sensor;Ultrasonic barrier |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 20.0 ... 100.0mm |
| Readiness Delay (max.) | 300.0 ms |
| Reproducibility | < 0.3 mm |
| Resolution | 0.1 mm |
| Scope Of Delivery | Sensor;2 x M8 nuts |
| Sensitivity Adjustment | Remote teach |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Short Circuit Protection | Yes |
| Standardized Measuring Plate | 20 x 20 mm |
| Switching Frequency | 20 < Hz |
| Switching Hysteresis (max.) | 1.0 mm 5.0 mm Adjustable by IO-Link |
| Switching Output | Push-pull 150.0 mA NO/NC switchable |
| Temperature Drift | 0.2 %/K uncompensated 1.0 < %/Sn compensated |
| Thread | M8 x 1 |
| Transmission Exit | axial |
| Ultrasonic Frequency | 484.0 kHz |
| Voltage Drop (max.) | 2.0 V |
| Weight | 10.0 g |
| Yellow | Switching output |
