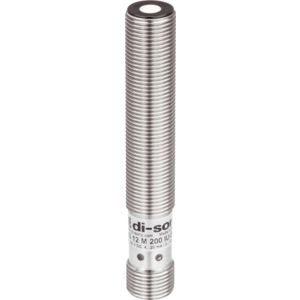

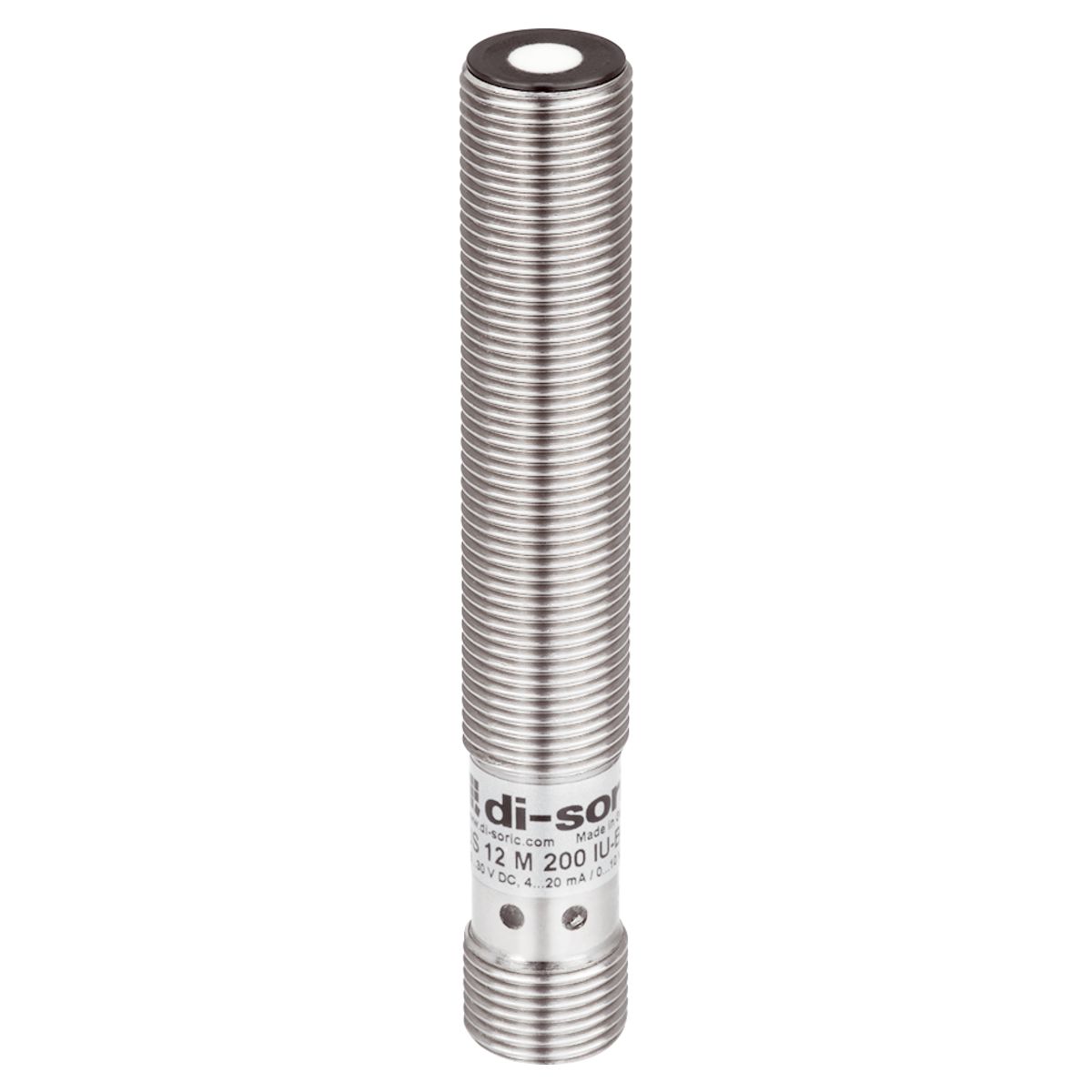

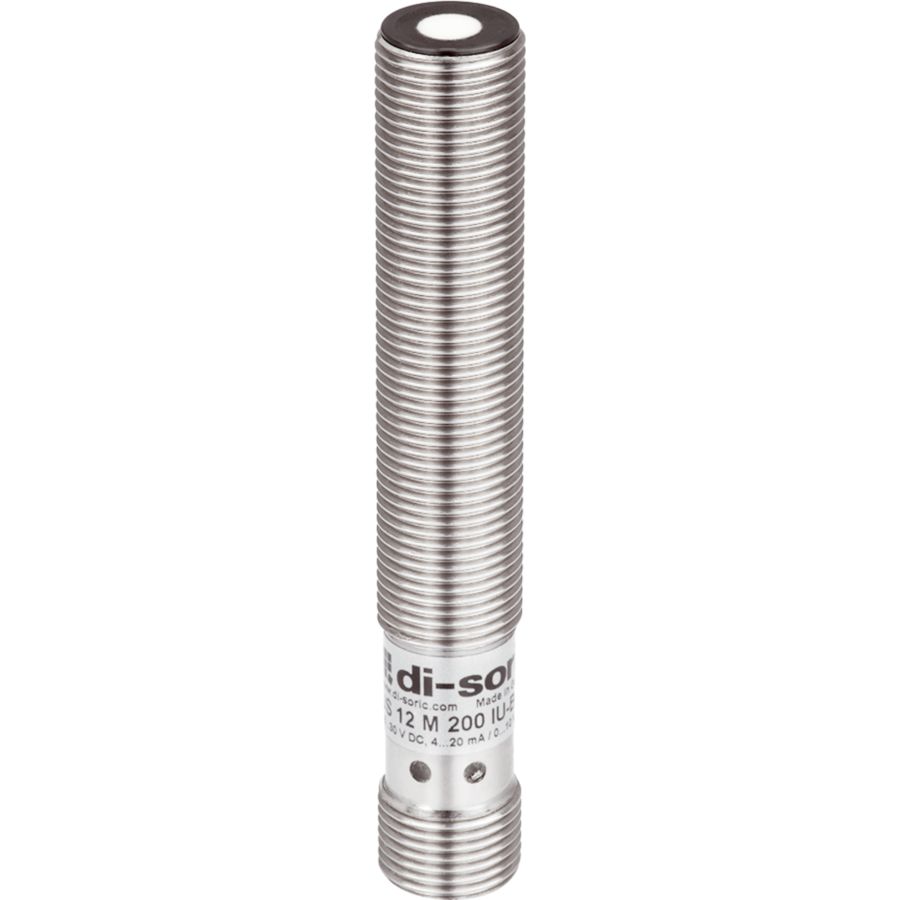

| Adjustment Range |
20.0 mm 200.0 mm Teach in |
| Ambient Temperature During Operation |
-25.0 ... 70.0°C |
| Analog Output |
0.0 V 10.0 V 4.0 mA 20.0 mA 0 ... 20 mA IO-Link |
| Assembly Distance (Sensor To Sensor) |
60.0 mm |
| Characteristics |
IO-Link |

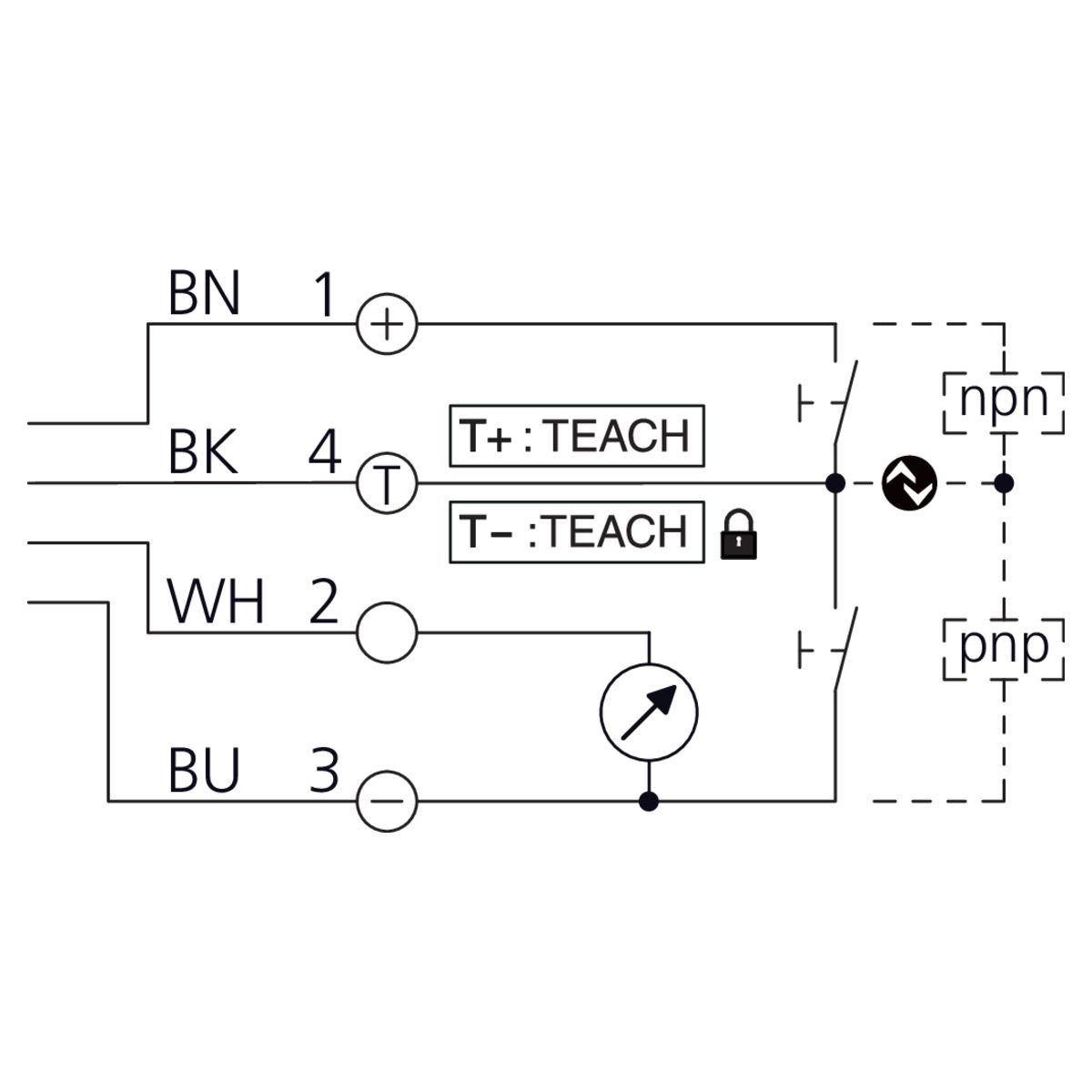

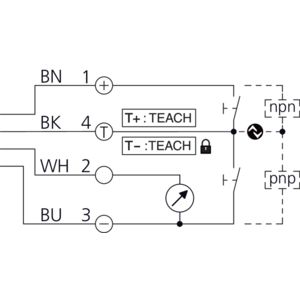

| Connection |
Connector M12 4-pin |
| Connection Cable |
VKHM ... /4 |
| Design |
Thread |
| Evaluation |
digital;analog With IO-Link |
| Functions |
Teach, Out 1, IO-Link, multiplex, synchronization (PIN 4);Analog 0...10V / 4...20mA / 0... 20mA (Pin 2) |
| Green |
Status 1.0 |

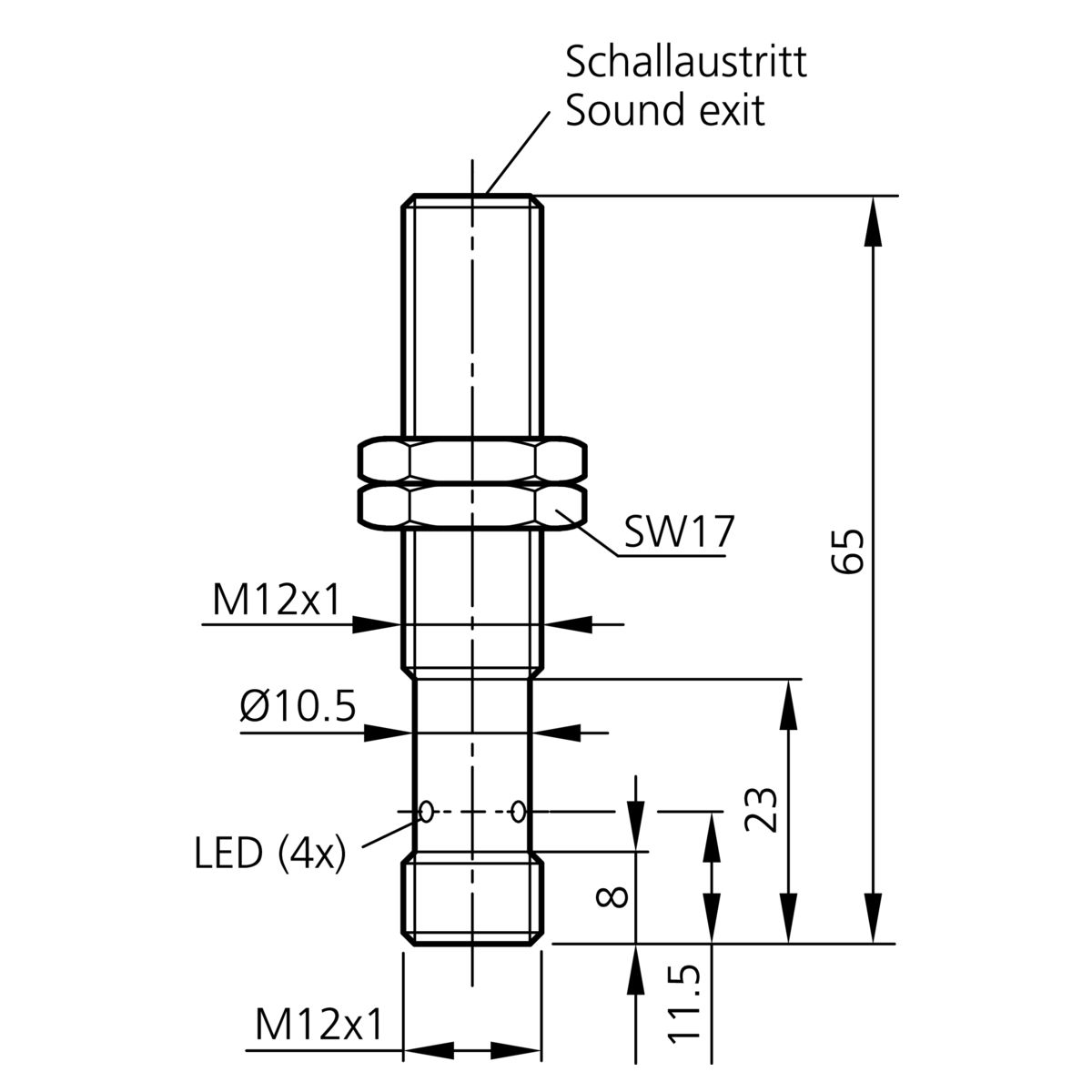

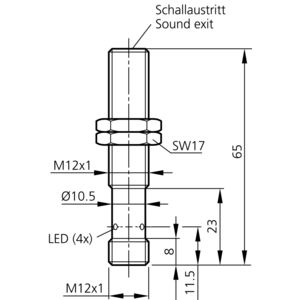

| Housing Dimensions |
M12 x 65 mm |
| Housing length
|
65.0 mm |
| Housing Material |
Brass CuZn nickel-plated |
| Illumination Time Pulse |
1.0 |
| Insulation Voltage Endurance |
500.0 V |
| Interface |
IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Inverse Polarity Protection |
yes, except for the analog output PIN2 |
| LED |
1.0 |
| Linearity Error |
0.4 ± % |
| Load Resistance |
> 10 KΩ (0 ... 10 V) / < 400 Ω (4 ... 20 mA / 0 ... 20 mA) |
| Material |
Epoxy resin, PUR Transducer surface |
| Max Switch Current |
150.0 mA |
| Measuring Frequency |
400.0 Hz |
| No Load Current (max.) |
40.0 mA 24.0 V DC |
| Nominal Switching Distance (Sn) |
200.0 mm |
| Operating Principle |
Ultrasonic sensor;Ultrasonic barrier |
| Operation Modes |
STANDARD;Master / slave function (synchronization or multiplex operation) |
| Protection Class |
III, operation on protective low voltage |
| Protection Type |
IP 67 |
| Range |
20.0 ... 200.0mm |
| Readiness Delay (max.) |
300.0 ms |
| Reproducibility |
< 0.5 mm |
| Resolution |
1.0 mm |
| Resolution1 |
Adjusted measuring range/4095 (analog output) |
| Scope Of Delivery |
Sensor;2 x M12 nuts |
| Sensitivity Adjustment |
Remote teach |
| Service Voltage |
18.0 ... 30.0V DC |
| Shock Vibration Load |
30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Short Circuit Protection |
Yes |
| Standardized Measuring Plate |
100 x 100 mm |
| Switching Frequency |
20 Hz |
| Switching Hysteresis (max.) |
2.0 mm 20.0 mm Adjustable by IO-Link |
| Switching Output |
Push-pull 150.0 mA NO/NC switchable |
| Temperature Drift |
0.2 %/K uncompensated 1.0 < %/Sn compensated |
| Thread |
M12 x 1 |
| Transmission Exit |
axial |
| Ultrasonic Frequency |
400.0 kHz |
| Voltage Drop (max.) |
2.0 V |
| Weight |
18.0 g |
| Yellow |
Switching output |
