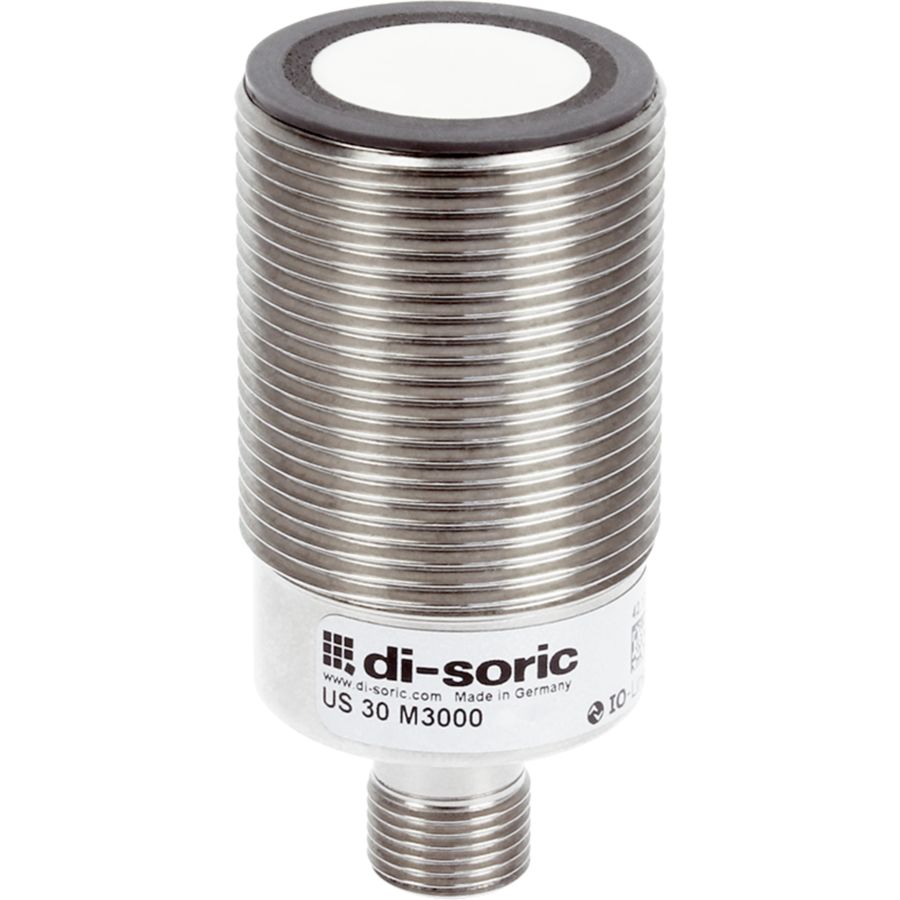

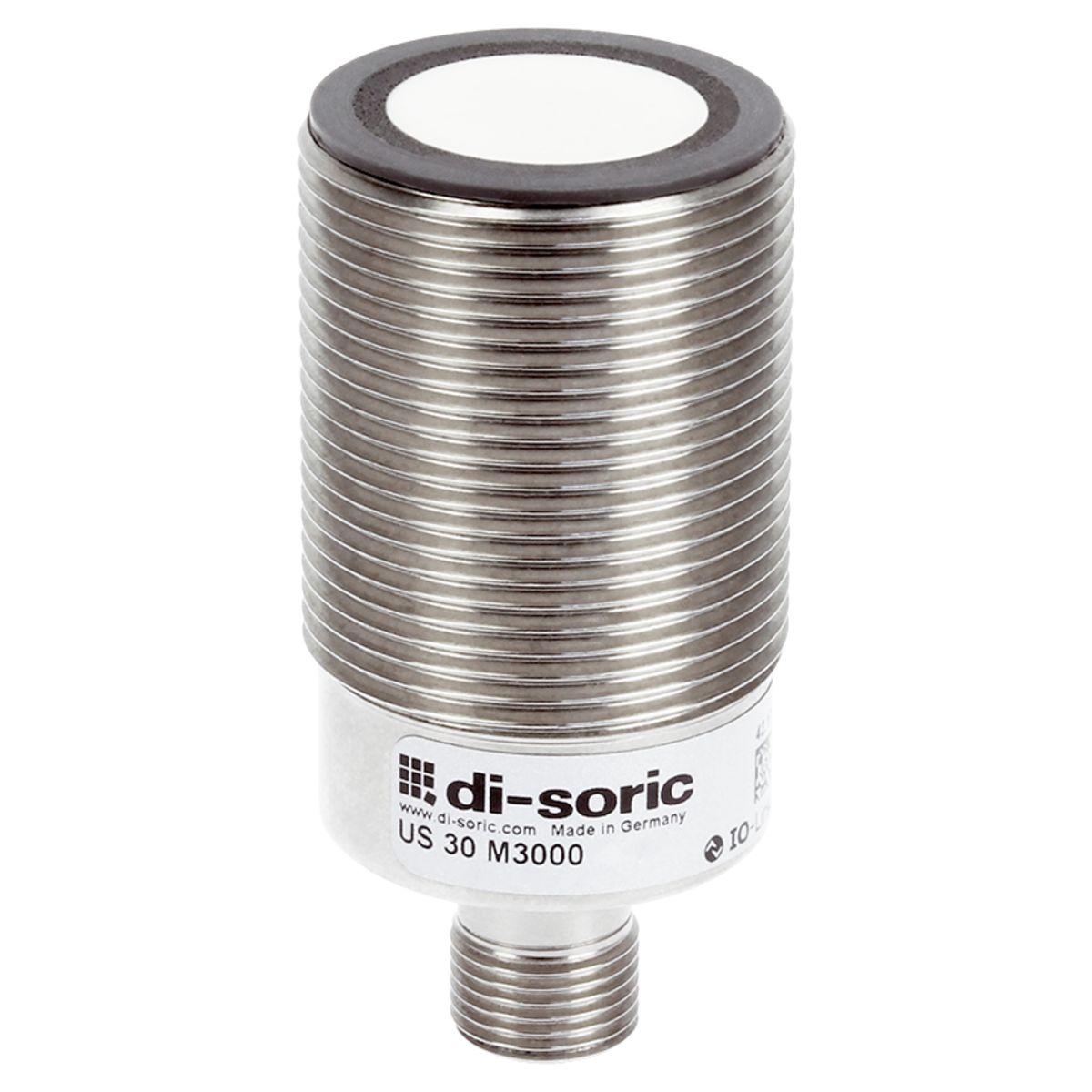

| Adjustment Range |
300.0 mm 3000.0 mm Teach in |
| Ambient Temperature During Operation |
-25.0 ... 70.0°C |
| Analog Output |
0.0 V 10.0 V 4.0 mA 20.0 mA 0 ... 20 mA IO-Link |
| Assembly Distance (Sensor To Sensor) |
500.0 mm |
| Characteristics |
IO-Link |
| Connection |
Connector M12 4-pin |
| Connection Cable |
VKHM ... /4 |
| Design |
Thread |
| Evaluation |
digital;analog With IO-Link |

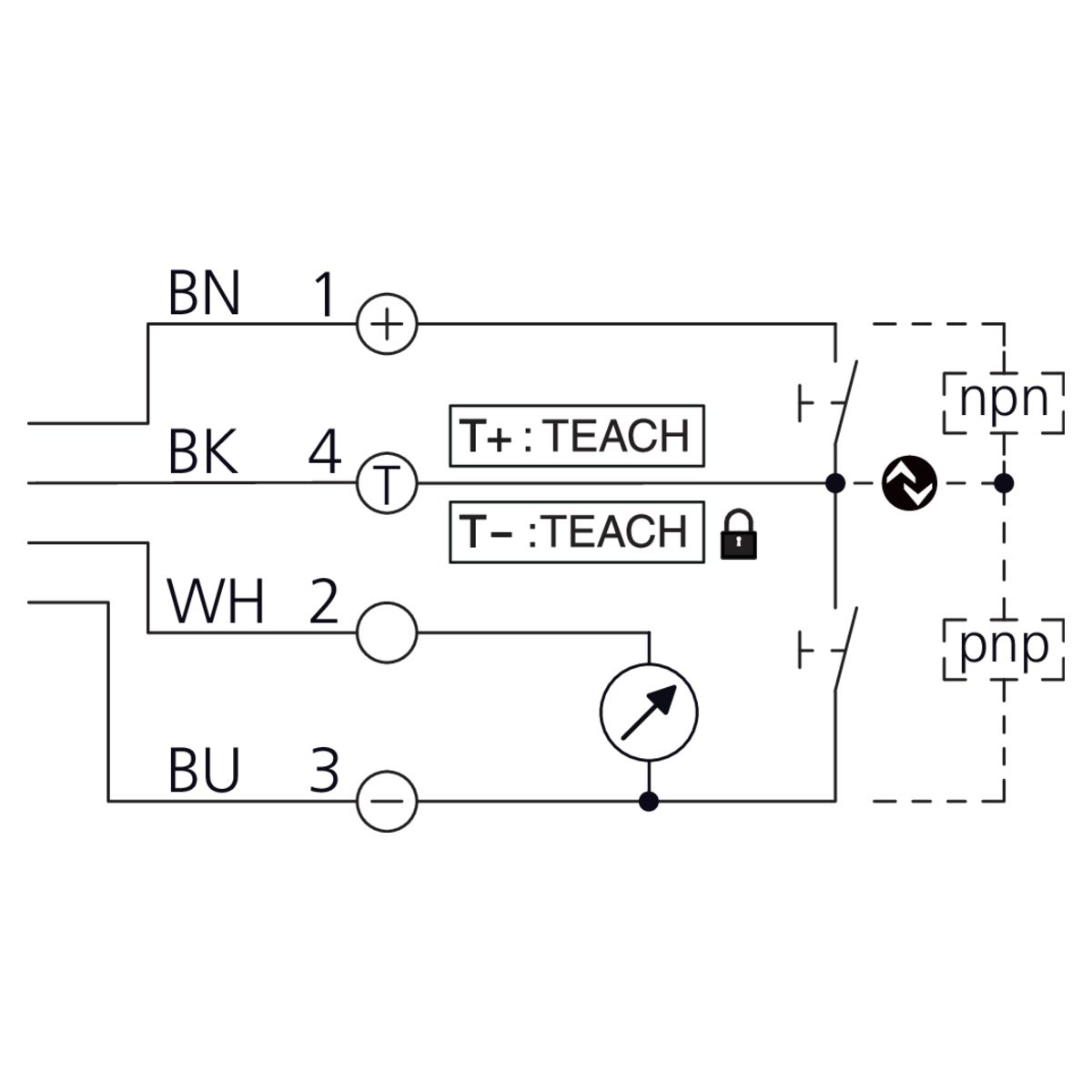

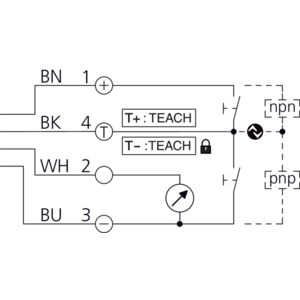

| Functions |
Analog 0...10V / 4...20mA / 0... 20mA, Teach, switching output push-pull, PNP, NPN (Pin 2);Teach , push-pull, PNP, NPN, synchronization, multiplex (PIN 4) |
| Green |
Status 1.0 |

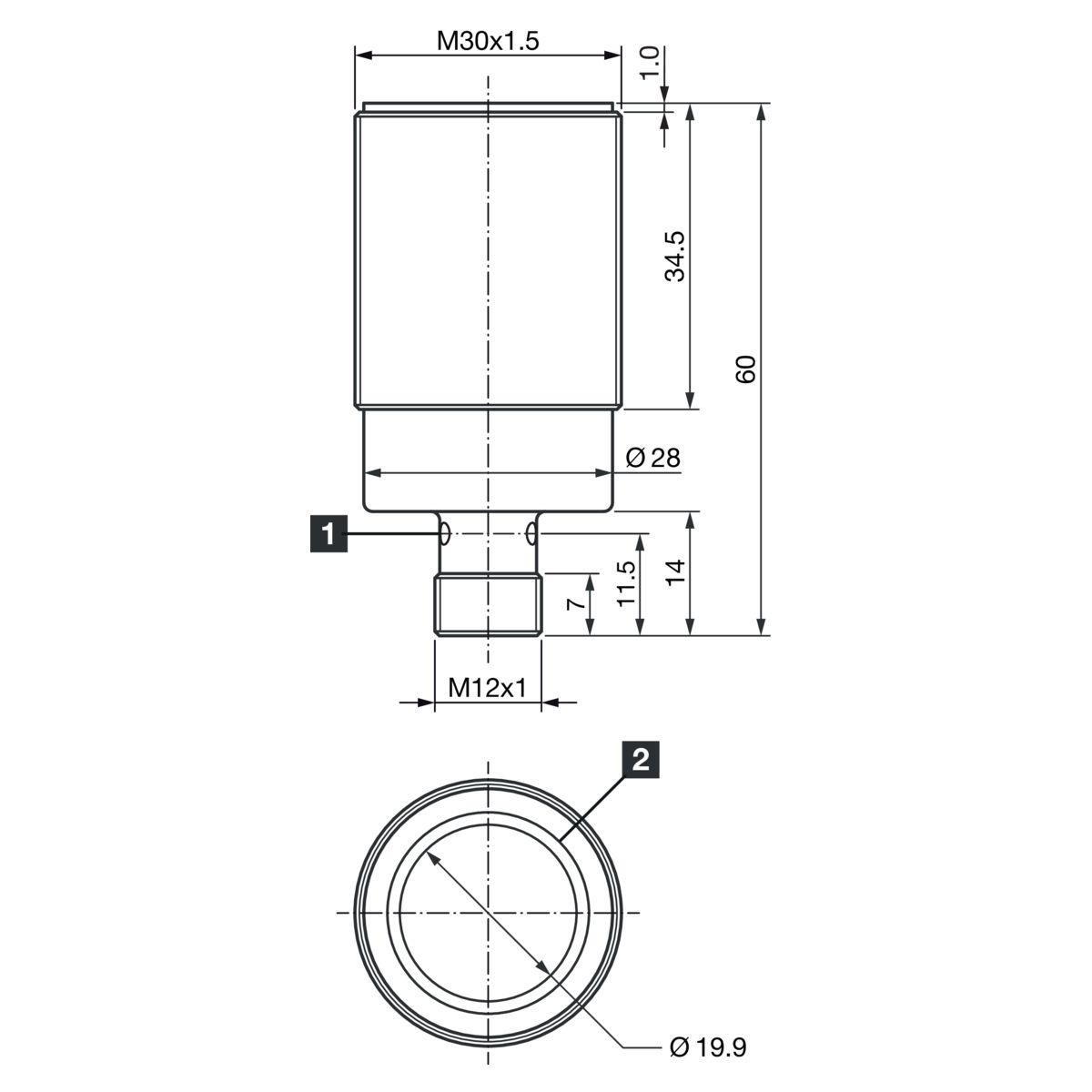

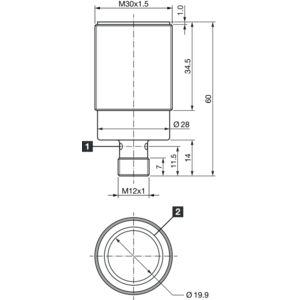

| Housing Dimensions |
M30 x 60 mm |
| Housing length
|
60.0 mm |
| Housing Material |
Brass CuZn nickel-plated |
| Illumination Time Pulse |
1.0 |
| Insulation Voltage Endurance |
500.0 V |
| Interface |
IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Inverse Polarity Protection |
yes, except for the analog output PIN2 |
| LED |
1.0 |
| Linearity Error |
0.2 ± % |
| Load Resistance |
> 10 KΩ (0 ... 10 V) / < 400 Ω (4 ... 20 mA / 0 ... 20 mA) |
| Material |
Epoxy resin, PUR Transducer surface |
| Max Switch Current |
100.0 mA |
| Measuring Frequency |
33.0 Hz |
| No Load Current (max.) |
45.0 mA 24.0 V DC |
| Nominal Switching Distance (Sn) |
3000.0 mm |
| Operating Principle |
Ultrasonic sensor;Ultrasonic barrier |
| Operation Modes |
STANDARD;Master / slave function (synchronization or multiplex operation) |
| Protection Class |
III, operation on protective low voltage |
| Protection Type |
IP 67 |
| Range |
300.0 ... 3000.0mm |
| Readiness Delay (max.) |
300.0 ms |
| Reproducibility |
2.0 mm |
| Resolution |
1.0 mm |
| Resolution1 |
Adjusted measuring range/4095 (analog output) |
| Scope Of Delivery |
Sensor;2 x M30 nuts |
| Sensitivity Adjustment |
Remote teach |
| Service Voltage |
18.0 ... 30.0V DC |
| Shock Vibration Load |
30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Short Circuit Protection |
Yes |
| Standardized Measuring Plate |
200 x 200 mm |
| Switching Frequency |
3 Hz |
| Switching Hysteresis (max.) |
5.0 mm 50.0 mm adjustable via IO-Link / 15 mm factory setting |
| Switching Output |
Push-pull 100.0 mA NO/NC switchable |
| Temperature Drift |
0.2 %/K uncompensated 1.5 < %/Sn compensated |
| Thread |
M30 x 1.5 |
| Transmission Angle Of The Object |
10.0 ° |
| Transmission Exit |
axial |
| Ultrasonic Frequency |
125.0 kHz |
| Voltage Drop (max.) |
2.0 V |
| Weight |
70.0 g |
| Yellow |
Switching output |
