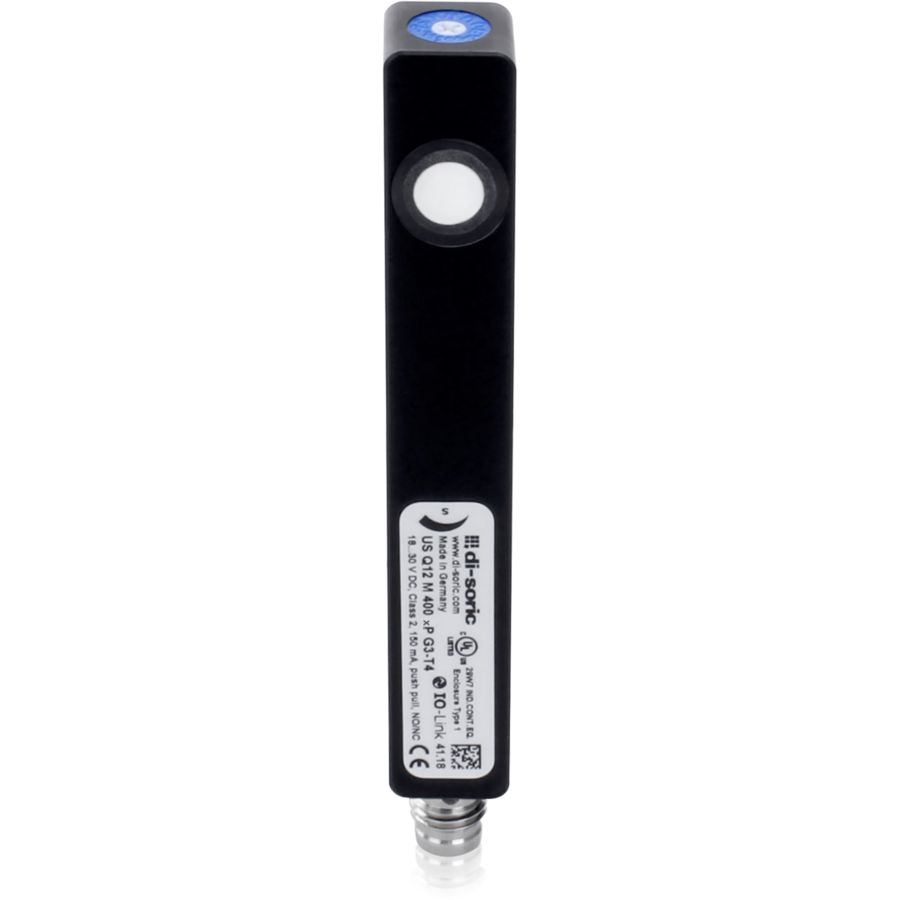

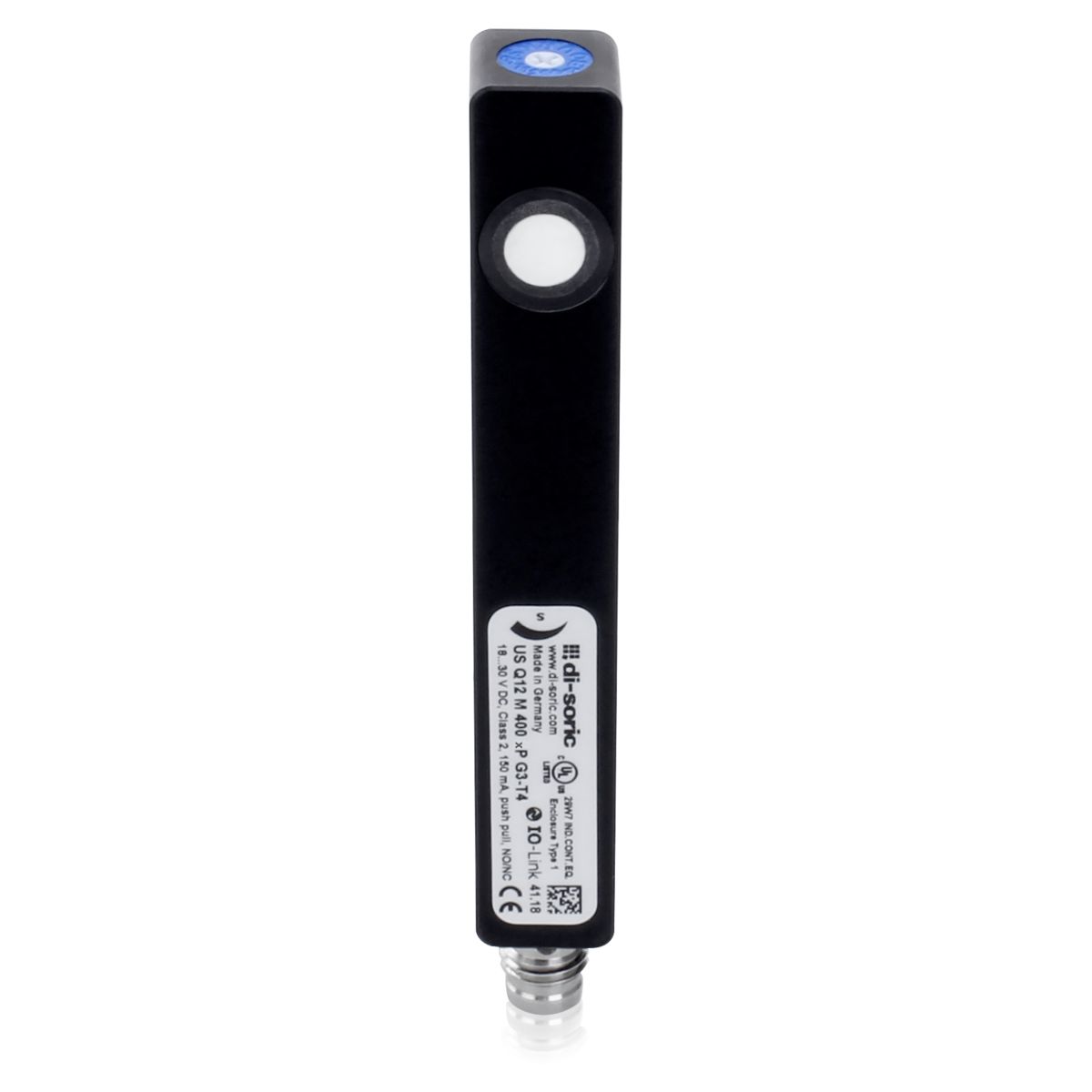

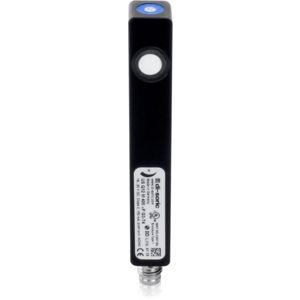

Ultrasonic Sensor - US Q12 M 400 FP G3-T4
Part Number: US Q12 M 400 FP G3-T4
Article Number: 210966
Technical Details

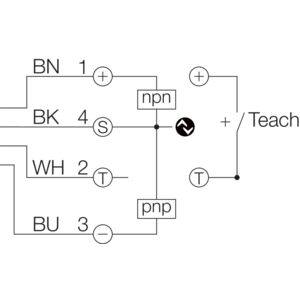

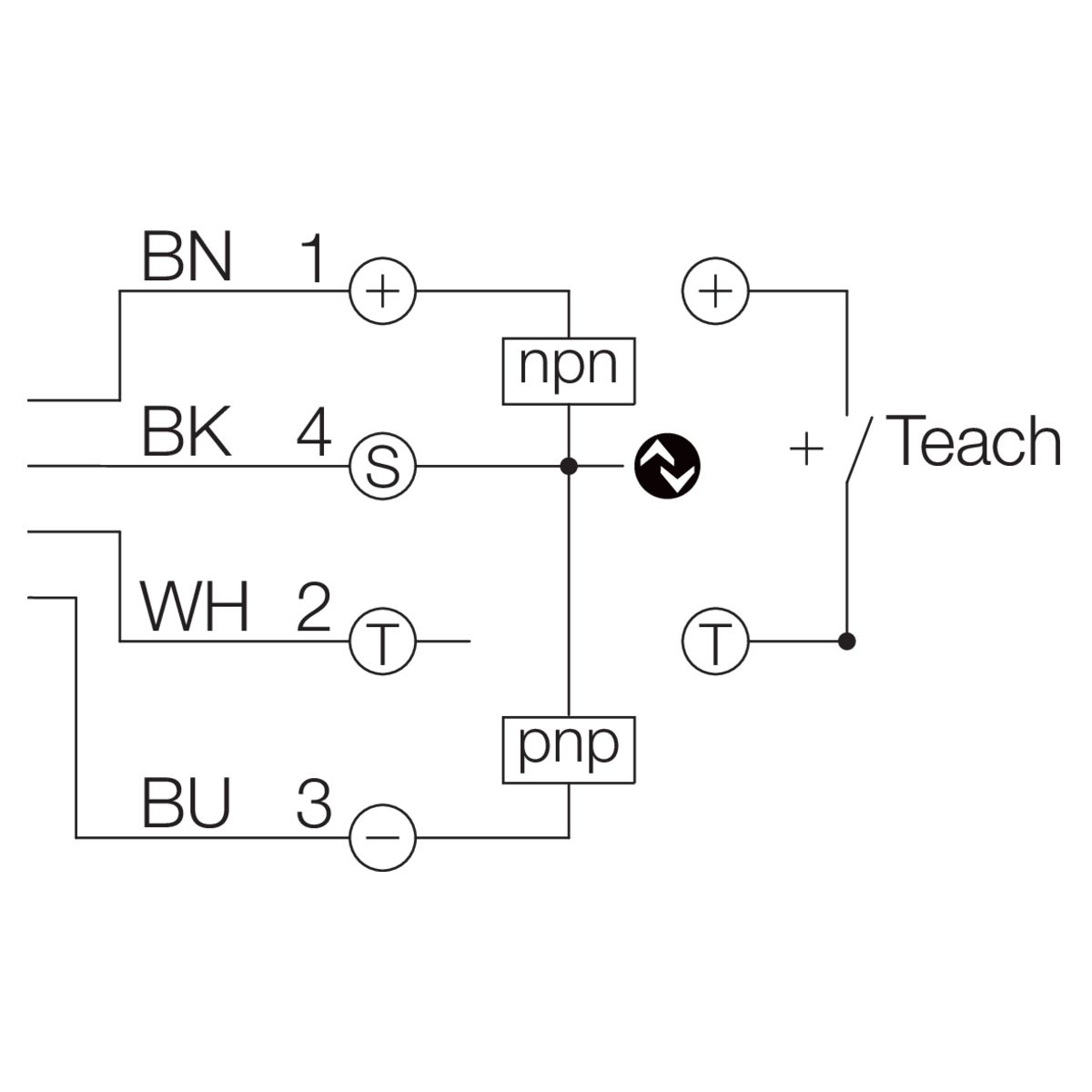

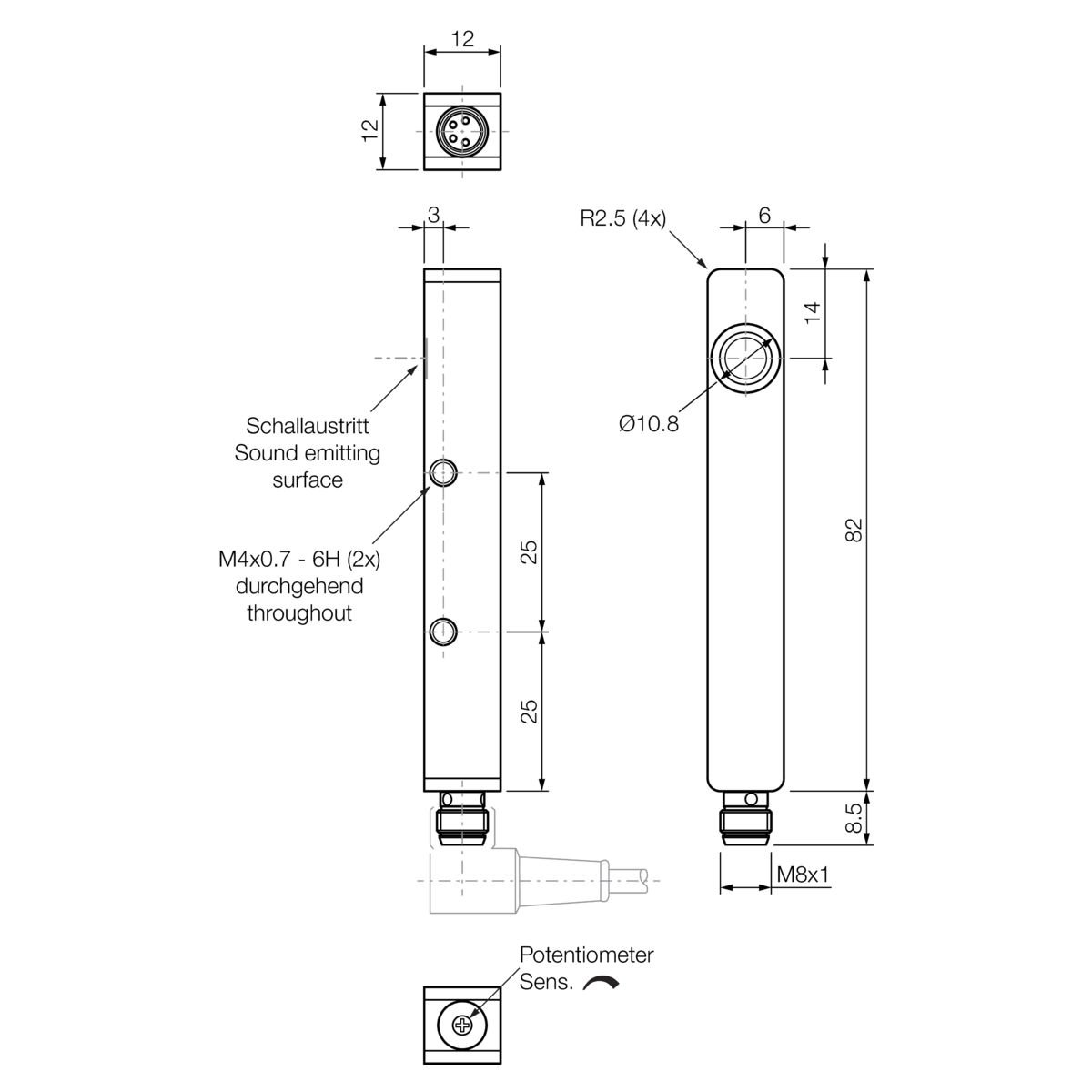

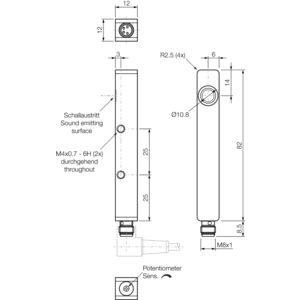

| Adjustment Range | 40.0 mm 400.0 mm Potentiometer |
|---|---|
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Assembly Distance (Sensor To Sensor) | 250.0 mm |
| Characteristics | IO-Link |
| Connection | Connector M8 4-pin |
| Connection Cable | TK ... /4 |
| Design | Cuboid design |
| Evaluation | digital |
| Functions | Deakt.Poti / NO / NC (Pin 2);Out 1, IO-Link (Pin 4) |
| Green | Status 1.0 |
| Housing Dimensions | 12 x 12 x 82 mm |
| Housing length | 82.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Inverse Polarity Protection | Yes |
| Material | Epoxy resin, PUR Transducer surface |
| Max Switch Current | 150.0 mA |
| No Load Current (max.) | 40.0 mA 24.0 V DC |
| Nominal Switching Distance (Sn) | 400.0 mm |
| Operating Principle | Ultrasonic sensor;Ultrasonic barrier;Foreground suppression |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 40.0 ... 400.0mm |
| Readiness Delay (max.) | 300.0 ms |
| Reproducibility | < 0.5 mm |
| Resolution | 1.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 18.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Short Circuit Protection | Yes |
| Standardized Measuring Plate | 100 x 100 mm |
| Switching Frequency | 10 < Hz |
| Switching Hysteresis (max.) | 2.0 mm 20.0 mm Adjustable by IO-Link |
| Switching Output | Push-pull 150.0 mA NO/NC switchable |
| Temperature Drift | 0.2 %/K uncompensated 1.0 < %/Sn compensated |
| Transmission Exit | radial |
| Ultrasonic Frequency | 300.0 kHz |
| Voltage Drop (max.) | 2.0 V |
| Weight | 30.0 g |
| Yellow | Switching output |
