USGT 70/13 IU-B4

Ambient Temperature During Operation	0.0 ... 60.0°C
Analog Output	0.0 V 10.0 V 4.0 mA 20.0 mA

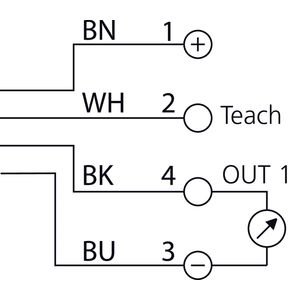

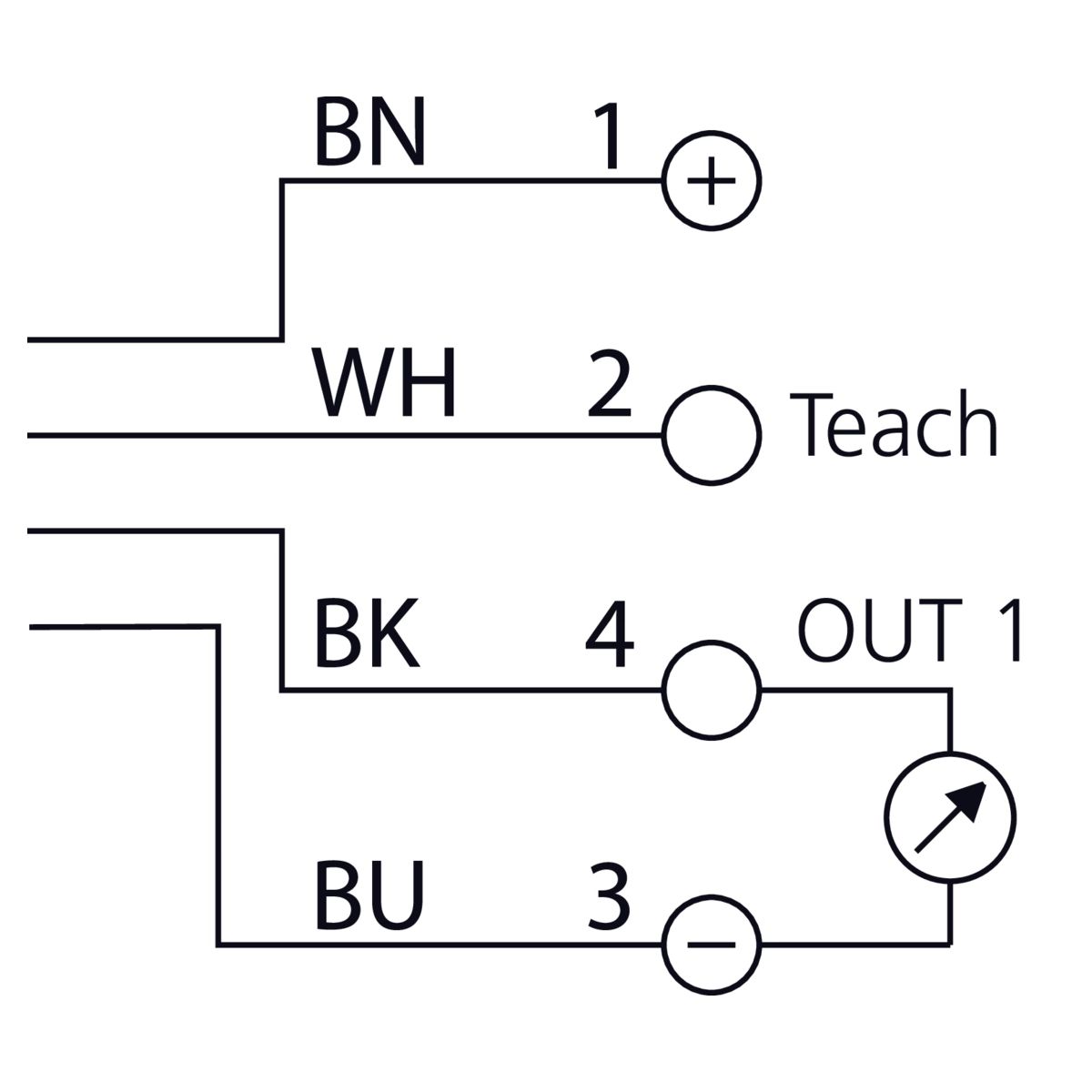

Connection	Connector M12 4-pin
Connection Cable	VKHM ... /4

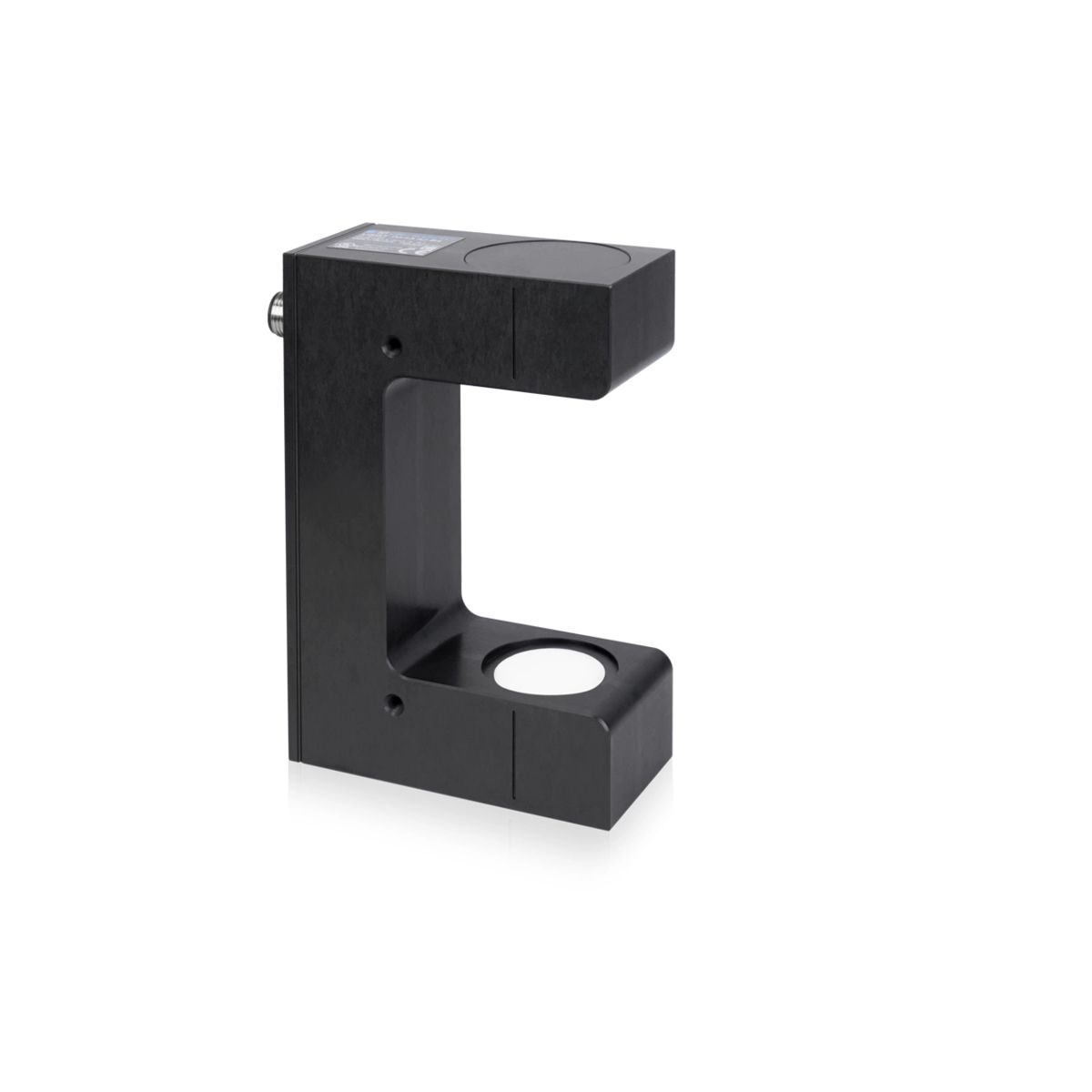

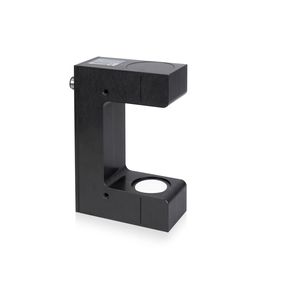

Design	Fork
Evaluation	analog

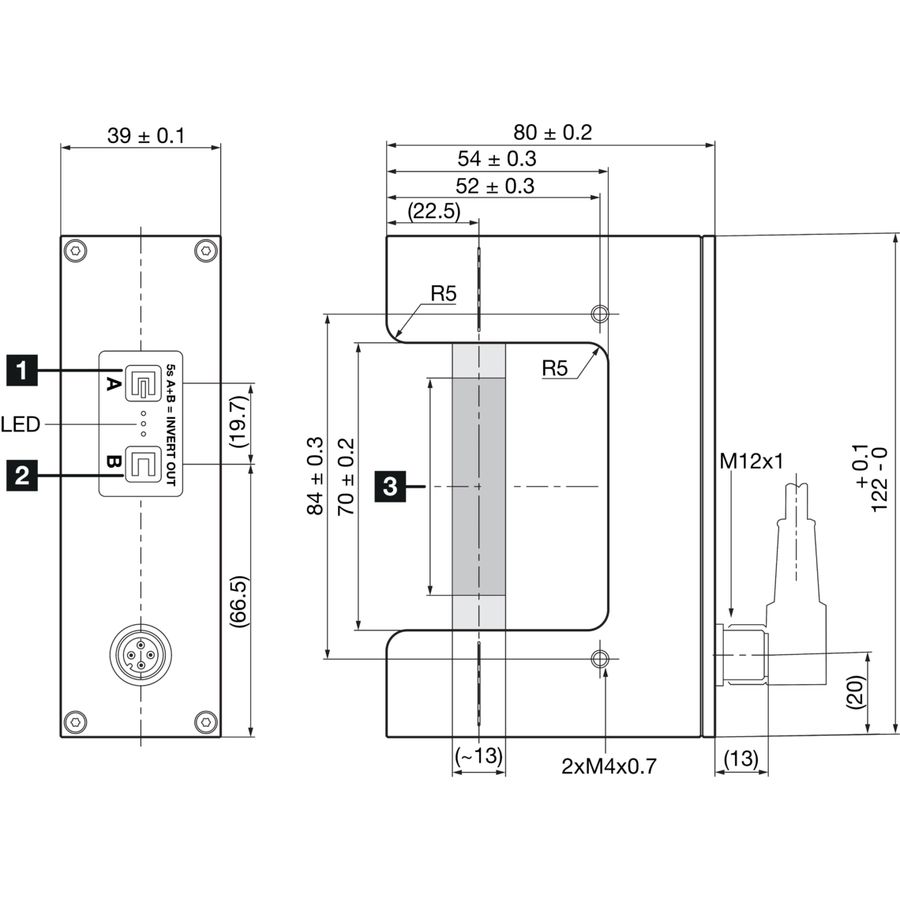

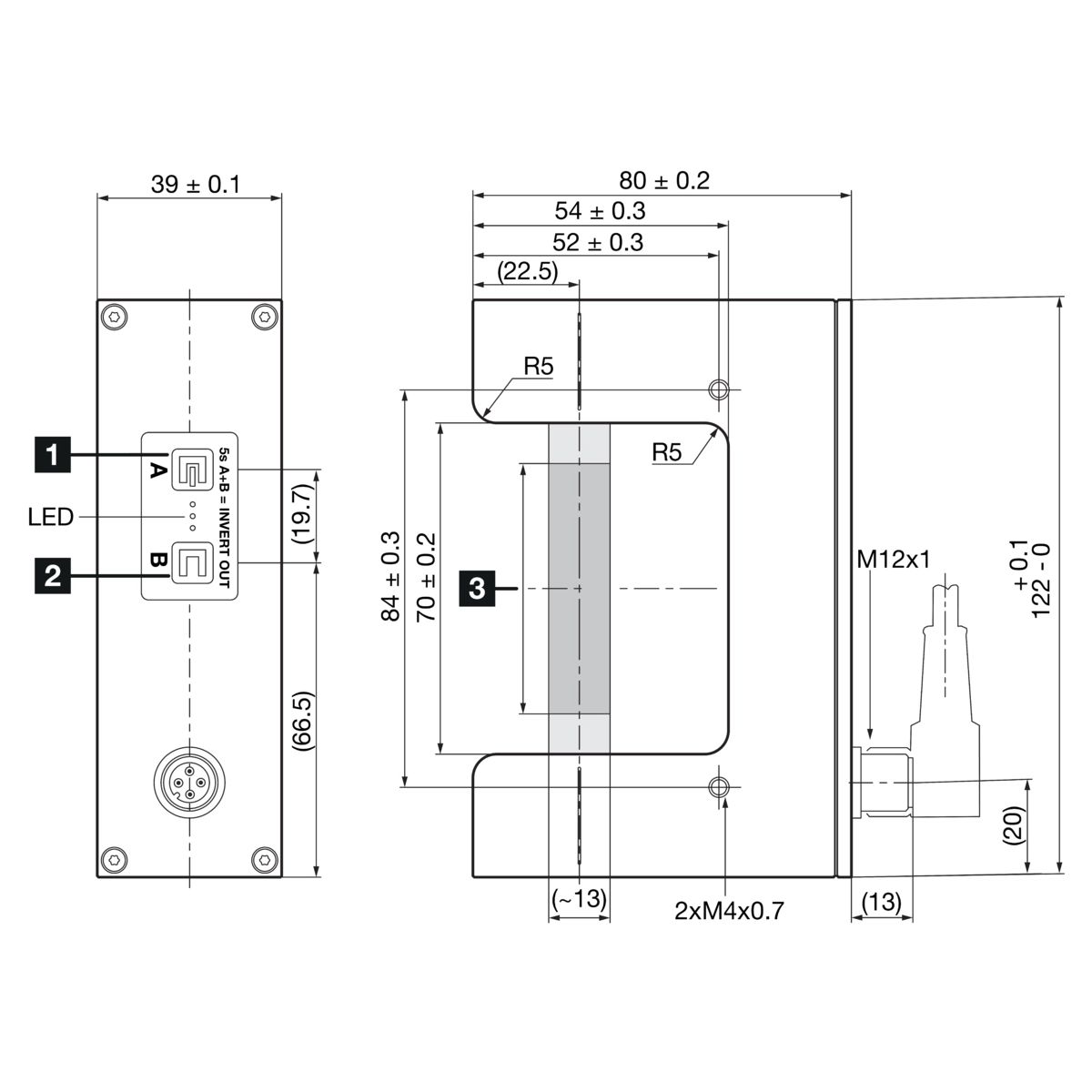

Fork Opening	70.0 mm
Housing Material	Aluminum Black Anodized
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Measuring Frequency	285.0 Hz
Measuring Range	13.0 mm typ.
No Load Current (max.)	40.0 mA 24.0 V DC
Operating Principle	Ultrasonic through-beam sensor
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Reproducibility	± 0.1 mm
Resolution	0.1 mm
Ripple	10.0 %
Sensitivity Adjustment	Keypad
Service Voltage	12 ... 30.0V DC
