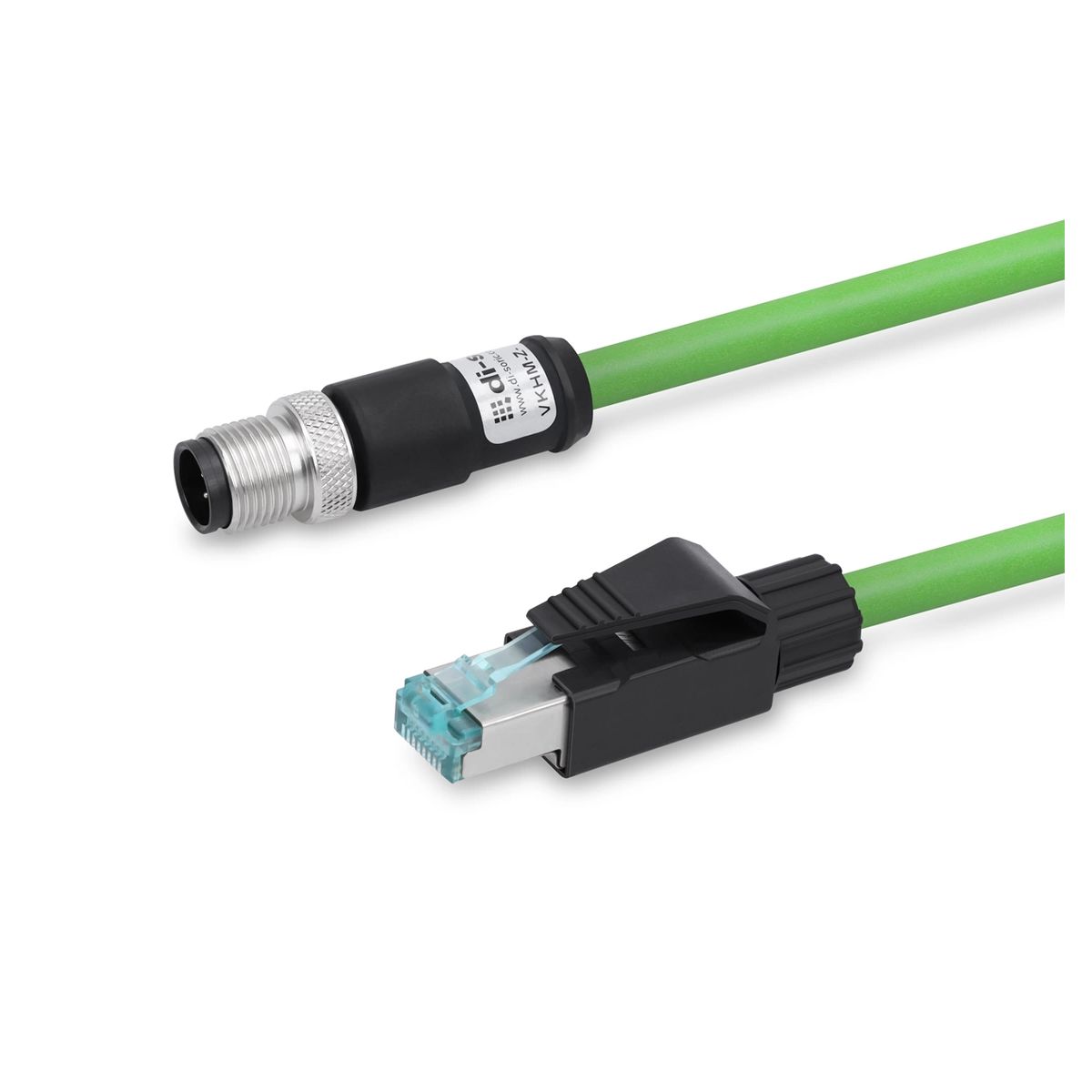

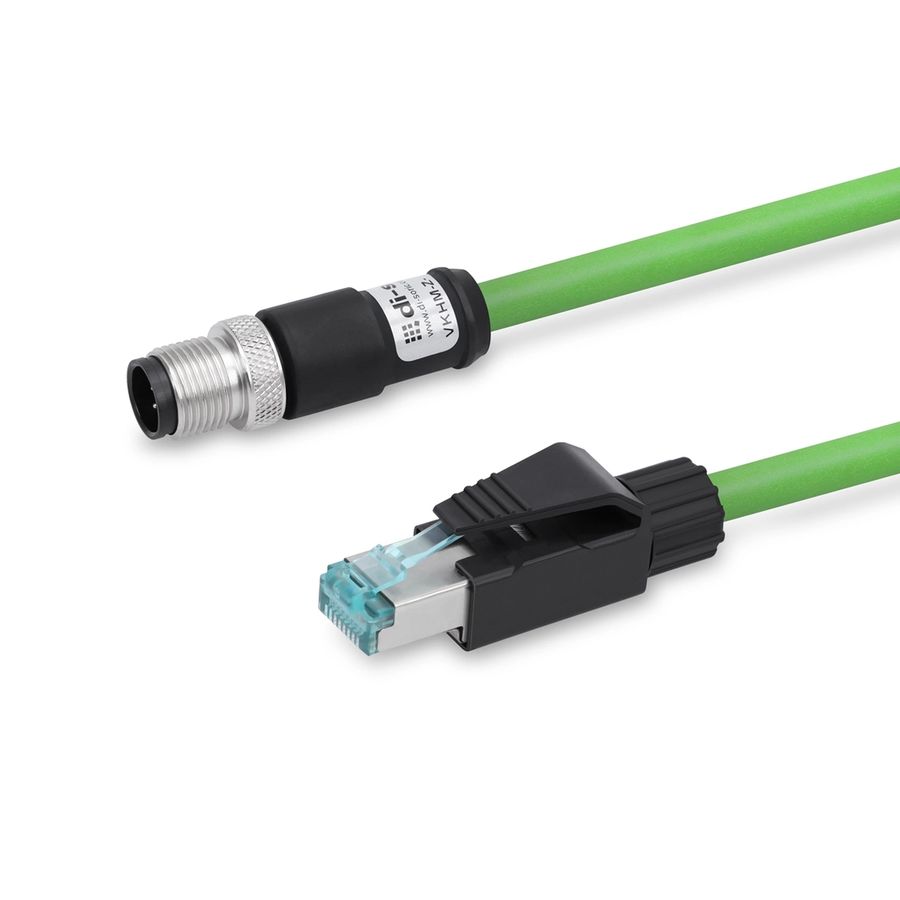

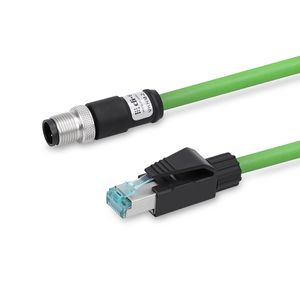

VKHM-Z-10/RJ45
Part Number: VKHM-Z-10/RJ45
Article Number: 206905
Technical Details
| Ambient Temperature During Operation | -40.0 ... 80.0°C |
|---|---|
| Component | Interface cable |
| Connection | Socket M12 8-pin |
| Connection 2 | Connector RJ 45 8-pin |
| Design | Straight / straight |
| Drag Chain Compatible | 1.0 |
| Drag Chain Properties | 10.0 > Mio. |
| Length | 10000.0 mm |
| Max Acceleration | 5.0 m/s² |
| Max Moving Speed | 3.0 m/s |
| Max Torsion | 30.0 ± °/m |
| Min Bending Radius | 7.5 x Ø |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 30.0 |
| Thread | M12 |
| To Be Used For | CS 50 Vision Sensors |
