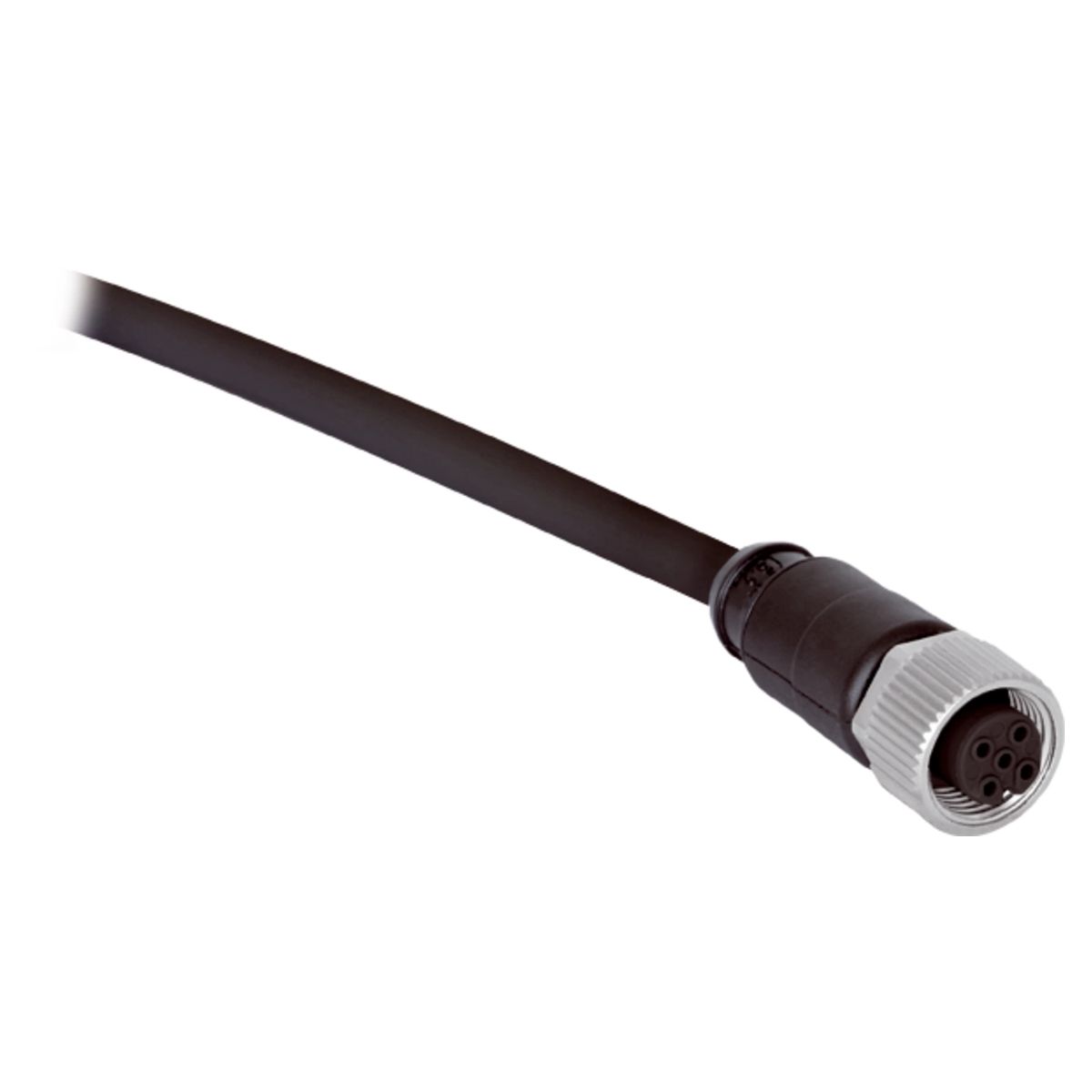

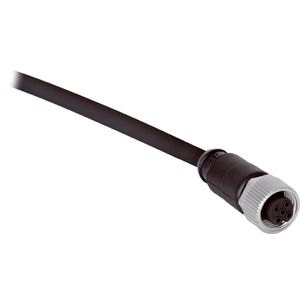

VKHM-Z-2.5/5-SB
Part Number: VKHM-Z-2.5/5-SB
Article Number: 213091
Technical Details
| Ambient Temperature During Operation | -25.0 ... 85.0°C |
|---|---|
| Characteristics | Metal nut |
| Connection | Socket M12 5-pin |
| Cross Section | 5.0 |
| Design | Straight / open cable end |
| Diameter | 4.8 mm |
| Drag Chain Compatible | 1.0 |
| Length | 2500.0 mm |
| Min Bending Radius | 48 mm |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 66K;IP 67 |
| Sensitivity Adjustment | No |
| Service Voltage | 125.0 |
| Thread | M12 |
