VKHM-Z/VSM-Z/P4
Part Number: VKHM-Z/VSM-Z/P4
Article Number: 202856
Technical Details
| Ambient Temperature During Operation | -20.0 ... 70.0°C |
|---|---|
| Application | Digital signal |

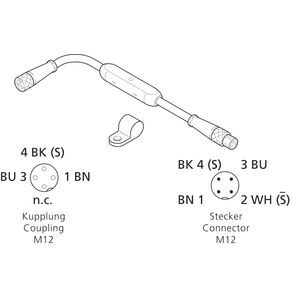

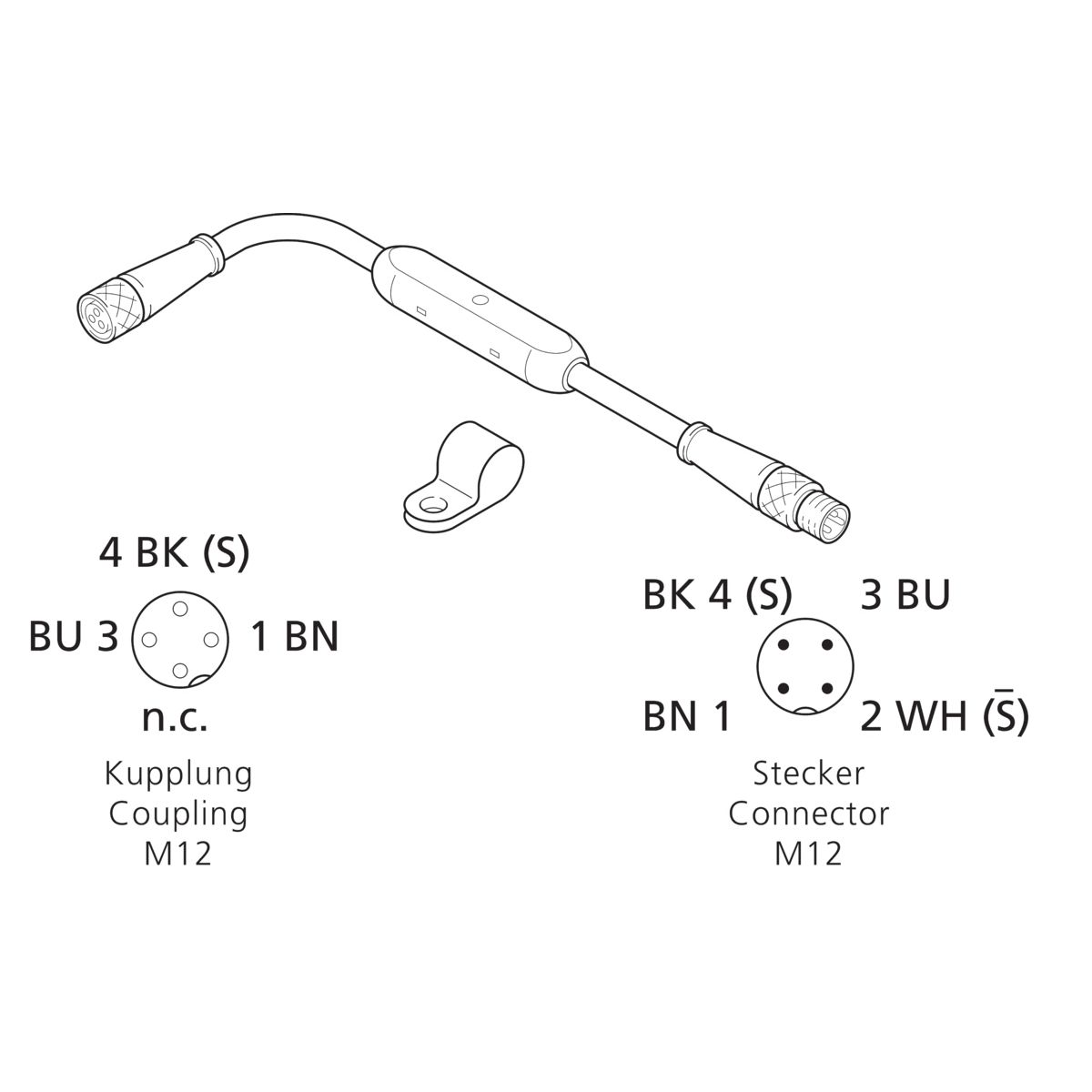

| Connection | Pigtail;Coupling M12 4-pin |
| Connection 2 | Pigtail;Connector M12 3-pin |
| Current Carrying Capacity | 200.0 mA short-circuit-proof |
| Function Selection | pnp |
| Housing Material | Plastic |
| No Load Current (max.) | 20.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 35.0V DC |
| Switching Frequency | 3500.0 Hz |
| Switching Output | pnp 2.0 |
| Thread | M12 x 1 |
