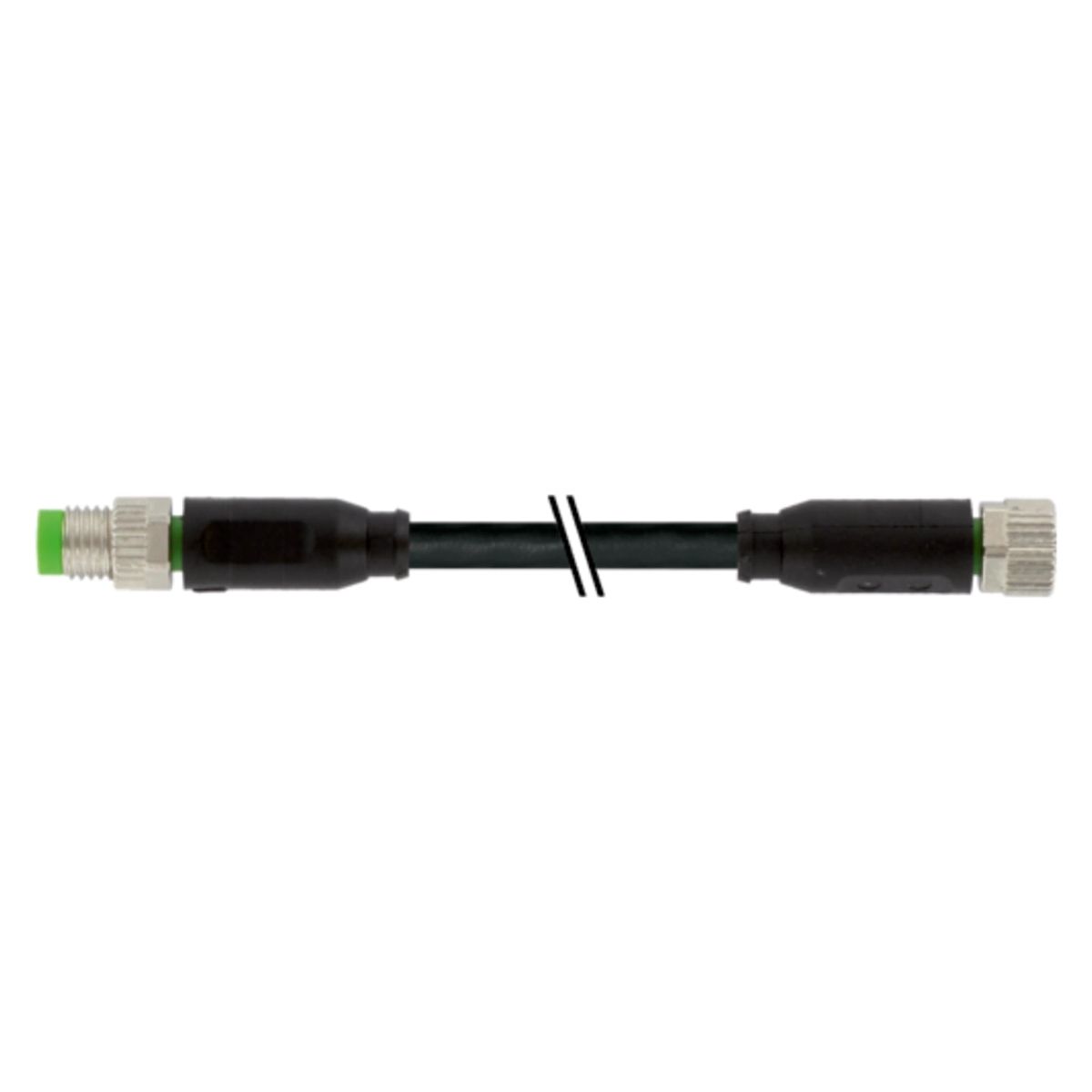

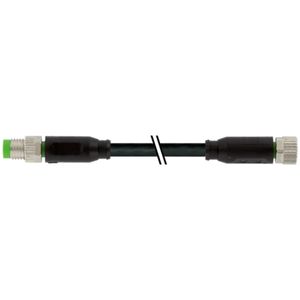

VL-TZSA-TZKA-4PBK-750X
Part Number: VL-TZSA-TZKA-4PBK-750X
Article Number: 214742
Technical Details
| Characteristics | Metal nut |
|---|---|

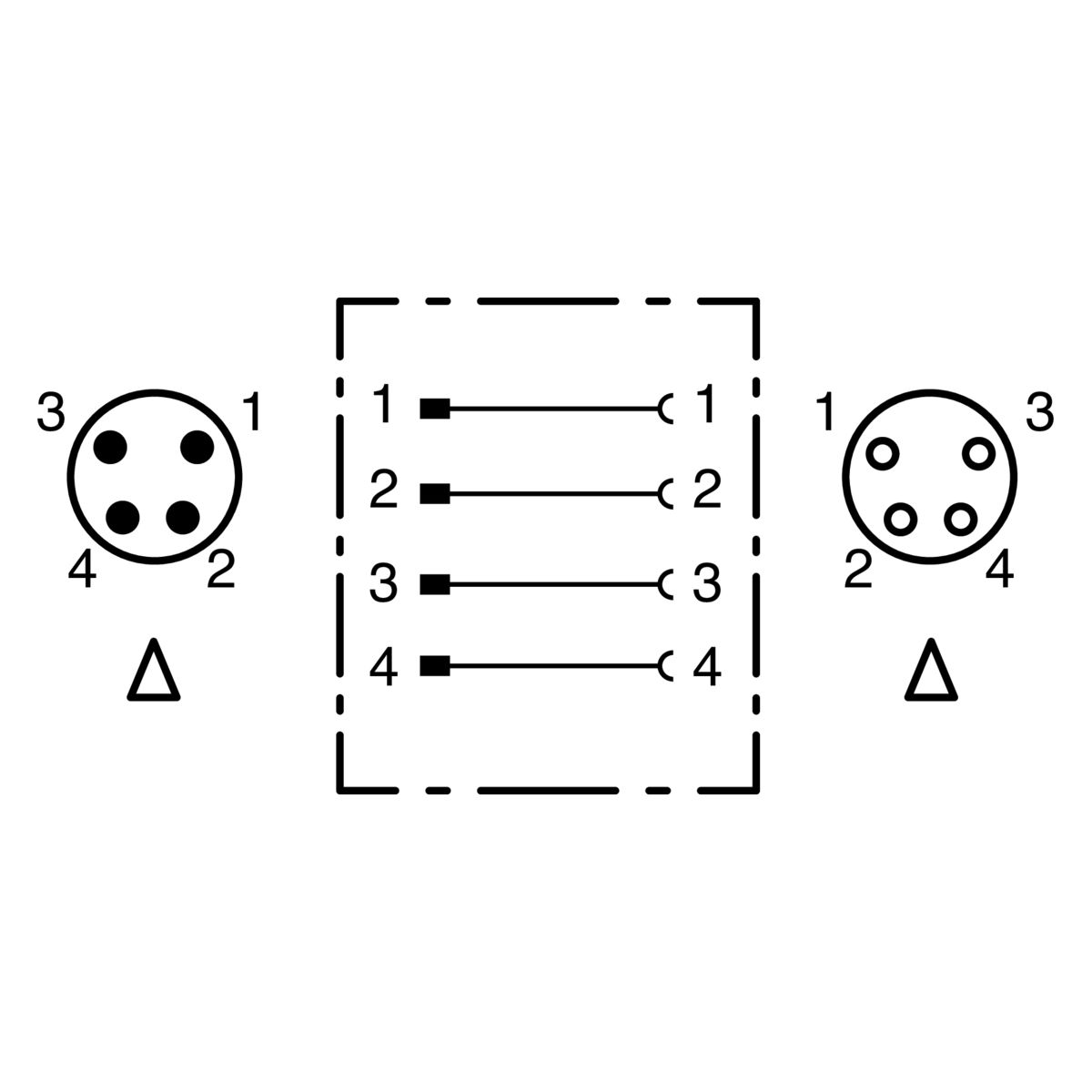

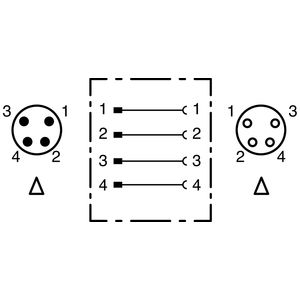

| Connection | Connector M8 4-pin |
| Connection 2 | Socket M8 4-pin |
| Cross Section | 0.25 x 0.25 mm 4.0 |
| Design | Straight / straight |
| Diameter | 4.8 mm |

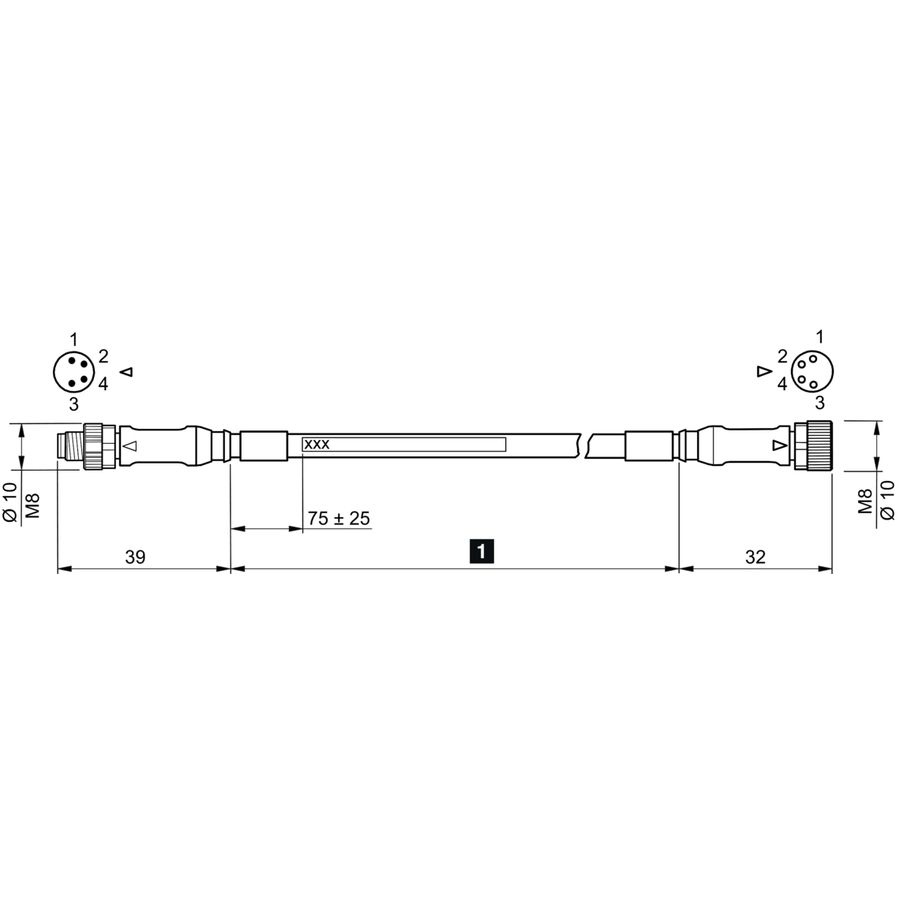

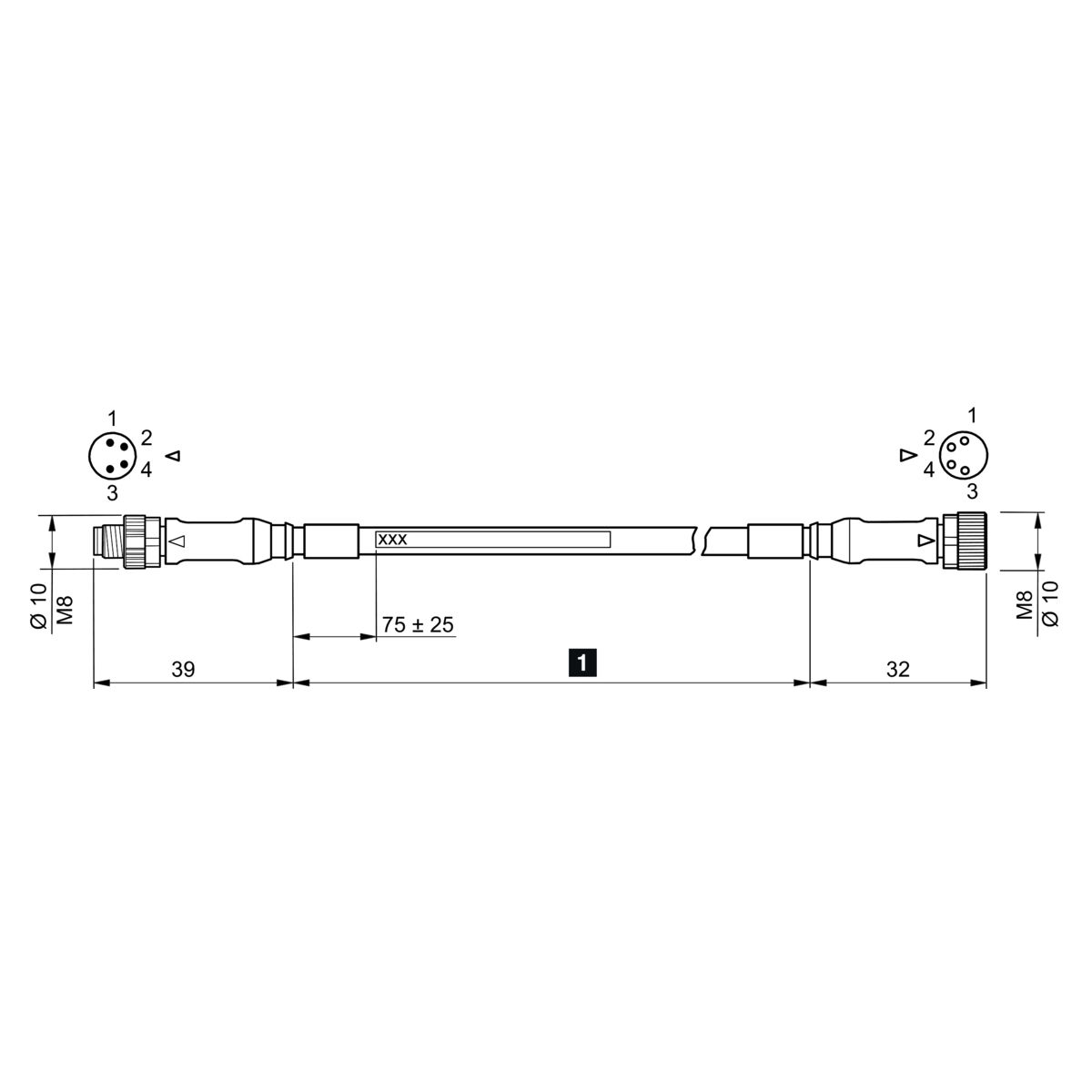

| Length | 7500.0 mm |
| Material | Die-cast zinc;Die-cast zinc Socket;Connector |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 66K;IP 67 |
| Service Voltage | 50;60 |
| Thread | M8 x 1 |
| Tightening Torque (max.) | 0.4 Nm |
| Weight | 251.0 g |
