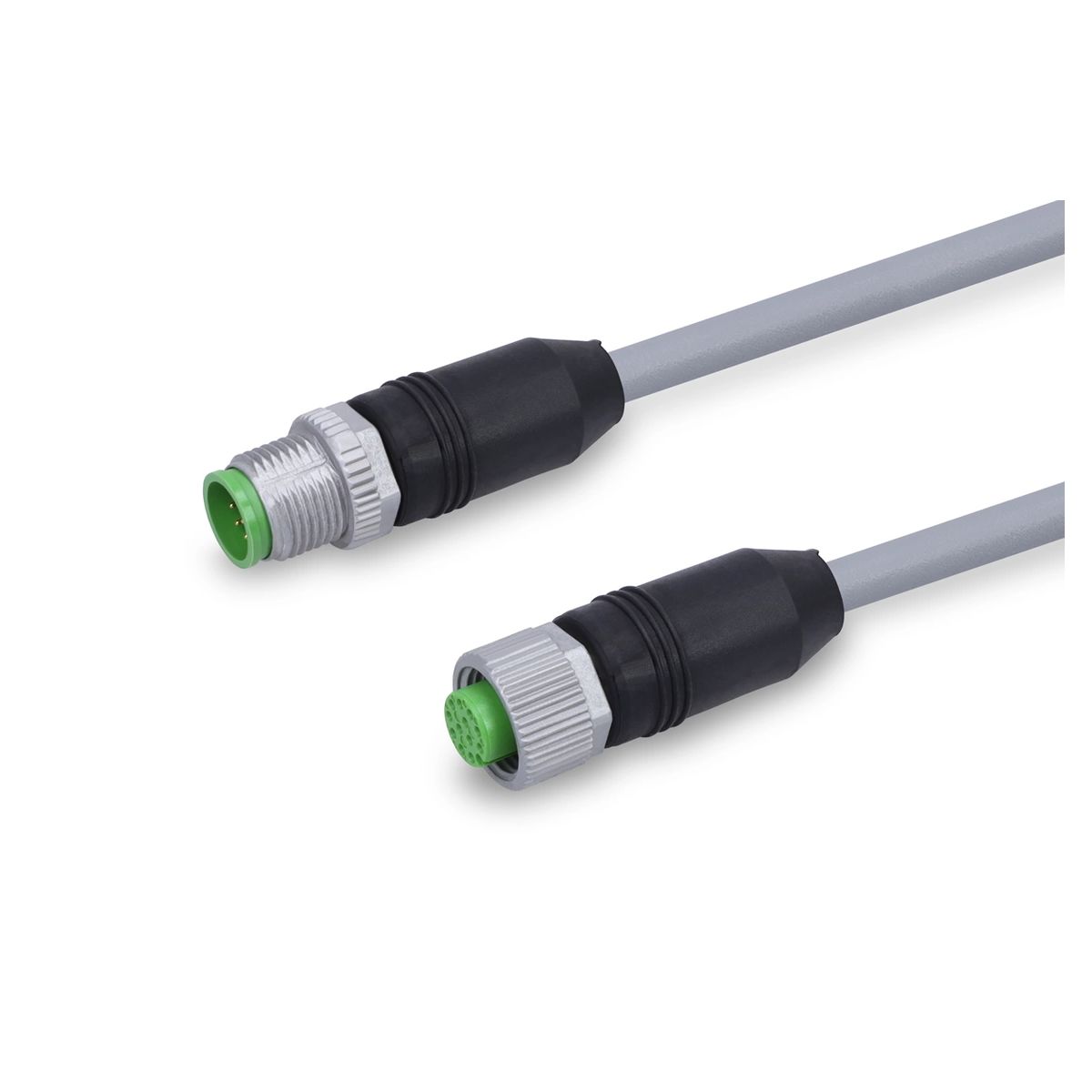

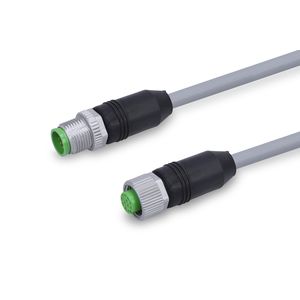

VSHM-Z-0.6/VKM-Z/4
Part Number: VSHM-Z-0.6/VKM-Z/4
Article Number: 203253
Technical Details
| Ambient Temperature During Operation | -5.0 ... 80.0°C |
|---|---|
| Component | Connection cable |

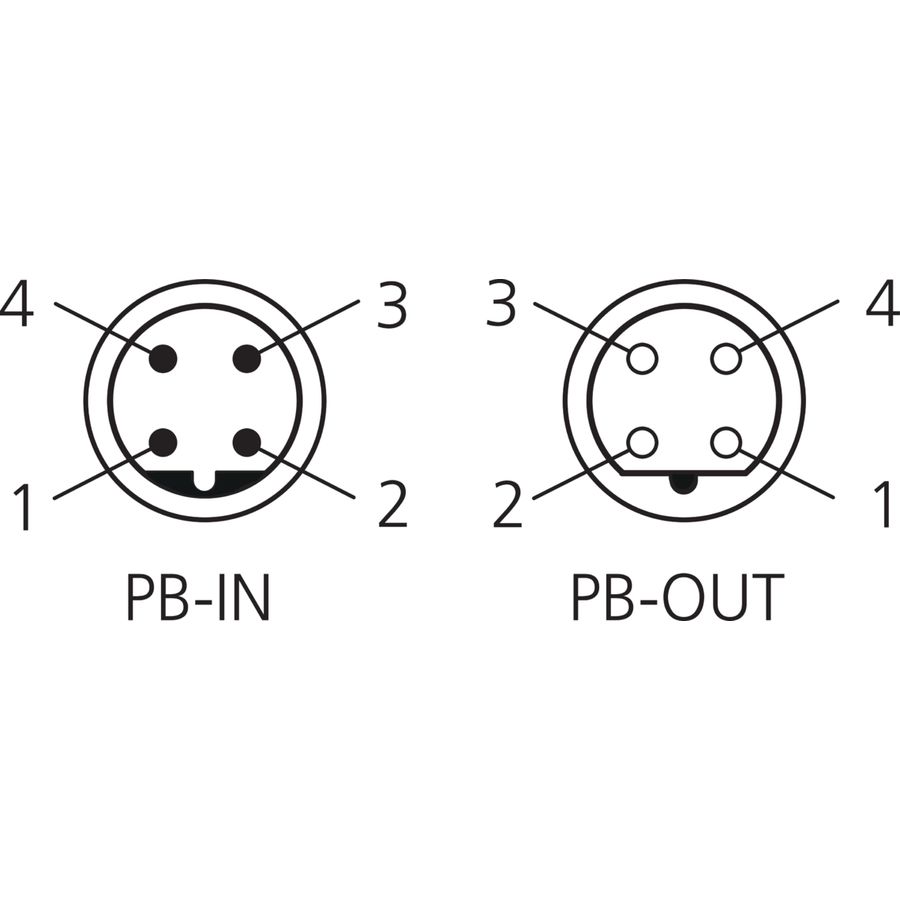

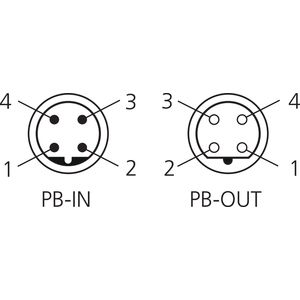

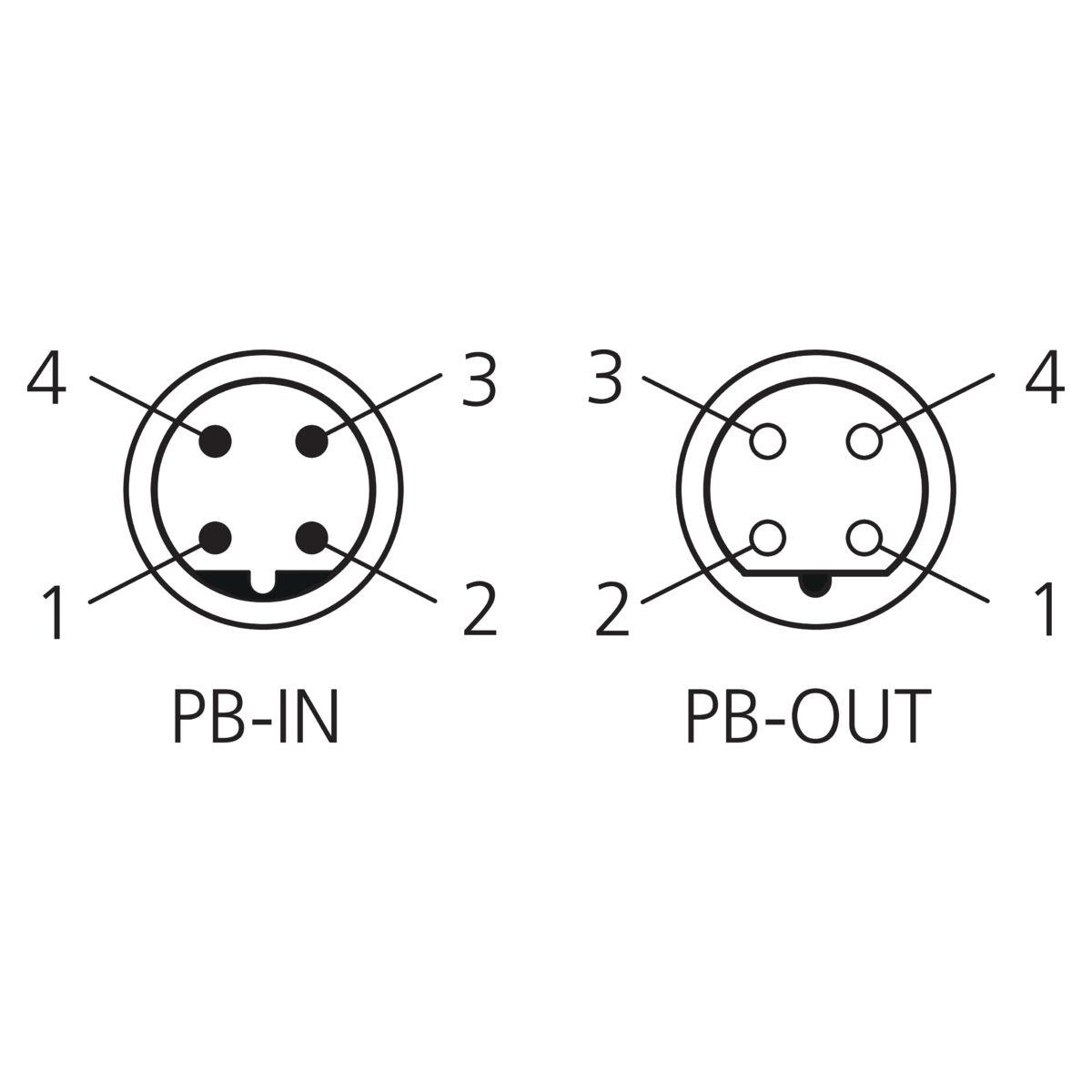

| Connection | Connector M12 4-pin |
| Connection 2 | Socket M12 4-pin |
| Cross Section | 0.34 x 0.34 mm 4.0 |
| Design | Straight / straight |
| Drag Chain Compatible | 1.0 |
| Drag Chain Properties | 2.0 > Mio. |
| Length | 600.0 mm |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 at tightening torque 0.6 Nm |
| Service Voltage | 250 |
| To Be Used For | Device plug M12, 4-pin |
