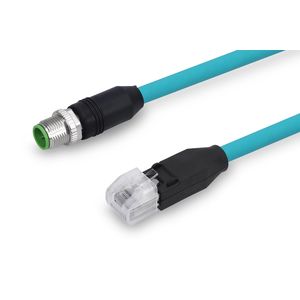

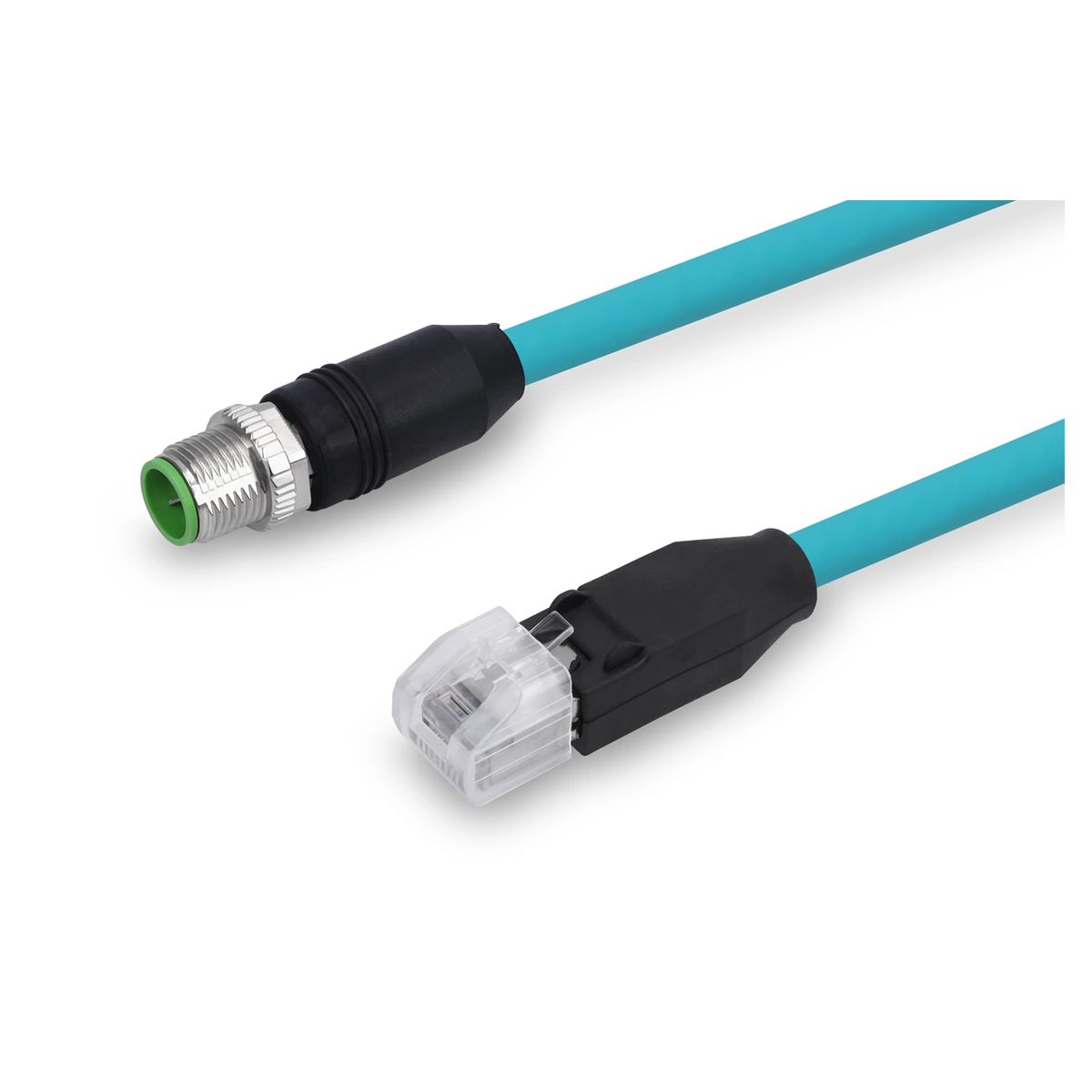

VSSM-Z-5/RJ45-X
Part Number: VSSM-Z-5/RJ45-X
Article Number: 213119
Technical Details
| Ambient Temperature During Operation | -20.0 ... 80.0°C |
|---|---|
| Connection | Connector M12 8-pin |
| Connection 2 | Connector RJ 45 8-pin |
| Design | Straight / straight |
| Diameter | 7.4 mm |
| Drag Chain Compatible | 0.0 |
| Drag Chain Properties | 10.0 < Mio. (25°C) |
| Length | 5000.0 mm |
| Min Bending Radius | 10 x Ø |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 20 |
| Service Voltage | 30.0 |
| Thread | M12 x 1 |
| To Be Used For | CS 60 Vision Sensors |
